NGX10R-AHXNXQ (2016)
Toyota C-Hr (Jpp)
Production
Dec 2016
-
Oct 2019
Engine
8NRFTS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(1612- )NGX10,ZYX10
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51151B - REINFORCEMENT, SIDE RAIL, NO.1 RH | ||||
| 51151-10010 |
NGX10,50 |
1 | ||
| 51152A - REINFORCEMENT, SIDE RAIL, NO.1 LH | ||||
| 51151-10010 |
NGX10,50 |
1 | ||
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-10122 |
NGX10,50 |
1 | ||
| 51201-10120 |
NGX10,50 |
1 | ||
| 51201-10121 |
NGX10,50 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-10010 |
NGX10 |
1 | ||
| 51206-10011 |
NGX10 |
1 | ||
| 51228G - PLATE, FRONT SUSPENSION MEMBER | ||||
| 51228-47010 |
NGX10,50 |
2 | ||
| 51228G - PLATE, FRONT SUSPENSION MEMBER | ||||
| 51228-47010 |
NGX10,50 |
2 | ||
| 51249 - DAMPER, REAR SUSPENSION MEMBER | ||||
| 51249-10010 |
NGX10 |
1 | ||
| 51284 - COVER, REAR SUSPENSION MEMBER HOLE | ||||
| 51284-47010 |
NGX10,50 |
4 | ||
| 51284 - COVER, REAR SUSPENSION MEMBER HOLE | ||||
| 51284-47010 |
NGX10,50 |
4 | ||
| 51284 - COVER, REAR SUSPENSION MEMBER HOLE | ||||
| 51284-47010 |
NGX10,50 |
4 | ||
| 51284 - COVER, REAR SUSPENSION MEMBER HOLE | ||||
| 51284-47010 |
NGX10,50 |
4 | ||
| Common parts | ||||
| 90116-16004 | ||||
| 90119-14170 | ||||
| 90119-14173 | ||||
| 90119-14174 | ||||
| 90119-16026 | ||||
| 90178-16008 | ||||
| 91673-B1030 | ||||
| 91674-A1028 | ||||

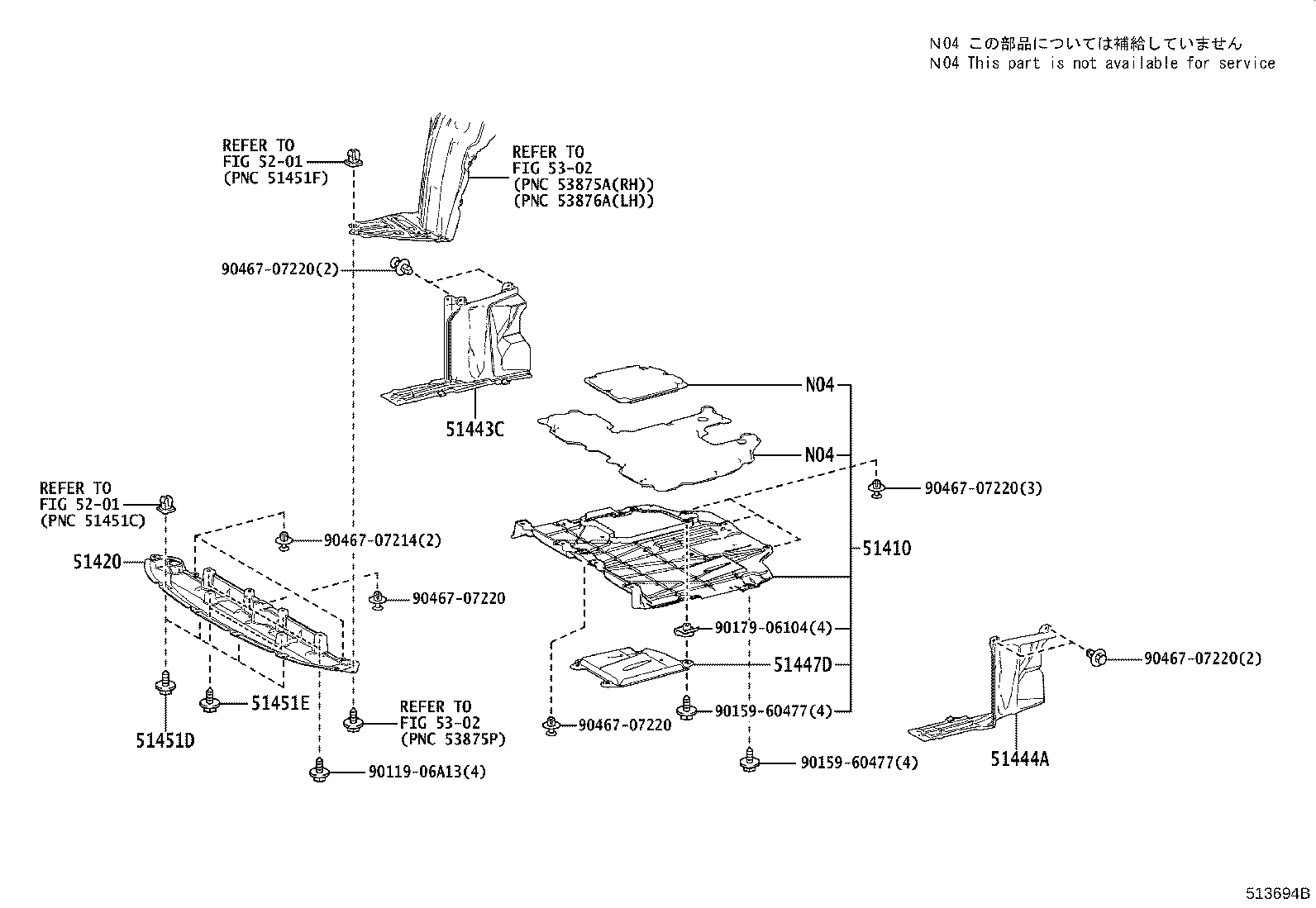

ILLUST NO. 2 OF 2(1612-1910)NGX10
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51410 - COVER ASSY, ENGINE UNDER, NO.1 | ||||
| 51410-10010 |
NGX10 |
1 | ||
| 51420 - COVER ASSY, ENGINE UNDER, NO.2 | ||||
| 51420-10010 |
NGX10,50 |
1 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-10020 |
NGX10,50 |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-10020 |
NGX10,50 |
1 | ||
| 51447D - COVER, ENGINE UNDER, NO.4 CENTER | ||||
| 51447-10040 |
NGX10,50 |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60477 |
NGX10,50 |
4 | ||
| 51451E - SCREW, NO.2 | ||||
| 90159-60477 |
NGX10,50 |
2 | ||
| Common parts | ||||
| 90119-06A13 | ||||
| 90159-60477 | ||||
| 90179-06104 | ||||
| 90467-07214 | ||||
| 90467-07220 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5302 | ||||
