NGX10R-AHFNXQ (2016)
Toyota C-Hr (Jpp)
Production
Dec 2016
-
Oct 2019
Engine
8NRFTS
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1612- )

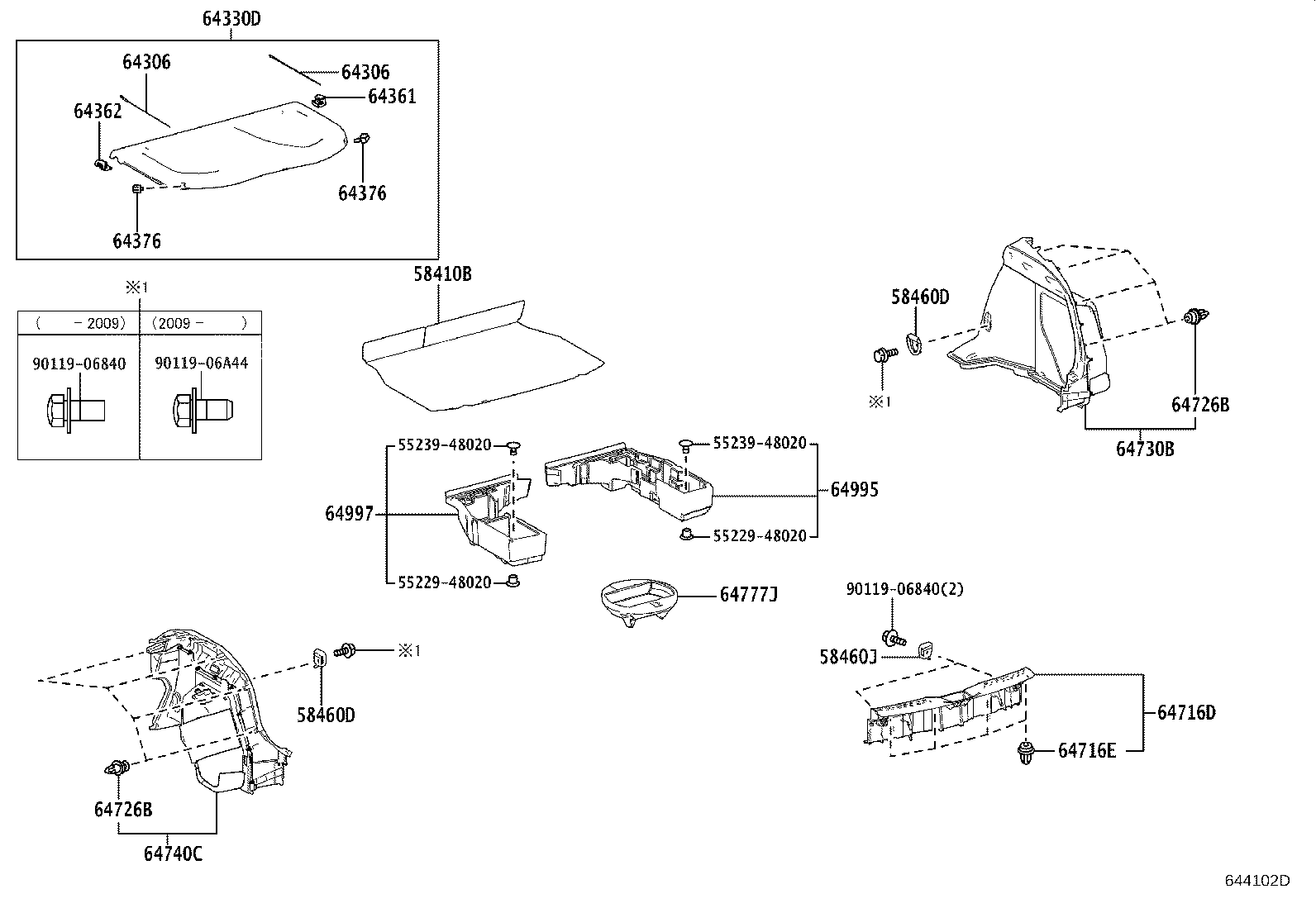

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58410B - BOARD ASSY, DECK | ||||
| 58410-10030C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NGX10,50 |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NGX10,50 |
2 | ||
| 58460J - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NGX10,50 |
2 | ||
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-10070 |
NGX10,50 |
2 | ||
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-10070 |
NGX10,50 |
2 | ||
| 64330D - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-10270C2 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 64330-10271C2 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 64361 - HINGE, PACKAGE TRAY TRIM, RH | ||||
| 64361-10021C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 64361-10020C1 |
NGX10,50 TRIM2# |
1 | ||
| 64362 - HINGE, PACKAGE TRAY TRIM, LH | ||||
| 64362-10041C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 64362-10040C1 |
NGX10,50 TRIM2# |
1 | ||
| 64376 - SPACER, PACKAGE TRAY TRIM, NO.2 | ||||
| 64376-12020 |
NGX10,50 |
2 | ||
| 64376 - SPACER, PACKAGE TRAY TRIM, NO.2 | ||||
| 64376-12020 |
NGX10,50 |
2 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-10090C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-10161 |
NGX10,50 |
4 | ||
| 64726B - CLIP, DECK REAR TRIM | ||||
| 90467-10161 |
NGX10,50 |
8 | ||
| 64726B - CLIP, DECK REAR TRIM | ||||
| 90467-10161 |
NGX10,50 |
8 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-10191C2 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 64730-10190C2 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-10120C2 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 64740-10121C2 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-10020 |
NGX10,50 |
1 | ||
| 64995 - BOX, DECK FLOOR, RH | ||||
| 64995-10010 |
NGX10,50 |
1 | ||
| 64997 - BOX, DECK FLOOR, LH | ||||
| 64997-10010 |
NGX10,50 |
1 | ||
| Common parts | ||||
| 55229-48020 | ||||
| 55239-48020 | ||||
| 90119-06840 | ||||
| 90119-06A44 | ||||
