NGX10R-AHFNXQ (2016)
Toyota C-Hr (Jpp)

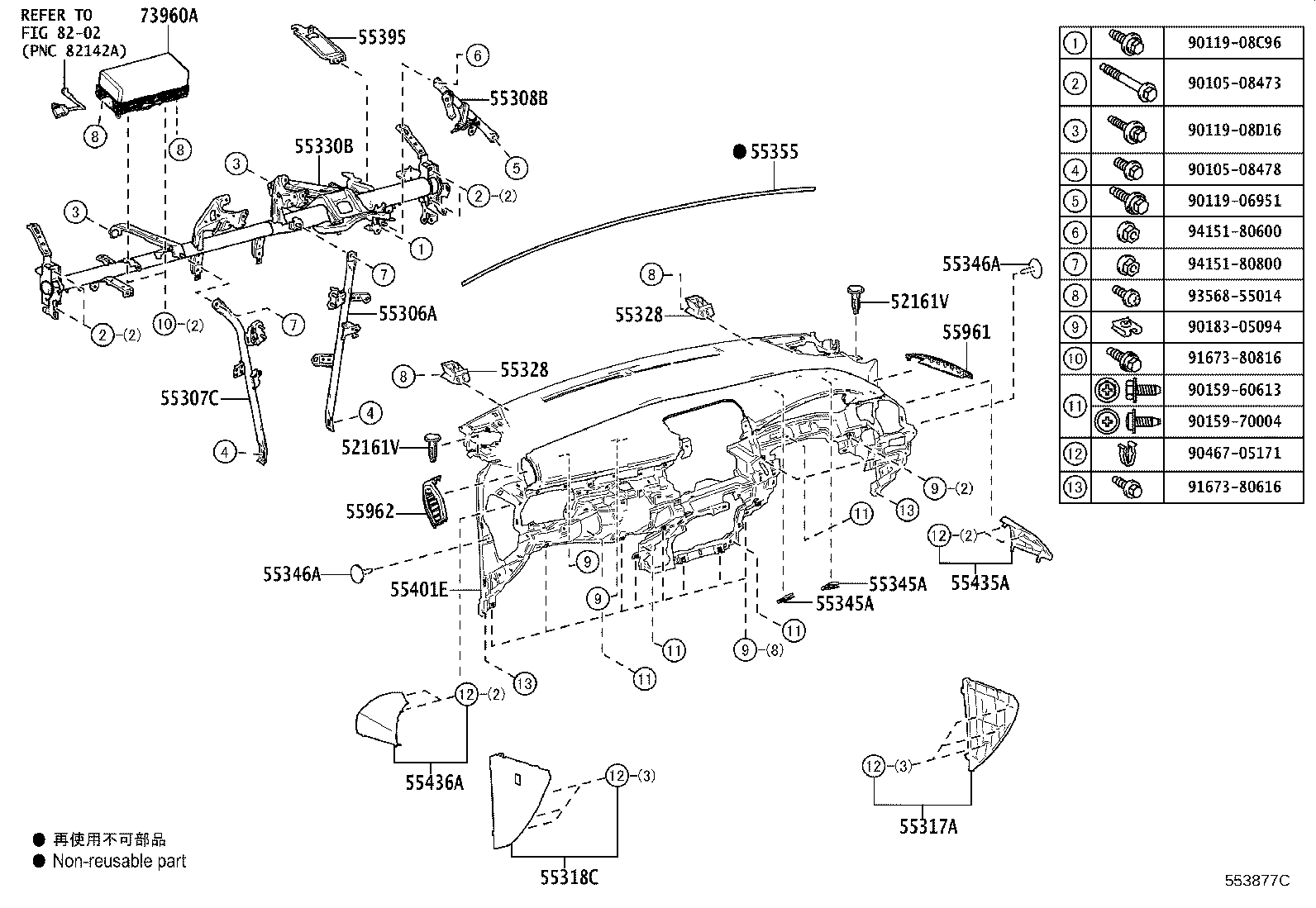

ILLUST NO. 1 OF 2(1612-1910)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
NGX10,50 |
2 | ||
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
NGX10,50 |
2 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-10050 |
NGX10,50 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-10060 |
NGX10,50 |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-10130 |
NGX10,50 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-10010C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-10070C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-10040 |
NGX10,50 |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-10040 |
NGX10,50 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-10200 |
NGX10,50 |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-12060 |
NGX10,50 |
2 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-12060 |
NGX10,50 |
2 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-05161C9 |
NGX10,50 BLACK |
2 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-05161C9 |
NGX10,50 BLACK |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-10020 |
NGX10,50 |
1 | ||
| 55395 - BRACKET, INSTRUMENT PANEL TO PEDAL | ||||
| 55395-10010 |
NGX10,50 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-10270C4 |
NGX10,50..ACTV BLACK,TRIM2# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-10150C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-10010C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-10030C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-10030C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-10020 |
NGX10,50 |
1 | ||
| Common parts | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90119-06951 | ||||
| 90119-08C96 | ||||
| 90119-08D16 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

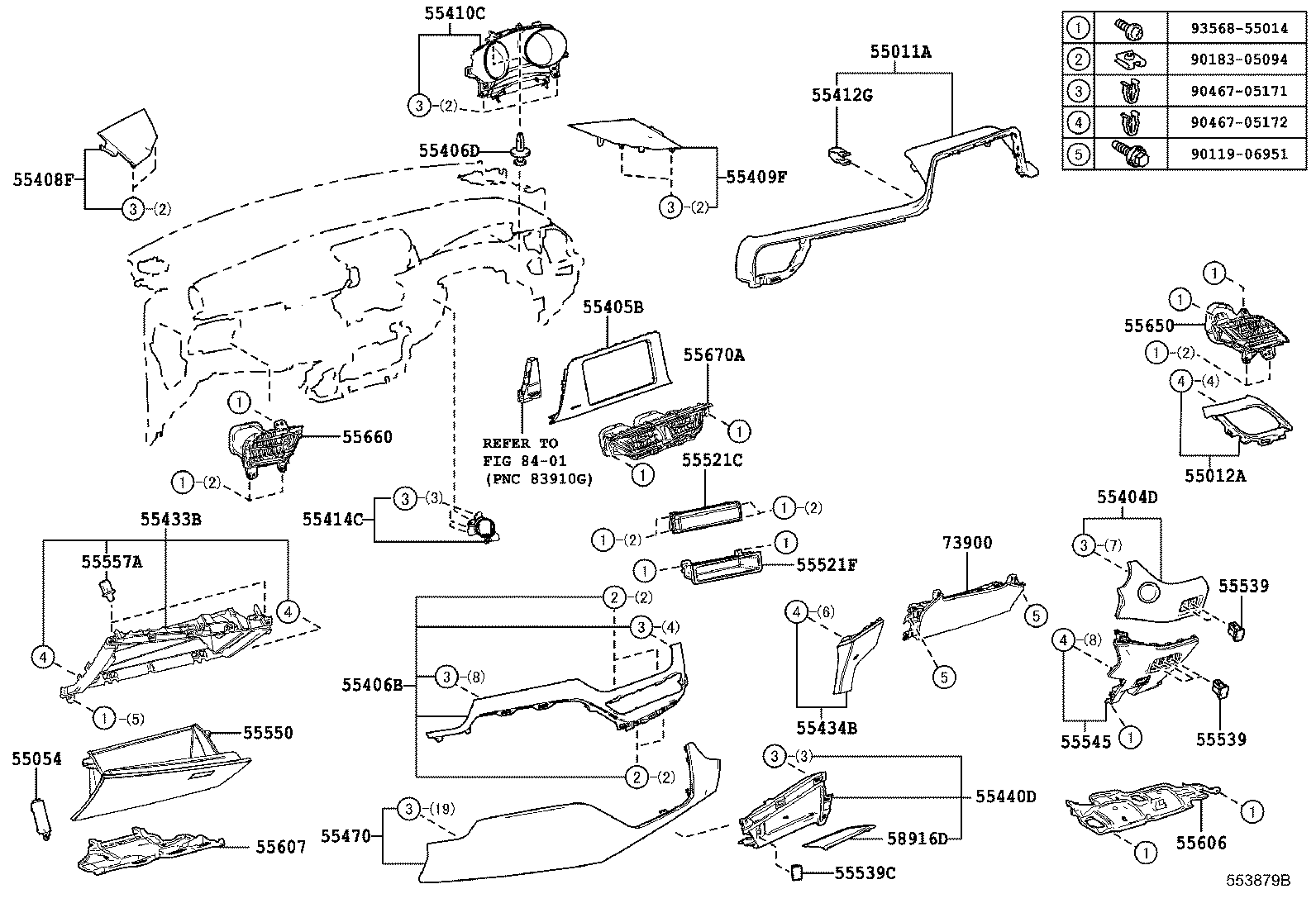

ILLUST NO. 2 OF 2(1612-1910)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-10180B0 |
NGX10,50..ACTV GUN METAL,TRIM2# |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-10010B0 |
NGX10,50..ACTV GUN METAL,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
NGX10,50 |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-10170C1 |
NGX10,50..ACTV BLACK,TRIM2# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-10340 |
NGX10,50 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-10030 |
NGX10,50 |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-06165C3 |
NGX10,50 BLACK |
2 | ||
| 55328-10070C0 |
NGX10,50 BLACK,TRIM2# |
2 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-10040C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-10040C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-10130 |
NGX10,50 |
1 | ||
| 55412G - CLIP(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL) | ||||
| 90467-05172 |
NGX10,50 |
9 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-10040C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-10030C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-10010 |
NGX10,50 |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-10010C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-12190 |
NGX10,50 |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-52020 |
NGX10,50 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
NGX10,50 BLACK |
1 | ||
| 55539-52060C4 |
NGX10,50 BLACK |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-10200C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-10120C0 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 55550-10100C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-10040 |
NGX10,50 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-10010 |
NGX10,50..ACTV |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-10010 |
NGX10,50..ACTV |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-10140 |
NGX10,50 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-10060 |
NGX10,50 |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-10030 |
NGX10,50 |
1 | ||
| 58916D - MAT, BOX BOTTOM | ||||
| 58916-10020 |
NGX10,50 |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-10010C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
