NGX10R-AHFNXQ (2016)

Toyota C-Hr (Jpp)

Production Dec 2016 - Oct 2019
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1612- )8NRFTS..NGX10

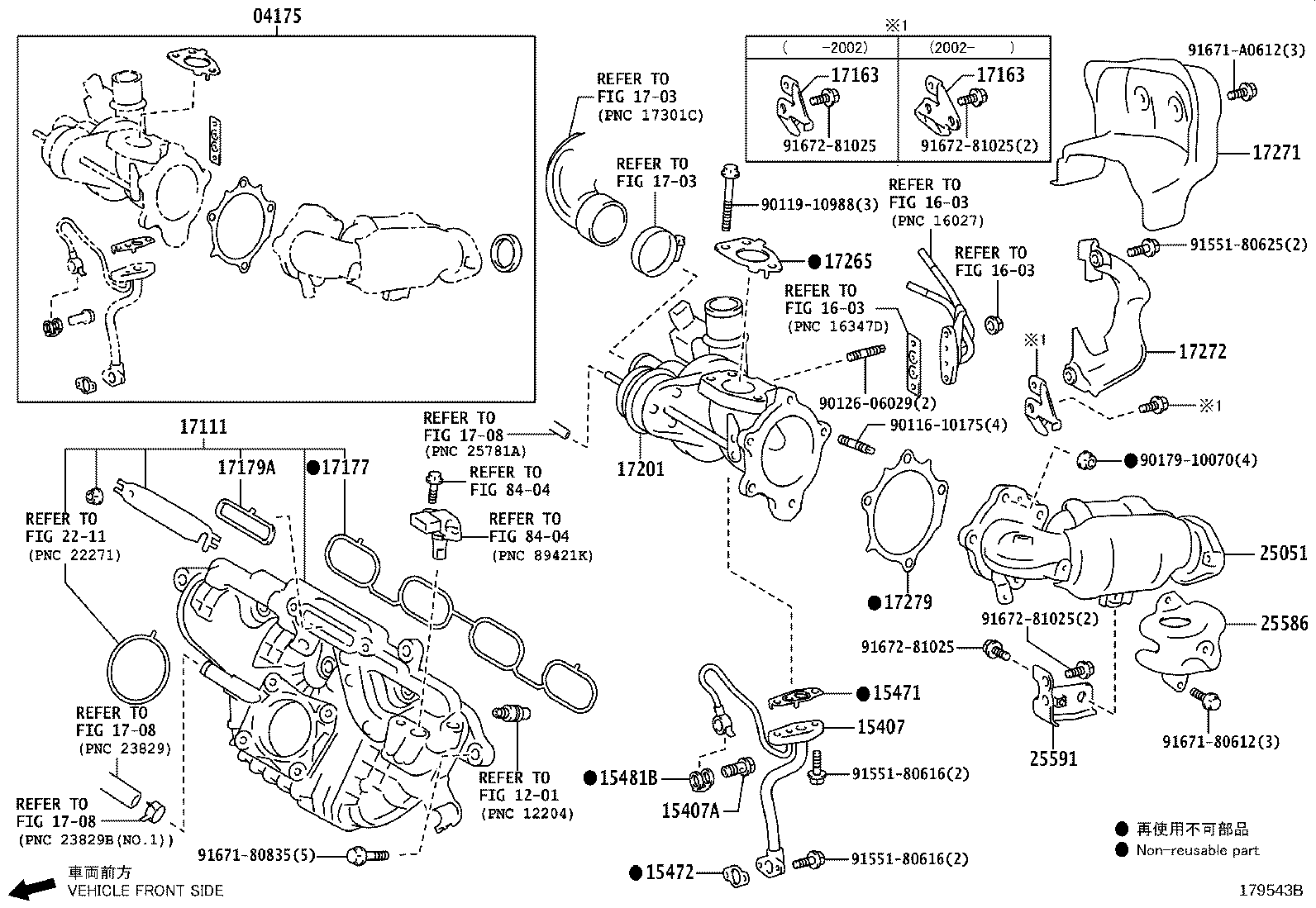

Click highlighted areas on diagram

diagram 04175 1201 15407 15407A 15471 15472 15481B 1603 1603 1603 1703 1703 1708 1708 1708 17111 17163 17163 17177 17179A 17201 17265 17271 17272 17279 2211 25051 25586 25591 8404 8404 9011610175 9011910988 9012606029 9017910070 9155180616 9155180616 9155180625 9167180612 9167180835 91671A0612 9167281025 9167281025 9167281025 9167281025
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-47010

8NRFTS..NGX10

 1
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-47011

8NRFTS..NGX10,50

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
96341-11200

8NRFTS..NGX10,50

 1
15471 - GASKET, TURBO OIL INLET
15471-47010

8NRFTS..NGX10,50

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-47010

8NRFTS..NGX10,50

 1
15481B - GASKET(FOR UNION BOLT NO.1)
90430-12037

8NRFTS..NGX10,50

 1
17111 - MANIFOLD, INTAKE
17120-47100

8NRFTS..NGX10,50

 1
17163 - BRACKET, HEAT INSULATOR, NO.1
17586-47011

8NRFTS..NGX10,50

 1
17586-47010

8NRFTS..NGX10,50

 1
17163 - BRACKET, HEAT INSULATOR, NO.1
17586-47011

8NRFTS..NGX10,50

 1
17586-47010

8NRFTS..NGX10,50

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-47050

8NRFTS..NGX10,50

 1
17179A - GASKET, INTAKE MANIFOLD, NO.2
17179-47010

8NRFTS..NGX10,50

 1
17201 - TURBOCHARGER SUB-ASSY
17201-47011

8NRFTS..NGX10

 1
17265 - GASKET, TURBOCHARGER
17265-47010

8NRFTS..NGX10,50

 1
17271 - INSULATOR, TURBO, NO.1
17271-47010

8NRFTS..NGX10,50

 1
17272 - INSULATOR, TURBO, NO.2
17272-47010

8NRFTS..NGX10,50

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-47010

8NRFTS..NGX10

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-47150

8NRFTS..NGX10

*114=*413

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-47010

8NRFTS..NGX10

 1
25591 - BRACKET, MANIFOLD SUPPORT
25591-47010

8NRFTS..NGX10

 1
Common parts
90116-10175
90119-10988
90126-06029
90179-10070
91551-80616
91551-80625
91671-80612
91671-80835
91671-A0612
91672-81025
Linked diagrams
1201
1603
1703
1708
2211
8404
