MAXH10L-EHXNHC (2021)

Toyota C-Hr(China)

Production Jun 2021 - Sep 9999
Engine M20
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2106- )MAXH10 ; (2106- )MAXA10..G,N

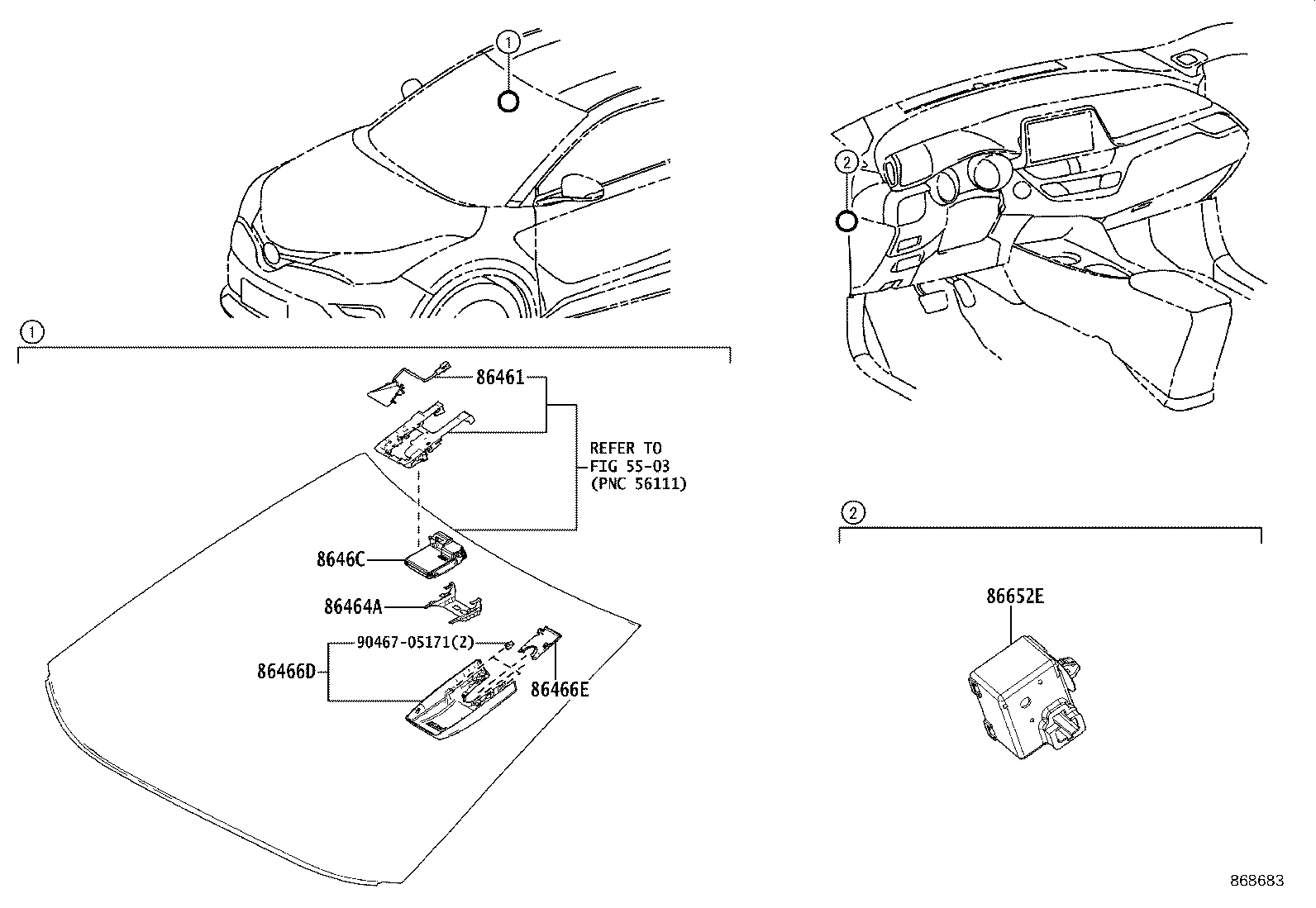

Click highlighted areas on diagram

diagram 5503 86461 86464A 86466D 86466E 8646C 86652E 9046705171
Part # Description Qty Price
86461 - HOOD, FORWARD RECOGNITION
86401-10010

MAXH10;MAXA10..G,N

 1
86464A - LATCH, FORWARD RECOGNITION
86464-K0010

MAXH10;MAXA10..G,N

 1
86466D - COVER, FORWARD RECOGNITION, NO.1
86466-10030

MAXH10;MAXA10..G,N

 1
86466E - COVER, FORWARD RECOGNITION, NO.2
86466-10040

MAXH10;MAXA10..G,N

 1
8646C - CAMERA, FORWARD RECOGNITION
8646C-F4100

MAXH10;MAXA10..G,N

 1
86652E - BUZZER, PRE-COLLISION CITY
86652-50010

MAXH10;MAXA10..G,N

 1
Common parts
90467-05171
Linked diagrams
5503
