MAXA10L-EHXNHC (2021)

Toyota C-Hr(China)

Production Jun 2021 - Sep 9999
Engine M20
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2106- )D,N

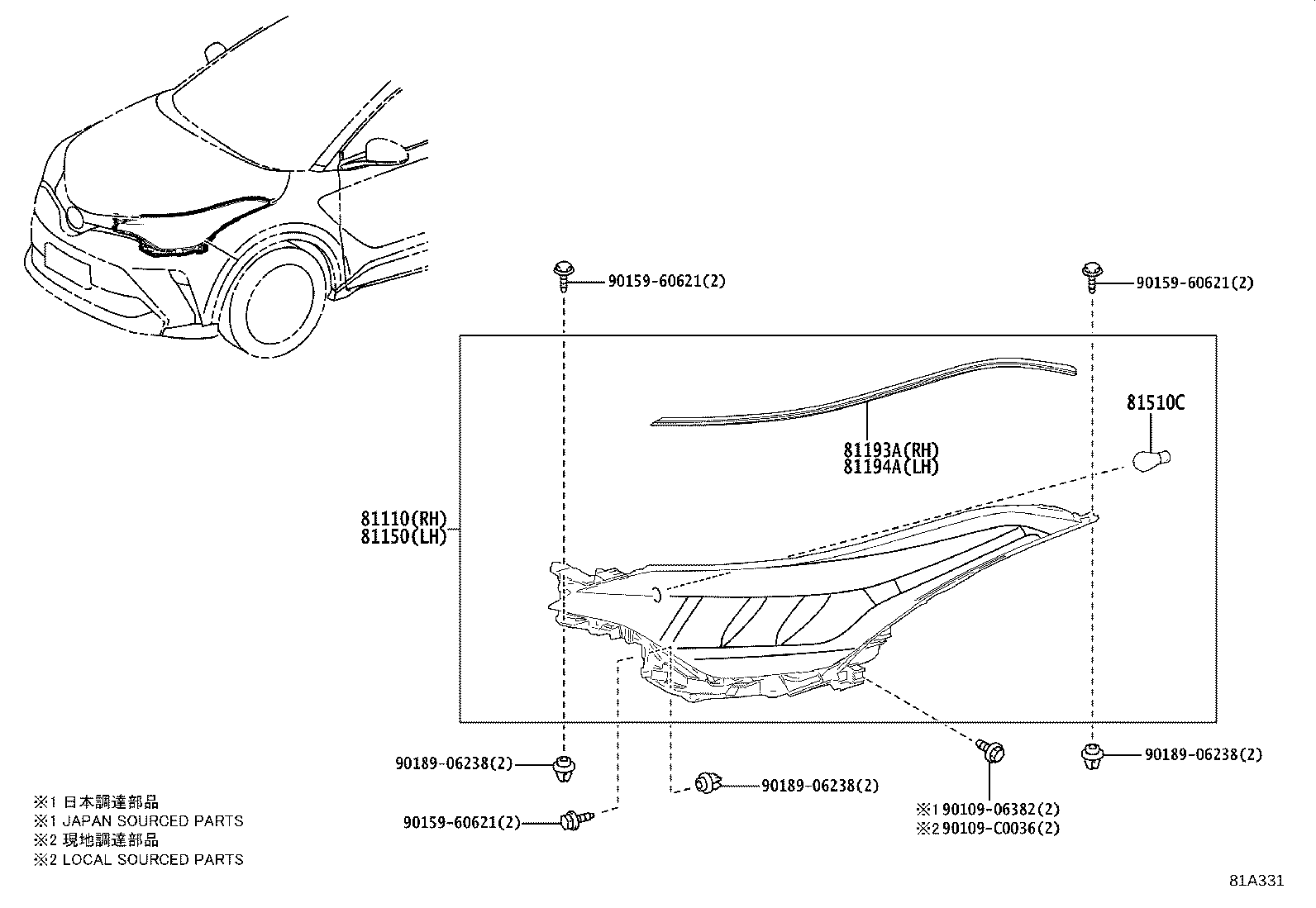

Click highlighted areas on diagram

diagram 81110 81150 81193A 81194A 81510C 9010906382 90109C0036 9015960621 9015960621 9015960621 9018906238 9018906238 9018906238
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-F4440

MAXA10..D

 1
81110-F4450

MAXA10,MAXH10..N

 1
81110-F4140

MAXA10..E

 1
81150 - HEADLAMP ASSY, LH
81150-F4140

MAXA10..E

 1
81150-F4450

MAXA10,MAXH10..N

 1
81150-F4440

MAXA10..D

 1
81193A - PROTECTOR, HEADLAMP, RH
81193-F4180

MAXH10;MAXA10..D,G,N

(J)

 1
81194A - PROTECTOR, HEADLAMP, LH
81194-F4180

MAXH10;MAXA10..D,G,N

(J)

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15020

MAXA10,MAXH10..D,N

12V 21W,AMBER

 2
Common parts
90109-06382
90109-C0036
90159-60621
90189-06238
