MAXA10L-EHXNHC (2021)
Toyota C-Hr(China)

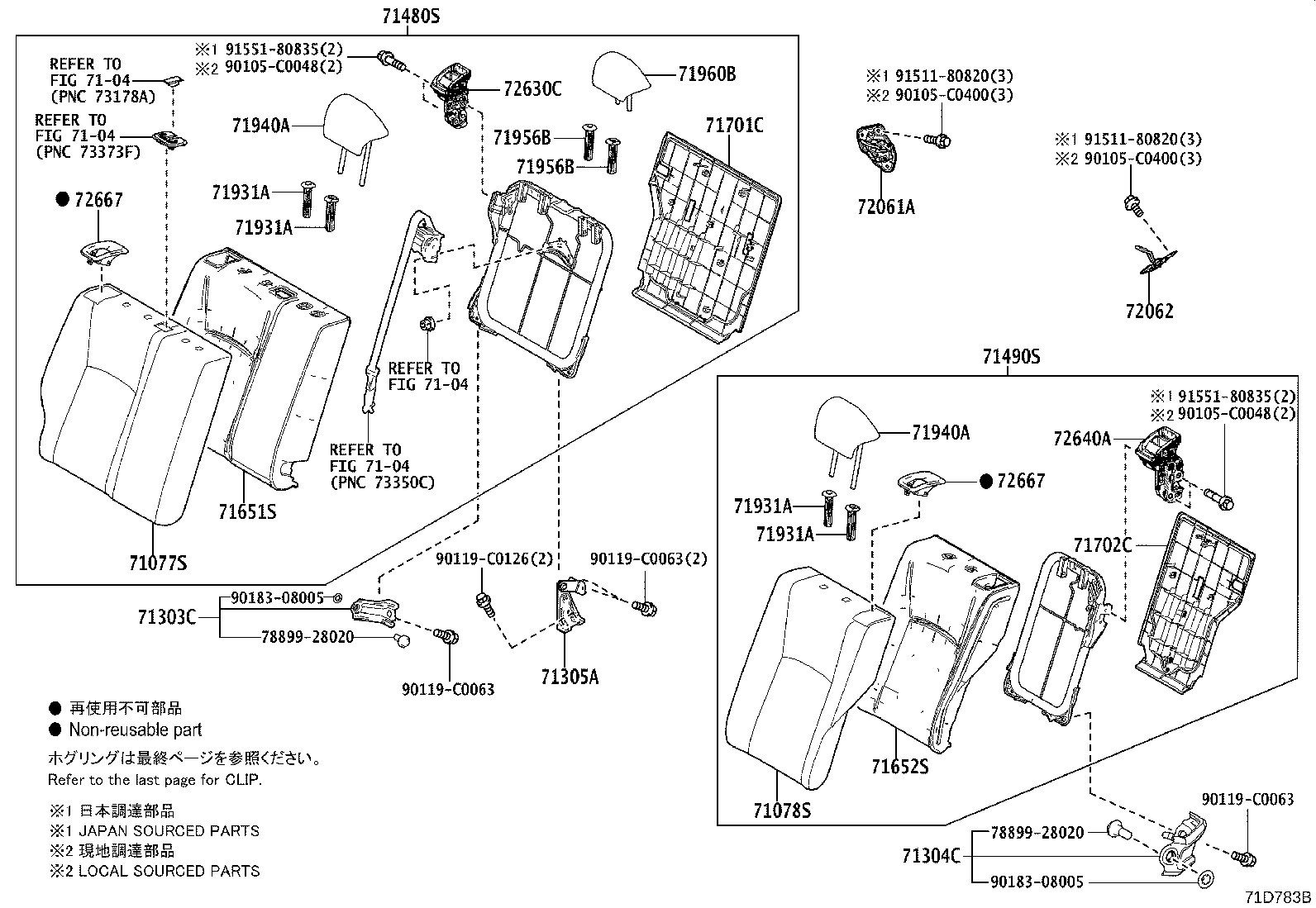

ILLUST NO. 1 OF 3(2106- )
SEAT BACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-F4400B3 |
MAXA10..D DK.GRAY,TRIM2# |
1 | ||
| 71077-F4410C3 |
MAXA10,MAXH10..N BLACK,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-F4360C3 |
MAXA10,MAXH10..N BLACK,TRIM2# |
1 | ||
| 71078-F4350B3 |
MAXA10..D DK.GRAY,TRIM2# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-F4040 |
MAXA10..E |
1 | ||
| 71303-F4040 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-F4040 |
MAXA10..E |
1 | ||
| 71304-F4040 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-F4040 |
MAXA10..E |
1 | ||
| 71305-F4040 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-F4530C3 |
MAXA10,MAXH10..N BLACK,TRIM2# |
1 | ||
| 71480-F4520C2 |
MAXA10..D BLACK,TRIM2# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-F4480C3 |
MAXA10..D BLACK,TRIM2# |
1 | ||
| 71490-F4490C3 |
MAXA10,MAXH10..N BLACK,TRIM2# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-F4070 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 71651-F4070 |
MAXA10..E |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-F4060 |
MAXA10..E |
1 | ||
| 71652-F4060 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 71701C - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-F4040 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 71701-F4040 |
MAXA10..E |
1 | ||
| 71702C - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-F4040 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 71702-F4040 |
MAXA10..E |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-06070C0 |
MAXA10..E W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXH10;MAXA10..D,G,N W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10..E W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXH10;MAXA10..D,G,N W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-06070C0 |
MAXA10..E W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXH10;MAXA10..D,G,N W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10..E W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXH10;MAXA10..D,G,N W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-06070C0 |
MAXA10..E W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXH10;MAXA10..D,G,N W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10..E W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXH10;MAXA10..D,G,N W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-06070C0 |
MAXA10..E W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXH10;MAXA10..D,G,N W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10..E W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXH10;MAXA10..D,G,N W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-F4200C0 |
MAXA10,MAXH10..N BLACK,TRIM2# |
2 | ||
| 71940-F4190C1 |
MAXA10..D BLACK,TRIM2# |
2 | ||
| 71940-F4130C1 |
MAXA10..E BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-F4200C0 |
MAXA10,MAXH10..N BLACK,TRIM2# |
2 | ||
| 71940-F4190C1 |
MAXA10..D BLACK,TRIM2# |
2 | ||
| 71940-F4130C1 |
MAXA10..E BLACK,TRIM2# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-06060C0 |
MAXA10..E W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71931-06060C0 |
MAXH10;MAXA10..D,G,N W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-06070C0 |
MAXA10..E W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-06070C0 |
MAXH10;MAXA10..D,G,N W(LOCK),BLACK,TRIM2# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-06060C0 |
MAXA10..E W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71931-06060C0 |
MAXH10;MAXA10..D,G,N W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-06070C0 |
MAXA10..E W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-06070C0 |
MAXH10;MAXA10..D,G,N W(LOCK),BLACK,TRIM2# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-F4140C1 |
MAXA10,MAXH10..D,N BLACK,TRIM2# |
1 | ||
| 71960-F4120C1 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 72061A - BASE SUB-ASSY, REAR SEAT BACK LOCK, RH | ||||
| 72061-F4030 |
MAXA10..E |
1 | ||
| 72061-F4030 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 72062 - BASE SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72062-F4030 |
MAXA10..E |
1 | ||
| 72062-F4030 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-F4020C0 |
MAXH10;MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 72630-F4020C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-F4020C0 |
MAXH10;MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 72640-F4020C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-F4050C0 |
MAXA10..E BLACK,TRIM2# |
2 | ||
| 72667-F4050C0 |
MAXH10;MAXA10..D,G,N BLACK,TRIM2# |
2 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-F4050C0 |
MAXA10..E BLACK,TRIM2# |
2 | ||
| 72667-F4050C0 |
MAXH10;MAXA10..D,G,N BLACK,TRIM2# |
2 | ||
| Common parts | ||||
| 78899-28020 | ||||
| 90105-C0048 | ||||
| 90105-C0400 | ||||
| 90119-C0063 | ||||
| 90119-C0126 | ||||
| 90183-08005 | ||||
| 91511-80820 | ||||
| 91551-80835 | ||||
| Linked diagrams | ||||
| 7104 | ||||

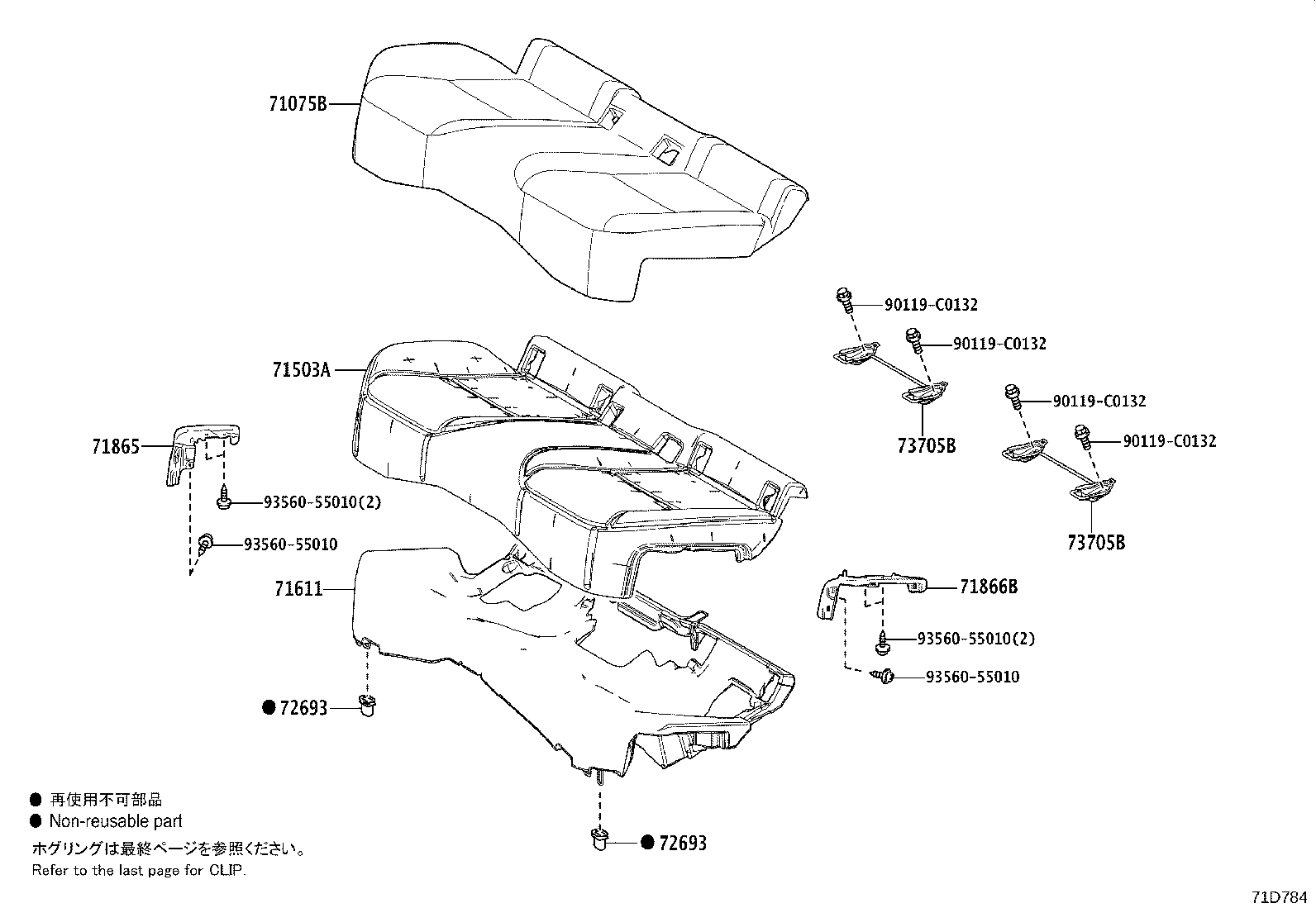

ILLUST NO. 2 OF 3(2106- )MAXA10
SEAT CUSHION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-F4850C2 |
MAXA10..N BLACK,TRIM2# |
1 | ||
| 71075-F4840B2 |
MAXA10..D DK.GRAY,TRIM2# |
1 | ||
| 71503A - PAD SUB-ASSY, REAR SEAT CUSHION | ||||
| 71503-F4120 |
MAXA10..E |
1 | ||
| 71503-F4120 |
MAXA10..D,G,N |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-F4100 |
MAXA10..D,G,N |
1 | ||
| 71611-F4100 |
MAXA10..E |
1 | ||
| 71865 - BEZEL, REAR SEAT COVER, NO.1 | ||||
| 71865-F4030 |
MAXA10..D,G,N |
1 | ||
| 71865-F4030 |
MAXA10..E |
1 | ||
| 71866B - BEZEL, REAR SEAT COVER, NO.2 | ||||
| 71866-F4030 |
MAXA10..E |
1 | ||
| 71866-F4030 |
MAXA10..D,G,N |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
MAXH10;MAXA10..D,G,N |
2 | ||
| 72693-12080 |
MAXA10..E |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
MAXH10;MAXA10..D,G,N |
2 | ||
| 72693-12080 |
MAXA10..E |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-F4050 |
MAXH10;MAXA10..D,G,N |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-F4050 |
MAXH10;MAXA10..D,G,N |
2 | ||
| Common parts | ||||
| 90119-C0132 | ||||
| 93560-55010 | ||||
