MAXA10L-EHXNHC (2021)
Toyota C-Hr(China)

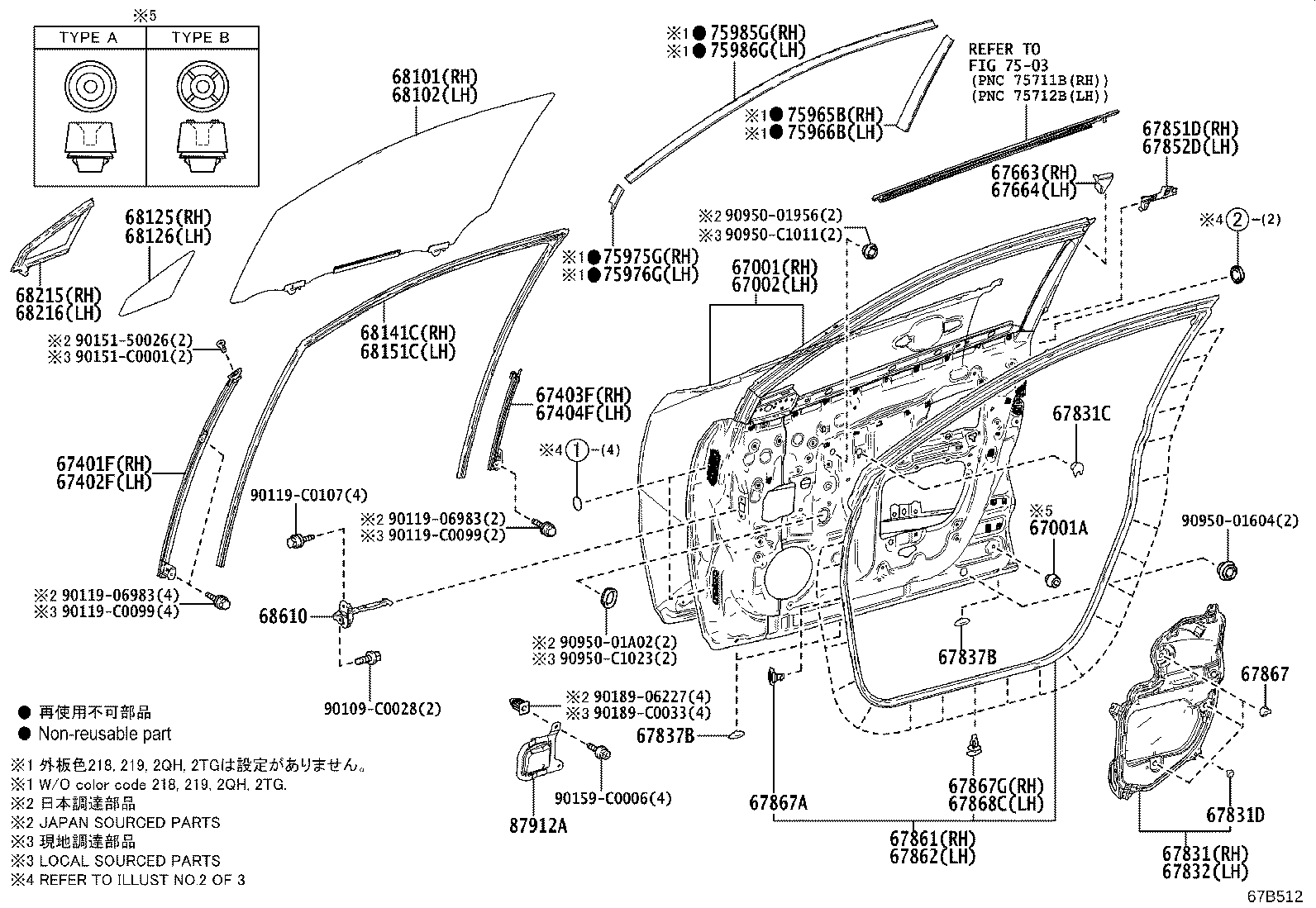

ILLUST NO. 1 OF 3(2106- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-F4050 |
MAXA10..E |
1 | ||
| 67001-F4050 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
MAXH10;MAXA10..D,G,N (J),TYPE A:REF ILL. |
4 | ||
| 90541-C0003 |
MAXA10..E |
4 | ||
| 90541-C0003 |
MAXH10;MAXA10..D,G,N (L),TYPE A:REF ILL. |
4 | ||
| 90541-09143 |
MAXH10;MAXA10..D,G,N TYPE B:REFER ILLUST. |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-F4050 |
MAXA10..E |
1 | ||
| 67002-F4050 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-F4040 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 67401-F4040 |
MAXA10..E |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-F4040 |
MAXA10..E |
1 | ||
| 67402-F4040 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-F4040 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 67403-F4040 |
MAXA10..E |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-F4040 |
MAXA10..E |
1 | ||
| 67404-F4040 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 67663 - GARNISH, DOOR FRAME, UPPER RH | ||||
| 67663-F4030 |
MAXA10..E |
1 | ||
| 67663-F4030 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 67664 - GARNISH, DOOR FRAME, UPPER LH | ||||
| 67664-F4030 |
MAXA10..E |
1 | ||
| 67664-F4030 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-F4030 |
MAXA10..E |
1 | ||
| 67831-F4030 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 67831C - COVER, FRONT DOOR SERVICE HOLE | ||||
| 67833-F4030 |
MAXH10;MAXA10..D,G,N |
2 | ||
| 67833-F4030 |
MAXA10..E |
2 | ||
| 67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER) | ||||
| 90467-09206 |
MAXA10..E |
8 | ||
| 90467-09206 |
MAXH10;MAXA10..D,G,N |
8 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-F4030 |
MAXA10..E |
1 | ||
| 67832-F4030 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-F4050 |
MAXH10;MAXA10..D,G,N |
6 | ||
| 67837-F4050 |
MAXA10..E |
6 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-F4050 |
MAXH10;MAXA10..D,G,N |
6 | ||
| 67837-F4050 |
MAXA10..E |
6 | ||
| 67851D - SEAL, FRONT DOOR REAR OUTSIDE, RH | ||||
| 67851-F4030 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 67851-F4030 |
MAXA10..E |
1 | ||
| 67852D - SEAL, FRONT DOOR REAR OUTSIDE, LH | ||||
| 67852-F4030 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 67852-F4030 |
MAXA10..E |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-F4050 |
MAXA10..E |
1 | ||
| 67861-F4050 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-F4050 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 67862-F4050 |
MAXA10..E |
1 | ||
| 67867 - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-F4030 |
MAXA10..E |
6 | ||
| 67869-F4030 |
MAXH10;MAXA10..D,G,N |
6 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-52010 |
MAXH10;MAXA10..D,G,N |
2 | ||
| 67867-52010 |
MAXA10..E |
2 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
MAXH10;MAXA10..D,G,N |
22 | ||
| 67867-12150 |
MAXA10..E |
22 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
MAXH10;MAXA10..D,G,N |
22 | ||
| 67867-12150 |
MAXA10..E |
22 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-F4060 |
MAXA10..E |
1 | ||
| 68101-F4060 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-F4060 |
MAXA10..E |
1 | ||
| 68102-F4060 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68125-F4040 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 68125-F4040 |
MAXA10..E |
1 | ||
| 68126 - GLASS, FRONT DOOR FIX WINDOW, LH | ||||
| 68126-F4040 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 68126-F4040 |
MAXA10..E |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-F4041 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-F4041 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH | ||||
| 68215-F4040 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 68215-F4040 |
MAXA10..E |
1 | ||
| 68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH | ||||
| 68216-F4040 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 68216-F4040 |
MAXA10..E |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-F4050 |
MAXH10;MAXA10..D,G,N |
2 | ||
| 68610-F4050 |
MAXA10..E |
2 | ||
| 75965B - STRIPE, FRONT DOOR NO.4 RH | ||||
| 75965-F4040 |
MAXA10..E 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75965-F4040 |
MAXH10;MAXA10..D,G,N 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75966B - STRIPE, FRONT DOOR NO.4 LH | ||||
| 75966-F4040 |
MAXH10;MAXA10..D,G,N 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75966-F4040 |
MAXA10..E 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75975G - STRIPE, FRONT DOOR, NO.2 RH | ||||
| 75975-F4040 |
MAXH10;MAXA10..D,G,N 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75975-F4040 |
MAXA10..E 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75976G - STRIPE, FRONT DOOR, NO.2 LH | ||||
| 75976-F4040 |
MAXA10..E 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75976-F4040 |
MAXH10;MAXA10..D,G,N 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75985G - STRIPE, FRONT DOOR OUTSIDE, RH | ||||
| 75985-F4040 |
MAXA10..E 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75985-F4040 |
MAXH10;MAXA10..D,G,N 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75986G - STRIPE, FRONT DOOR OUTSIDE, LH | ||||
| 75986-F4040 |
MAXH10;MAXA10..D,G,N 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75986-F4040 |
MAXA10..E 0 OR 1PIECE,REF.ILL. |
1 | ||
| 87912A - PROTECTOR, OUTER MIRROR | ||||
| 87912-F4090 |
MAXA10..E LH |
1 | ||
| 87912-F4090 |
MAXH10;MAXA10..D,G,N LH |
1 | ||
| 87912-F4070 |
MAXA10..E RH |
1 | ||
| 87912-F4070 |
MAXH10;MAXA10..D,G,N RH |
1 | ||
| Common parts | ||||
| 90109-C0028 | ||||
| 90119-06983 | ||||
| 90119-C0099 | ||||
| 90119-C0107 | ||||
| 90151-50026 | ||||
| 90151-C0001 | ||||
| 90159-C0006 | ||||
| 90189-06227 | ||||
| 90189-C0033 | ||||
| 90950-01604 | ||||
| 90950-01956 | ||||
| 90950-01A02 | ||||
| 90950-C1011 | ||||
| 90950-C1023 | ||||
| Linked diagrams | ||||
| 7503 | ||||

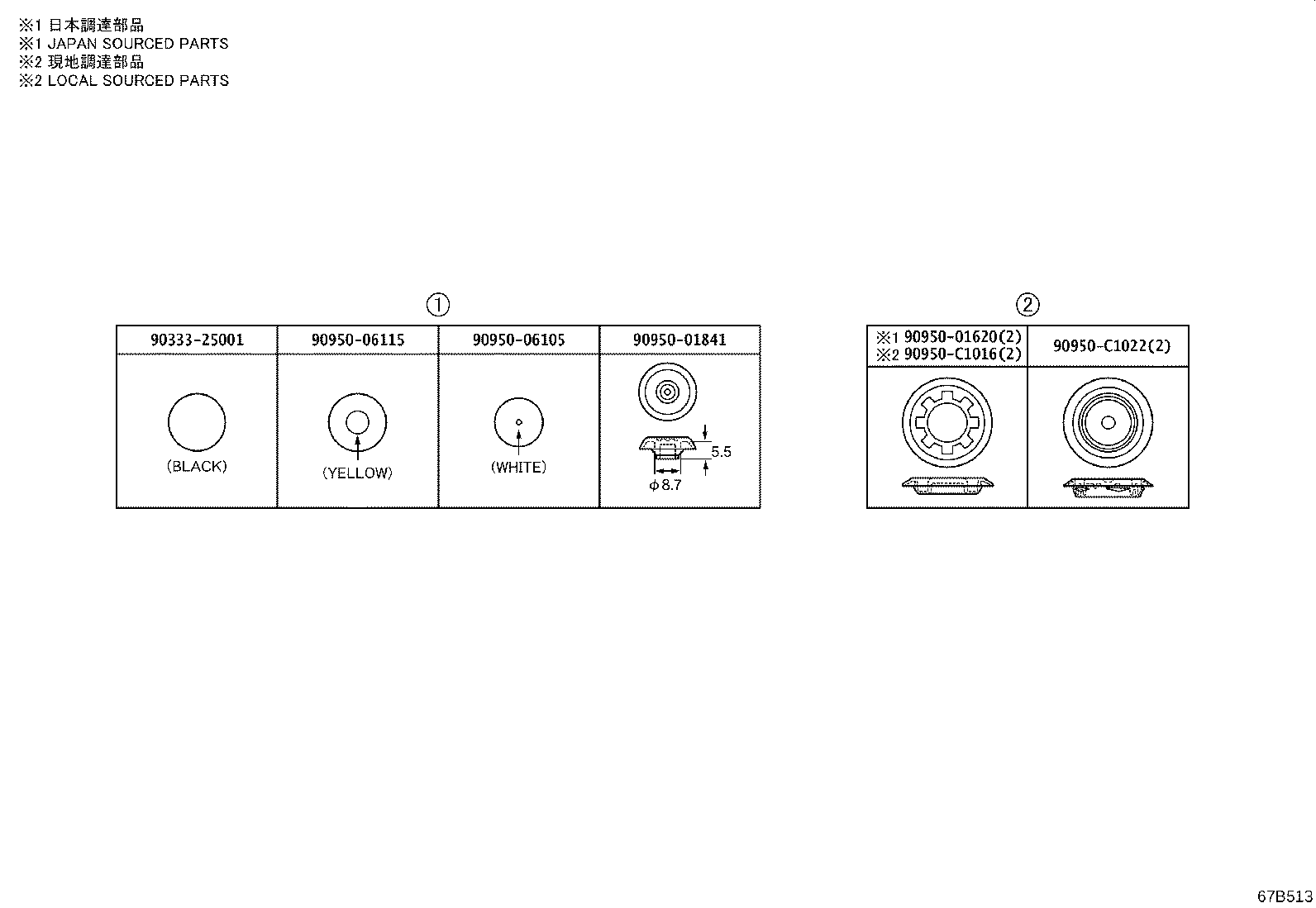

ILLUST NO. 2 OF 3(2106- )
DOOR PANEL (SELECT PARTS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-25001 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 90950-06105 | ||||
| 90950-06115 | ||||
| 90950-C1016 | ||||
| 90950-C1022 | ||||

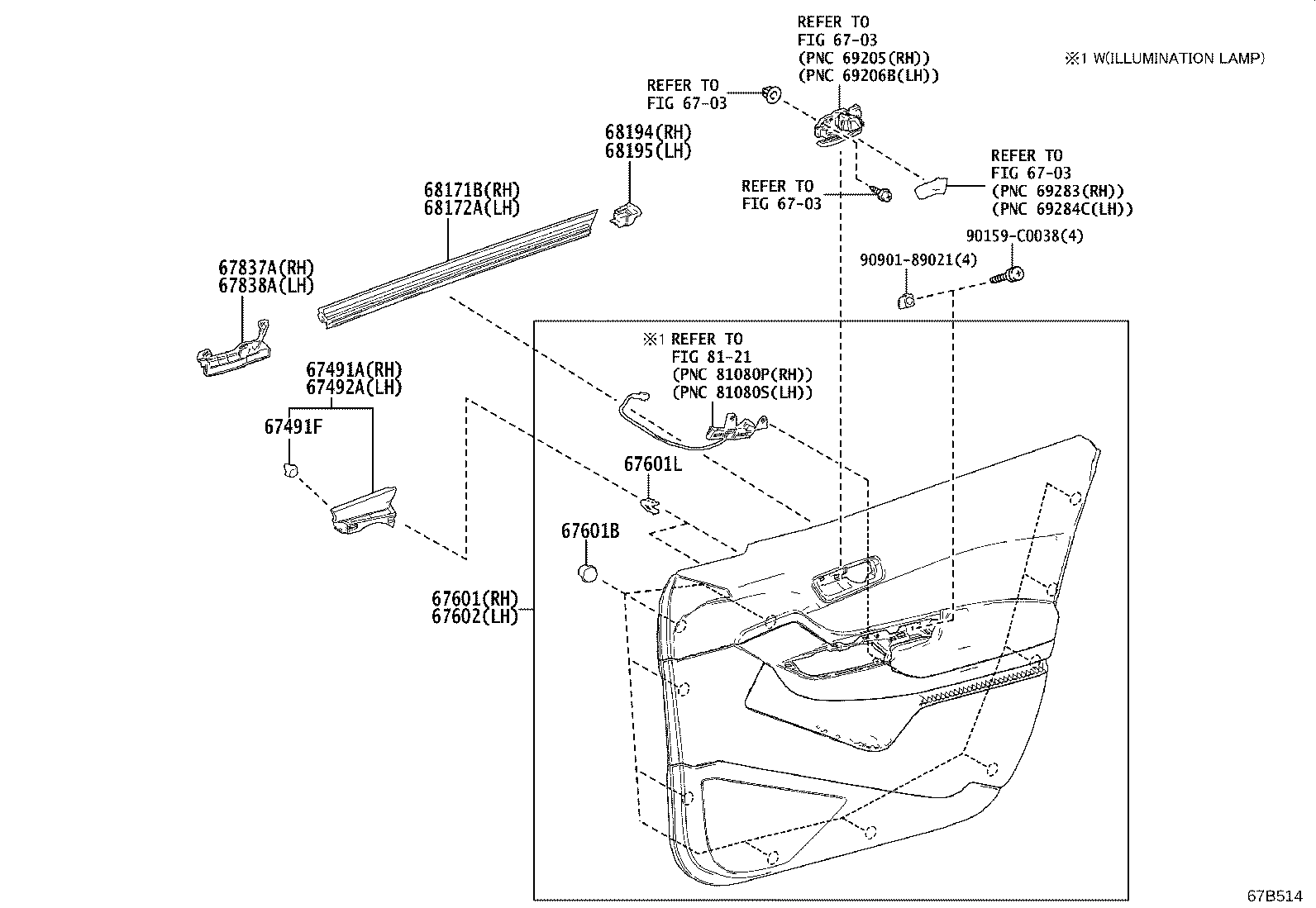

ILLUST NO. 3 OF 3(2106- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-F4030C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67491-F4030C0 |
MAXH10;MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 67491F - CLIP(FOR DOOR TRIM) | ||||
| 90467-09203 |
MAXA10..E |
4 | ||
| 90467-09203 |
MAXH10;MAXA10..D,G,N |
4 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-F4030C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67492-F4030C0 |
MAXH10;MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-F4080C1 |
MAXA10..D BLACK,TRIM2# |
1 | ||
| 67610-F4080C3 |
MAXA10,MAXH10..N BLACK,TRIM2# |
1 | ||
| 67610-F4090C3 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
MAXH10;MAXA10..D,G,N (J) |
10 | ||
| 90467-C0033 |
MAXH10;MAXA10..D,G,N (L) |
10 | ||
| 67601L - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 67773-07020 |
MAXA10..E |
2 | ||
| 67773-07020 |
MAXH10;MAXA10..D,G,N COLOR = NATURAL |
2 | ||
| 67773-02010 |
MAXH10;MAXA10..D,G,N COLOR = ORANGE |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-F4090C3 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67620-F4080C3 |
MAXA10,MAXH10..N BLACK,TRIM2# |
1 | ||
| 67620-F4080C1 |
MAXA10..D BLACK,TRIM2# |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-F4060 |
MAXA10..E |
1 | ||
| 67837-F4060 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-F4030 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 67838-F4030 |
MAXA10..E |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-F4040 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 68171-F4040 |
MAXA10..E |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-F4040 |
MAXA10..E |
1 | ||
| 68172-F4040 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 68194 - SEAL, FRONT DOOR BELT, RH | ||||
| 68194-F4030 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 68194-F4030 |
MAXA10..E |
1 | ||
| 68195 - SEAL, FRONT DOOR BELT, LH | ||||
| 68195-F4030 |
MAXH10;MAXA10..D,G,N |
1 | ||
| 68195-F4030 |
MAXA10..E |
1 | ||
| Common parts | ||||
| 90159-C0038 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 8121 | ||||
