MAXA10L-EHXNHC (2018)

Toyota C-Hr(China)

Production Aug 2018 - Jun 2021
Engine M20
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1808- )

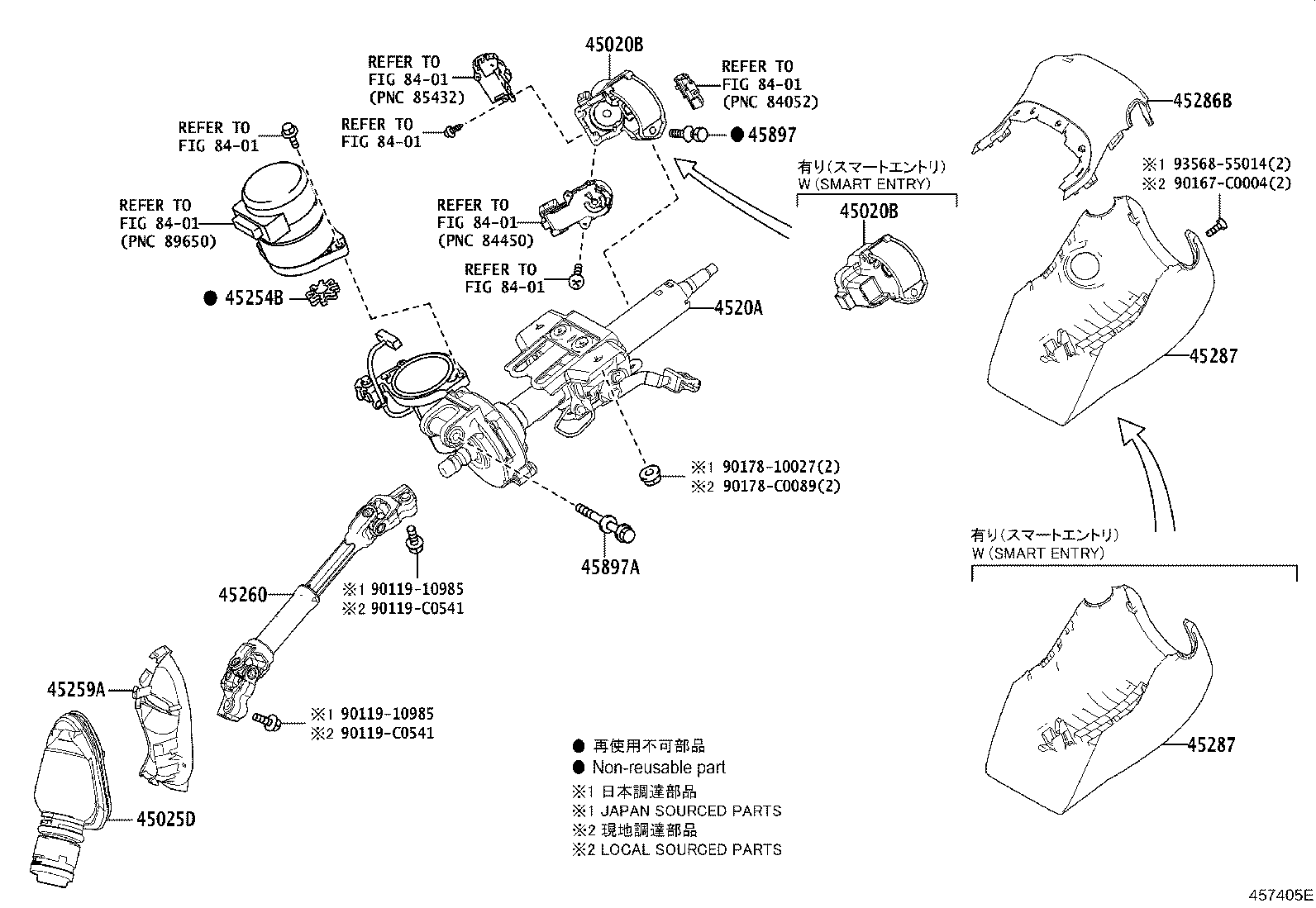

Click highlighted areas on diagram

diagram 45020B 45020B 45025D 4520A 45254B 45259A 45260 45286B 45287 45287 45897 45897A 8401 8401 8401 8401 8401 8401 8401 9011910985 9011910985 90119C0541 90119C0541 90167C0004 9017810027 90178C0089 9356855014
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-0D160

MAXA10..E

 1
45020-0D160

MAXA10..G,N

 1
45020-0D160

MAXA10..D

PLUS PACKAGE

 1
45280-02480

MAXA10..D

 1
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-0D160

MAXA10..E

 1
45020-0D160

MAXA10..G,N

 1
45020-0D160

MAXA10..D

PLUS PACKAGE

 1
45280-02480

MAXA10..D

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-F4050

MAXA10..E

 1
45025-F4050

MAXA10..D,G,N

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-F4090

MAXA10..G,N

 1
4520A-F4100

MAXA10..D

 1
4520A-F4090

MAXA10..D

PLUS PACKAGE

 1
4520A-F4090

MAXA10..E

 1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040

MAXA10..D,G,N

 1
45254-28040

MAXA10..E

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-F4050

MAXA10..D,G,N

 1
45259-F4050

MAXA10..E

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-F4070

MAXA10..D,G,N

 1
45260-F4070

MAXA10..E

 1
45286B - COVER, STEERING COLUMN, UPR
45286-F4050C0

MAXA10..D,G,N

BLACK,TRIM2#

 1
45286-F4050C0

MAXA10..E

BLACK,TRIM2#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-F4070C0

MAXA10..D

BLACK,TRIM2#

 1
45287-F4080C0

MAXA10..E

BLACK,TRIM2#

 1
45287-F4080C0

MAXA10..D

PLUS PACKAGE,BLACK,TRIM2#

 1
45287-F4080C0

MAXA10..G,N

BLACK,TRIM2#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-F4070C0

MAXA10..D

BLACK,TRIM2#

 1
45287-F4080C0

MAXA10..E

BLACK,TRIM2#

 1
45287-F4080C0

MAXA10..D

PLUS PACKAGE,BLACK,TRIM2#

 1
45287-F4080C0

MAXA10..G,N

BLACK,TRIM2#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

MAXA10..D,G,N

 1
45897-12020

MAXA10..E

 1
45897A - BOLT, TILT STEERING PAWL SET
90119-C0427

MAXA10..D,G,N

 1
90119-C0427

MAXA10..E

 1
Common parts
90119-10985
90119-C0541
90167-C0004
90178-10027
90178-C0089
93568-55014
Linked diagrams
8401
