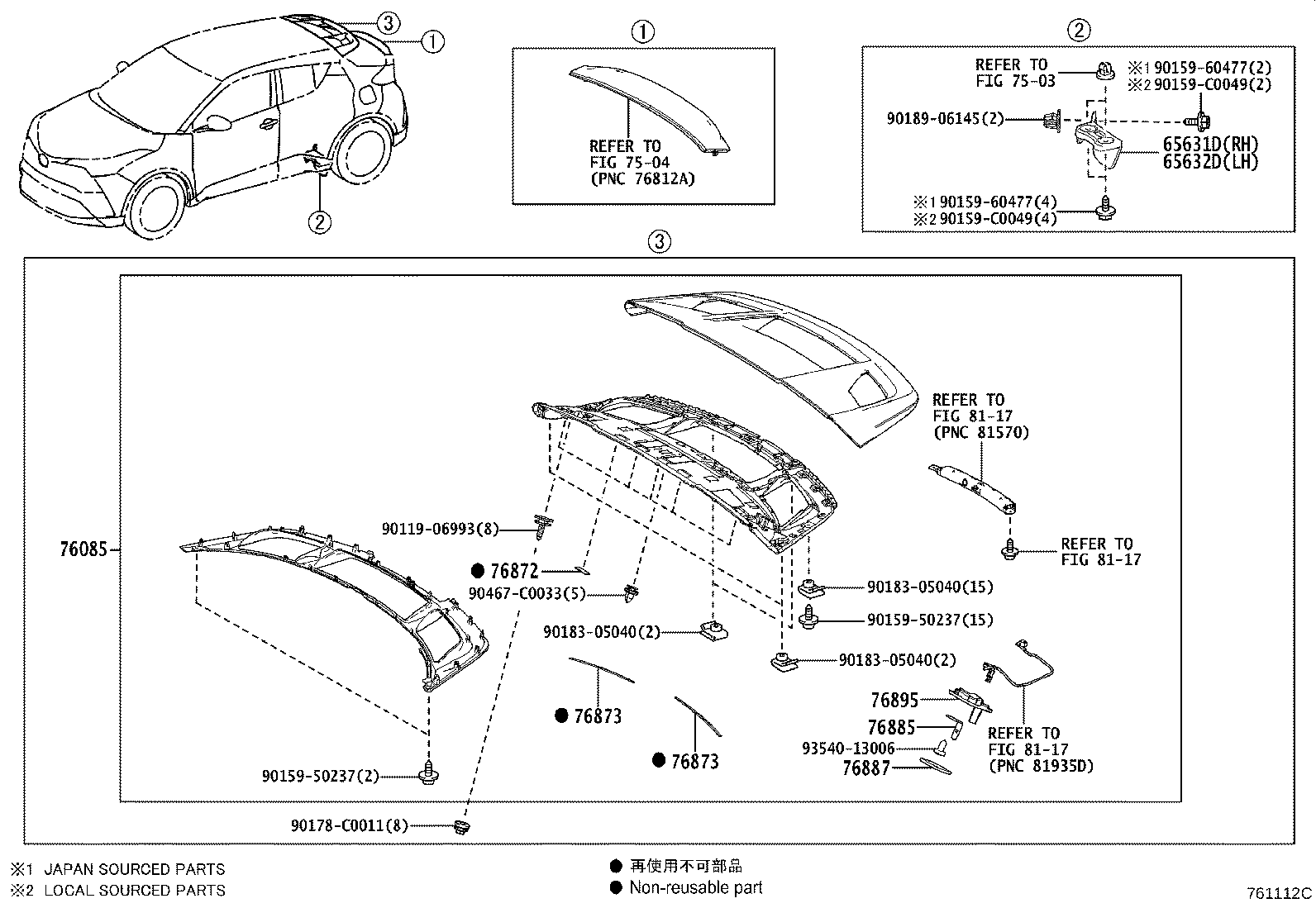

Toyota C-hr(china) MAXA10 MUDGUARD & SPOILER

Part #	Description	Period	Qty
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-F4030	MAXA10..E	08/2018 - 12/2999	1
65631-F4030	MAXA10..D,G,N	08/2018 - 06/2021	1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-F4030	MAXA10..E	08/2018 - 12/2999	1
65632-F4030	MAXA10..D,G,N	08/2018 - 06/2021	1
76085 - SPOILER SUB-ASSY, REAR
76085-F4040D0	MAXA10..E RED M.M.,3R3	08/2018 - 12/2999	1
76085-F4040A0	MAXA10..E WHITE,2NJ ,2QH ,2QK	08/2018 - 12/2999	1
76085-F4040G1	MAXA10..D,G,N RADIANT GREEN ME.,6W9	08/2018 - 06/2021	1
76085-F4040C0	MAXA10..D,G,N ATTITUDE BLACK MC.,218 ,2QJ ,2QL ,2QM	08/2018 - 06/2021	1
76085-F4040C0	MAXA10..E ATTITUDE BLACK MC.,218 ,2QJ ,2QL ,2QM	08/2018 - 12/2999	1
76085-F4040E0	MAXA10..E STEEL BLONDE ME.,4X1	03/2019 - 12/2999	1
76085-F4040A0	MAXA10..D,G,N WHITE,2NJ ,2QH ,2QK	08/2018 - 06/2021	1
76085-F4040A1	MAXA10..D,G,N WHITE PEARL CS.,070	08/2018 - 06/2021	1
76085-F4040G1	MAXA10..E RADIANT GREEN ME.,6W9	08/2018 - 12/2999	1
76085-F4040E0	MAXA10..D,G,N STEEL BLONDE ME.,4X1	03/2019 - 06/2021	1
76085-F4040A1	MAXA10..E WHITE PEARL CS.,070	08/2018 - 12/2999	1
76085-F4040D0	MAXA10..D,G,N RED M.M.,3R3	08/2018 - 06/2021	1
76085-F4040G0	MAXA10..E CITRUS M.M.,6W2	08/2018 - 12/2999	1
76085-F4040G0	MAXA10..D,G,N CITRUS M.M.,6W2	08/2018 - 06/2021	1
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-F4040	MAXA10..D,G,N	08/2018 - 06/2021	6
76872-F4040	MAXA10..E	08/2018 - 12/2999	6
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-F4040	MAXA10..D,G,N	08/2018 - 06/2021	2
76873-F4040	MAXA10..E	08/2018 - 12/2999	2
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-F4040	MAXA10..D,G,N	08/2018 - 06/2021	2
76873-F4040	MAXA10..E	08/2018 - 12/2999	2
76885 - RETAINER, REAR SPOILER, NO.5
76885-F4040	MAXA10..E	08/2018 - 12/2999	1
76885-F4040	MAXA10..D,G,N	08/2018 - 06/2021	1
76887 - SEAL, REAR SPOILER
76887-F4040	MAXA10..D,G,N	08/2018 - 06/2021	1
76887-F4040	MAXA10..E	08/2018 - 12/2999	1
76895 - PROTECTOR, REAR SPOILER, NO.5
76895-F4040	MAXA10..E	08/2018 - 12/2999	1
76895-F4040	MAXA10..D,G,N	08/2018 - 06/2021	1
Common parts
90119-06993
90159-50237
90159-60477
90159-C0049
90178-C0011
90183-05040
90189-06145
90467-C0033
93540-13006
Linked diagrams
7503
7504
8117

MAXA10L-EHXGHC (2018)

(1808-2106)
