Toyota C-hr(china) MAXA10 REAR MOULDING

Part #	Description	Period	Qty
75392B - RETEINER, OUTSIDE MOULDING, NO.1
75392-0R030	MAXA10..E	08/2018 - 12/2999	7
75392-0R030	MAXA10..D,G,N	08/2018 - 06/2021	7
76811 - GARNISH, BACK DOOR, OUTSIDE
76801-F4120A0	MAXA10..E WHITE PEARL CS.,070 ,2QJ	08/2018 - 12/2999	1
76801-F4120D0	MAXA10..D,G,N RED M.M.,2QK ,2QL ,3R3	08/2018 - 06/2021	1
76801-F4120G1	MAXA10..D,G,N RADIANT GREEN ME.,2NJ ,6W9	08/2018 - 06/2021	1
76801-F4120C0	MAXA10..E ATTITUDE BLACK MC.,218 ,2QH	08/2018 - 12/2999	1
76801-F4120A0	MAXA10..D,G,N WHITE PEARL CS.,070 ,2QJ	08/2018 - 06/2021	1
76801-F4120G1	MAXA10..E RADIANT GREEN ME.,2NJ ,6W9	08/2018 - 12/2999	1
76801-F4120D0	MAXA10..E RED M.M.,2QK ,2QL ,3R3	08/2018 - 12/2999	1
76801-F4120G0	MAXA10..E CITRUS M.M.,2QM ,6W2	08/2018 - 12/2999	1
76801-F4120G0	MAXA10..D,G,N CITRUS M.M.,2QM ,6W2	08/2018 - 06/2021	1
76801-F4120C0	MAXA10..D,G,N ATTITUDE BLACK MC.,218 ,2QH	08/2018 - 06/2021	1
76801-F4120E0	MAXA10..D,G,N STEEL BLONDE ME.,4X1	03/2019 - 06/2021	1
76801-F4120E0	MAXA10..E STEEL BLONDE ME.,4X1	03/2019 - 12/2999	1
76812A - GARNISH, BACK DOOR, OUTSIDE NO.2
76812-F4040C0	MAXA10..D,G,N ATTITUDE BLACK MC.,218 ,2QH	08/2018 - 06/2021	1
76812-F4040A0	MAXA10..D,G,N WHITE PEARL CS.,070 ,2QJ	08/2018 - 06/2021	1
76812-F4040G1	MAXA10..D,G,N RADIANT GREEN ME.,2NJ ,6W9	08/2018 - 06/2021	1
76812-F4040G0	MAXA10..D,G,N CITRUS M.M.,2QM ,6W2	08/2018 - 06/2021	1
76812-F4040E0	MAXA10..E STEEL BLONDE ME.,4X1	03/2019 - 12/2999	1
76812-F4040D0	MAXA10..D,G,N RED M.M.,2QK ,2QL ,3R3	08/2018 - 06/2021	1
76812-F4040G1	MAXA10..E RADIANT GREEN ME.,2NJ ,6W9	08/2018 - 12/2999	1
76812-F4040A0	MAXA10..E WHITE PEARL CS.,070 ,2QJ	08/2018 - 12/2999	1
76812-F4040C0	MAXA10..E ATTITUDE BLACK MC.,218 ,2QH	08/2018 - 12/2999	1
76812-F4040G0	MAXA10..E CITRUS M.M.,2QM ,6W2	08/2018 - 12/2999	1
76812-F4040E0	MAXA10..D,G,N STEEL BLONDE ME.,4X1	03/2019 - 06/2021	1
76812-F4040D0	MAXA10..E RED M.M.,2QK ,2QL ,3R3	08/2018 - 12/2999	1
76819 - SEAL, BACK DOOR OUTSIDE GARNISH
76819-F4050	MAXA10	08/2018 - 09/2020	2
76819 - SEAL, BACK DOOR OUTSIDE GARNISH
76819-F4050	MAXA10	08/2018 - 09/2020	2
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-F4040	MAXA10..E	08/2018 - 12/2999	2
76821-F4040	MAXA10..D,G,N	08/2018 - 06/2021	2
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-F4040	MAXA10..E	08/2018 - 12/2999	2
76821-F4040	MAXA10..D,G,N	08/2018 - 06/2021	2
76821B - PROTECTOR, BACK DOOR GARNISH SIDE, RH
76841-F4040	MAXA10..E	08/2018 - 12/2999	1
76841-F4040	MAXA10..D,G,N	08/2018 - 06/2021	1
76822 - PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER
76822-F4040	MAXA10..E	08/2018 - 12/2999	2
76822-F4040	MAXA10..D,G,N	08/2018 - 06/2021	2
76822 - PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER
76822-F4040	MAXA10..E	08/2018 - 12/2999	2
76822-F4040	MAXA10..D,G,N	08/2018 - 06/2021	2
76822B - PROTECTOR, BACK DOOR GARNISH SIDE, LH
76842-F4040	MAXA10..E	08/2018 - 12/2999	1
76842-F4040	MAXA10..D,G,N	08/2018 - 06/2021	1
76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76823-F4040	MAXA10..E	08/2018 - 12/2999	1
76823-F4040	MAXA10..D,G,N	08/2018 - 06/2021	1
76824 - PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76824-F4040	MAXA10..D,G,N	08/2018 - 06/2021	2
76824-F4040	MAXA10..E	08/2018 - 12/2999	2
76824 - PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76824-F4040	MAXA10..D,G,N	08/2018 - 06/2021	2
76824-F4040	MAXA10..E	08/2018 - 12/2999	2
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-F4040	MAXA10..E	08/2018 - 12/2999	2
76825-F4040	MAXA10..D,G,N	08/2018 - 06/2021	2
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-F4040	MAXA10..E	08/2018 - 12/2999	2
76825-F4040	MAXA10..D,G,N	08/2018 - 06/2021	2
76825D - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1
76835-F4040	MAXA10..E	08/2018 - 12/2999	6
76835-F4040	MAXA10..D,G,N	08/2018 - 06/2021	6
76827A - RETAINER, BACK DOOR GARNISH, NO.2
76827-F4040	MAXA10..D	08/2018 - 06/2021	1
Common parts
90105-06344
90179-06359
90182-06011
90430-10016
90467-C0033

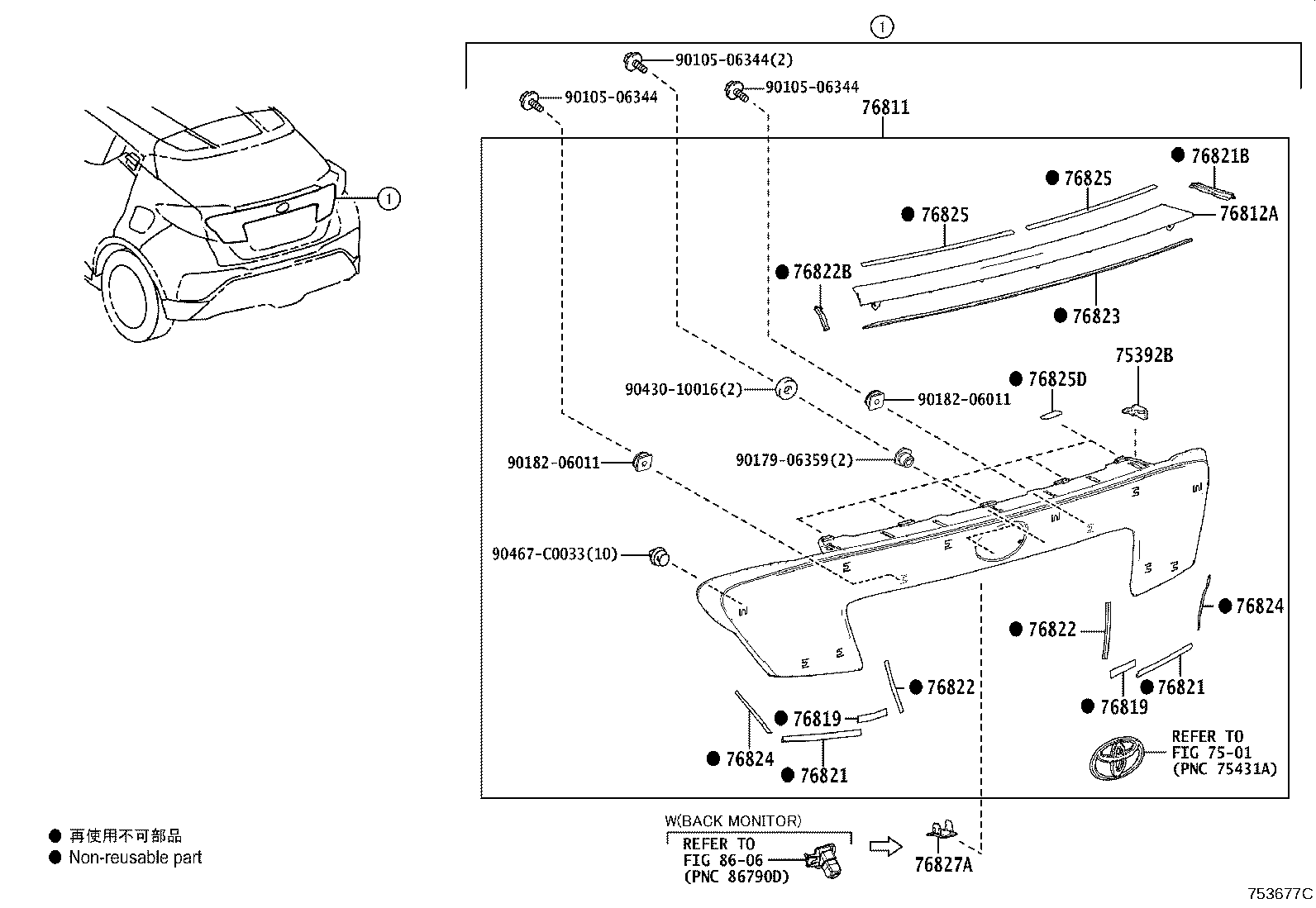

Linked diagrams
7501
8606

MAXA10L-EHXGHC (2018)

(1808-2106)
