MAXA10L-EHXEHC (2018)

Toyota C-Hr(China)

Production Aug 2018 - Sep 9999

Engine M20

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1808-2106)D,G,N ; (1808- )MAXA10..E

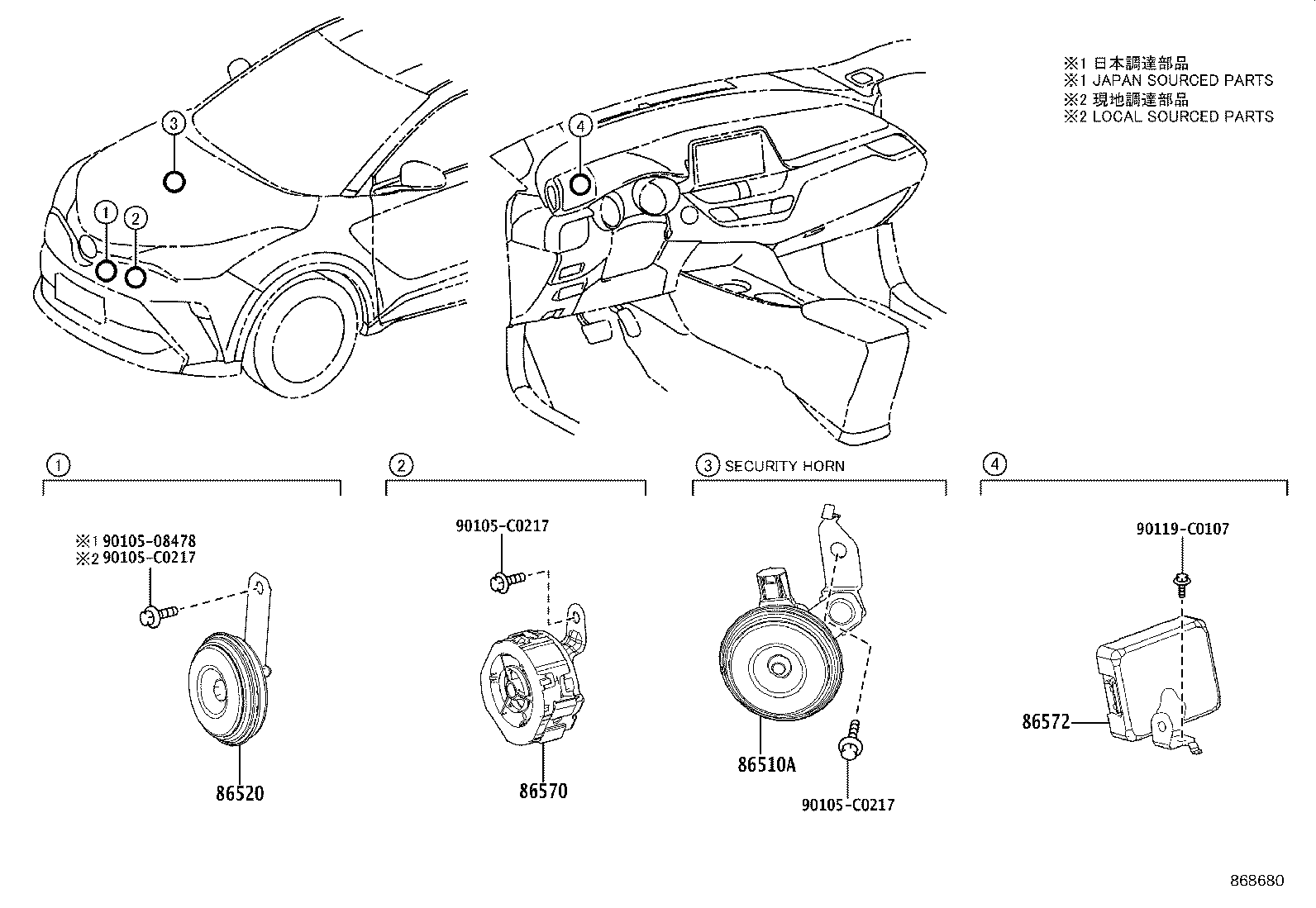

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
86510A - HORN ASSY, SECURITY
86560-F4060	MAXA10..E	08/2018 - 12/2999	1
86560-F4060	MAXA10..D,G,N	08/2018 - 06/2021	1
86560-F4060	MAXA10..D,G,N	06/2021 - 12/2999	1
86520 - HORN ASSY, LOW PITCHED
86520-0F050	MAXA10	08/2018 - 01/2020	1
86520-06161	MAXH10;MAXA10..D,G,N	06/2021 - 12/2999	1
86520-06161	MAXA10..D,G,N	02/2020 - 06/2021	1
86520-06161	MAXA10..E	02/2020 - 12/2999	1
Common parts
90105-08478
90105-C0217
90119-C0263

(2106- )MAXA10..D,G,N

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
86510A - HORN ASSY, SECURITY
86560-F4060	MAXA10..E	08/2018 - 12/2999	1
86560-F4060	MAXA10..D,G,N	08/2018 - 06/2021	1
86560-F4060	MAXA10..D,G,N	06/2021 - 12/2999	1
86520 - HORN ASSY, LOW PITCHED
86520-0F050	MAXA10	08/2018 - 01/2020	1
86520-06161	MAXH10;MAXA10..D,G,N	06/2021 - 12/2999	1
86520-06161	MAXA10..D,G,N	02/2020 - 06/2021	1
86520-06161	MAXA10..E	02/2020 - 12/2999	1
Common parts
90105-08478
90105-C0217
90119-C0107
