MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)
Production
Aug 2018
-
Jun 2021
Engine
M20
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1808- )MAXA10

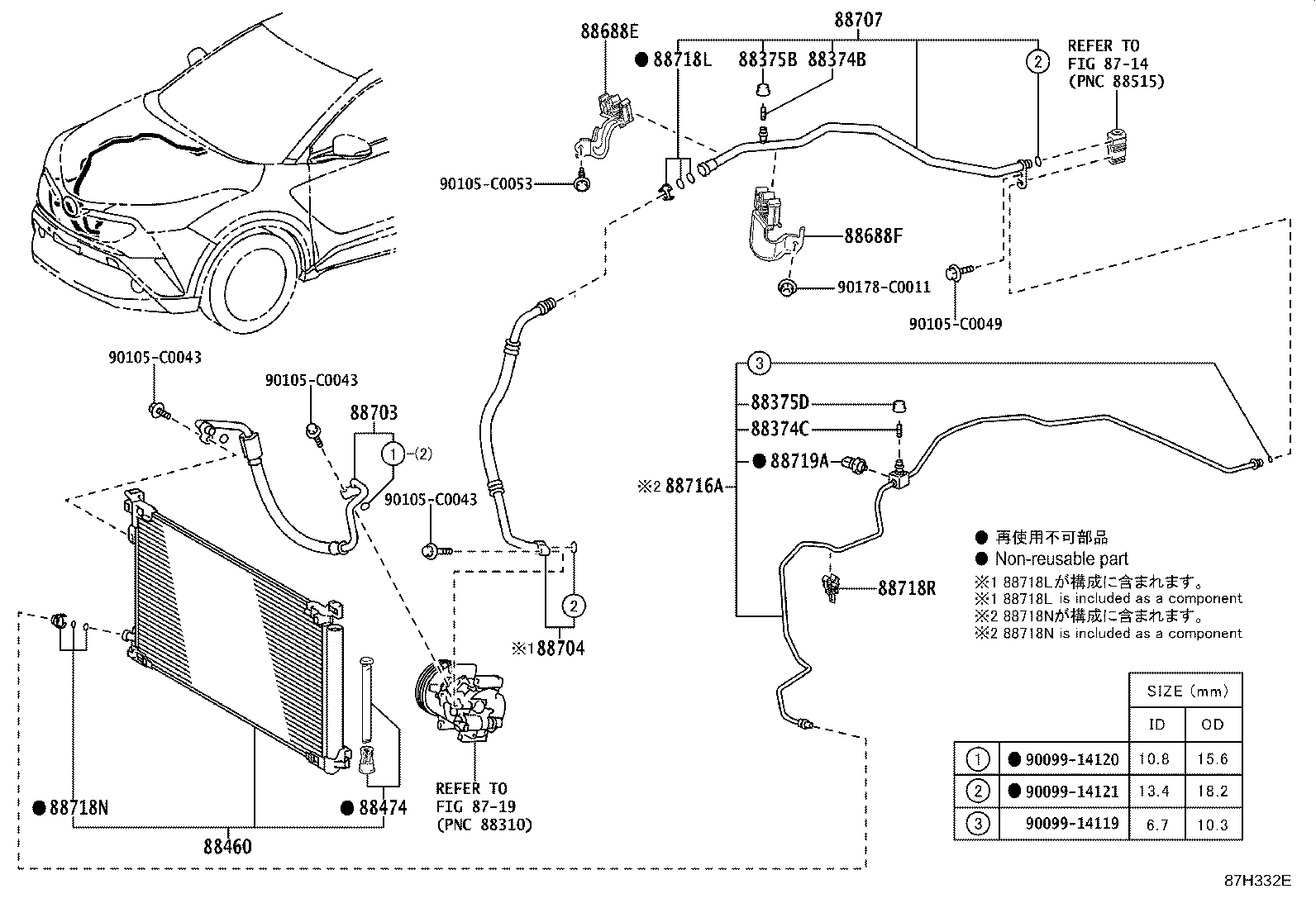

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
MAXA10..E |
1 | ||
| 88374-30010 |
MAXA10..D,G,N |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
MAXA10..D,G,N |
1 | ||
| 88374-30010 |
MAXA10..E |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
MAXA10..E |
1 | ||
| 88375-30290 |
MAXA10..D,G,N |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-0D010 |
MAXA10..D,G,N |
1 | ||
| 88375-0D010 |
MAXA10..E |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 884A0-F4030 |
MAXA10..D,G,N |
1 | ||
| 884A0-F4030 |
MAXA10..E |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12020 |
MAXA10..D,G,N |
1 | ||
| 88474-12020 |
MAXA10..E |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-F4121 |
MAXA10..D,G,N |
1 | ||
| 88688-F4121 |
MAXA10..E |
1 | ||
| 88688-F4120 |
MAXA10 |
1 | ||
| 88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88688-F4130 |
MAXA10..D,G,N |
1 | ||
| 88688-F4130 |
MAXA10..E |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-F4070 |
MAXA10..D,G,N |
1 | ||
| 88703-F4070 |
MAXA10..E |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-F4070 |
MAXA10..E |
1 | ||
| 88704-F4070 |
MAXA10..D,G,N |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-F4070 |
MAXA10..E |
1 | ||
| 88707-F4070 |
MAXA10..D,G,N |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-F4130 |
MAXA10..E |
1 | ||
| 88710-F4130 |
MAXA10..D,G,N |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
MAXA10..E |
1 | ||
| 88718-52280 |
MAXA10..D,G,N |
1 | ||
| 88718N - CLAMP, PIPING | ||||
| 88718-1E150 |
MAXA10..D,G,N |
1 | ||
| 88718-1E150 |
MAXA10..E |
1 | ||
| 88718R - CLAMP, PIPING | ||||
| 88718-02A70 |
MAXA10..D,G,N |
1 | ||
| 88718-02A70 |
MAXA10..E |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
MAXA10..E |
1 | ||
| 88719-11010 |
MAXA10..D,G,N |
1 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-C0043 | ||||
| 90105-C0049 | ||||
| 90105-C0053 | ||||
| 90178-C0011 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
