MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)
Production
Aug 2018
-
Jun 2021
Engine
M20
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

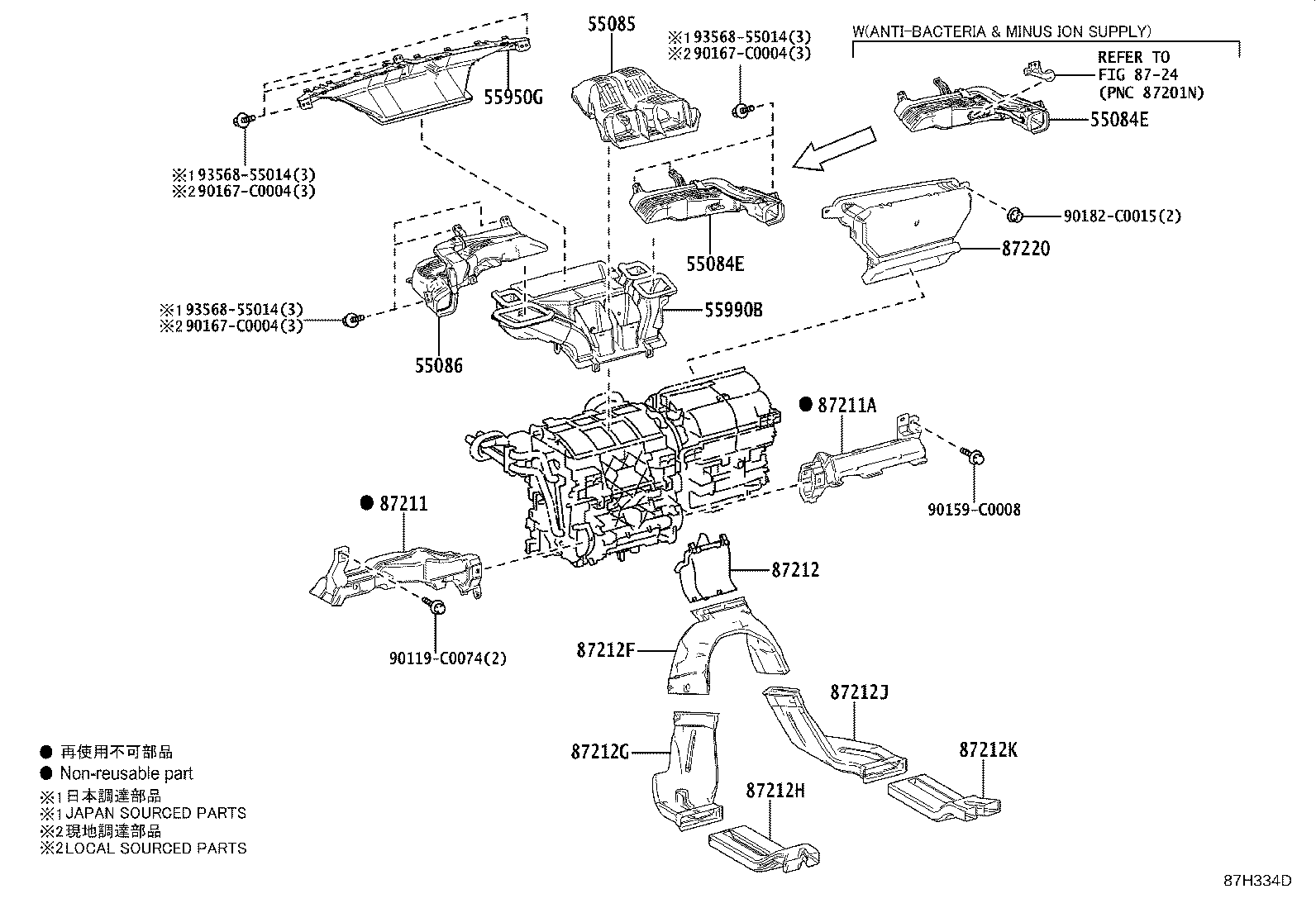

ILLUST NO. 2 OF 3(1808- )
Click highlighted areas on diagram
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55086-F4100 |
MAXA10..D,N |
1 | ||
| 55086-F4110 |
MAXA10..E |
1 | ||
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55086-F4100 |
MAXA10..D,N |
1 | ||
| 55086-F4110 |
MAXA10..E |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-F4060 |
MAXA10..E |
1 | ||
| 55085-F4060 |
MAXA10..D,G,N |
1 | ||
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55084-F4080 |
MAXA10..E |
1 | ||
| 55084-F4080 |
MAXA10..D,G,N |
1 | ||
| 55084-F4060 |
MAXA10 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-F4040 |
MAXA10..D,G,N |
1 | ||
| 55950-F4040 |
MAXA10..E |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-F4050 |
MAXA10..D,G,N |
1 | ||
| 55990-F4050 |
MAXA10..E |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-F4130 |
MAXA10..D,G,N |
1 | ||
| 87211-F4130 |
MAXA10..E |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-F4140 |
MAXA10..D,G,N |
1 | ||
| 87211-F4140 |
MAXA10..E |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87413-F4040 |
MAXA10..E |
1 | ||
| 87413-F4040 |
MAXA10..D,G,N |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87215-F4040 |
MAXA10..D,G,N |
1 | ||
| 87215-F4040 |
MAXA10..E |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-F4030 |
MAXA10..E |
1 | ||
| 87213-F4030 |
MAXA10..D,G,N |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87217-F4030 |
MAXA10..D,G,N |
1 | ||
| 87217-F4030 |
MAXA10..E |
1 | ||
| 87212J - DUCT, AIR, REAR NO.5 | ||||
| 87212-F4030 |
MAXA10..E |
1 | ||
| 87212-F4030 |
MAXA10..D,G,N |
1 | ||
| 87212K - DUCT, AIR, REAR NO.6 | ||||
| 87216-F4030 |
MAXA10..D,G,N |
1 | ||
| 87216-F4030 |
MAXA10..E |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-F4050 |
MAXA10..D,G,N |
1 | ||
| 87220-F4050 |
MAXA10..E |
1 | ||
| Common parts | ||||
| 90119-C0074 | ||||
| 90159-C0008 | ||||
| 90167-C0004 | ||||
| 90182-C0015 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8724 | ||||

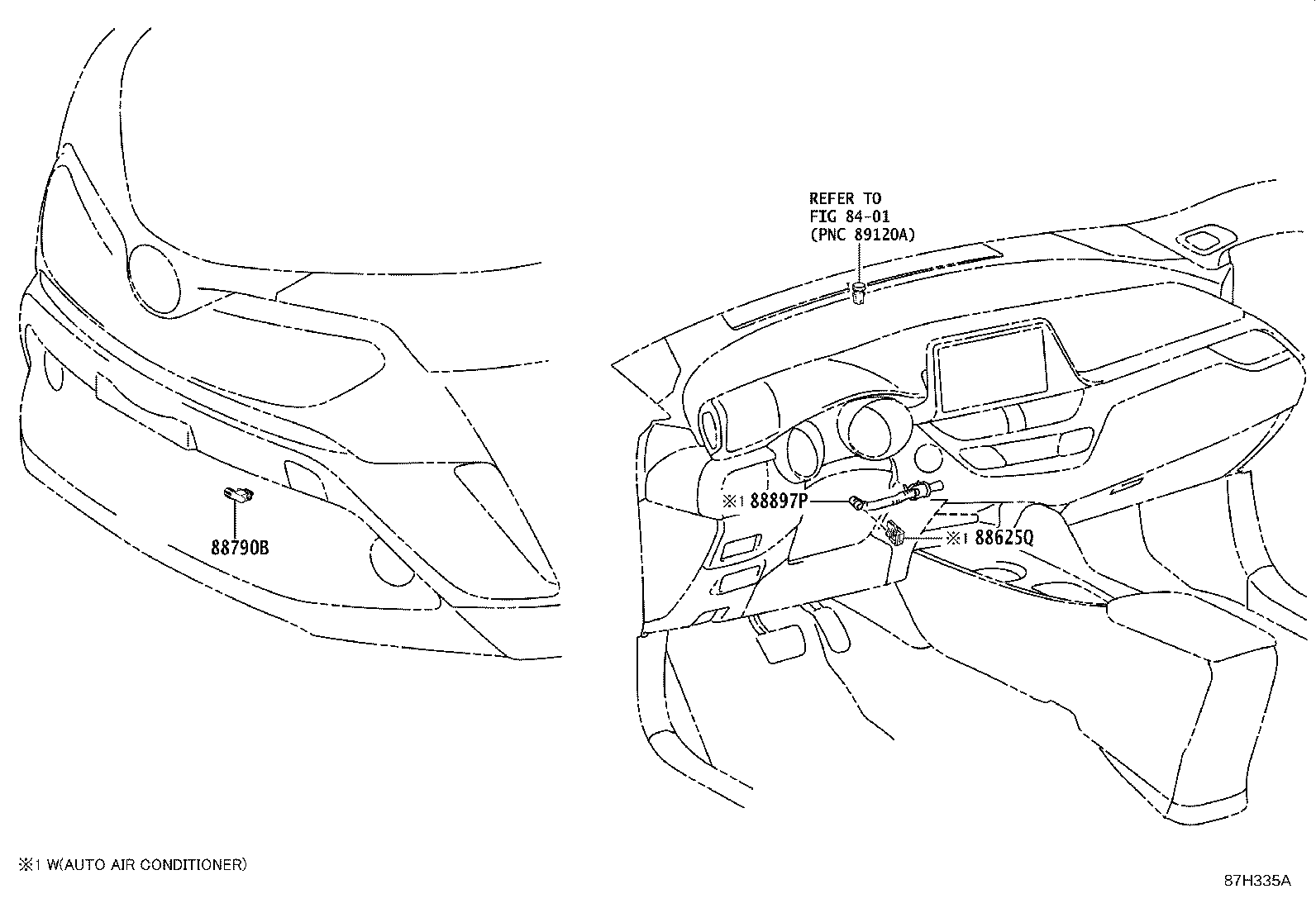

ILLUST NO. 3 OF 3(1808- )
Click highlighted areas on diagram
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
MAXA10..E |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-02010 |
MAXA10..D,G,N |
1 | ||
| 88790-02010 |
MAXA10..E |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88505-F4060 |
MAXA10..E |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||

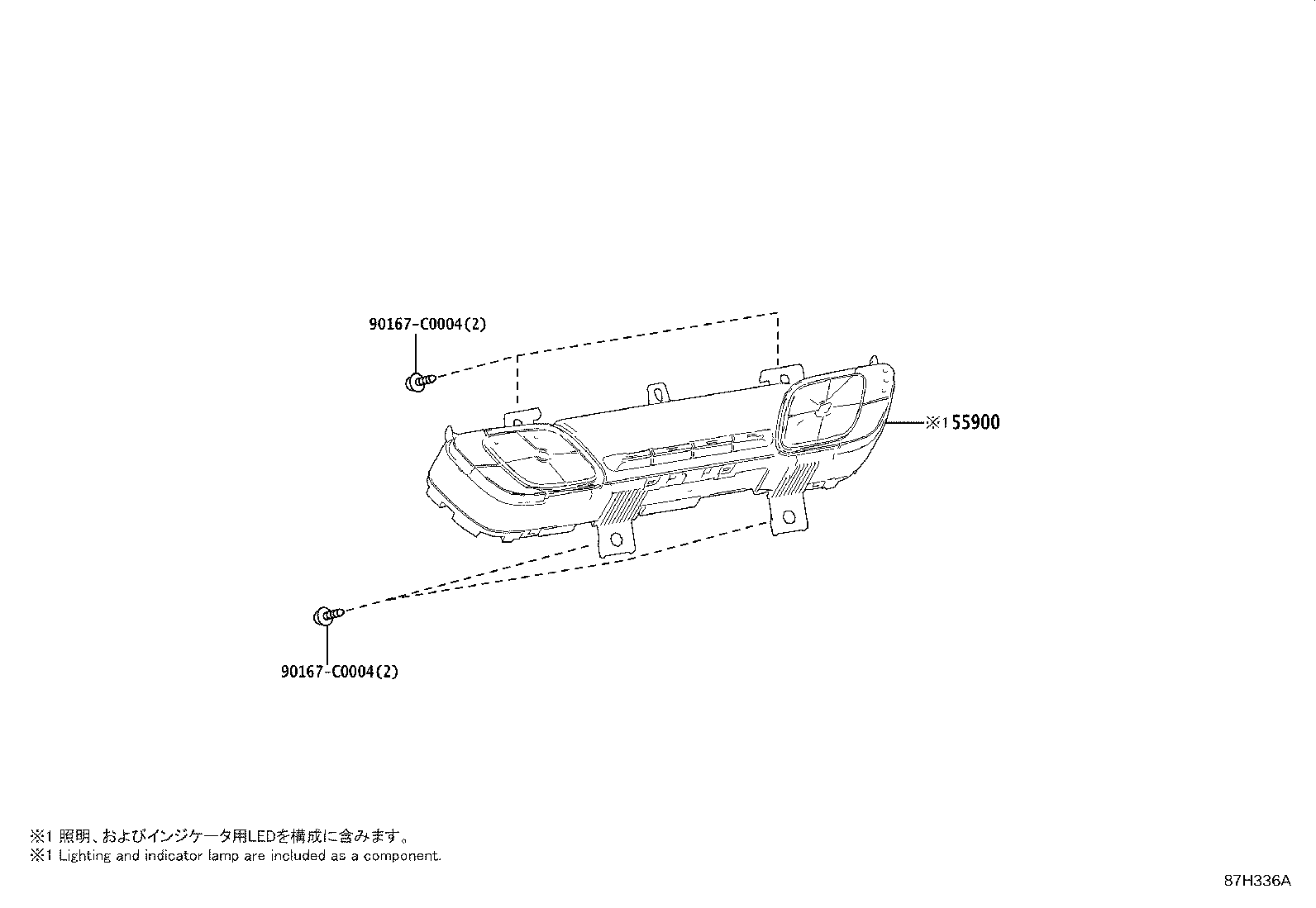

ILLUST NO. 1 OF 3(1808- )
Click highlighted areas on diagram
HEATER CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-F4280 |
MAXA10..E |
1 | ||
| 55900-F4260 |
MAXA10..D,N |
1 | ||
| Common parts | ||||
| 90167-C0004 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
