MAXA10L-EHXDHC (2018)

Toyota C-Hr(China)

Production Aug 2018 - Jun 2021
Engine M20
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1808-2106)D,G,N ; (1808- )MAXA10..E

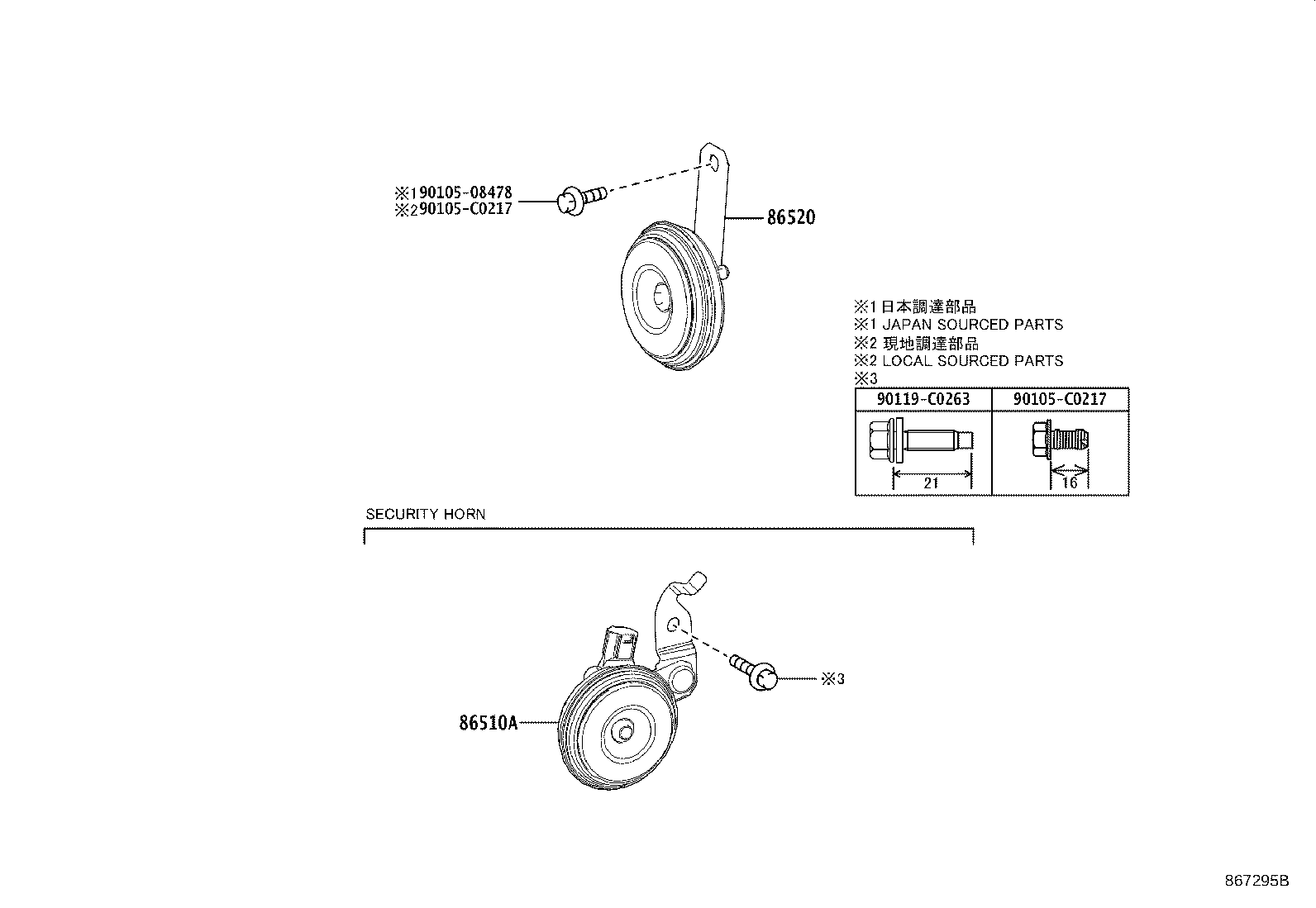

Click highlighted areas on diagram

diagram 86510A 86520 9010508478 90105C0217 90105C0217 90119C0263
Part # Description Qty Price
86510A - HORN ASSY, SECURITY
86560-F4060

MAXA10..E

 1
86560-F4060

MAXA10..D,G,N

 1
86520 - HORN ASSY, LOW PITCHED
86520-0F050

MAXA10

 1
86520-06161

MAXA10..D,G,N

 1
86520-06161

MAXA10..E

 1
Common parts
90105-08478
90105-C0217
90119-C0263
