MAXA10L-EHXDHC (2018)

Toyota C-Hr(China)

Production Aug 2018 - Jun 2021
Engine M20
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1808-2106)D,G,N ; (1808- )MAXA10..E

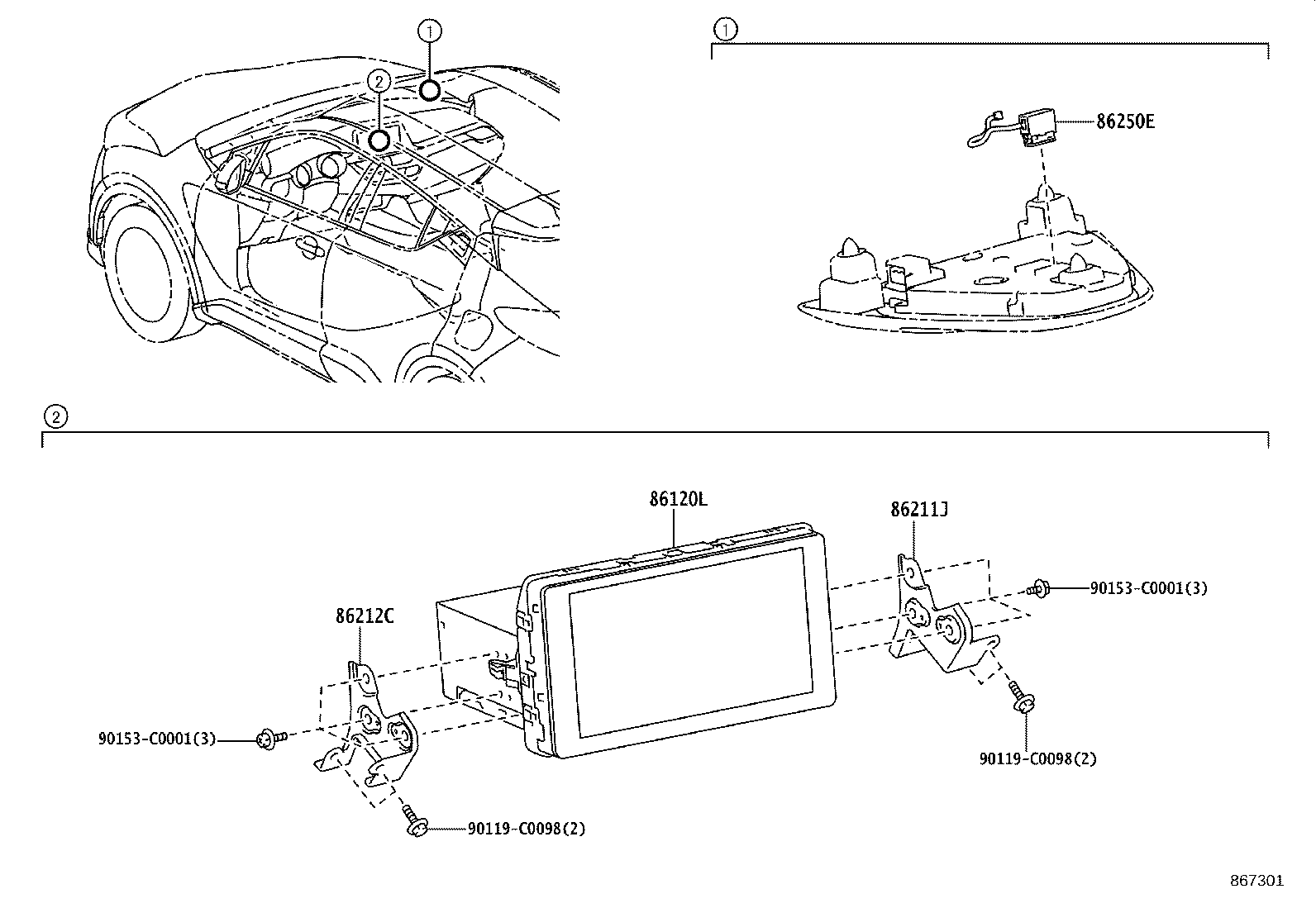

Click highlighted areas on diagram

diagram 86120L 86211J 86212C 86250E 90119C0098 90119C0098 90153C0001 90153C0001
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86100-YY170

MAXA10..E

PANASONIC,AUDIO-ACCESSORY AVN

 1
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-YY070

MAXA10..E

AUDIO-ACCESSORY AVN

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-YY070

MAXA10..E

AUDIO-ACCESSORY AVN

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-06020

MAXA10..E

 1
86250-06020

MAXA10..D

PLUS PACKAGE

 1
Common parts
90119-C0098
90153-C0001
