MAXA10L-EHXDHC (2018)

Toyota C-Hr(China)

Production Aug 2018 - Jun 2021
Engine M20
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

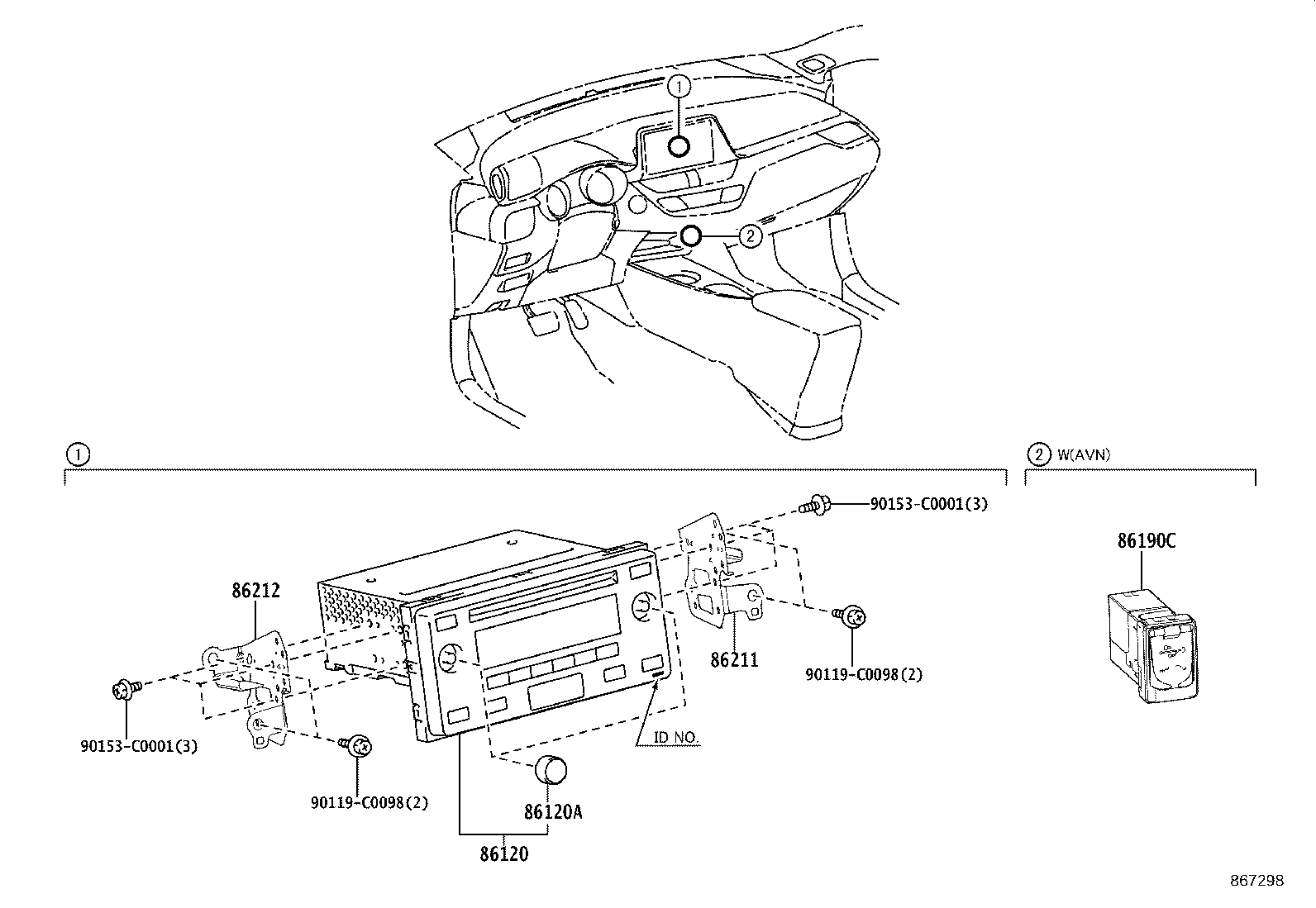

ILLUST NO. 1 OF 2(1808-2106)D,G,N ; (1808- )MAXA10..E

Click highlighted areas on diagram

diagram 86120 86120A 86190C 86211 86212 90119C0098 90119C0098 90153C0001 90153C0001
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-F4070

MAXA10..D

PANASONIC,ID=510317

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90011-25301

MAXA10..D

 2
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-YY020

MAXA10..E

AUDIO-ACCESSORY AVN

 1
86211 - BRACKET, RADIO, NO.1
86211-F4080

MAXA10..D

 1
86212 - BRACKET, RADIO, NO.2
86212-F4080

MAXA10..D

 1
Common parts
90119-C0098
90153-C0001

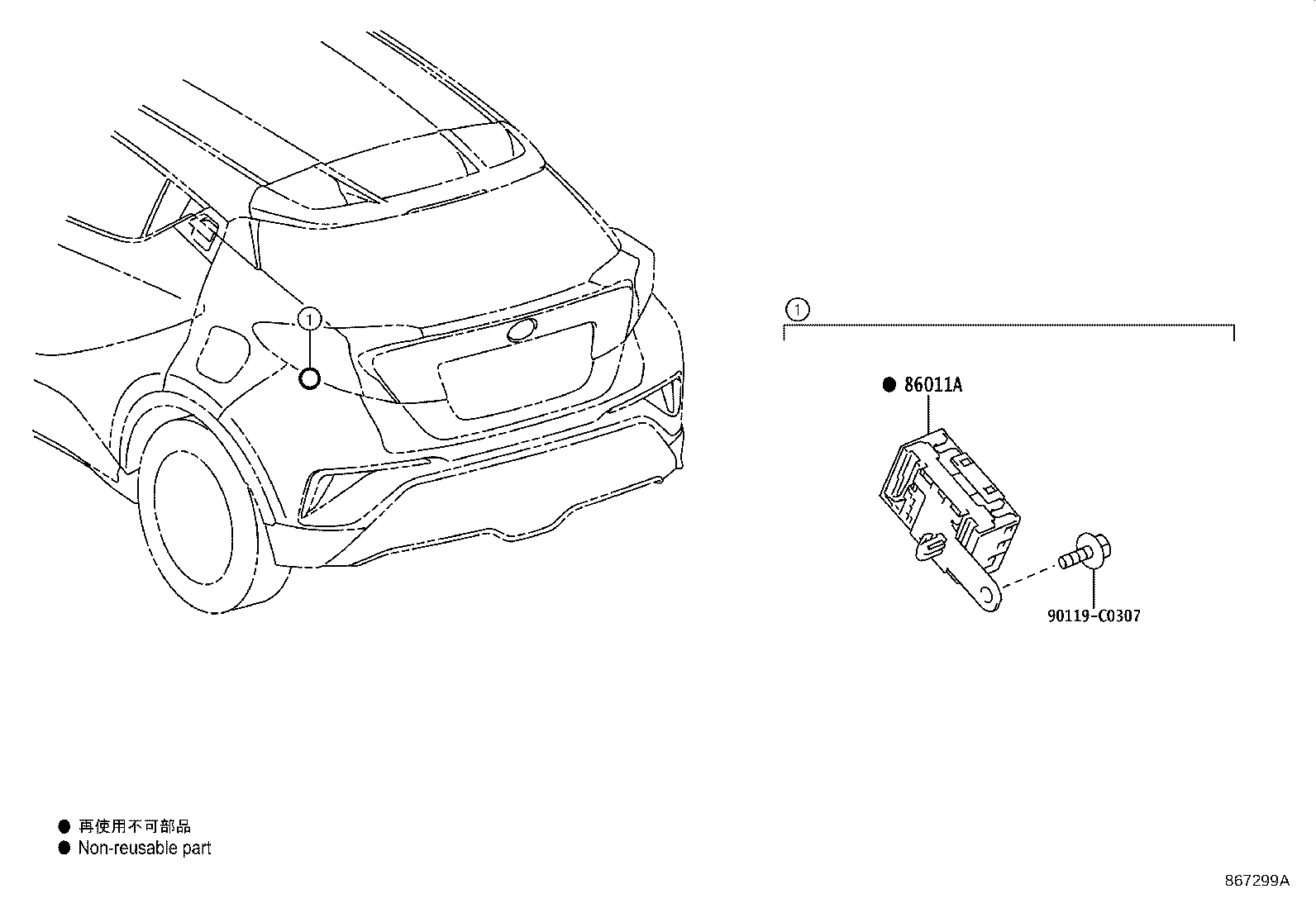

ILLUST NO. 2 OF 2(1808- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 90119C0307
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04204

MAXA10..E

 1
90980-04204

MAXA10..D,G,N

 1
Common parts
90119-C0307
