MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)
(1808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

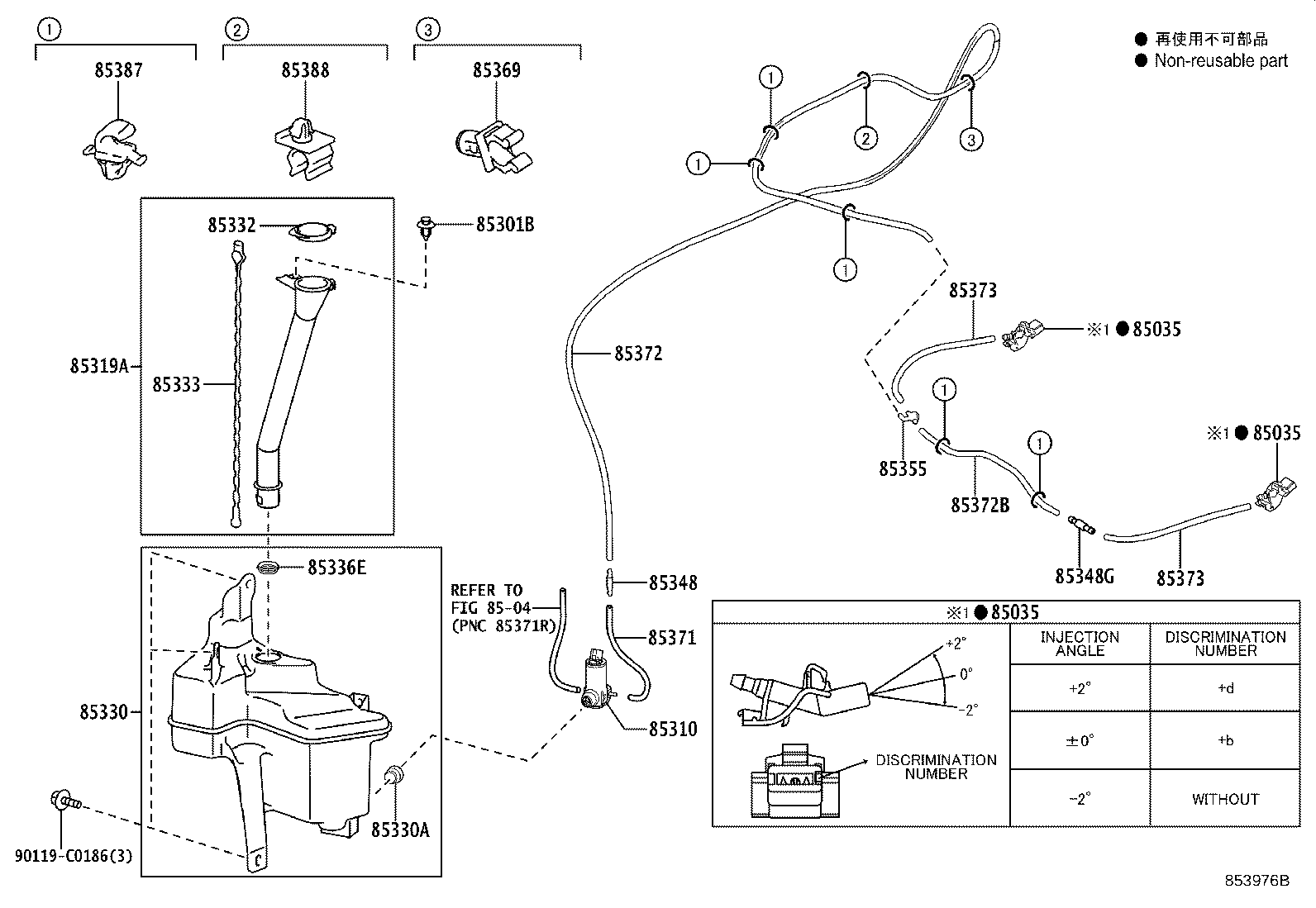

| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30220 |
MAXA10..E ANGLE 0 |
2 | ||
| 85381-30230 |
MAXA10..E ANGLE -2 |
2 | ||
| 85381-30240 |
MAXA10..E ANGLE +2 |
2 | ||
| 85381-30220 |
MAXA10..D,G,N ANGLE 0 |
2 | ||
| 85381-30240 |
MAXA10..D,G,N ANGLE +2 |
2 | ||
| 85381-30230 |
MAXA10..D,G,N ANGLE -2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30220 |
MAXA10..E ANGLE 0 |
2 | ||
| 85381-30230 |
MAXA10..E ANGLE -2 |
2 | ||
| 85381-30240 |
MAXA10..E ANGLE +2 |
2 | ||
| 85381-30220 |
MAXA10..D,G,N ANGLE 0 |
2 | ||
| 85381-30240 |
MAXA10..D,G,N ANGLE +2 |
2 | ||
| 85381-30230 |
MAXA10..D,G,N ANGLE -2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30220 |
MAXA10..E ANGLE 0 |
2 | ||
| 85381-30230 |
MAXA10..E ANGLE -2 |
2 | ||
| 85381-30240 |
MAXA10..E ANGLE +2 |
2 | ||
| 85381-30220 |
MAXA10..D,G,N ANGLE 0 |
2 | ||
| 85381-30240 |
MAXA10..D,G,N ANGLE +2 |
2 | ||
| 85381-30230 |
MAXA10..D,G,N ANGLE -2 |
2 | ||
| 85301B - CLIP, WASHER | ||||
| 90467-C0041 |
MAXA10..E |
1 | ||
| 90467-C0041 |
MAXA10..D,G,N |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-47091 |
MAXA10..D,G,N |
1 | ||
| 85330-47090 |
MAXA10 |
1 | ||
| 85330-47091 |
MAXA10..E |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-F4120 |
MAXA10..D,G,N |
1 | ||
| 85319-F4120 |
MAXA10..E |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-F4120 |
MAXA10..E |
1 | ||
| 85315-F4120 |
MAXA10..D,G,N |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
MAXA10..D,G,N |
1 | ||
| 90099-32089 |
MAXA10..E |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-0D200 |
MAXA10..E |
1 | ||
| 85316-0D200 |
MAXA10..D,G,N |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85318-F4120 |
MAXA10..E |
1 | ||
| 85318-F4120 |
MAXA10..D,G,N |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 85336-30160 |
MAXA10..D,G,N |
1 | ||
| 85336-30160 |
MAXA10..E |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-0E140 |
MAXA10..E |
1 | ||
| 85375-0E140 |
MAXA10..D,G,N |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-0E140 |
MAXA10..E |
1 | ||
| 85375-0E140 |
MAXA10..D,G,N |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
MAXA10..D,G,N |
1 | ||
| 85321-28020 |
MAXA10..E |
1 | ||
| 85369 - CLAMP | ||||
| 85371-52110 |
MAXA10..D,G,N |
1 | ||
| 85371-52110 |
MAXA10..E |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90068-33057 |
MAXA10..D,G,N L=240 |
1 | ||
| 90068-33057 |
MAXA10..E L=240 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-33324 |
MAXA10..D,G,N L=2118 |
1 | ||
| 90068-33324 |
MAXA10..E L=2118 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90068-33322 |
MAXA10..D,G,N L=372 |
1 | ||
| 90068-33322 |
MAXA10..E L=372 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33325 |
MAXA10..D,G,N L=210 |
2 | ||
| 90068-33325 |
MAXA10..E L=210 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33325 |
MAXA10..D,G,N L=210 |
2 | ||
| 90068-33325 |
MAXA10..E L=210 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85371-12040 |
MAXA10 |
5 | ||
| 85371-12040 |
MAXA10..E (J) |
5 | ||
| 85371-0A040 |
MAXA10..E (L) |
5 | ||
| 85371-0A040 |
MAXA10..D,G,N (L) |
5 | ||
| 85371-12040 |
MAXA10..D,G,N (J) |
5 | ||
| 85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER) | ||||
| 85371-32020 |
MAXA10 |
1 | ||
| 85371-32020 |
MAXA10..D,G,N (J) |
1 | ||
| 85371-32020 |
MAXA10..E (J) |
1 | ||
| 85371-0A030 |
MAXA10..D,G,N (L) |
1 | ||
| 85371-0A030 |
MAXA10..E (L) |
1 | ||
| Common parts | ||||
| 90119-C0186 | ||||
| Linked diagrams | ||||
| 8504 | ||||
