MAXA10L-EHXDHC (2018)

Toyota C-Hr(China)

Production Aug 2018 - Jun 2021
Engine M20
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

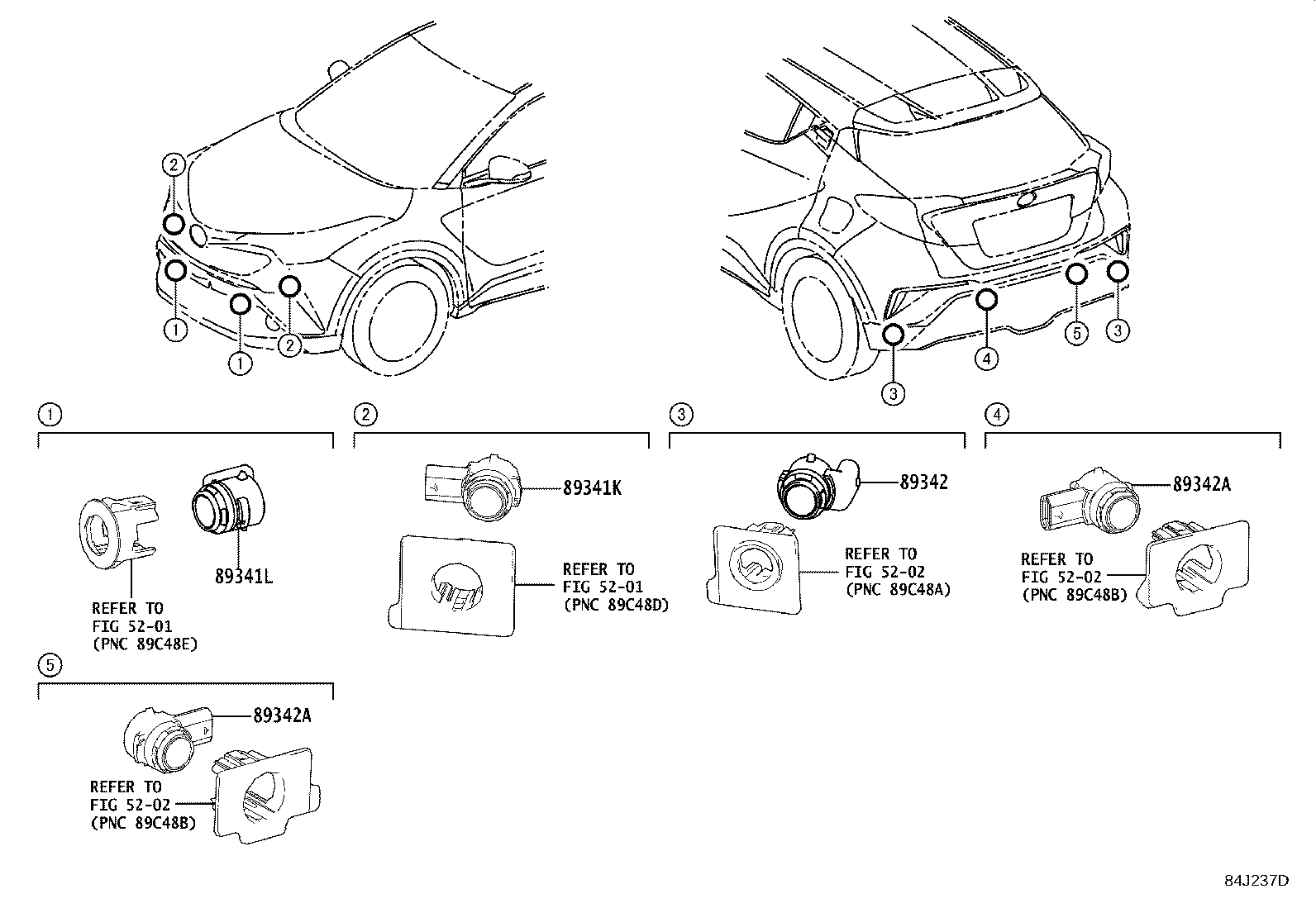

ILLUST NO. 1 OF 2(1808-2106)E,G

Click highlighted areas on diagram

SENSOR

diagram 5201 5201 5202 5202 5202 89341K 89341L 89342 89342A 89342A
Part # Description Qty Price
89341K - SENSOR, ULTRASONIC, FRONT CORNER
89341-F4040G1

MAXA10..E

RADIANT GREEN ME.,2NJ ,6W9

 2
89341-F4040C1

MAXA10..E

ATTITUDE BLACK MC.,218 ,2QH

 2
89341-F4040G0

MAXA10..E

CITRUS M.M.,2QM ,6W2

 2
89341-F4040E0

MAXA10..E

STEEL BLONDE ME.,4X1

 2
89341-F4040A0

MAXA10..E

WHITE PEARL CS.,070 ,2QJ

 2
89341-F4040D0

MAXA10..E

RED M.M.,2QK ,2QL ,3R3

 2
89341L - SENSOR, ULTRASONIC, FRONT CENTER
89341-F4050C0

MAXA10..E

BLACK

 2
89342 - SENSOR, ULTRASONIC, REAR CORNER
89341-F4050C0

MAXA10..E

BLACK

 2
89342A - SENSOR, ULTRASONIC, REAR CENTER
89341-F4040C0

MAXA10..E

BLACK

 2
89342A - SENSOR, ULTRASONIC, REAR CENTER
89341-F4040C0

MAXA10..E

BLACK

 2
Linked diagrams
5201
5202

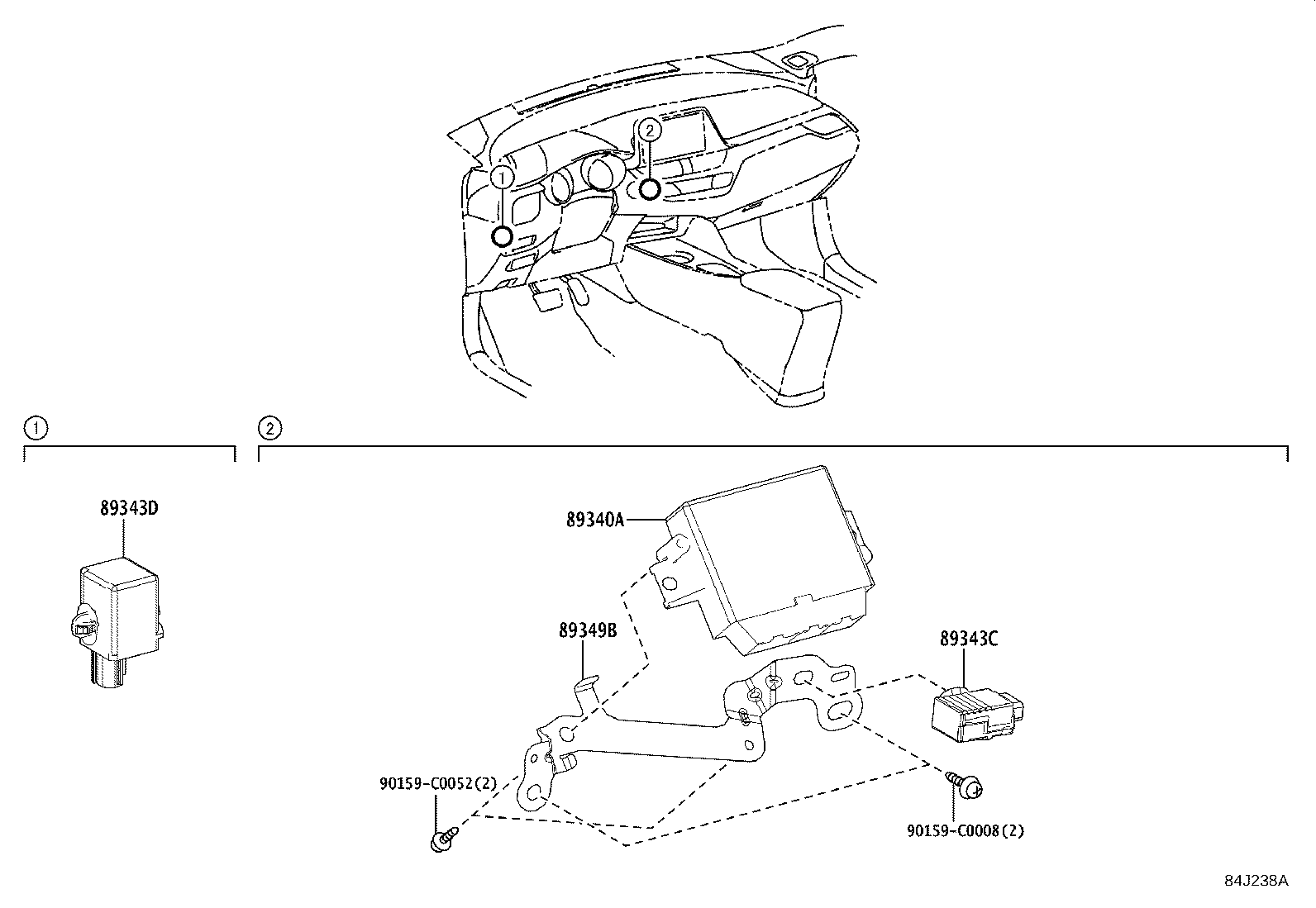

ILLUST NO. 2 OF 2(1808-2106)E,G

Click highlighted areas on diagram

COMPUTER & BUZZER

diagram 89340A 89343C 89343D 89349B 90159C0008 90159C0052
Part # Description Qty Price
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-F4020

MAXA10..E

 1
89343C - BUZZER, CLEARANCE WARNING, NO.1
89343-02010

MAXA10..E

 1
89343D - BUZZER, CLEARANCE WARNING, NO.2
89343-12020

MAXA10..E

 1
89349B - BRACKET, CLEARANCE WARNING COMPUTER
89349-F4020

MAXA10..E

 1
Common parts
90159-C0008
90159-C0052
