MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)
Production
Aug 2018
-
Jun 2021
Engine
M20
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1808- )

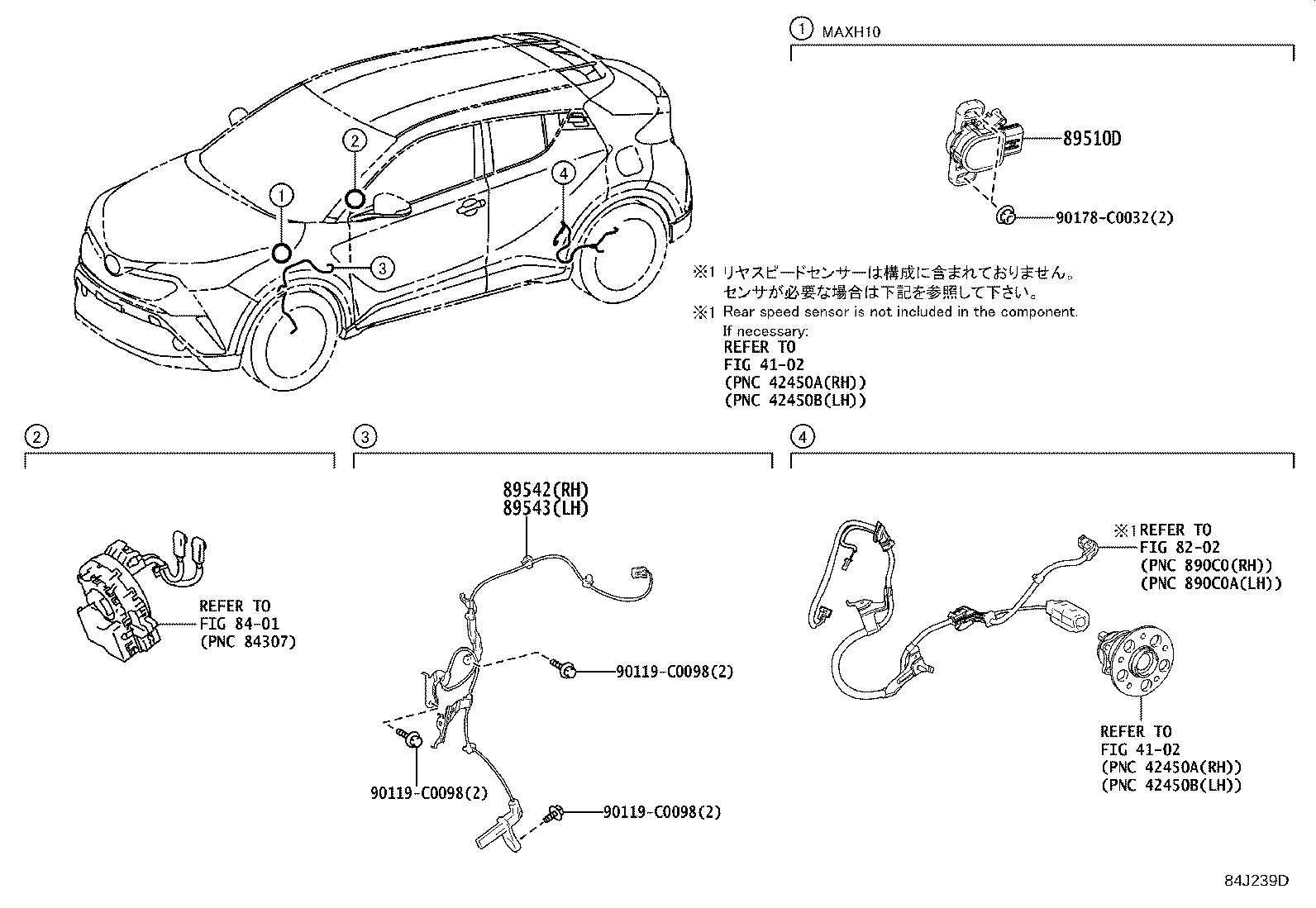

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-F4030 |
MAXA10..D,G,N |
1 | ||
| 89542-F4030 |
MAXA10..E |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-F4030 |
MAXA10..D,G,N |
1 | ||
| 89543-F4030 |
MAXA10..E |
1 | ||
| Common parts | ||||
| 90119-C0098 | ||||
| 90178-C0032 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 8202 | ||||
| 8401 | ||||
