MAXA10L-EHXDHC (2018)

Toyota C-Hr(China)

Production Aug 2018 - Jun 2021
Engine M20
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1808- )MAXA10

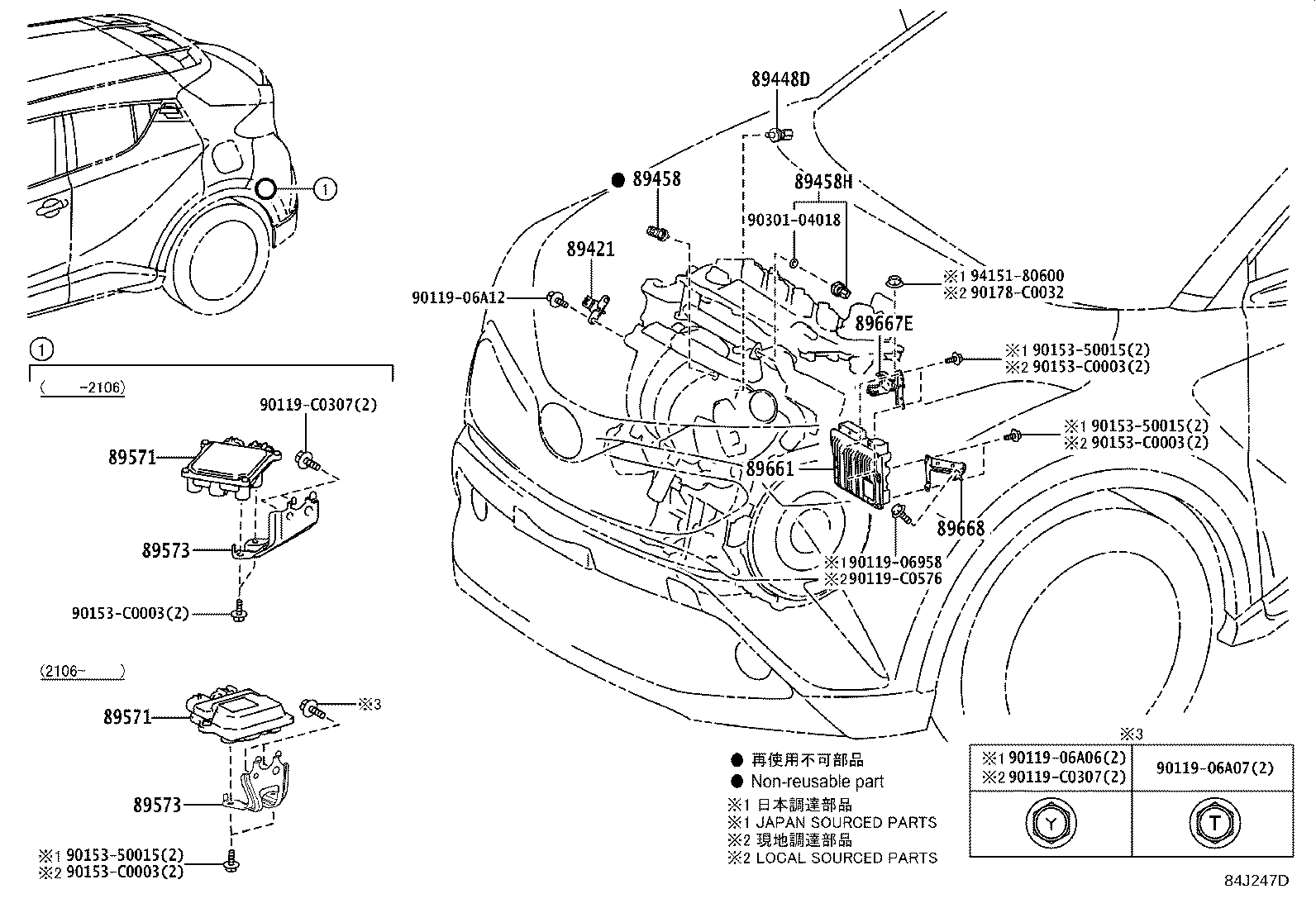

Click highlighted areas on diagram

diagram 89421 89448D 89458 89458H 89571 89571 89573 89573 89661 89667E 89668 9011906958 9011906A06 9011906A07 9011906A12 90119C0307 90119C0307 90119C0576 9015350015 9015350015 9015350015 90153C0003 90153C0003 90153C0003 90153C0003 90178C0032 9030104018 9415180600
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-33010

MAXA10..D,G,N

 1
89421-33010

MAXA10..E

 1
89448D - SENSOR, OIL PRESSURE & TEMPERATURE
89448-33010

MAXA10..E

 1
89448-33010

MAXA10..D,G,N

 1
89458 - SENSOR, FUEL PRESSURE
89458-33030

MAXA10..D,G,N

 1
89458-33030

MAXA10..E

 1
89458H - SENSOR, FUEL PRESSURE, NO.2
89458-33041

MAXA10..D,G,N

 1
89458-33041

MAXA10..E

 1
89571 - COMPUTER, FUEL PUMP CONTROL
89571-12010

MAXA10..D,G,N

 1
89571-12010

MAXA10..E

 1
89571 - COMPUTER, FUEL PUMP CONTROL
89571-12010

MAXA10..D,G,N

 1
89571-12010

MAXA10..E

 1
89573 - BRACKET, FUEL PUMP CONTROL COMPUTER
89573-F4020

MAXA10..D,G,N

 1
89573-F4020

MAXA10..E

 1
89573 - BRACKET, FUEL PUMP CONTROL COMPUTER
89573-F4020

MAXA10..D,G,N

 1
89573-F4020

MAXA10..E

 1
89661 - COMPUTER, ENGINE CONTROL
89661-F4210

MAXA10..E

DENSO

 1
89661-F4220

MAXA10..D,G,N

DENSO,EXHAUST EMISSION CONTROL-CHINA 6B,WITH(ON BOARD DIAGNOSIS)

 1
89661-F4210

MAXA10..D,G,N

DENSO

 1
89661-F4220

MAXA10..E

DENSO,EXHAUST EMISSION CONTROL-CHINA 6B,WITH(ON BOARD DIAGNOSIS)

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-F4070

MAXA10..E

 1
89667-F4070

MAXA10..D,G,N

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-10070

MAXA10

 1
89668-F4090

MAXA10..D,G,N

 1
89668-F4090

MAXA10..E

 1
Common parts
90119-06958
90119-06A06
90119-06A07
90119-06A12
90119-C0307
90119-C0576
90153-50015
90153-C0003
90178-C0032
90301-04018
94151-80600
