MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)

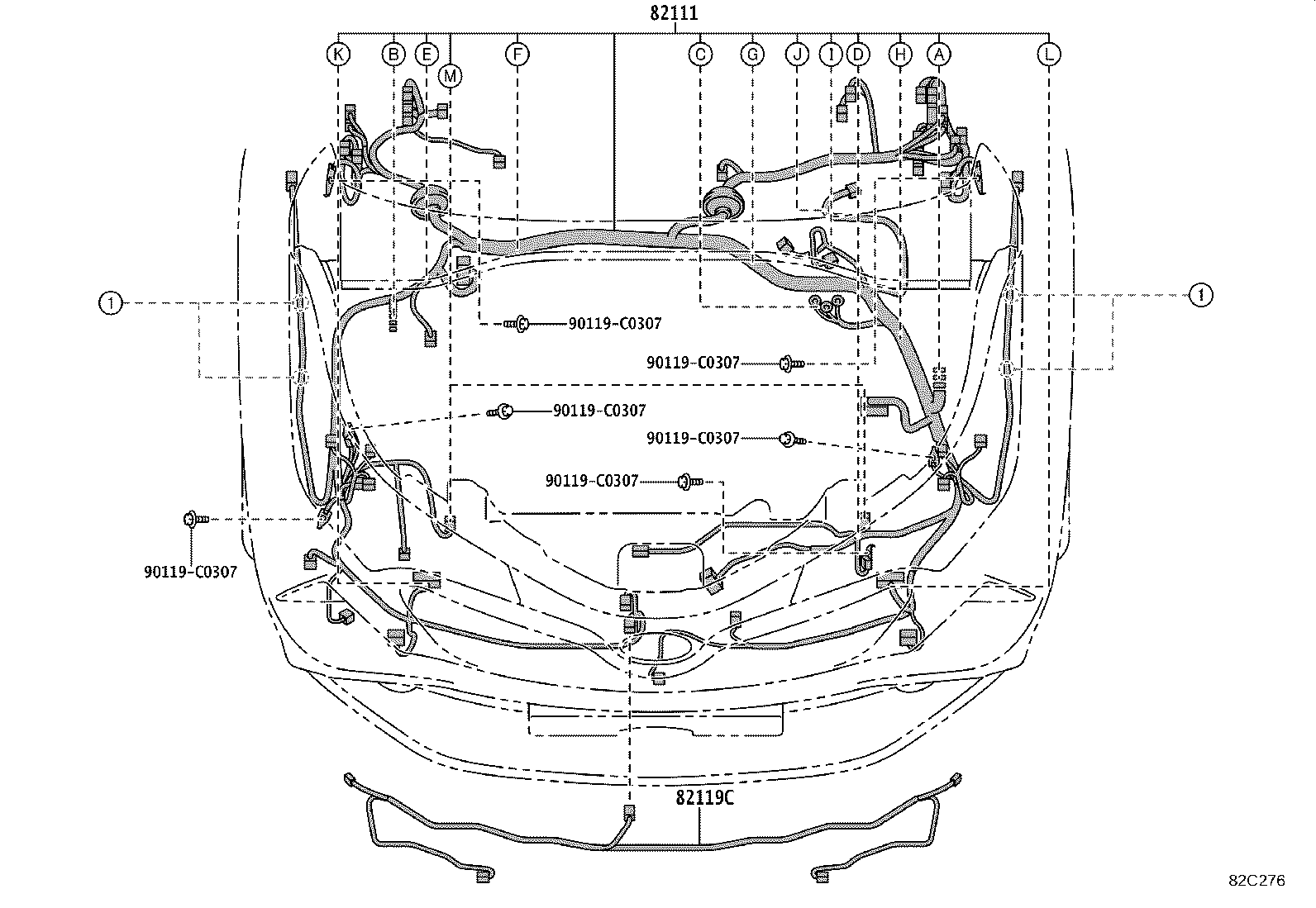

ILLUST NO. 1 OF 9(1808-2106)
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-F4L70 |
MAXA10..D |
1 | ||
| 82111-F4L90 |
MAXA10..E,G |
1 | ||
| 82111-F4L91 |
MAXA10..E |
1 | ||
| 82111-F4L71 |
MAXA10..D |
1 | ||
| 82111-F4K80 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-F4040 |
MAXA10..E |
1 | ||
| Common parts | ||||
| 90119-C0307 | ||||

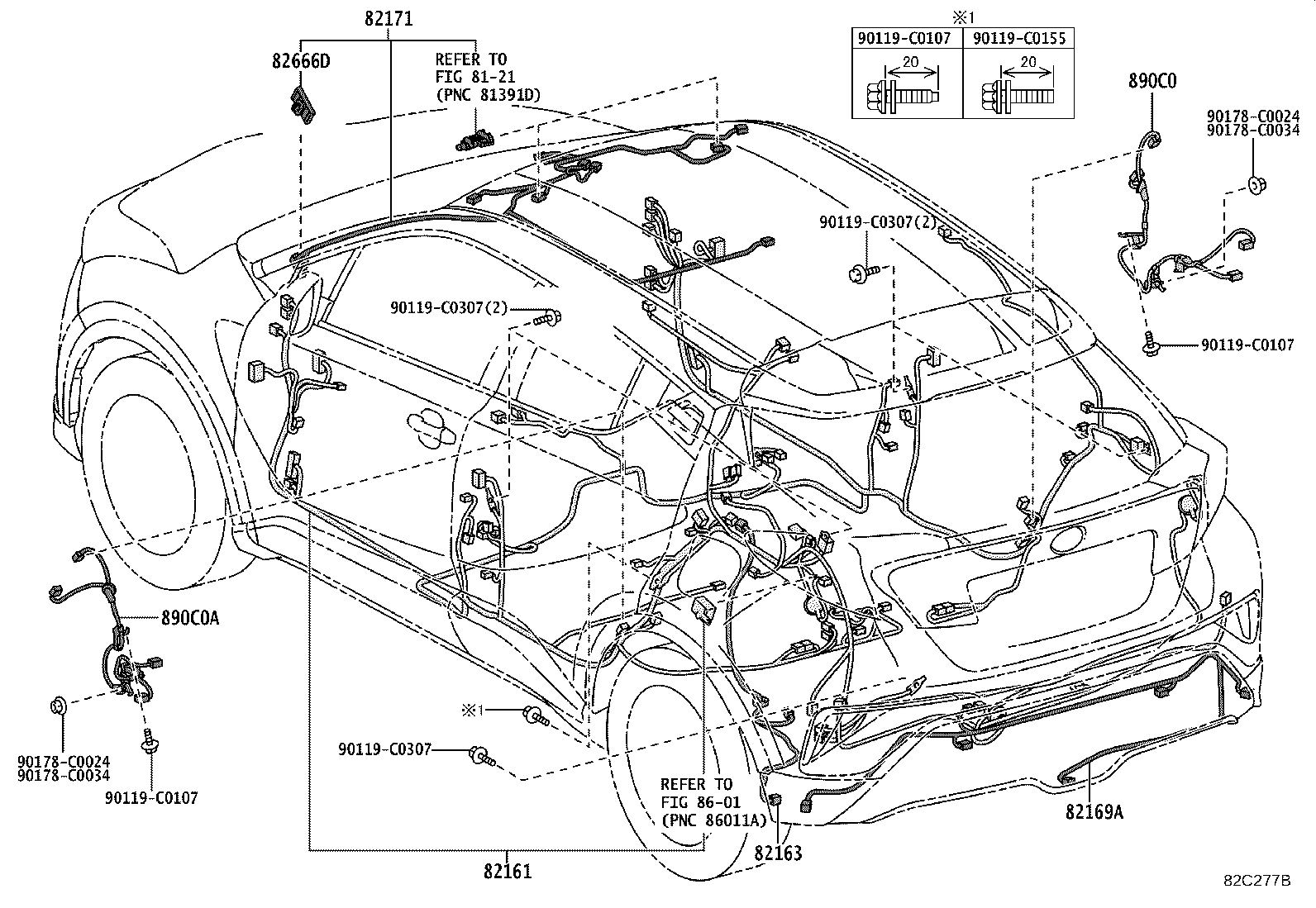

ILLUST NO. 5 OF 9(1808- )MAXA10
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-F4D42 |
MAXA10..D |
1 | ||
| 82161-F4D40 |
MAXA10..D |
1 | ||
| 82161-F4D70 |
MAXA10..E |
1 | ||
| 82199-F4B70 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 82161-F4D72 |
MAXA10..E |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-F4090 |
MAXA10..D,N EXHAUST EMISSION CONTROL-CHINA 6B,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 82163-F4100 |
MAXA10..E EXHAUST EMISSION CONTROL-CHINA 6B,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 82163-F4080 |
MAXA10..E |
1 | ||
| 82169A - WIRE, FLOOR, NO.6 | ||||
| 82169-F4070 |
MAXA10..E |
1 | ||
| 82169-F4060 |
MAXA10..D,N |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-F4670 |
MAXA10..E |
1 | ||
| 82171-F4700 |
MAXA10..E,G MOON ROOF-WITHOUT |
1 | ||
| 82171-F4650 |
MAXA10..D |
1 | ||
| 82171-F4660 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 82171-F4660 |
MAXA10..E |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60220 |
MAXA10..D |
1 | ||
| 82666-60220 |
MAXA10..E,G,N MOON ROOF-WITHOUT |
1 | ||
| 82666-60220 |
MAXA10..E |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-F4070 |
MAXA10..D,G,N |
1 | ||
| 890C0-F4070 |
MAXA10..E |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-F4080 |
MAXA10..D,G,N |
1 | ||
| 890C0-F4080 |
MAXA10..E |
1 | ||
| Common parts | ||||
| 90119-C0107 | ||||
| 90119-C0155 | ||||
| 90119-C0307 | ||||
| 90178-C0024 | ||||
| 90178-C0034 | ||||
| Linked diagrams | ||||
| 8121 | ||||

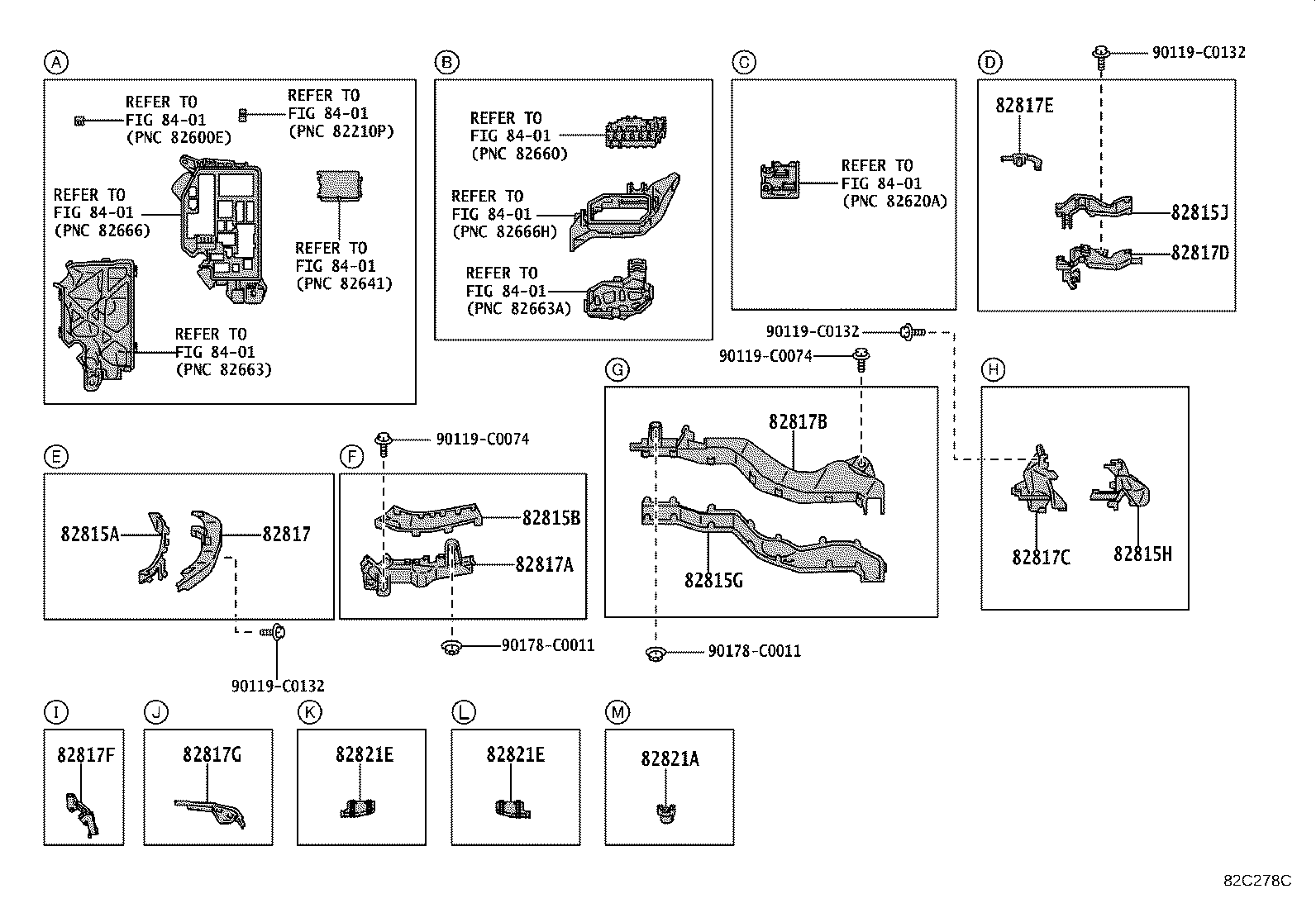

ILLUST NO. 1 OF 9(1808-2106)
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-F4200 |
MAXA10..E |
1 | ||
| 82815-F4200 |
MAXA10..D,G,N |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-F4210 |
MAXA10..D,G,N |
1 | ||
| 82815-F4210 |
MAXA10..E |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-F4220 |
MAXA10..E |
1 | ||
| 82815-F4220 |
MAXA10..D,G,N |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-F4230 |
MAXA10..D,G,N |
1 | ||
| 82815-F4230 |
MAXA10..E |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-12D10 |
MAXA10..D,G,N |
1 | ||
| 82815-12D10 |
MAXA10..E |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-F4230 |
MAXA10..D,G,N |
1 | ||
| 82817-F4230 |
MAXA10..E |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-F4240 |
MAXA10..D,G,N |
1 | ||
| 82817-F4240 |
MAXA10..E |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-F4250 |
MAXA10..D,G,N |
1 | ||
| 82817-F4250 |
MAXA10..E |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-F4260 |
MAXA10..E |
1 | ||
| 82817-F4260 |
MAXA10..D,G,N |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-12V50 |
MAXA10..E |
1 | ||
| 82817-12V50 |
MAXA10..D,G,N |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-F4320 |
MAXA10..D,G,N |
1 | ||
| 82817-F4320 |
MAXA10..E |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-12W30 |
MAXA10..D,G,N |
1 | ||
| 82817-12W30 |
MAXA10..E |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-F4520 |
MAXA10..D,G,N |
1 | ||
| 82817-F4520 |
MAXA10..E |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-30650 |
MAXA10..E |
2 | ||
| 82821-30650 |
MAXA10..D,G,N |
2 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-50780 |
MAXA10..E |
2 | ||
| 82821-50780 |
MAXA10..D,G,N |
2 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-50780 |
MAXA10..E |
2 | ||
| 82821-50780 |
MAXA10..D,G,N |
2 | ||
| Common parts | ||||
| 90119-C0074 | ||||
| 90119-C0132 | ||||
| 90178-C0011 | ||||
| Linked diagrams | ||||
| 8401 | ||||

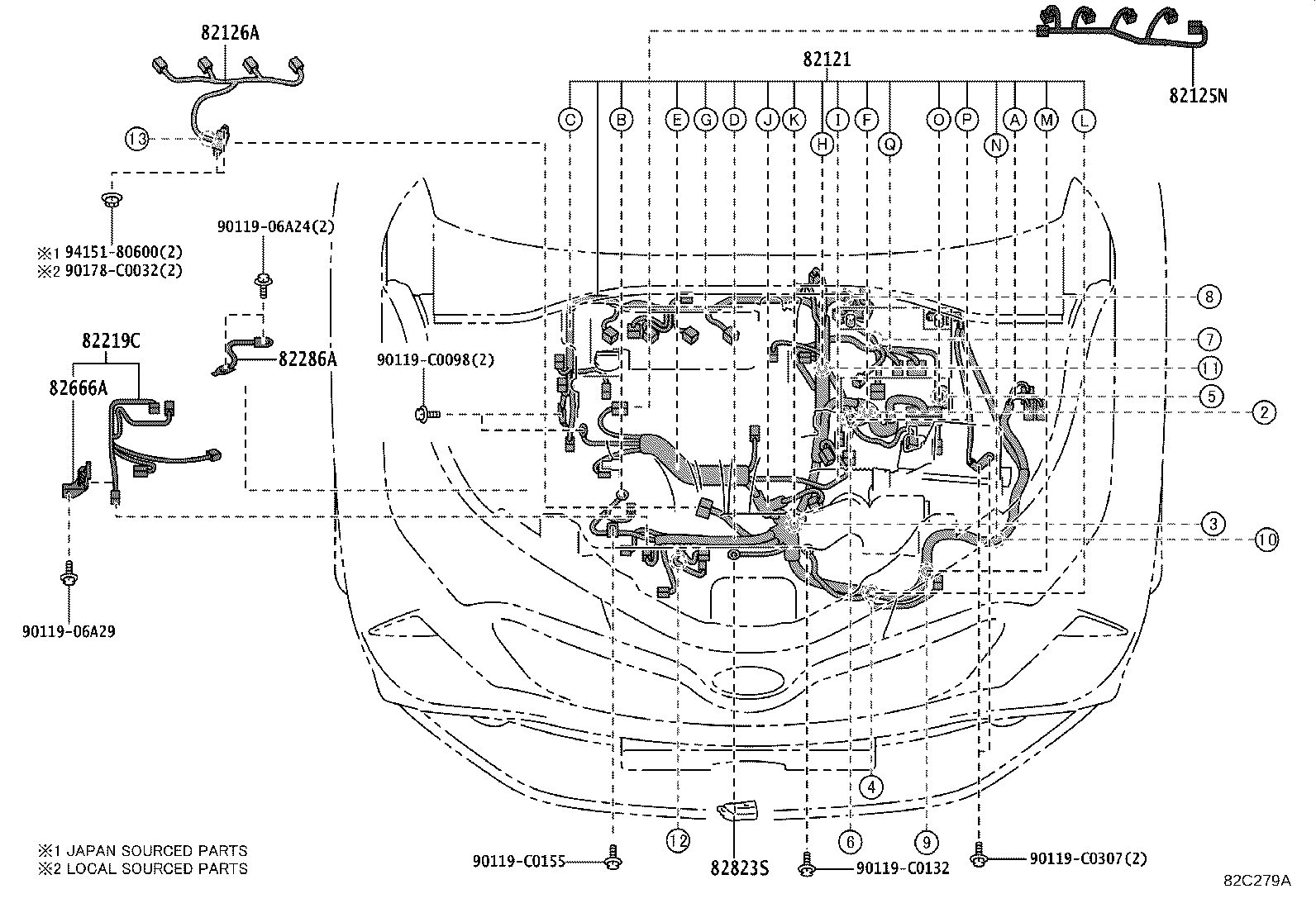

ILLUST NO. 2 OF 9(1808- )MAXA10
ENGINE 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-F4130 |
MAXA10..D,G,N |
1 | ||
| 82121-F4130 |
MAXA10..E |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-0R010 |
MAXA10..D,G,N |
1 | ||
| 82125-0R010 |
MAXA10..E |
1 | ||
| 82125-12660 |
MAXA10 |
1 | ||
| 82125-12660 |
MAXA10..D,G,N ENGINE-M20A-FKS |
1 | ||
| 82125-12660 |
MAXA10..E ENGINE-M20A-FKS |
1 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-12010 |
MAXA10 |
1 | ||
| 82126-0R020 |
MAXA10..D,G,N |
1 | ||
| 82126-12010 |
MAXA10..D,G,N ENGINE-M20A-FKS |
1 | ||
| 82126-0R020 |
MAXA10..E |
1 | ||
| 82126-12010 |
MAXA10..E ENGINE-M20A-FKS |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-0R010 |
MAXA10..D,G,N |
1 | ||
| 82219-12140 |
MAXA10..D,G,N ENGINE-M20A-FKS |
1 | ||
| 82219-12140 |
MAXA10 |
1 | ||
| 82219-12140 |
MAXA10..E ENGINE-M20A-FKS |
1 | ||
| 82219-0R010 |
MAXA10..E |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-F4070 |
MAXA10..D,G,N |
1 | ||
| 82286-F4070 |
MAXA10..E |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-12490 |
MAXA10..D,G,N |
1 | ||
| 82666-12490 |
MAXA10..E |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 28192-F2060 |
MAXA10..E |
1 | ||
| 28192-F2060 |
MAXA10..D,G,N |
1 | ||
| Common parts | ||||
| 90119-06A24 | ||||
| 90119-06A29 | ||||
| 90119-C0098 | ||||
| 90119-C0132 | ||||
| 90119-C0155 | ||||
| 90119-C0307 | ||||
| 90178-C0032 | ||||
| 94151-80600 | ||||

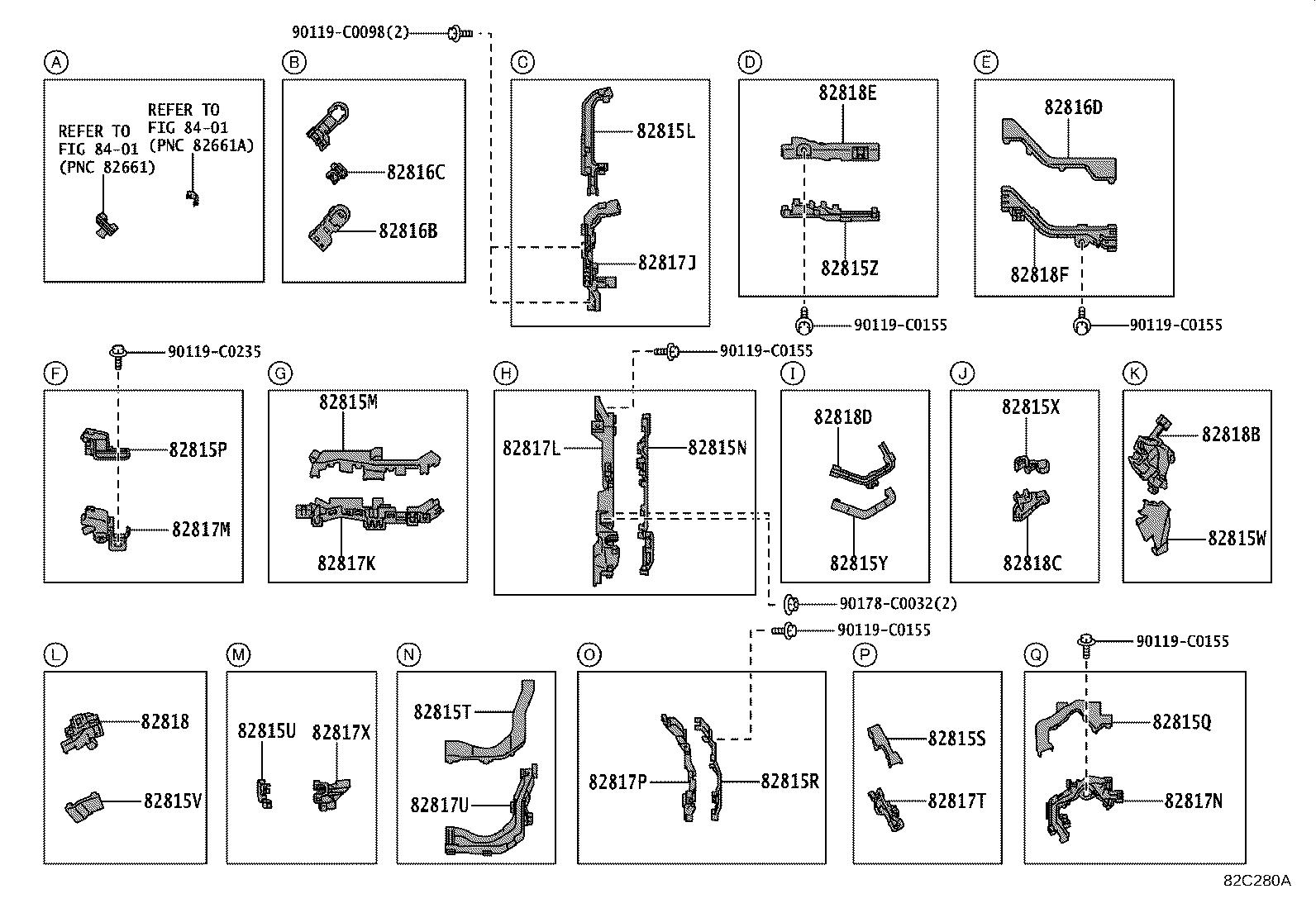

ILLUST NO. 2 OF 9(1808- )MAXA10
ENGINE 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-12B00 |
MAXA10..D,G,N |
1 | ||
| 82815-12B00 |
MAXA10..E |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-F4550 |
MAXA10..E |
1 | ||
| 82815-F4550 |
MAXA10..D,G,N |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-F4620 |
MAXA10..E |
1 | ||
| 82815-F4620 |
MAXA10..D,G,N |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-F4610 |
MAXA10..E |
1 | ||
| 82815-F4610 |
MAXA10..D,G,N |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-12E40 |
MAXA10..E |
1 | ||
| 82815-12E40 |
MAXA10..D,G,N |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-F4510 |
MAXA10..D,G,N |
1 | ||
| 82815-F4510 |
MAXA10..E |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-F4520 |
MAXA10..E |
1 | ||
| 82815-F4520 |
MAXA10..D,G,N |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-F4470 |
MAXA10..E |
1 | ||
| 82815-F4470 |
MAXA10..D,G,N |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-F4540 |
MAXA10..D,G,N |
1 | ||
| 82815-F4540 |
MAXA10..E |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-F4530 |
MAXA10..D,G,N |
1 | ||
| 82815-F4530 |
MAXA10..E |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-F4590 |
MAXA10..D,G,N |
1 | ||
| 82815-F4590 |
MAXA10..E |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-F4570 |
MAXA10..D,G,N |
1 | ||
| 82815-F4570 |
MAXA10..E |
1 | ||
| 82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-F4600 |
MAXA10..E |
1 | ||
| 82815-F4600 |
MAXA10..D,G,N |
1 | ||
| 82815Z - COVER, WIRING HARNESS PROTECTOR, NO.18 | ||||
| 82815-F4190 |
MAXA10..E |
1 | ||
| 82815-F4190 |
MAXA10..D,G,N |
1 | ||
| 82816B - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-33J10 |
MAXA10..D,G,N |
1 | ||
| 82815-33J10 |
MAXA10..E |
1 | ||
| 82816C - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-33L00 |
MAXA10..E |
1 | ||
| 82815-33L00 |
MAXA10..D,G,N |
1 | ||
| 82816D - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-12D80 |
MAXA10..E |
1 | ||
| 82815-12D80 |
MAXA10..D,G,N |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-12V00 |
MAXA10..E |
1 | ||
| 82817-12V00 |
MAXA10..D,G,N |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-F4770 |
MAXA10..D,G,N |
1 | ||
| 82817-F4770 |
MAXA10..E |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-F4840 |
MAXA10..D,G,N |
1 | ||
| 82817-F4840 |
MAXA10..E |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-F4830 |
MAXA10..D,G,N |
1 | ||
| 82817-F4830 |
MAXA10..E |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-12S40 |
MAXA10..D,G,N |
1 | ||
| 82817-12S40 |
MAXA10..E |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-F4730 |
MAXA10..D,G,N |
1 | ||
| 82817-F4730 |
MAXA10..E |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-F4740 |
MAXA10..D,G,N |
1 | ||
| 82817-F4740 |
MAXA10..E |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-F4660 |
MAXA10..E |
1 | ||
| 82817-F4660 |
MAXA10..D,G,N |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-F4760 |
MAXA10..E |
1 | ||
| 82817-F4760 |
MAXA10..D,G,N |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-F4750 |
MAXA10..D,G,N |
1 | ||
| 82817-F4750 |
MAXA10..E |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-F4810 |
MAXA10..E |
1 | ||
| 82817-F4810 |
MAXA10..D,G,N |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-F4790 |
MAXA10..D,G,N |
1 | ||
| 82817-F4790 |
MAXA10..E |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-F4820 |
MAXA10..D,G,N |
1 | ||
| 82817-F4820 |
MAXA10..E |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-F4420 |
MAXA10..D,G,N |
1 | ||
| 82817-F4420 |
MAXA10..E |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-12R80 |
MAXA10..E |
1 | ||
| 82817-12R80 |
MAXA10..D,G,N |
1 | ||
| Common parts | ||||
| 90119-C0098 | ||||
| 90119-C0155 | ||||
| 90119-C0235 | ||||
| 90178-C0032 | ||||
| Linked diagrams | ||||
| 8401 | ||||

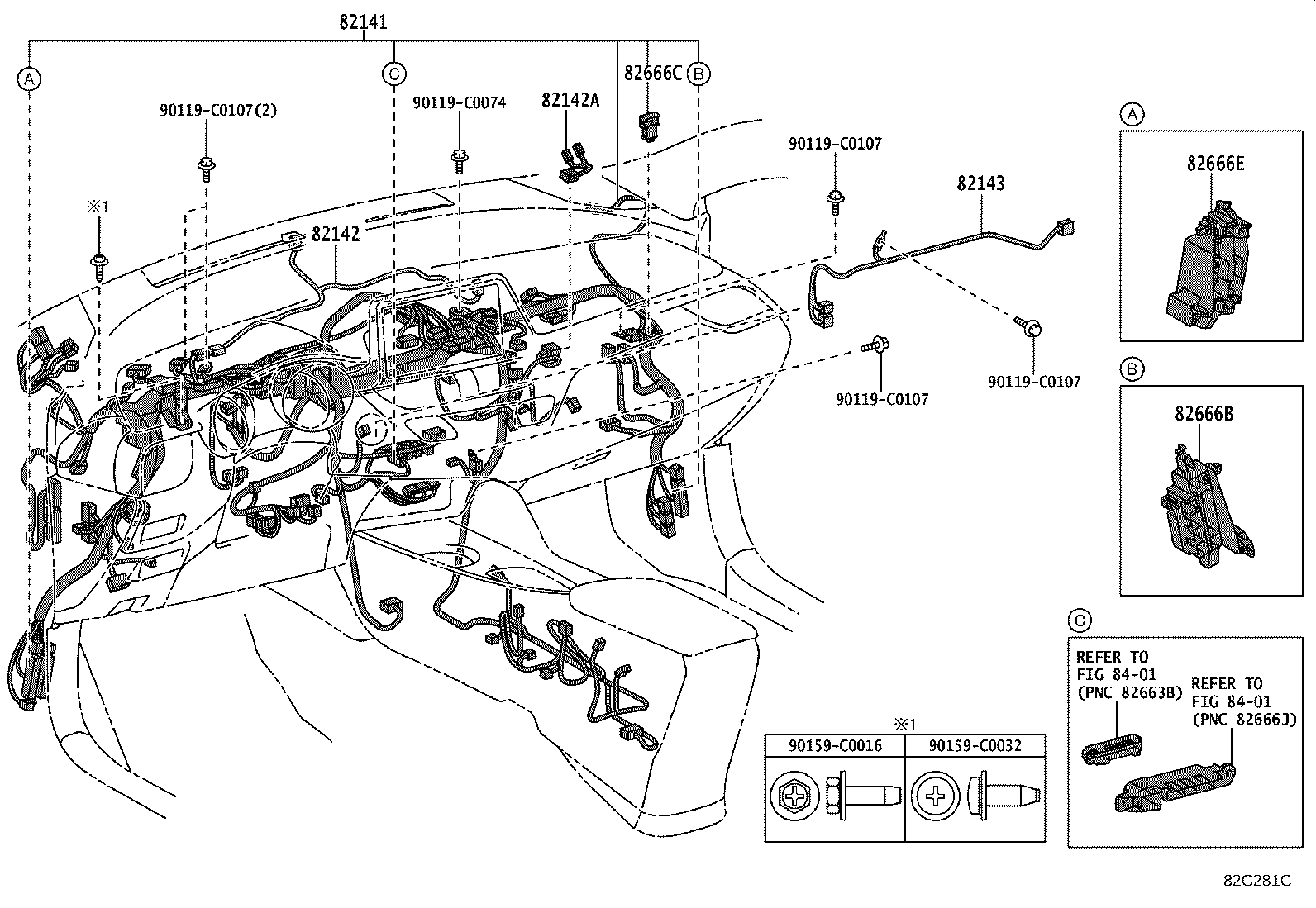

ILLUST NO. 3 OF 9(1808- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-F4S90 |
MAXA10..D |
1 | ||
| 82145-F4R40 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 82141-F4T10 |
MAXA10..E,G |
1 | ||
| 82141-F4T11 |
MAXA10..E |
1 | ||
| 82141-F4S91 |
MAXA10..D |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-F4100 |
MAXA10..E |
1 | ||
| 82142-F4090 |
MAXA10..D,N |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-F4040 |
MAXA10..D,G,N |
1 | ||
| 82140-F4040 |
MAXA10..E |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-F4060 |
MAXA10 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-F4140 |
MAXA10..E |
1 | ||
| 82666-F4140 |
MAXA10..D,G,N |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-20270 |
MAXA10..E |
1 | ||
| 82666-20270 |
MAXA10..D,G,N |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-F4130 |
MAXA10..E |
1 | ||
| 82666-F4130 |
MAXA10..D,G,N |
1 | ||
| Common parts | ||||
| 90119-C0074 | ||||
| 90119-C0107 | ||||
| 90159-C0016 | ||||
| 90159-C0032 | ||||
| Linked diagrams | ||||
| 8401 | ||||

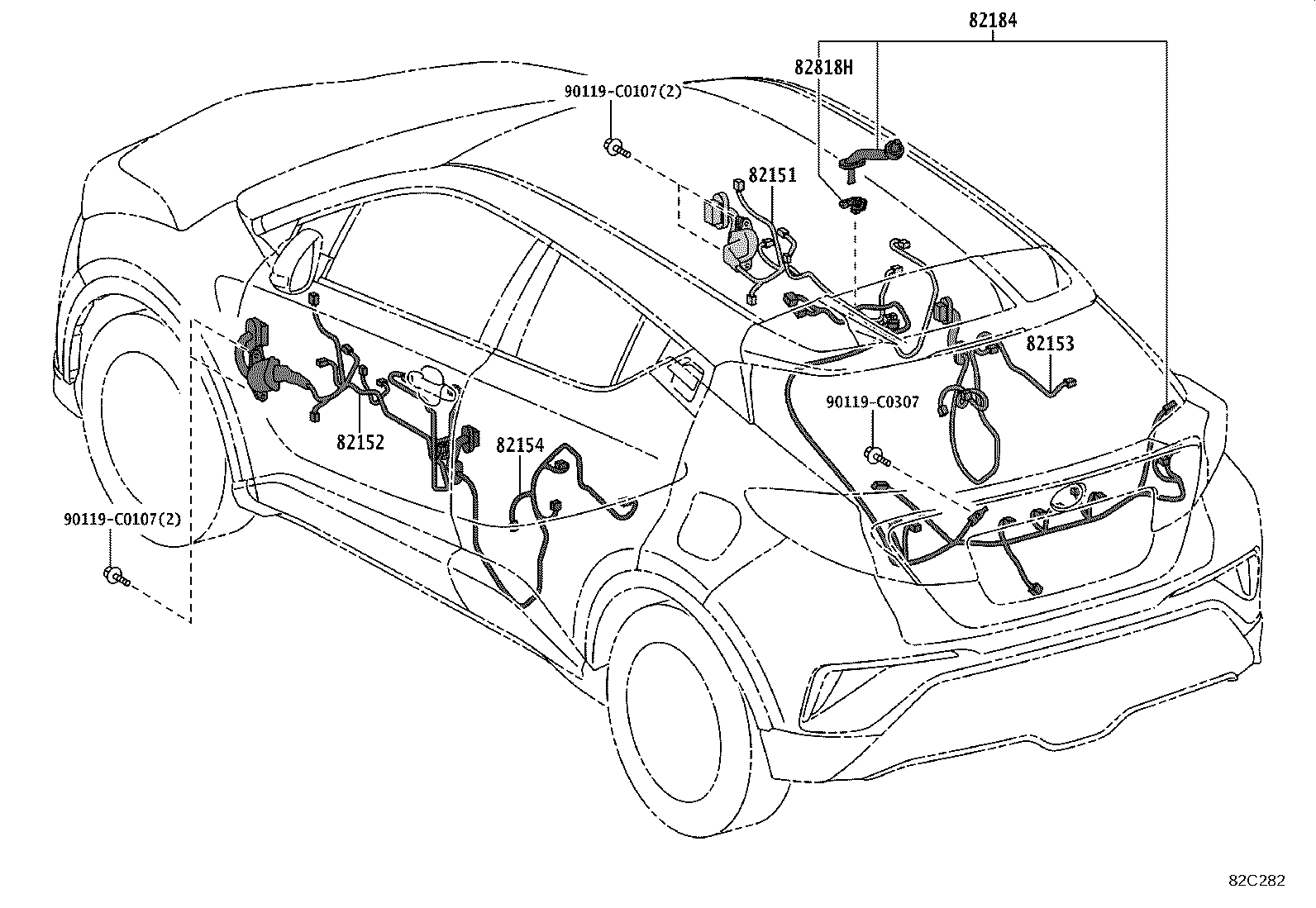

ILLUST NO. 4 OF 9(1808- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-F4700 |
MAXA10..D |
1 | ||
| 82151-F4720 |
MAXA10..E |
1 | ||
| 82151-F4600 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-F4570 |
MAXA10..E |
1 | ||
| 82152-F4D70 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 82152-F4550 |
MAXA10..D |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-F4090 |
MAXA10..E |
1 | ||
| 82153-F4080 |
MAXA10..D |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-F4080 |
MAXA10..D |
1 | ||
| 82154-F4090 |
MAXA10..E |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-F4340 |
MAXA10..D |
1 | ||
| 82184-F4341 |
MAXA10..D |
1 | ||
| 82184-F4360 |
MAXA10..E |
1 | ||
| 82818H - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-10350 |
MAXA10..E |
1 | ||
| 82817-10350 |
MAXA10..D,G,N |
1 | ||
| Common parts | ||||
| 90119-C0107 | ||||
| 90119-C0307 | ||||

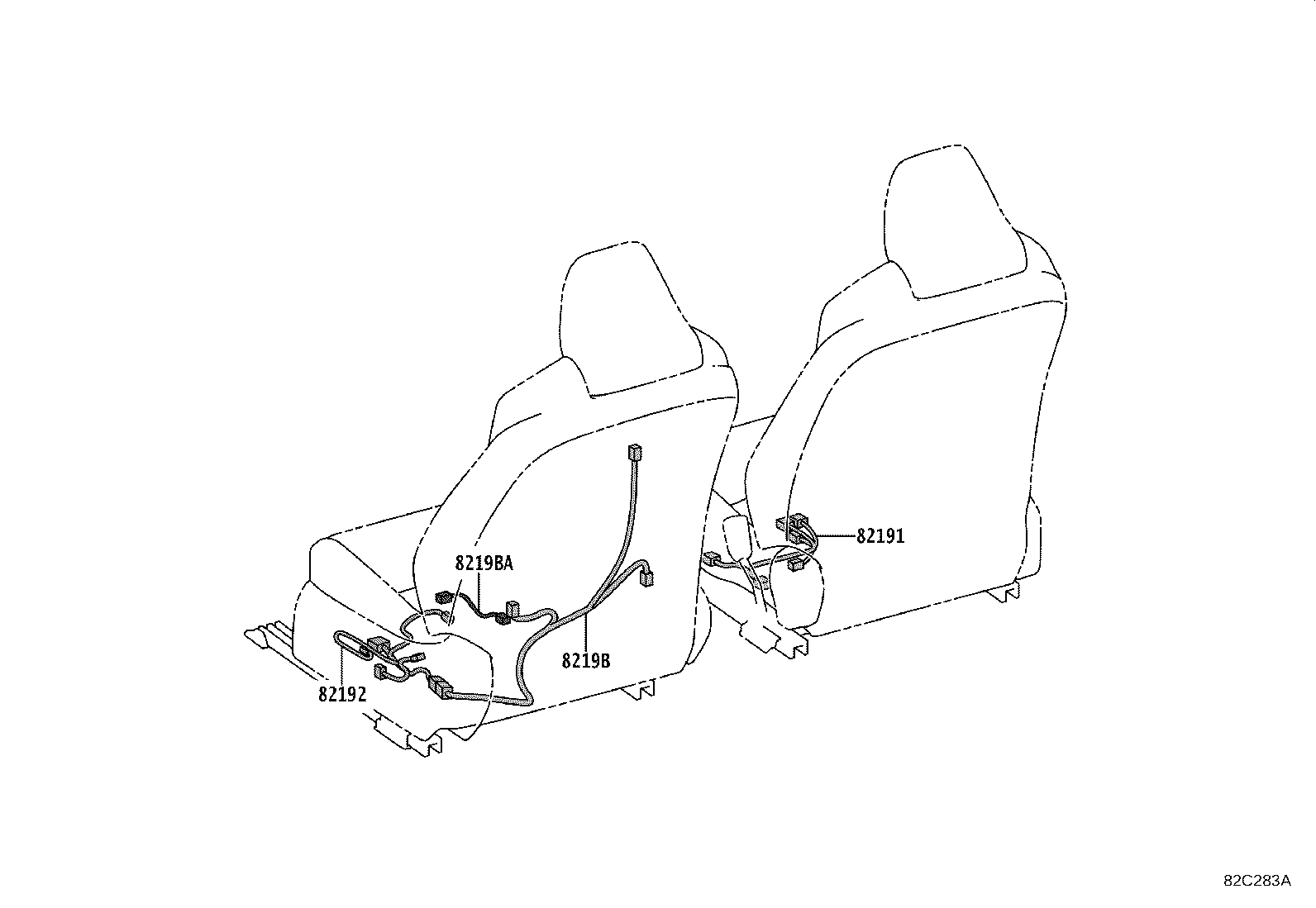

ILLUST NO. 7 OF 9(1808- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-F4100 |
MAXA10..D,G,N |
1 | ||
| 82191-F4100 |
MAXA10..E |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-06670 |
MAXA10..E |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-06310 |
MAXA10..E |
1 | ||
| 8219BA - WIRE, FRONT SEAT, LH NO.3 | ||||
| 82192-F4080 |
MAXA10..E |
1 | ||
ILLUST NO. 8 OF 9(1808- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-06180 | ||||
| 82711-0D070 | ||||
| 82711-1E350 | ||||
| 82711-3F230 | ||||
| 82715-0EK20 | ||||
| 82715-0RJ40 | ||||
| 82715-0RJ50 | ||||
| 82715-0RJ60 | ||||
| 82715-12T40 | ||||
| 82715-33L00 | ||||
| 82715-33L40 | ||||
| 82715-47850 | ||||
| 82715-76090 | ||||
| 82715-F4510 | ||||
| 82715-F4520 | ||||
| 82715-F4530 | ||||
| 82715-F4560 | ||||
| 82715-F4570 | ||||
| 82715-F4580 | ||||
| 82715-F4590 | ||||
| 82715-F4600 | ||||
| 82715-F4610 | ||||
| 82715-F4C50 | ||||
| 82715-F4C60 | ||||
| 82715-F4C70 | ||||
| 82715-F4C80 | ||||
| 82715-F4C90 | ||||
| 82715-F4D10 | ||||
| 90119-06A12 | ||||
| 90119-06A24 | ||||
| 90119-08D22 | ||||
| 90119-C0098 | ||||
| 90119-C0107 | ||||
| 90119-C0132 | ||||
| 90119-C0235 | ||||
| 90119-C0263 | ||||
| 90119-C0307 | ||||
| 90178-C0135 | ||||
ILLUST NO. 9 OF 9(1808- )
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-47A10 | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10897 | ||||
| 90980-10942 | ||||
| 90980-11011 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11149 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-11660 | ||||
| 90980-12A92 | ||||
| 90980-12C12 | ||||
| 90980-12C13 | ||||
| 90980-12F30 | ||||
| 90980-WA052 | ||||

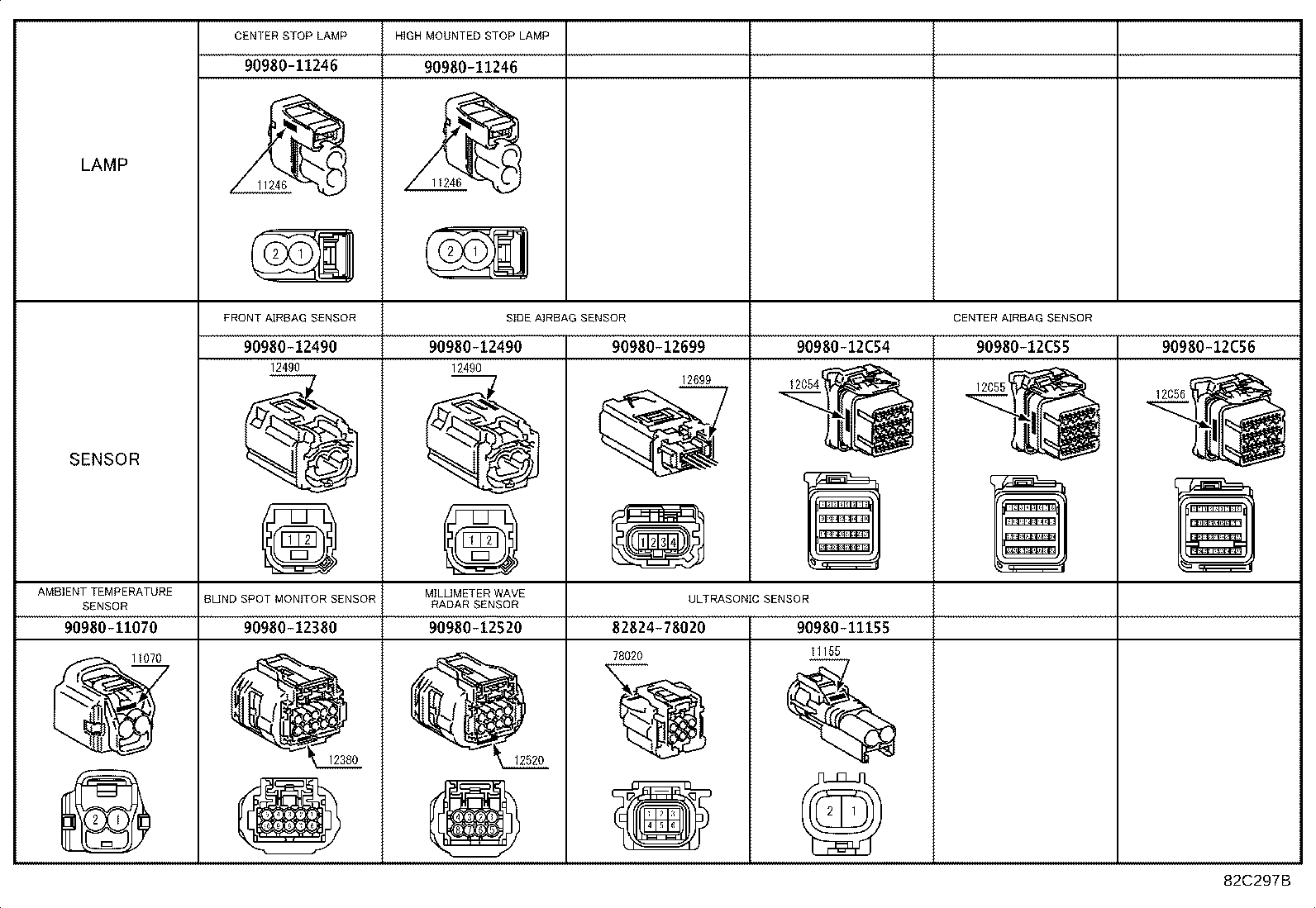

ILLUST NO. 9 OF 9(1808- )
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-11070 | ||||
| 90980-11155 | ||||
| 90980-11246 | ||||
| 90980-12380 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12C54 | ||||
| 90980-12C55 | ||||
| 90980-12C56 | ||||

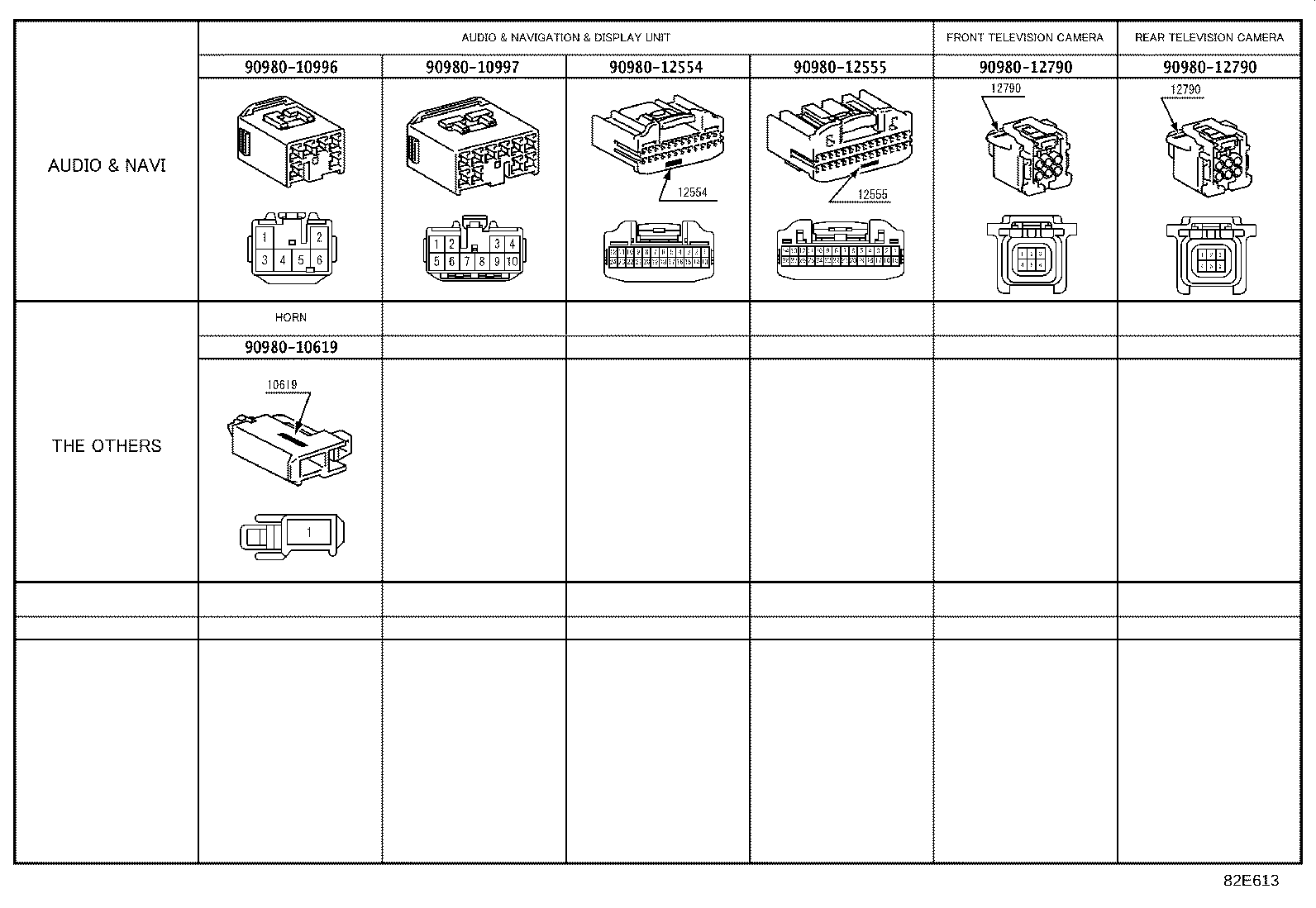

ILLUST NO. 9 OF 9(1808- )
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
