MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)
Production
Aug 2018
-
Jun 2021
Engine
M20
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1808- )

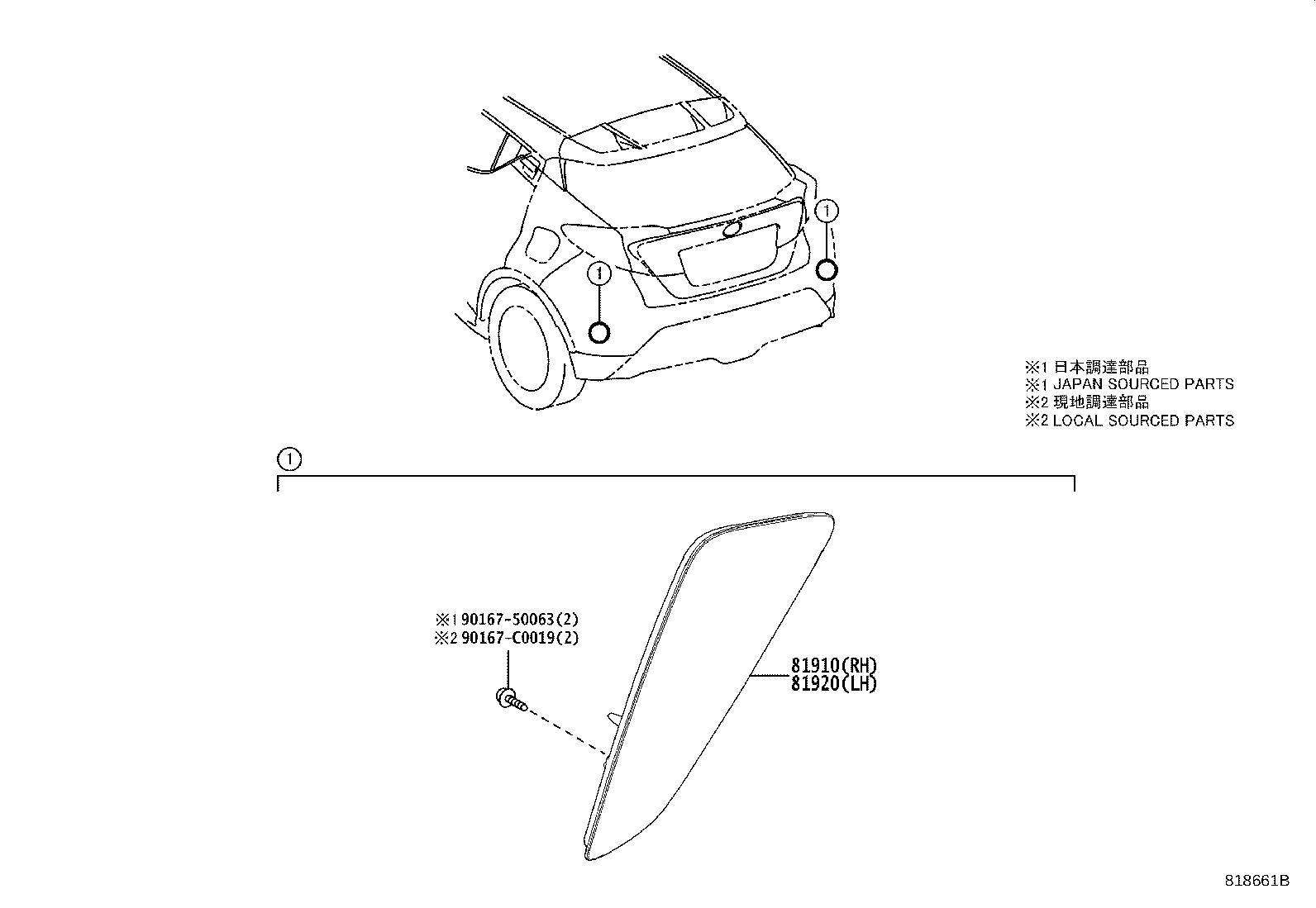

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81910 - REFLECTOR ASSY, REFLEX, RH | ||||
| 81910-F4030 |
MAXA10..E |
1 | ||
| 81910-F4030 |
MAXA10..D,G,N |
1 | ||
| 81920 - REFLECTOR ASSY, REFLEX, LH | ||||
| 81920-F4030 |
MAXA10..E |
1 | ||
| 81920-F4030 |
MAXA10..D,G,N |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| 90167-C0019 | ||||
