Toyota C-hr(china) MAXA10 REAR COMBINATION LAMP

MAXA10L-EHXDHC (2018)

Toyota C-Hr(China)

Production Aug 2018 - Jun 2021

Engine M20

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

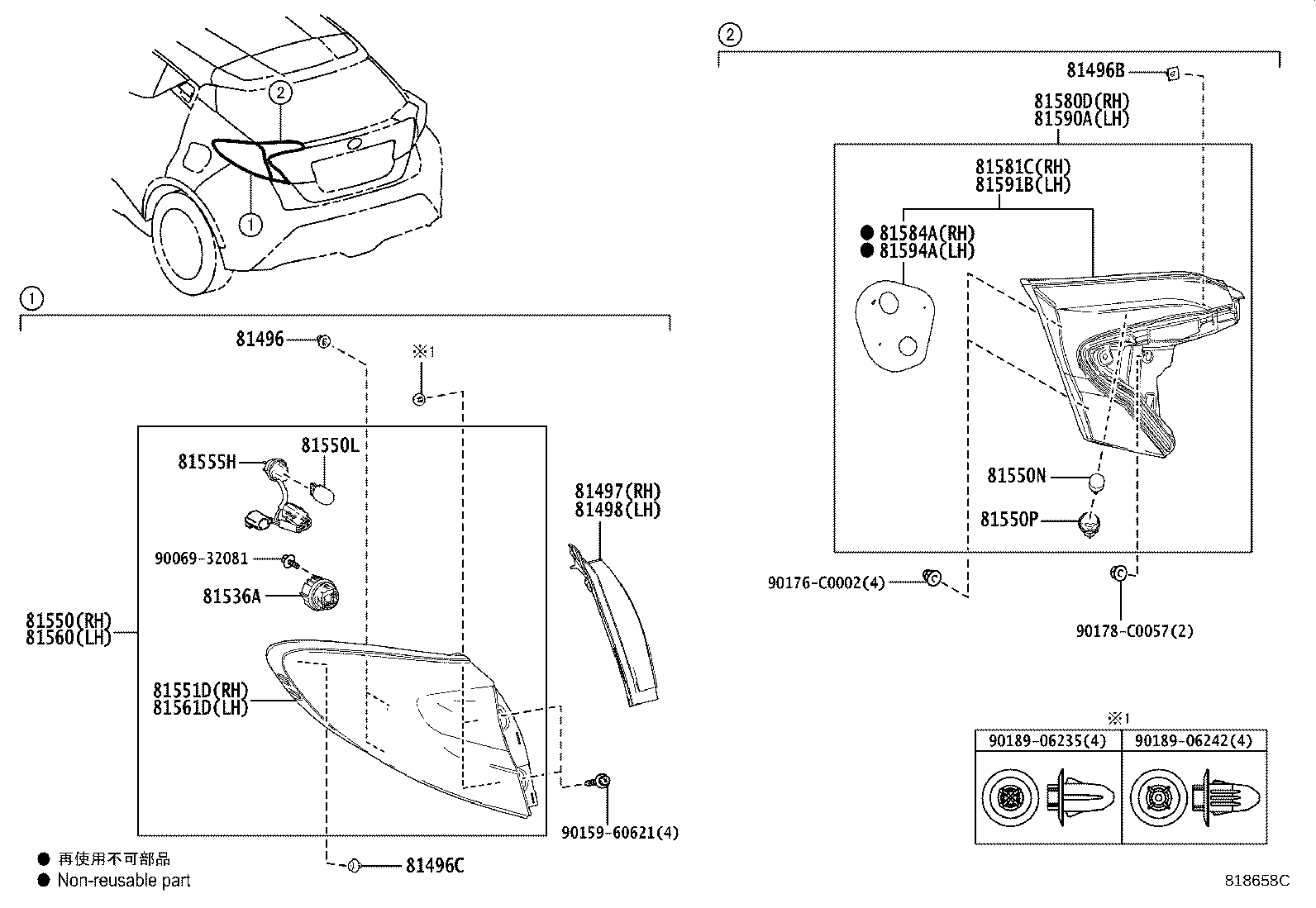

(1808- )D,N

Click highlighted areas on diagram

Part #	Description	Period	Qty
81496 - GUIDE, REAR COMBINATION LAMP
81496-0D030	MAXA10..D,G,N	08/2018 - 06/2021	4
81496-0D030	MAXA10..E	08/2018 - 12/2999	4
81496B - GUIDE, REAR LAMP
76817-26040	MAXA10..D,G,N	08/2018 - 06/2021	2
76817-26040	MAXA10..E	08/2018 - 12/2999	2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
90467-C0019	MAXA10..D,G,N	08/2018 - 06/2021	2
90467-C0019	MAXA10..E	08/2018 - 12/2999	2
81497 - COVER, REAR COMBINATION LAMP, RH
81497-F4040	MAXA10..E	08/2018 - 12/2999	1
81497-F4040	MAXA10..D,G,N	08/2018 - 06/2021	1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-F4040	MAXA10..D,G,N	08/2018 - 06/2021	1
81498-F4040	MAXA10..E	08/2018 - 12/2999	1
81536A - LED, REAR COMBINATION LAMP
81536-F4080	MAXA10..D,N	08/2018 - 06/2021	2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-F4100	MAXA10..D,N	08/2018 - 08/2019	1
81550-F4110	MAXA10..E	08/2018 - 12/2999	1
81550-F4101	MAXA10..D,N	09/2019 - 06/2021	1
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15029	MAXA10..D,N 12V 21W,AMBER	08/2018 - 06/2021	2
81550N - BULB, BACK UP LAMP
90981-11059	MAXA10..D,N 12V 16W	08/2018 - 06/2021	2
81550P - SOCKET, BACK UP LAMP
90069-81119	MAXA10..D,N	08/2018 - 06/2021	2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-F4101	MAXA10..D,N	09/2019 - 06/2021	1
81551-F4100	MAXA10..D,N	08/2018 - 09/2019	1
81555H - SOCKET & WIRE, REAR COMBINATION LAMP
81555-F4080	MAXA10..D,N	08/2018 - 06/2021	2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-F4110	MAXA10..E	08/2018 - 12/2999	1
81560-F4100	MAXA10..D,N	08/2018 - 08/2019	1
81560-F4101	MAXA10..D,N	09/2019 - 06/2021	1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-F4101	MAXA10..D,N	09/2019 - 06/2021	1
81561-F4100	MAXA10..D,N	08/2018 - 09/2019	1
81580D - LAMP ASSY, REAR, RH
81580-F4070	MAXA10..D,N	08/2018 - 08/2019	1
81580-F4071	MAXA10..D,N	09/2019 - 06/2021	1
81580-F4080	MAXA10..E	08/2018 - 12/2999	1
81581C - LENS AND BODY, REAR LAMP, RH
81581-F4070	MAXA10..D,N	08/2018 - 09/2019	1
81581-F4071	MAXA10..D,N	09/2019 - 06/2021	1
81584A - GASKET, REAR LAMP RH
81584-F4060	MAXA10..E	08/2018 - 12/2999	1
81584-F4050	MAXA10..D,N	08/2018 - 06/2021	1
81590A - LAMP ASSY, REAR, LH
81590-F4070	MAXA10..D,N	08/2018 - 08/2019	1
81590-F4080	MAXA10..E	08/2018 - 12/2999	1
81590-F4071	MAXA10..D,N	09/2019 - 06/2021	1
81591B - LENS AND BODY, REAR LAMP, LH
81591-F4070	MAXA10..D,N	08/2018 - 09/2019	1
81591-F4071	MAXA10..D,N	09/2019 - 06/2021	1
81594A - GASKET, REAR LAMP LH
81594-F4060	MAXA10..E	08/2018 - 12/2999	1
81594-F4050	MAXA10..D,N	08/2018 - 06/2021	1
Common parts
90069-32081
90159-60621
90176-C0002
90178-C0057
90189-06235
90189-06242

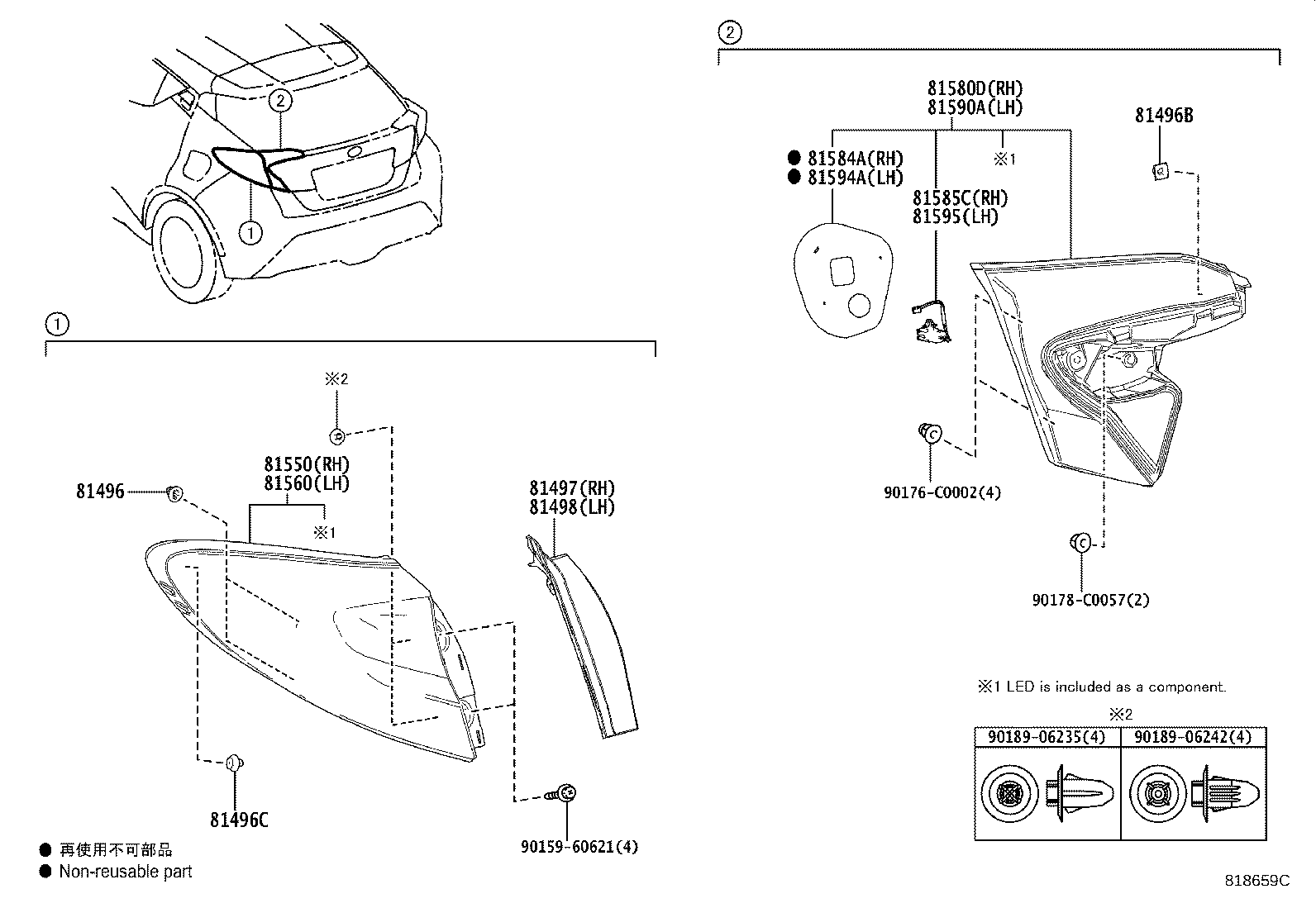

(1808-2106)G ; (1808- )MAXA10..E

Click highlighted areas on diagram

Part #	Description	Period	Qty
81496 - GUIDE, REAR COMBINATION LAMP
81496-0D030	MAXA10..D,G,N	08/2018 - 06/2021	4
81496-0D030	MAXA10..E	08/2018 - 12/2999	4
81496B - GUIDE, REAR LAMP
76817-26040	MAXA10..D,G,N	08/2018 - 06/2021	2
76817-26040	MAXA10..E	08/2018 - 12/2999	2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
90467-C0019	MAXA10..D,G,N	08/2018 - 06/2021	2
90467-C0019	MAXA10..E	08/2018 - 12/2999	2
81497 - COVER, REAR COMBINATION LAMP, RH
81497-F4040	MAXA10..E	08/2018 - 12/2999	1
81497-F4040	MAXA10..D,G,N	08/2018 - 06/2021	1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-F4040	MAXA10..D,G,N	08/2018 - 06/2021	1
81498-F4040	MAXA10..E	08/2018 - 12/2999	1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-F4100	MAXA10..D,N	08/2018 - 08/2019	1
81550-F4110	MAXA10..E	08/2018 - 12/2999	1
81550-F4101	MAXA10..D,N	09/2019 - 06/2021	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-F4110	MAXA10..E	08/2018 - 12/2999	1
81560-F4100	MAXA10..D,N	08/2018 - 08/2019	1
81560-F4101	MAXA10..D,N	09/2019 - 06/2021	1
81580D - LAMP ASSY, REAR, RH
81580-F4070	MAXA10..D,N	08/2018 - 08/2019	1
81580-F4071	MAXA10..D,N	09/2019 - 06/2021	1
81580-F4080	MAXA10..E	08/2018 - 12/2999	1
81584A - GASKET, REAR LAMP RH
81584-F4060	MAXA10..E	08/2018 - 12/2999	1
81584-F4050	MAXA10..D,N	08/2018 - 06/2021	1
81585C - SOCKET & WIRE, REAR LAMP, RH
81585-F4060	MAXA10..E	08/2018 - 12/2999	1
81590A - LAMP ASSY, REAR, LH
81590-F4070	MAXA10..D,N	08/2018 - 08/2019	1
81590-F4080	MAXA10..E	08/2018 - 12/2999	1
81590-F4071	MAXA10..D,N	09/2019 - 06/2021	1
81594A - GASKET, REAR LAMP LH
81594-F4060	MAXA10..E	08/2018 - 12/2999	1
81594-F4050	MAXA10..D,N	08/2018 - 06/2021	1
81595 - SOCKET & WIRE, REAR LAMP, LH
81585-F4060	MAXA10..E	08/2018 - 12/2999	1
Common parts
90159-60621
90176-C0002
90178-C0057
90189-06235
90189-06242

MAXA10L-EHXDHC (2018)

(1808- )D,N

(1808-2106)G ; (1808- )MAXA10..E
