MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)
Production
Aug 2018
-
Jun 2021
Engine
M20
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

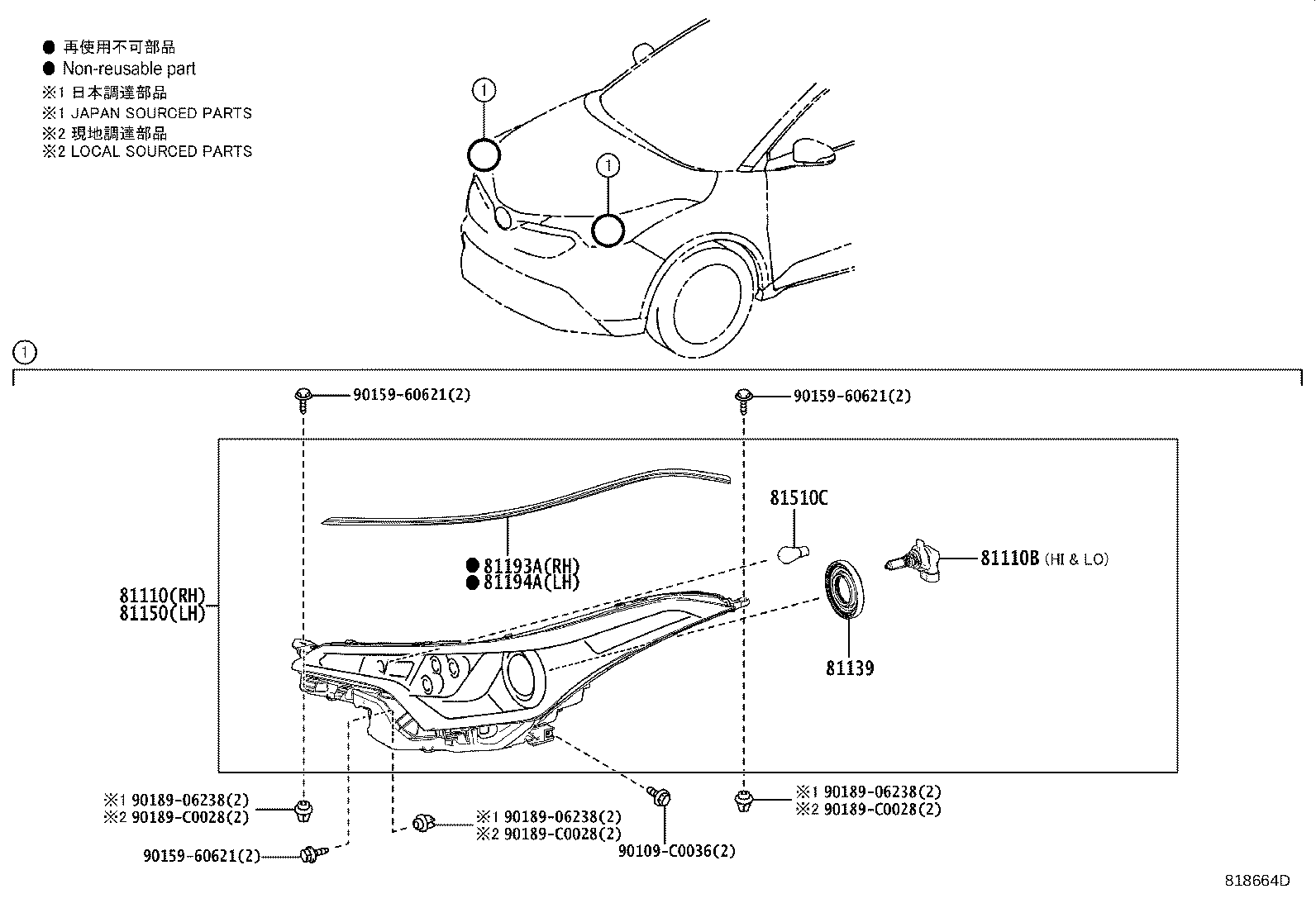

(1808-2106)D,N
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-F4140 |
MAXA10..E |
1 | ||
| 81110-F4130 |
MAXA10..D,N |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13091 |
MAXA10..D,N 12V 55W,HALOGEN |
2 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
MAXA10..D,N |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-F4140 |
MAXA10..E |
1 | ||
| 81150-F4130 |
MAXA10..D,N |
1 | ||
| 81193A - PROTECTOR, HEADLAMP, RH | ||||
| 81193-F4100 |
MAXA10 |
1 | ||
| 81193-10040 |
MAXA10..E (J) |
1 | ||
| 81193-10040 |
MAXA10..D,G,N (J) |
1 | ||
| 81193-F4100 |
MAXA10..D,G,N (L) |
1 | ||
| 81193-F4100 |
MAXA10..E (L) |
1 | ||
| 81194A - PROTECTOR, HEADLAMP, LH | ||||
| 81194-10040 |
MAXA10..D,G,N (J) |
1 | ||
| 81194-F4100 |
MAXA10..E (L) |
1 | ||
| 81194-F4100 |
MAXA10 |
1 | ||
| 81194-10040 |
MAXA10..E (J) |
1 | ||
| 81194-F4100 |
MAXA10..D,G,N (L) |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15028 |
MAXA10..D,N 12V 21W,AMBER |
2 | ||
| Common parts | ||||
| 90109-C0036 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
| 90189-C0028 | ||||

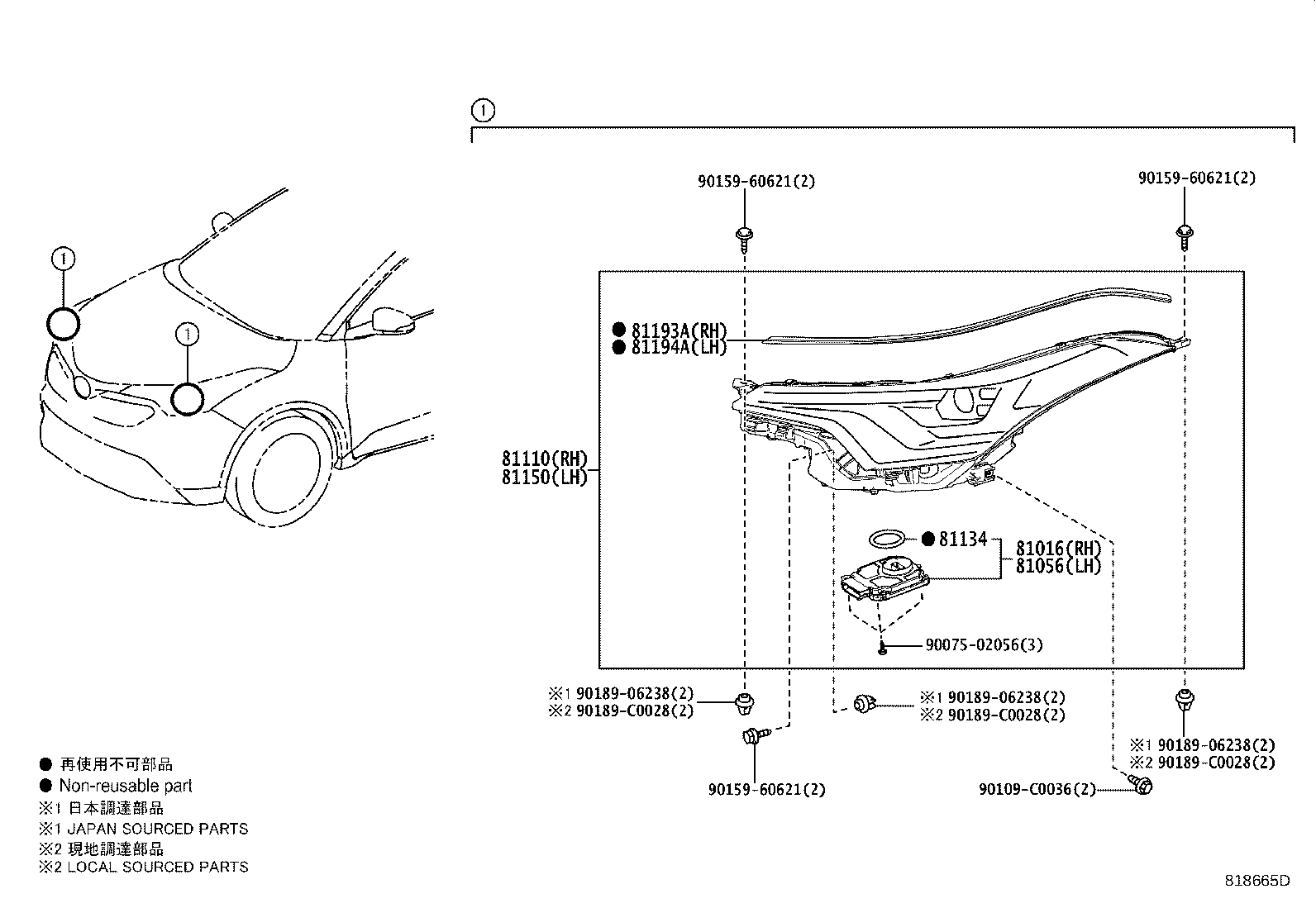

(1808-2106)G ; (1808- )MAXA10..E
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81016 - COMPUTER SUB-ASSY, HEADLAMP, RH NO.1 | ||||
| 81016-F4140 |
MAXA10..E |
1 | ||
| 81056 - COMPUTER SUB-ASSY, HEADLAMP, LH NO.1 | ||||
| 81056-F4140 |
MAXA10..E |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-F4140 |
MAXA10..E |
1 | ||
| 81110-F4130 |
MAXA10..D,N |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23003 |
MAXA10..E |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-F4140 |
MAXA10..E |
1 | ||
| 81150-F4130 |
MAXA10..D,N |
1 | ||
| 81193A - PROTECTOR, HEADLAMP, RH | ||||
| 81193-F4100 |
MAXA10 |
1 | ||
| 81193-10040 |
MAXA10..E (J) |
1 | ||
| 81193-10040 |
MAXA10..D,G,N (J) |
1 | ||
| 81193-F4100 |
MAXA10..D,G,N (L) |
1 | ||
| 81193-F4100 |
MAXA10..E (L) |
1 | ||
| 81194A - PROTECTOR, HEADLAMP, LH | ||||
| 81194-10040 |
MAXA10..D,G,N (J) |
1 | ||
| 81194-F4100 |
MAXA10..E (L) |
1 | ||
| 81194-F4100 |
MAXA10 |
1 | ||
| 81194-10040 |
MAXA10..E (J) |
1 | ||
| 81194-F4100 |
MAXA10..D,G,N (L) |
1 | ||
| Common parts | ||||
| 90075-02056 | ||||
| 90109-C0036 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
| 90189-C0028 | ||||
