MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)

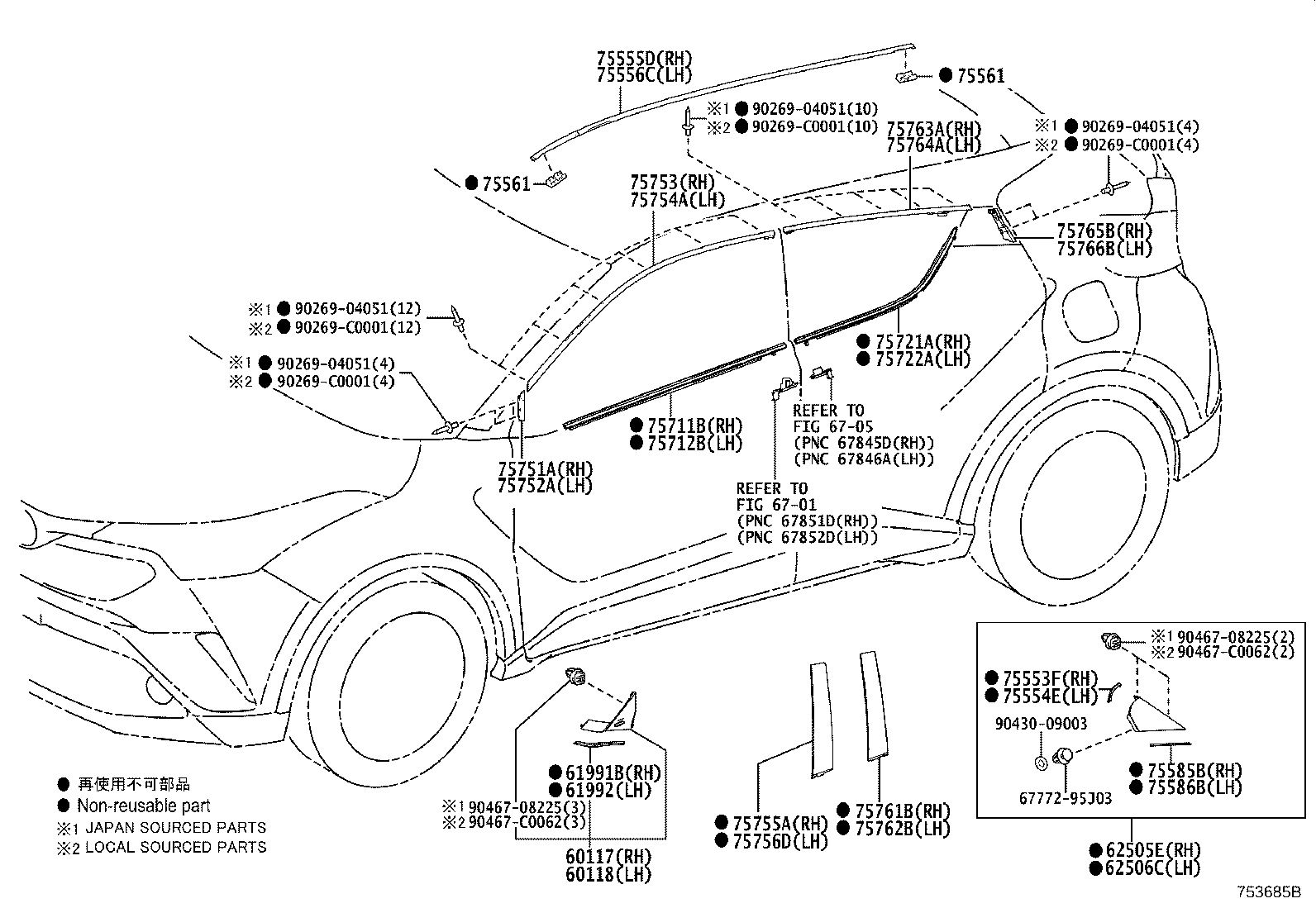

ILLUST NO. 1 OF 2(1808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH | ||||
| 60117-F4030 |
MAXA10..E |
1 | ||
| 60117-F4030 |
MAXA10..D,G,N |
1 | ||
| 60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH | ||||
| 60118-F4030 |
MAXA10..E |
1 | ||
| 60118-F4030 |
MAXA10..D,G,N |
1 | ||
| 61991B - PROTECTOR, FRONT PILLAR COVER, RH | ||||
| 61991-F4030 |
MAXA10..E |
1 | ||
| 61991-F4030 |
MAXA10..D,G,N |
1 | ||
| 61992 - PROTECTOR, FRONT PILLAR COVER, LH | ||||
| 61992-F4030 |
MAXA10..E |
1 | ||
| 61992-F4030 |
MAXA10..D,G,N |
1 | ||
| 62505E - COVER SUB-ASSY, QUARTER PILLAR, RH | ||||
| 62505-F4040 |
MAXA10..D,G,N |
1 | ||
| 62505-F4040 |
MAXA10..E |
1 | ||
| 62506C - COVER SUB-ASSY, QUARTER PILLAR, LH | ||||
| 62506-F4040 |
MAXA10..D,G,N |
1 | ||
| 62506-F4040 |
MAXA10..E |
1 | ||
| 75553F - MOULDING, QUARTER GARNISH, RH | ||||
| 75553-F4040 |
MAXA10..D,G,N |
1 | ||
| 75553-F4040 |
MAXA10..E |
1 | ||
| 75554E - MOULDING, QUARTER GARNISH, LH | ||||
| 75554-F4040 |
MAXA10..D,G,N |
1 | ||
| 75554-F4040 |
MAXA10..E |
1 | ||
| 75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH | ||||
| 75555-F4070C0 |
MAXA10..D,G,N BODY COLOR-TWO-TONES,ATTITUDE BLACK MC.,2QJ ,2QL ,2QM |
1 | ||
| 75555-F4070A0 |
MAXA10..D,G,N BODY COLOR-TWO-TONES,WHITE,2NJ ,2QH ,2QK |
1 | ||
| 75555-F4070C0 |
MAXA10..E BODY COLOR-TWO-TONES,ATTITUDE BLACK MC.,2QJ ,2QL ,2QM |
1 | ||
| 75555-F4060 |
MAXA10..D,G,N |
1 | ||
| 75555-F4070A0 |
MAXA10..E BODY COLOR-TWO-TONES,WHITE,2NJ ,2QH ,2QK |
1 | ||
| 75555-F4060 |
MAXA10..E |
1 | ||
| 75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH | ||||
| 75556-F4070A0 |
MAXA10..E BODY COLOR-TWO-TONES,WHITE,2NJ ,2QH ,2QK |
1 | ||
| 75556-F4070A0 |
MAXA10..D,G,N BODY COLOR-TWO-TONES,WHITE,2NJ ,2QH ,2QK |
1 | ||
| 75556-F4070C0 |
MAXA10..D,G,N BODY COLOR-TWO-TONES,ATTITUDE BLACK MC.,2QJ ,2QL ,2QM |
1 | ||
| 75556-F4060 |
MAXA10..E |
1 | ||
| 75556-F4070C0 |
MAXA10..E BODY COLOR-TWO-TONES,ATTITUDE BLACK MC.,2QJ ,2QL ,2QM |
1 | ||
| 75556-F4060 |
MAXA10..D,G,N |
1 | ||
| 75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75561-33030 |
MAXA10..E |
4 | ||
| 75561-33030 |
MAXA10..D,G,N |
4 | ||
| 75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75561-33030 |
MAXA10..E |
4 | ||
| 75561-33030 |
MAXA10..D,G,N |
4 | ||
| 75585B - PROTECTOR, REAR PILLAR GARNISH, NO.1 | ||||
| 75585-F4040 |
MAXA10..E |
1 | ||
| 75585-F4040 |
MAXA10..D,G,N |
1 | ||
| 75586B - PROTECTOR, REAR PILLAR GARNISH, NO.2 | ||||
| 75586-F4040 |
MAXA10..D,G,N |
1 | ||
| 75586-F4040 |
MAXA10..E |
1 | ||
| 75711B - MOULDING, FRONT DOOR BELT, RH | ||||
| 75710-F4050 |
MAXA10..D |
1 | ||
| 75710-F4060 |
MAXA10..E |
1 | ||
| 75712B - MOULDING, FRONT DOOR BELT, LH | ||||
| 75720-F4050 |
MAXA10..D |
1 | ||
| 75720-F4060 |
MAXA10..E |
1 | ||
| 75721A - MOULDING, REAR DOOR BELT, RH | ||||
| 75730-F4050 |
MAXA10..D |
1 | ||
| 75730-F4060 |
MAXA10..E |
1 | ||
| 75722A - MOULDING, REAR DOOR BELT, LH | ||||
| 75740-F4050 |
MAXA10..D |
1 | ||
| 75740-F4060 |
MAXA10..E |
1 | ||
| 75751A - MOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE | ||||
| 75751-F4040 |
MAXA10..D,G,N |
1 | ||
| 75751-F4040 |
MAXA10..E |
1 | ||
| 75752A - MOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE | ||||
| 75752-F4040 |
MAXA10..E |
1 | ||
| 75752-F4040 |
MAXA10..D,G,N |
1 | ||
| 75753 - MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH | ||||
| 75753-F4040 |
MAXA10..E |
1 | ||
| 75753-F4040 |
MAXA10..D,G,N |
1 | ||
| 75754A - MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH | ||||
| 75754-F4040 |
MAXA10..D,G,N |
1 | ||
| 75754-F4040 |
MAXA10..E |
1 | ||
| 75755A - MOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SID | ||||
| 75755-F4070 |
MAXA10..D |
1 | ||
| 75755-F4080 |
MAXA10..E |
1 | ||
| 75756D - MOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SID | ||||
| 75756-F4080 |
MAXA10..E |
1 | ||
| 75756-F4070 |
MAXA10..D |
1 | ||
| 75761B - MOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE | ||||
| 75761-F4070 |
MAXA10..D |
1 | ||
| 75761-F4080 |
MAXA10..E |
1 | ||
| 75762B - MOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE | ||||
| 75762-F4070 |
MAXA10..D |
1 | ||
| 75762-F4080 |
MAXA10..E |
1 | ||
| 75763A - MOULDING, REAR DOOR WINDOW FRAME, UPPER RH | ||||
| 75763-F4040 |
MAXA10..E |
1 | ||
| 75763-F4040 |
MAXA10..D,G,N |
1 | ||
| 75764A - MOULDING, REAR DOOR WINDOW FRAME, UPPER LH | ||||
| 75764-F4040 |
MAXA10..D,G,N |
1 | ||
| 75764-F4040 |
MAXA10..E |
1 | ||
| 75765B - MOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE) | ||||
| 75765-F4030 |
MAXA10..D,G,N |
1 | ||
| 75765-F4030 |
MAXA10..E |
1 | ||
| 75766B - MOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE) | ||||
| 75766-F4030 |
MAXA10..E |
1 | ||
| 75766-F4030 |
MAXA10..D,G,N |
1 | ||
| Common parts | ||||
| 67772-95J03 | ||||
| 90269-04051 | ||||
| 90269-C0001 | ||||
| 90430-09003 | ||||
| 90467-08225 | ||||
| 90467-C0062 | ||||
| Linked diagrams | ||||
| 6701 | ||||
| 6705 | ||||

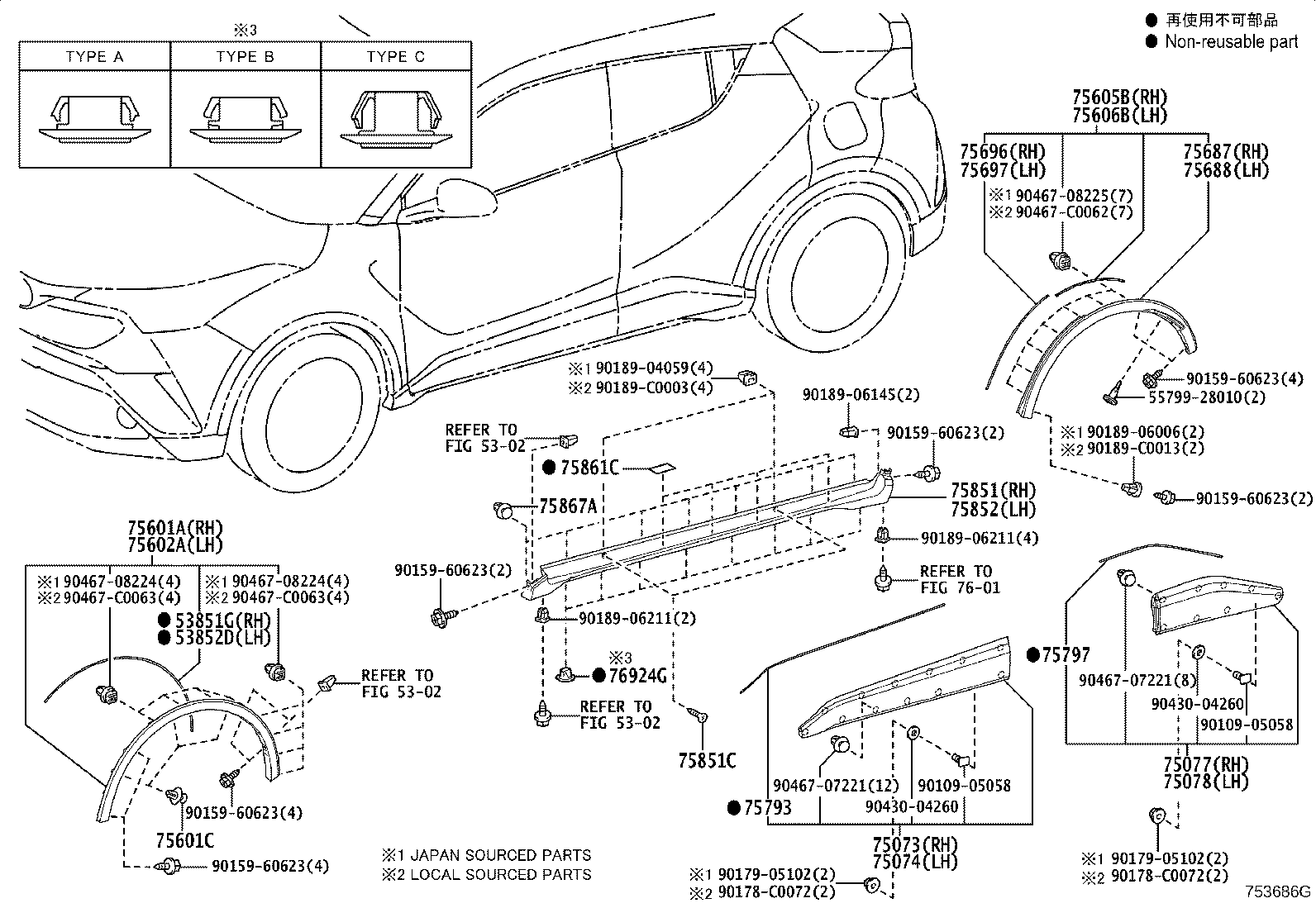

ILLUST NO. 2 OF 2(1808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53851G - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-F4070 |
MAXA10..D,G,N |
1 | ||
| 53851-F4070 |
MAXA10..E |
1 | ||
| 53852D - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53851-F4070 |
MAXA10..D,G,N |
1 | ||
| 53851-F4070 |
MAXA10..E |
1 | ||
| 75073 - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER RH | ||||
| 75073-F4040 |
MAXA10..E |
1 | ||
| 75073-F4040 |
MAXA10..D,G,N |
1 | ||
| 75074 - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER LH | ||||
| 75074-F4040 |
MAXA10..E |
1 | ||
| 75074-F4040 |
MAXA10..D,G,N |
1 | ||
| 75077 - MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH | ||||
| 75077-F4040 |
MAXA10..D,G,N NO PAINT REQ. |
1 | ||
| 75077-F4040 |
MAXA10..E NO PAINT REQ. |
1 | ||
| 75078 - MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH | ||||
| 75078-F4040 |
MAXA10..D,G,N NO PAINT REQ. |
1 | ||
| 75078-F4040 |
MAXA10..E NO PAINT REQ. |
1 | ||
| 75601A - MOULDING SUB-ASSY, FRONT FENDER, RH | ||||
| 75601-F4040 |
MAXA10..E NO PAINT REQ. |
1 | ||
| 75601-F4040 |
MAXA10..D,G,N NO PAINT REQ. |
1 | ||
| 75601C - CLIP, FRONT FENDER MOULDING | ||||
| 90467-07220 |
MAXA10..E (J) |
6 | ||
| 90467-07220 |
MAXA10..D,G,N (J) |
6 | ||
| 90467-C0043 |
MAXA10..E (L) |
6 | ||
| 90467-C0043 |
MAXA10..D,G,N (L) |
6 | ||
| 75602A - MOULDING SUB-ASSY, FRONT FENDER, LH | ||||
| 75602-F4040 |
MAXA10..E NO PAINT REQ. |
1 | ||
| 75602-F4040 |
MAXA10..D,G,N NO PAINT REQ. |
1 | ||
| 75605B - MOULDING SUB-ASSY, QUARTER OUTSIDE, RH | ||||
| 75605-F4040 |
MAXA10..D,G,N NO PAINT REQ. |
1 | ||
| 75605-F4040 |
MAXA10..E NO PAINT REQ. |
1 | ||
| 75606B - MOULDING SUB-ASSY, QUATER OUTSIDE, LH | ||||
| 75606-F4040 |
MAXA10..D,G,N NO PAINT REQ. |
1 | ||
| 75606-F4040 |
MAXA10..E NO PAINT REQ. |
1 | ||
| 75687 - PROTECTOR, QUARTER MOULDING, LOWER REAR RH | ||||
| 75687-F4030 |
MAXA10..E |
1 | ||
| 75687-F4030 |
MAXA10..D,G,N |
1 | ||
| 75688 - PROTECTOR, QUARTER MOULDING, LOWER REAR LH | ||||
| 75687-F4030 |
MAXA10..E |
1 | ||
| 75687-F4030 |
MAXA10..D,G,N |
1 | ||
| 75696 - PAD, BODY OUTSIDE MOULDING, NO.1 | ||||
| 75696-F4050 |
MAXA10..D,G,N |
1 | ||
| 75696-F4050 |
MAXA10..E |
1 | ||
| 75697 - PAD, BODY OUTSIDE MOULDING, NO.2 | ||||
| 75696-F4050 |
MAXA10..E |
1 | ||
| 75696-F4050 |
MAXA10..D,G,N |
1 | ||
| 75793 - PAD, FRONT DOOR OUTSIDE MOULDING, UPPER | ||||
| 75793-F4040 |
MAXA10..D,G,N |
2 | ||
| 75793-F4040 |
MAXA10..E |
2 | ||
| 75797 - PAD, REAR DOOR OUTSIDE MOULDING, UPPER | ||||
| 75797-F4040 |
MAXA10..D,G,N |
2 | ||
| 75797-F4040 |
MAXA10..E |
2 | ||
| 75851 - MOULDING, ROCKER PANEL, RH | ||||
| 75851-F4040 |
MAXA10..E |
1 | ||
| 75851-F4040 |
MAXA10..D,G,N |
1 | ||
| 75851C - SCREW(FOR BODY ROCKER PANEL MOULDING) | ||||
| 90162-C0002 |
MAXA10..D,G,N (L),BLACK |
4 | ||
| 90162-C0003 |
MAXA10..E (L),SILVER |
4 | ||
| 90162-40034 |
MAXA10..D,G,N (J),BLACK |
4 | ||
| 90162-40035 |
MAXA10..D,G,N (J),SILVER |
4 | ||
| 90162-C0003 |
MAXA10..D,G,N (L),SILVER |
4 | ||
| 90162-40034 |
MAXA10..E (J),BLACK |
4 | ||
| 90162-C0002 |
MAXA10..E (L),BLACK |
4 | ||
| 90162-40035 |
MAXA10..E (J),SILVER |
4 | ||
| 75852 - MOULDING, ROCKER PANEL, LH | ||||
| 75852-F4040 |
MAXA10..E |
1 | ||
| 75852-F4040 |
MAXA10..D,G,N |
1 | ||
| 75861C - PAD, ROCKER PANEL MOULDING | ||||
| 75861-F4040 |
MAXA10..E |
8 | ||
| 75861-F4040 |
MAXA10..D,G,N |
8 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-30130 |
MAXA10..E |
14 | ||
| 75867-30130 |
MAXA10..D,G,N |
14 | ||
| 75867-68010 |
MAXA10 |
14 | ||
| 76924G - RETAINER, ROCKER PANEL MOULDING | ||||
| 76924-52040 |
MAXA10..E TYPE C:REFER ILLUST. |
16 | ||
| 76924-52021 |
MAXA10..D,G,N TYPE B:REFER ILLUST. |
16 | ||
| 76924-52040 |
MAXA10..D,G,N TYPE C:REFER ILLUST. |
16 | ||
| 76924-12040 |
MAXA10..E TYPE A:REFER ILLUST. |
16 | ||
| 76924-52021 |
MAXA10..E TYPE B:REFER ILLUST. |
16 | ||
| 76924-12040 |
MAXA10..D,G,N TYPE A:REFER ILLUST. |
16 | ||
| Common parts | ||||
| 55799-28010 | ||||
| 90109-05058 | ||||
| 90159-60623 | ||||
| 90178-C0072 | ||||
| 90179-05102 | ||||
| 90189-04059 | ||||
| 90189-06006 | ||||
| 90189-06145 | ||||
| 90189-06211 | ||||
| 90189-C0003 | ||||
| 90189-C0013 | ||||
| 90430-04260 | ||||
| 90467-07221 | ||||
| 90467-08224 | ||||
| 90467-08225 | ||||
| 90467-C0062 | ||||
| 90467-C0063 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 7601 | ||||
