MAXA10L-EHXDHC (2018)

Toyota C-Hr(China)

Production Aug 2018 - Jun 2021
Engine M20
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1808- )MAXA10

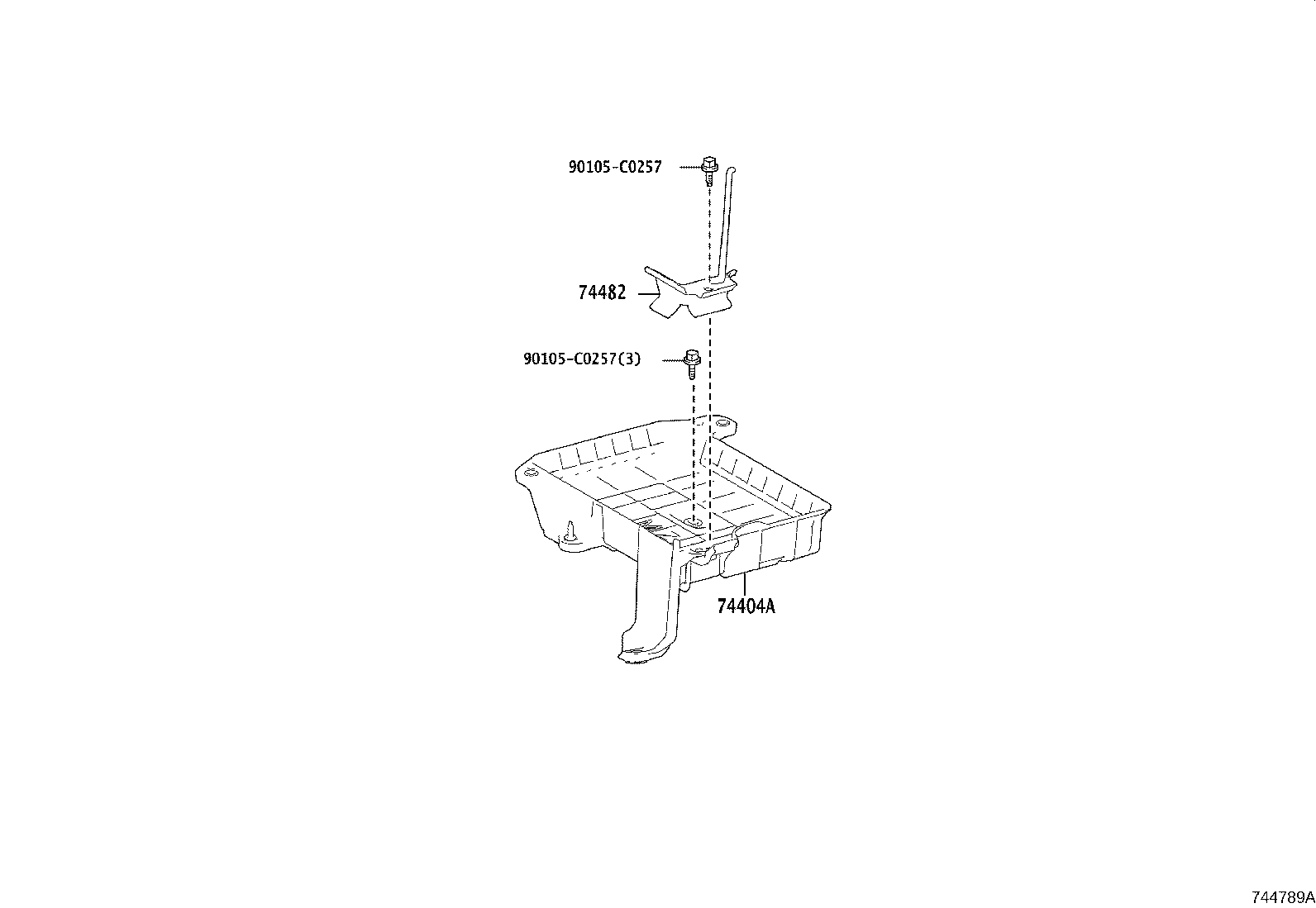

Click highlighted areas on diagram

diagram 74404A 74482 90105C0257 90105C0257
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-F4071

MAXA10..D,G,N

 1
74404-F4070

MAXA10

 1
74404-F4071

MAXA10..E

 1
74482 - CLAMP, BATTERY, NO.2
74405-02080

MAXA10..D,G,N

 1
74405-02080

MAXA10..E

 1
74405-F4040

MAXA10

 1
Common parts
90105-C0257
