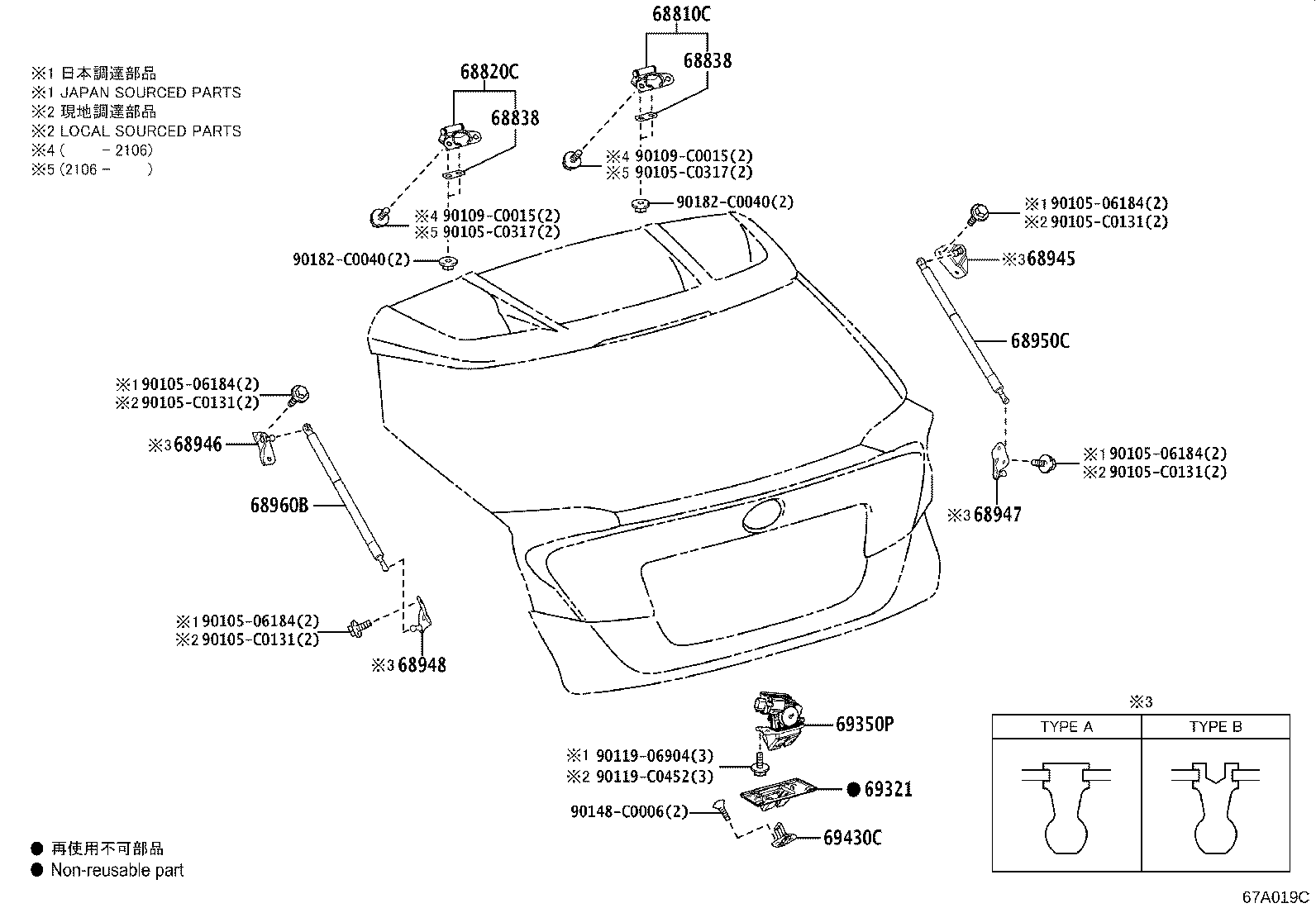

MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)
(1808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68810C - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-F4100 |
MAXA10..E |
1 | ||
| 68810-F4100 |
MAXA10..D,G,N |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-F4100 |
MAXA10..E |
1 | ||
| 68810-F4100 |
MAXA10..D,G,N |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-F4120 |
MAXA10..E T=2.0,PAD T=2.0 |
2 | ||
| 68838-F4100 |
MAXA10..E T=1.0,PAD T=1.0 |
2 | ||
| 68838-F4110 |
MAXA10..E T=1.5,PAD T=1.5 |
2 | ||
| 68838-F4100 |
MAXA10..D,G,N T=1.0,PAD T=1.0 |
2 | ||
| 68838-F4120 |
MAXA10..D,G,N T=2.0,PAD T=2.0 |
2 | ||
| 68838-F4110 |
MAXA10..D,G,N T=1.5,PAD T=1.5 |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-F4120 |
MAXA10..E T=2.0,PAD T=2.0 |
2 | ||
| 68838-F4100 |
MAXA10..E T=1.0,PAD T=1.0 |
2 | ||
| 68838-F4110 |
MAXA10..E T=1.5,PAD T=1.5 |
2 | ||
| 68838-F4100 |
MAXA10..D,G,N T=1.0,PAD T=1.0 |
2 | ||
| 68838-F4120 |
MAXA10..D,G,N T=2.0,PAD T=2.0 |
2 | ||
| 68838-F4110 |
MAXA10..D,G,N T=1.5,PAD T=1.5 |
2 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-F4040 |
MAXA10..E |
1 | ||
| 68945-F4040 |
MAXA10..D,G,N |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68945-F4040 |
MAXA10..D,G,N |
1 | ||
| 68945-F4040 |
MAXA10..E |
1 | ||
| 68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH | ||||
| 68947-F4040 |
MAXA10..D,G,N |
1 | ||
| 68947-F4040 |
MAXA10..E |
1 | ||
| 68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH | ||||
| 68948-F4040 |
MAXA10..D,G,N |
1 | ||
| 68948-F4040 |
MAXA10..E |
1 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-F4100 |
MAXA10..E |
1 | ||
| 68950-F4090 |
MAXA10..D,N |
1 | ||
| 68960B - STAY ASSY, BACK DOOR, LH | ||||
| 68960-F4090 |
MAXA10..D,N |
1 | ||
| 68960-F4100 |
MAXA10..E |
1 | ||
| 69321 - COVER, BACK DOOR LOCK | ||||
| 69321-F4030 |
MAXA10..D,G,N |
1 | ||
| 69321-F4030 |
MAXA10..E |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-F4031 |
MAXA10..D,G,N |
1 | ||
| 69350-F4030 |
MAXA10 |
1 | ||
| 69350-F4031 |
MAXA10..E |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-F4030 |
MAXA10..D,G,N |
1 | ||
| 69430-F4030 |
MAXA10..E |
1 | ||
| Common parts | ||||
| 90105-06184 | ||||
| 90105-C0131 | ||||
| 90105-C0317 | ||||
| 90109-C0015 | ||||
| 90119-06904 | ||||
| 90119-C0452 | ||||
| 90148-C0006 | ||||
| 90182-C0040 | ||||
