MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)

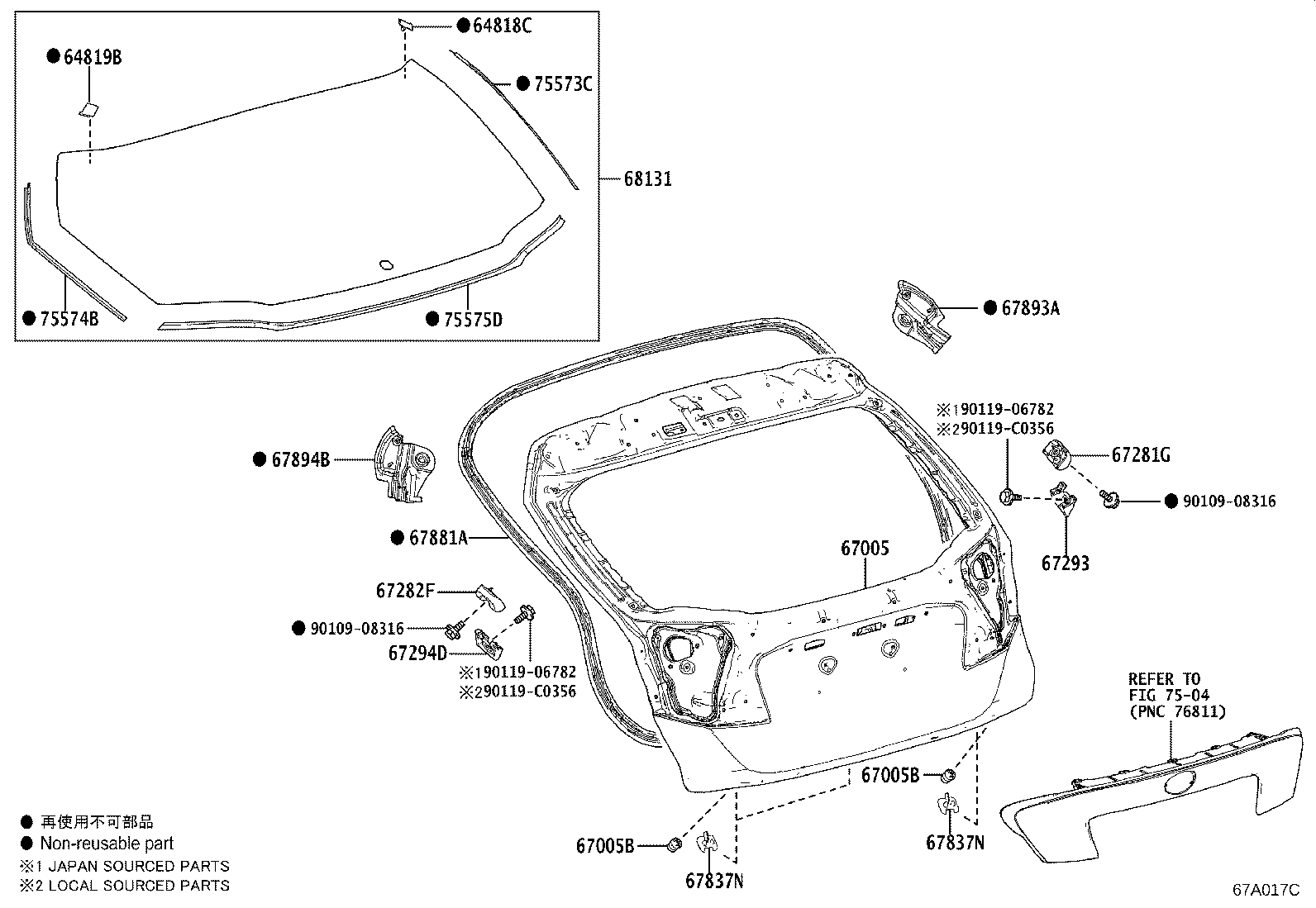

ILLUST NO. 1 OF 2(1808- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64818C - SPACER, BACK WINDOW GLASS, NO.1 | ||||
| 64818-F4040 |
MAXA10..D,G,N |
1 | ||
| 64818-F4040 |
MAXA10..E |
1 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-F4040 |
MAXA10..D,G,N |
1 | ||
| 64819-F4040 |
MAXA10..E |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-F4100 |
MAXA10..D |
1 | ||
| 67005-F4110 |
MAXA10..E |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09142 |
MAXA10..D,G,N (J) |
2 | ||
| 90541-09142 |
MAXA10..E (J) |
2 | ||
| 90541-C0002 |
MAXA10..E (L) |
2 | ||
| 90541-C0002 |
MAXA10..D,G,N (L) |
2 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09142 |
MAXA10..D,G,N (J) |
2 | ||
| 90541-09142 |
MAXA10..E (J) |
2 | ||
| 90541-C0002 |
MAXA10..E (L) |
2 | ||
| 90541-C0002 |
MAXA10..D,G,N (L) |
2 | ||
| 67281G - STOPPER, BACK DOOR, LOWER RH | ||||
| 67281-F4030 |
MAXA10..D,G,N |
1 | ||
| 67281-F4030 |
MAXA10..E |
1 | ||
| 67282F - STOPPER, BACK DOOR, LWR LH | ||||
| 67281-F4030 |
MAXA10..D,G,N |
1 | ||
| 67281-F4030 |
MAXA10..E |
1 | ||
| 67293 - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 67293-F4031 |
MAXA10 |
1 | ||
| 67293-F4032 |
MAXA10 |
1 | ||
| 67293-F4030 |
MAXA10 |
1 | ||
| 67294D - CUSHION, BACK DOOR STOPPER, LH | ||||
| 67294-F4030 |
MAXA10 |
1 | ||
| 67294-F4031 |
MAXA10 |
1 | ||
| 67294-F4032 |
MAXA10 |
1 | ||
| 67837N - SEAL, BACK DOOR DUST PROOF | ||||
| 67837-F4090 |
MAXA10..E |
3 | ||
| 67837-F4090 |
MAXA10..D,G,N |
3 | ||
| 67837N - SEAL, BACK DOOR DUST PROOF | ||||
| 67837-F4090 |
MAXA10..E |
3 | ||
| 67837-F4090 |
MAXA10..D,G,N |
3 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-F4040 |
MAXA10..E |
1 | ||
| 67881-F4040 |
MAXA10..D,G,N |
1 | ||
| 67893A - PROTECTOR, BACK DOOR PANEL, NO.1 | ||||
| 67893-F4030 |
MAXA10..E |
1 | ||
| 67893-F4030 |
MAXA10..D,G,N |
1 | ||
| 67894B - PROTECTOR, BACK DOOR PANEL, NO.2 | ||||
| 67894-F4030 |
MAXA10..D,G,N |
1 | ||
| 67894-F4030 |
MAXA10..E |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-F4171 |
MAXA10..E |
1 | ||
| 68105-F4171 |
MAXA10..D,G,N |
1 | ||
| 68105-F4170 |
MAXA10 |
1 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-F4040 |
MAXA10..D,G,N |
1 | ||
| 75573-F4040 |
MAXA10..E |
1 | ||
| 75574B - MOULDING, BACK WINDOW, OUTSIDE LH | ||||
| 75574-F4040 |
MAXA10..D,G,N |
1 | ||
| 75574-F4040 |
MAXA10..E |
1 | ||
| 75575D - MOULDING, BACK WINDOW, LOWER | ||||
| 75575-F4040 |
MAXA10..D,G,N |
1 | ||
| 75575-F4040 |
MAXA10..E |
1 | ||
| Common parts | ||||
| 90109-08316 | ||||
| 90119-06782 | ||||
| 90119-C0356 | ||||
| Linked diagrams | ||||
| 7504 | ||||

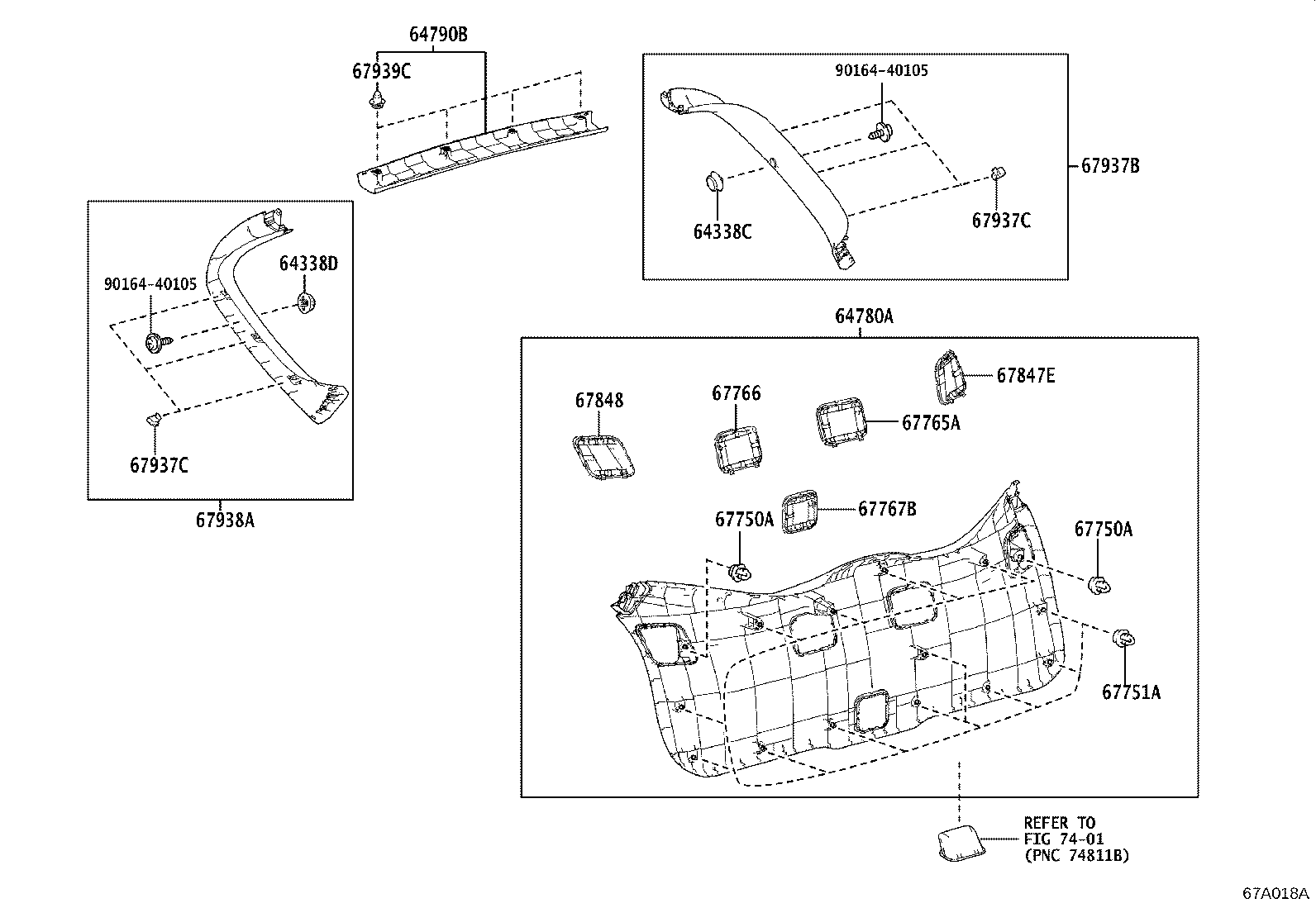

ILLUST NO. 2 OF 2(1808- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64338C - HOOK, PACKAGE TRAY TRIM GARNISH, RH | ||||
| 64338-F4030C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 64338-F4030C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 64338D - HOOK, PACKAGE TRAY TRIM GARNISH, LH | ||||
| 64338-F4030C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 64338-F4030C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-F4040C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 64780-F4040C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 64790B - PANEL ASSY, BACK DOOR TRIM, UPPER | ||||
| 64790-F4040C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 64790-F4040C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-09240 |
MAXA10..E |
2 | ||
| 90467-09240 |
MAXA10..D,G,N |
2 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-09240 |
MAXA10..E |
2 | ||
| 90467-09240 |
MAXA10..D,G,N |
2 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10161 |
MAXA10 |
13 | ||
| 90467-C0036 |
MAXA10..D,G,N |
13 | ||
| 90467-C0036 |
MAXA10..E |
13 | ||
| 67765A - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67765-F4040C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67765-F4040C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 67766 - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67766-F4040C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 67766-F4040C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67767B - COVER, BACK DOOR SERVICE HOLE, NO.3 | ||||
| 67767-F4040C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 67767-F4040C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67847E - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-F4040C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67847-F4040C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 67848 - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-F4040C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 67848-F4040C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-F4040C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 67937-F4040C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 67771-58010 |
MAXA10..E |
6 | ||
| 67771-58010 |
MAXA10..D,G,N |
6 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 67771-58010 |
MAXA10..E |
6 | ||
| 67771-58010 |
MAXA10..D,G,N |
6 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-F4040C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 67938-F4040C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-10161 |
MAXA10..D,G,N |
4 | ||
| 90467-10161 |
MAXA10..E |
4 | ||
| Common parts | ||||
| 90164-40105 | ||||
| Linked diagrams | ||||
| 7401 | ||||
