MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)
Production
Aug 2018
-
Jun 2021
Engine
M20
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1808- )

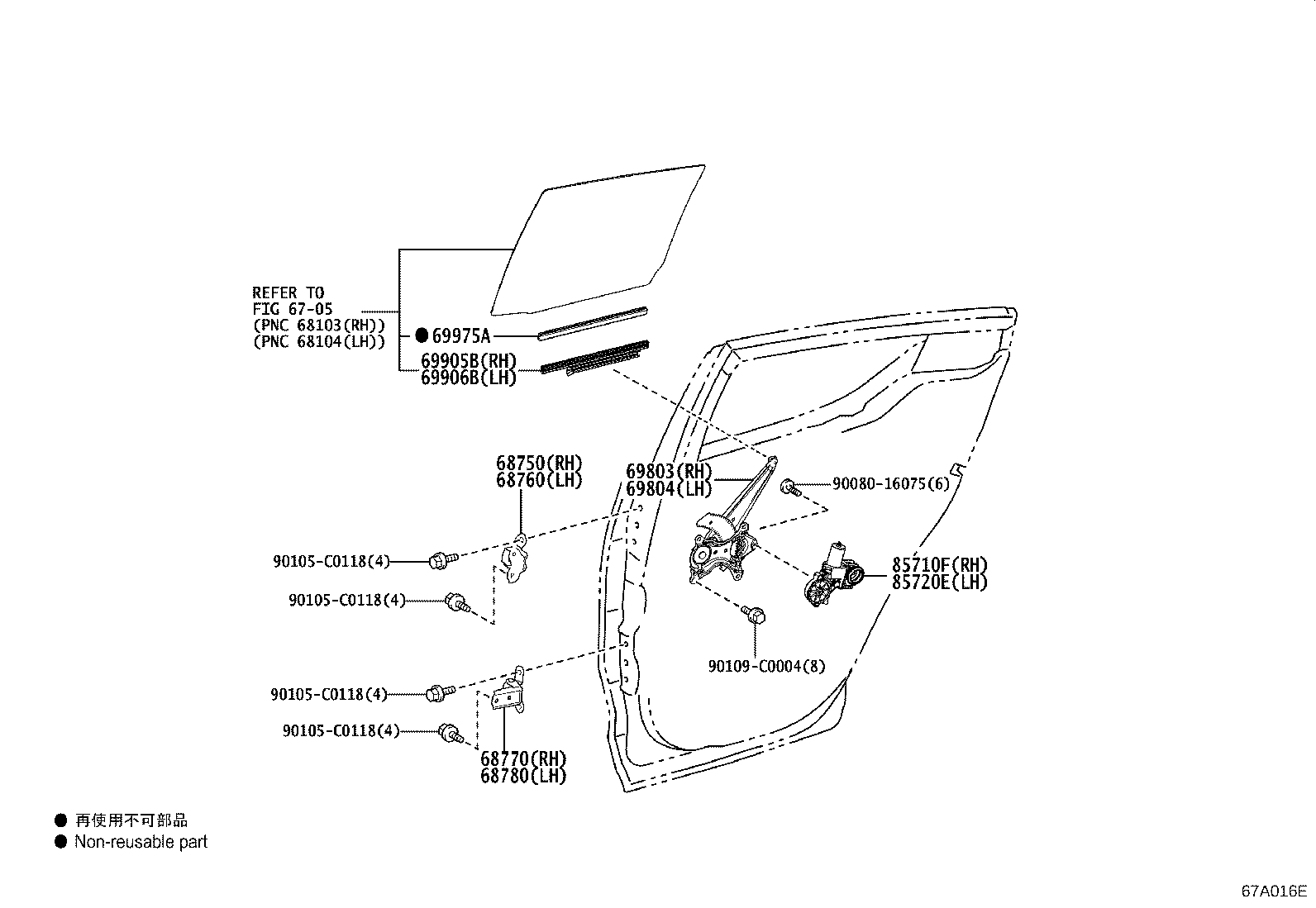

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-0P011 |
MAXA10..D,G,N |
1 | ||
| 68750-0P011 |
MAXA10..E |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-0P011 |
MAXA10..D,G,N |
1 | ||
| 68760-0P011 |
MAXA10..E |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-0D021 |
MAXA10..E |
1 | ||
| 68770-0D021 |
MAXA10..D,G,N |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-0D021 |
MAXA10..D,G,N |
1 | ||
| 68780-0D021 |
MAXA10..E |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-F4040 |
MAXA10 |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-F4040 |
MAXA10 |
1 | ||
| 69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-F4030 |
MAXA10..D,G,N |
1 | ||
| 69905-F4030 |
MAXA10..E |
1 | ||
| 69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-F4030 |
MAXA10..D,G,N |
1 | ||
| 69906-F4030 |
MAXA10..E |
1 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-47020 |
MAXA10..D,G,N |
2 | ||
| 69975-47020 |
MAXA10..E |
2 | ||
| 85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85720-10110 |
MAXA10 |
1 | ||
| 85720-F4100 |
MAXA10 |
1 | ||
| 85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85710-10120 |
MAXA10 |
1 | ||
| 85710-F4100 |
MAXA10 |
1 | ||
| Common parts | ||||
| 90080-16075 | ||||
| 90105-C0118 | ||||
| 90109-C0004 | ||||
| Linked diagrams | ||||
| 6705 | ||||
