MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)
(1808-2106)

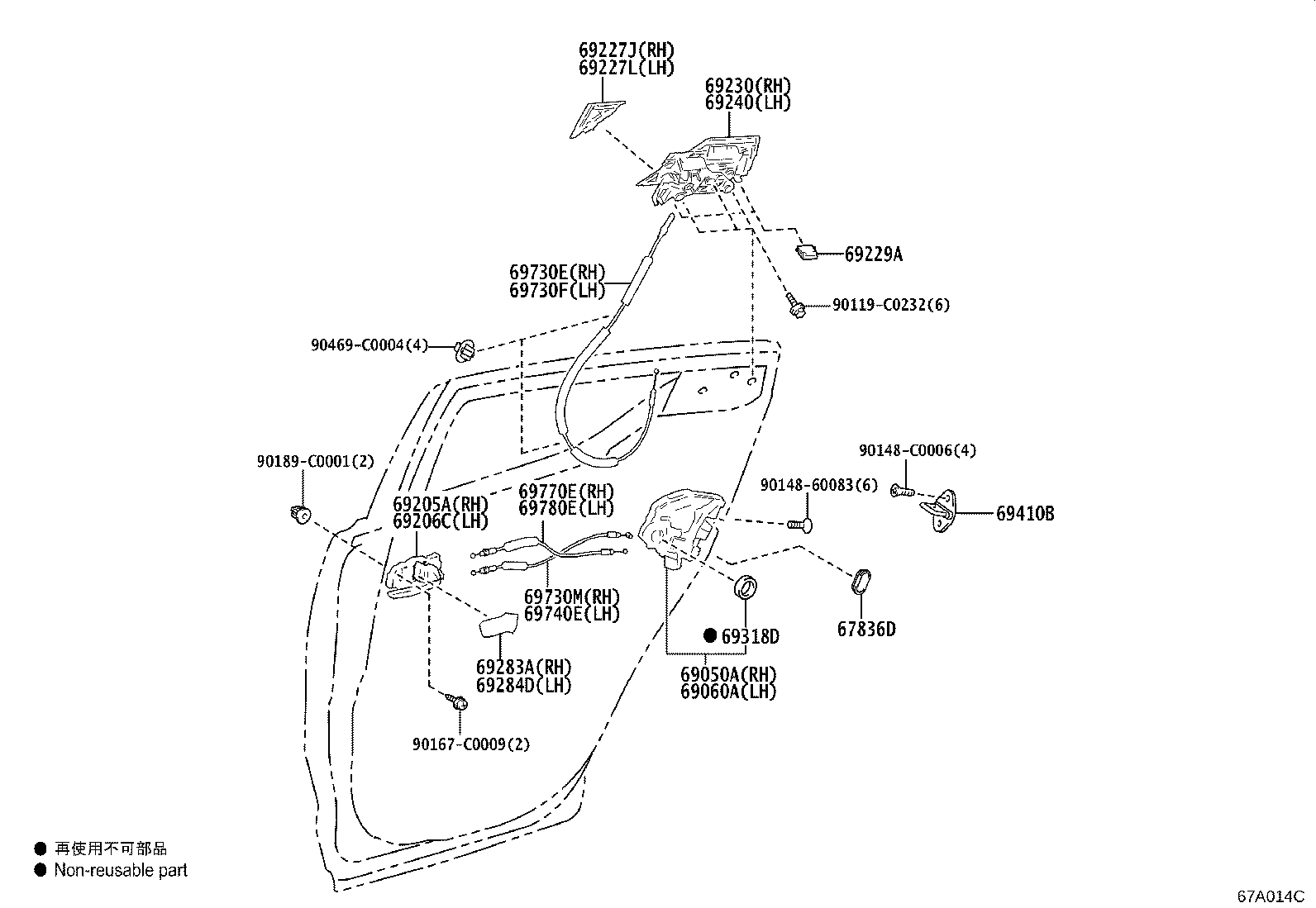

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67836D - COVER, REAR DOOR LOCK CHILD PROTECTION | ||||
| 67836-06020 |
MAXA10..D,G,N |
2 | ||
| 67836-06020 |
MAXA10..E |
2 | ||
| 69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH | ||||
| 69050-F4090 |
MAXA10..D,G,N |
1 | ||
| 69050-F4090 |
MAXA10..E |
1 | ||
| 69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH | ||||
| 69060-F4090 |
MAXA10..E |
1 | ||
| 69060-F4090 |
MAXA10..D,G,N |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-F4050C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 69205-F4050C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-F4050C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 69206-F4050C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69227-F4040 |
MAXA10..D,G,N BLACK |
1 | ||
| 69227-F4040 |
MAXA10..E BLACK |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69228-F4040 |
MAXA10..D,G,N BLACK |
1 | ||
| 69228-F4040 |
MAXA10..E BLACK |
1 | ||
| 69229A - CAP, DOOR OUTSIDE HANDLE, NO.3 | ||||
| 69229-F4020 |
MAXA10..D,G,N |
4 | ||
| 69229-F4020 |
MAXA10..E |
4 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-F4080A0 |
MAXA10..D,G,N WHITE PEARL CS.,070 ,2QJ |
1 | ||
| 69230-F4080C0 |
MAXA10..D,G,N ATTITUDE BLACK MC.,218 ,2QH |
1 | ||
| 69230-F4080G0 |
MAXA10..D,G,N CITRUS M.M.,2QM ,6W2 |
1 | ||
| 69230-F4080G1 |
MAXA10..D,G,N RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 69230-F4080A0 |
MAXA10..E WHITE PEARL CS.,070 ,2QJ |
1 | ||
| 69230-F4080D0 |
MAXA10..D,G,N RED M.M.,2QK ,2QL ,3R3 |
1 | ||
| 69230-F4080D0 |
MAXA10..E RED M.M.,2QK ,2QL ,3R3 |
1 | ||
| 69230-F4080G1 |
MAXA10..E RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 69230-F4080E0 |
MAXA10..D,G,N STEEL BLONDE ME.,4X1 |
1 | ||
| 69230-F4080C0 |
MAXA10..E ATTITUDE BLACK MC.,218 ,2QH |
1 | ||
| 69230-F4080E0 |
MAXA10..E STEEL BLONDE ME.,4X1 |
1 | ||
| 69230-F4080G0 |
MAXA10..E CITRUS M.M.,2QM ,6W2 |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-F4080D0 |
MAXA10..D,G,N RED M.M.,2QK ,2QL ,3R3 |
1 | ||
| 69240-F4080E0 |
MAXA10..D,G,N STEEL BLONDE ME.,4X1 |
1 | ||
| 69240-F4080G0 |
MAXA10..E CITRUS M.M.,2QM ,6W2 |
1 | ||
| 69240-F4080G0 |
MAXA10..D,G,N CITRUS M.M.,2QM ,6W2 |
1 | ||
| 69240-F4080G1 |
MAXA10..D,G,N RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 69240-F4080D0 |
MAXA10..E RED M.M.,2QK ,2QL ,3R3 |
1 | ||
| 69240-F4080A0 |
MAXA10..D,G,N WHITE PEARL CS.,070 ,2QJ |
1 | ||
| 69240-F4080C0 |
MAXA10..D,G,N ATTITUDE BLACK MC.,218 ,2QH |
1 | ||
| 69240-F4080C0 |
MAXA10..E ATTITUDE BLACK MC.,218 ,2QH |
1 | ||
| 69240-F4080E0 |
MAXA10..E STEEL BLONDE ME.,4X1 |
1 | ||
| 69240-F4080G1 |
MAXA10..E RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 69240-F4080A0 |
MAXA10..E WHITE PEARL CS.,070 ,2QJ |
1 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-F4040C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 69283-F4040C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-F4030C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 69284-F4030C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
MAXA10..E |
2 | ||
| 69318-51010 |
MAXA10..D,G,N |
2 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-0D020 |
MAXA10..D,G,N |
2 | ||
| 69410-0D020 |
MAXA10..E |
2 | ||
| 69730E - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.1 | ||||
| 69730-F4090 |
MAXA10..D,G,N |
1 | ||
| 69730-F4090 |
MAXA10..E |
1 | ||
| 69730F - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.2 | ||||
| 69730-F4090 |
MAXA10..D,G,N |
1 | ||
| 69730-F4090 |
MAXA10..E |
1 | ||
| 69730M - CABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER | ||||
| 69730-F4081 |
MAXA10..D,G,N |
1 | ||
| 69730-F4081 |
MAXA10..E |
1 | ||
| 69730-F4080 |
MAXA10 |
1 | ||
| 69740E - CABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER | ||||
| 69730-F4081 |
MAXA10..D,G,N |
1 | ||
| 69730-F4080 |
MAXA10 |
1 | ||
| 69730-F4081 |
MAXA10..E |
1 | ||
| 69770E - CABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK K | ||||
| 69770-F4050 |
MAXA10 |
1 | ||
| 69770-F4051 |
MAXA10..E |
1 | ||
| 69770-F4051 |
MAXA10..D,G,N |
1 | ||
| 69780E - CABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK K | ||||
| 69770-F4051 |
MAXA10..E |
1 | ||
| 69770-F4051 |
MAXA10..D,G,N |
1 | ||
| 69770-F4050 |
MAXA10 |
1 | ||
| Common parts | ||||
| 90119-C0232 | ||||
| 90148-60083 | ||||
| 90148-C0006 | ||||
| 90167-C0009 | ||||
| 90189-C0001 | ||||
| 90469-C0004 | ||||
