MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)

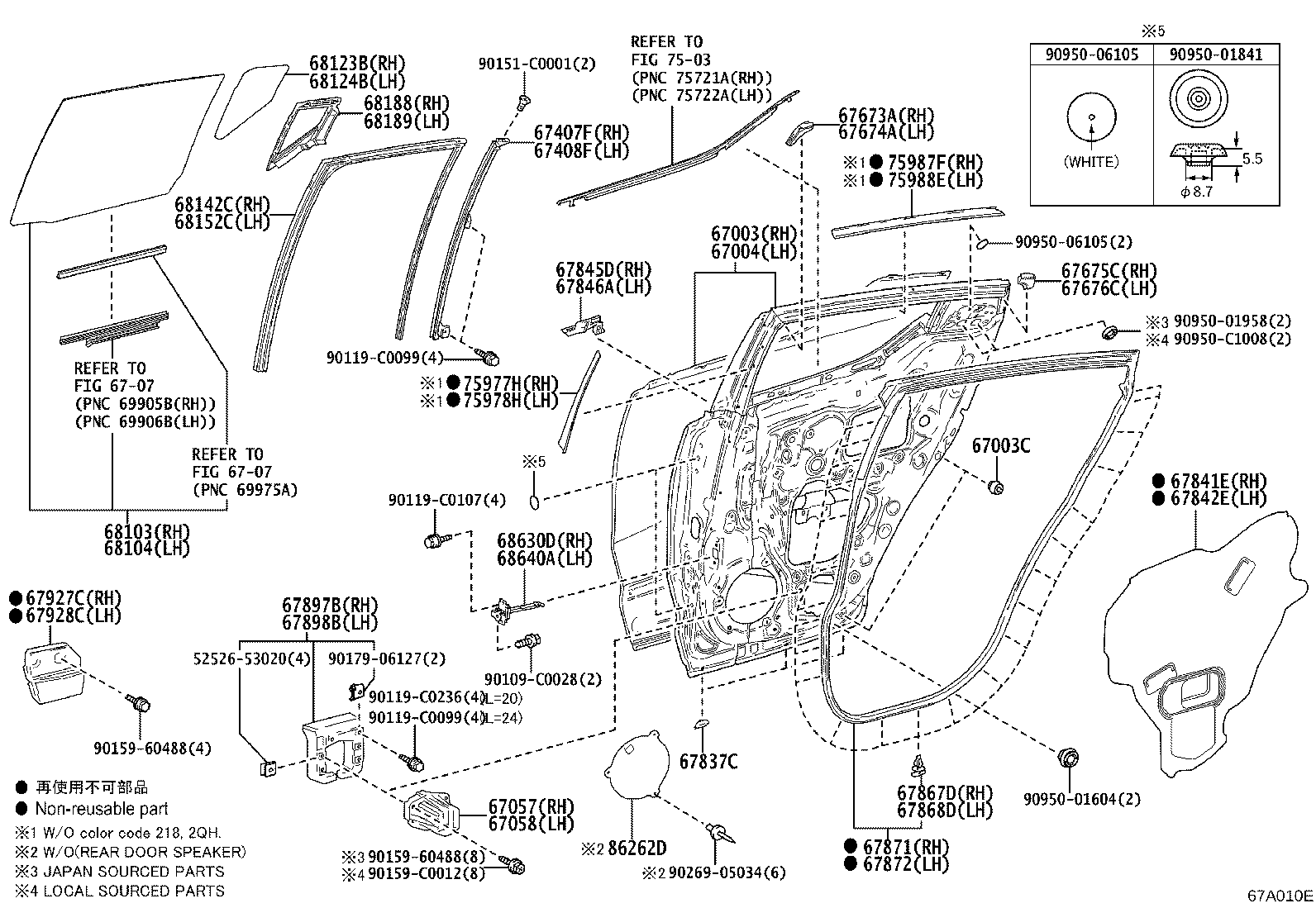

ILLUST NO. 1 OF 2(1808-2106)
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-F4070 |
MAXA10..D,G,N |
1 | ||
| 67003-F4070 |
MAXA10..E |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-C0003 |
MAXA10..E |
4 | ||
| 90541-C0003 |
MAXA10..D,G,N |
4 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-F4070 |
MAXA10..E |
1 | ||
| 67004-F4070 |
MAXA10..D,G,N |
1 | ||
| 67057 - REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH | ||||
| 67057-F4050 |
MAXA10..D,G,N |
1 | ||
| 67057-F4050 |
MAXA10..E |
1 | ||
| 67058 - REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH | ||||
| 67058-F4050 |
MAXA10..D,G,N |
1 | ||
| 67058-F4050 |
MAXA10..E |
1 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-F4040 |
MAXA10..D,G,N |
1 | ||
| 67407-F4040 |
MAXA10..E |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-F4040 |
MAXA10..E |
1 | ||
| 67408-F4040 |
MAXA10..D,G,N |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-F4030 |
MAXA10..E |
1 | ||
| 67673-F4030 |
MAXA10..D,G,N |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-F4030 |
MAXA10..E |
1 | ||
| 67674-F4030 |
MAXA10..D,G,N |
1 | ||
| 67675C - GARNISH, REAR DOOR FRAME, NO.2 RH | ||||
| 67675-F4030 |
MAXA10..E |
1 | ||
| 67675-F4030 |
MAXA10..D,G,N |
1 | ||
| 67676C - GARNISH, REAR DOOR FRAME, NO.2 LH | ||||
| 67676-F4030 |
MAXA10..E |
1 | ||
| 67676-F4030 |
MAXA10..D,G,N |
1 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-F4050 |
MAXA10..E |
6 | ||
| 67837-F4050 |
MAXA10..D,G,N |
6 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-F4050 |
MAXA10..E |
1 | ||
| 67841-F4050 |
MAXA10..D,G,N |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-F4050 |
MAXA10..D,G,N |
1 | ||
| 67842-F4050 |
MAXA10..E |
1 | ||
| 67845D - SEAL, REAR DOOR FRONT OUTSIDE, RH | ||||
| 67845-F4030 |
MAXA10..D,G,N |
1 | ||
| 67845-F4030 |
MAXA10..E |
1 | ||
| 67846A - SEAL, REAR DOOR FRONT OUTSIDE, LH | ||||
| 67846-F4030 |
MAXA10..D,G,N |
1 | ||
| 67846-F4030 |
MAXA10..E |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
MAXA10..E |
24 | ||
| 67867-12150 |
MAXA10..D,G,N |
24 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
MAXA10..E |
24 | ||
| 67867-12150 |
MAXA10..D,G,N |
24 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-F4040 |
MAXA10..E |
1 | ||
| 67871-F4040 |
MAXA10..D,G,N |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-F4040 |
MAXA10..E |
1 | ||
| 67872-F4040 |
MAXA10..D,G,N |
1 | ||
| 67897B - CUSHION, REAR DOOR, RH | ||||
| 67897-F4050 |
MAXA10..E |
1 | ||
| 67897-F4050 |
MAXA10..D,G,N |
1 | ||
| 67898B - CUSHION, REAR DOOR, LH | ||||
| 67898-F4050 |
MAXA10..D,G,N |
1 | ||
| 67898-F4050 |
MAXA10..E |
1 | ||
| 67927C - CUSHION, SEPARATOR DOOR STIFFENER, NO.1 | ||||
| 67927-F4030 |
MAXA10..E |
1 | ||
| 67927-F4030 |
MAXA10..D,G,N |
1 | ||
| 67928C - CUSHION, SEPARATOR DOOR STIFFENER, NO.2 | ||||
| 67928-F4030 |
MAXA10..D,G,N |
1 | ||
| 67928-F4030 |
MAXA10..E |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-F4051 |
MAXA10..E |
1 | ||
| 68103-F4050 |
MAXA10 |
1 | ||
| 68103-F4051 |
MAXA10..D,G,N |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-F4050 |
MAXA10 |
1 | ||
| 68104-F4051 |
MAXA10..D,G,N |
1 | ||
| 68104-F4051 |
MAXA10..E |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-F4050 |
MAXA10 |
1 | ||
| 68123-F4051 |
MAXA10..D,G,N |
1 | ||
| 68123-F4051 |
MAXA10..E |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-F4051 |
MAXA10..D,G,N |
1 | ||
| 68124-F4050 |
MAXA10 |
1 | ||
| 68124-F4051 |
MAXA10..E |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-F4040 |
MAXA10 |
1 | ||
| 68142-F4041 |
MAXA10..E |
1 | ||
| 68142-F4041 |
MAXA10..D,G,N |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-F4041 |
MAXA10..E |
1 | ||
| 68152-F4041 |
MAXA10..D,G,N |
1 | ||
| 68152-F4040 |
MAXA10 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-F4040 |
MAXA10..D,G,N |
1 | ||
| 68188-F4040 |
MAXA10..E |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-F4040 |
MAXA10..D,G,N |
1 | ||
| 68189-F4040 |
MAXA10..E |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-F4040 |
MAXA10..D,G,N |
1 | ||
| 68630-F4040 |
MAXA10..E |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-F4040 |
MAXA10..D,G,N |
1 | ||
| 68630-F4040 |
MAXA10..E |
1 | ||
| 75977H - STRIPE, REAR DOOR OUTSIDE, LOWER RH | ||||
| 75977-F4040 |
MAXA10..E 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75977-F4040 |
MAXA10..D,G,N 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75978H - STRIPE, REAR DOOR OUTSIDE, LOWER LH | ||||
| 75978-F4040 |
MAXA10..E 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75978-F4040 |
MAXA10..D,G,N 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75987F - STRIPE, REAR DOOR, OUTSIDE, RH | ||||
| 75987-F4040 |
MAXA10..E 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75987-F4040 |
MAXA10..D,G,N 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75988E - STRIPE, REAR DOOR, OUTSIDE LH | ||||
| 75988-F4040 |
MAXA10..D,G,N 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75988-F4040 |
MAXA10..E 0 OR 1PIECE,REF.ILL. |
1 | ||
| 86262D - COVER, REAR DOOR SPEAKER | ||||
| 86262-50010 |
MAXA10..D |
2 | ||
| Common parts | ||||
| 52526-53020 | ||||
| 90109-C0028 | ||||
| 90119-C0099 | ||||
| 90119-C0107 | ||||
| 90119-C0236 | ||||
| 90151-C0001 | ||||
| 90159-60488 | ||||
| 90159-C0012 | ||||
| 90179-06127 | ||||
| 90269-05034 | ||||
| 90950-01604 | ||||
| 90950-01841 | ||||
| 90950-01958 | ||||
| 90950-06105 | ||||
| 90950-C1008 | ||||
| Linked diagrams | ||||
| 7503 | ||||

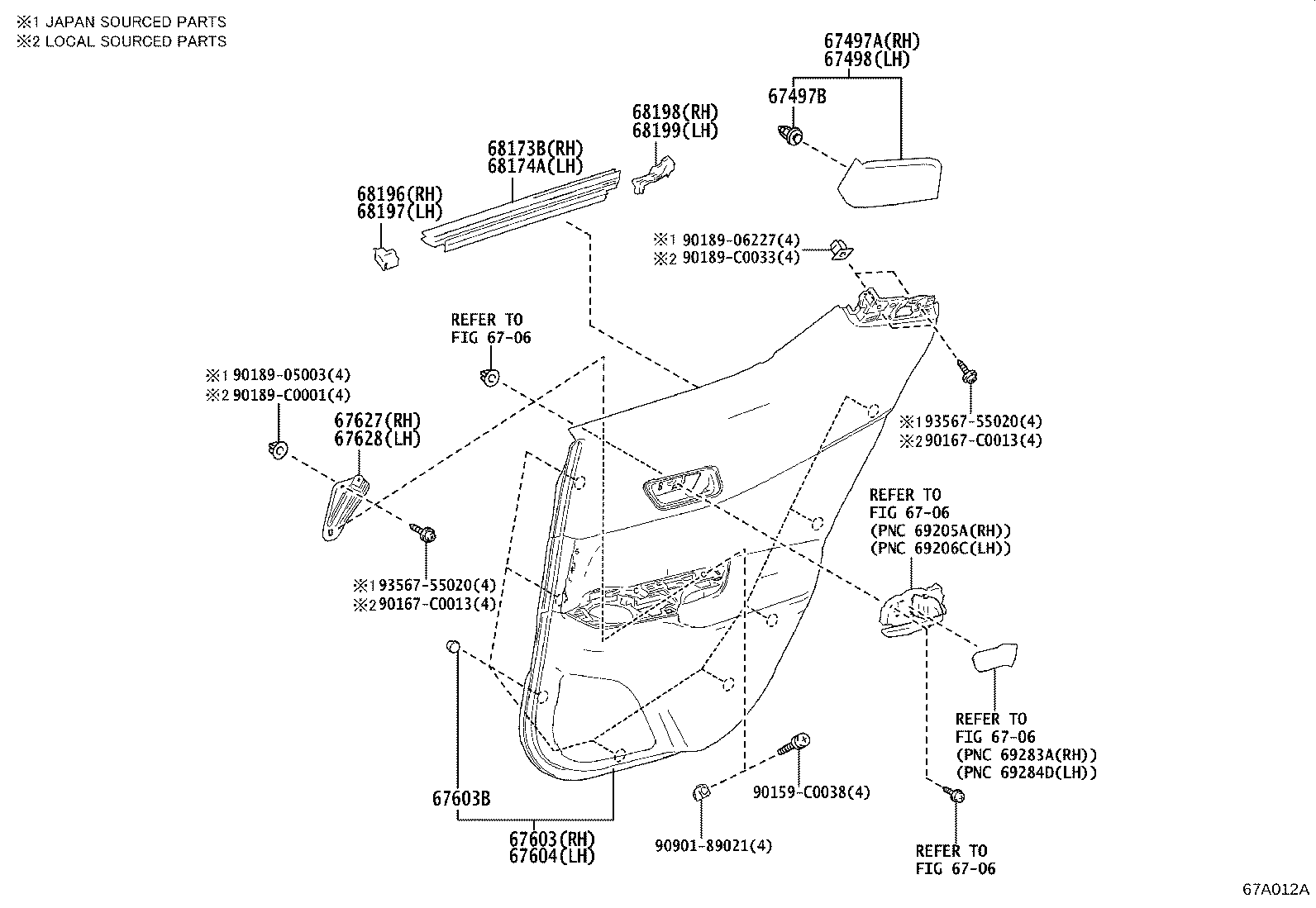

ILLUST NO. 2 OF 2(1808-2106)
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67497A - BRACKET, REAR DOOR REAR FRAME, RH | ||||
| 67497-F4030C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 67497-F4030C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67497B - CLIP(FOR REAR DOOR REAR FRAME BRACKET) | ||||
| 90467-09206 |
MAXA10..D,G,N |
2 | ||
| 90467-09206 |
MAXA10..E |
2 | ||
| 67498 - BRACKET, REAR DOOR REAR FRAME, LH | ||||
| 67498-F4030C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67498-F4030C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-F4051C1 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67630-F4051C2 |
MAXA10..D BLACK,TRIM2# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
MAXA10..D,G,N |
16 | ||
| 90467-09206 |
MAXA10 |
16 | ||
| 90467-09206 |
MAXA10..E |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-F4051C2 |
MAXA10..D BLACK,TRIM2# |
1 | ||
| 67640-F4051C1 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67627 - BRACKET, REAR DOOR TRIM, RH | ||||
| 67625-F4030 |
MAXA10..E |
1 | ||
| 67625-F4030 |
MAXA10..D,G,N |
1 | ||
| 67628 - BRACKET, REAR DOOR TRIM, LH | ||||
| 67635-F4030 |
MAXA10..E |
1 | ||
| 67635-F4030 |
MAXA10..D,G,N |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-F4040 |
MAXA10..E |
1 | ||
| 68173-F4040 |
MAXA10..D,G,N |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-F4040 |
MAXA10..E |
1 | ||
| 68174-F4040 |
MAXA10..D,G,N |
1 | ||
| 68196 - SEAL, REAR DOOR BELT, RH | ||||
| 68196-F4030 |
MAXA10..D,G,N |
1 | ||
| 68196-F4030 |
MAXA10..E |
1 | ||
| 68197 - SEAL, REAR DOOR BELT, LH | ||||
| 68197-F4030 |
MAXA10..D,G,N |
1 | ||
| 68197-F4030 |
MAXA10..E |
1 | ||
| 68198 - SEAL, REAR DOOR BELT, REAR RH | ||||
| 68198-F4030 |
MAXA10..E |
1 | ||
| 68198-F4030 |
MAXA10..D,G,N |
1 | ||
| 68199 - SEAL, REAR DOOR BELT, REAR LH | ||||
| 68199-F4030 |
MAXA10..D,G,N |
1 | ||
| 68199-F4030 |
MAXA10..E |
1 | ||
| Common parts | ||||
| 90159-C0038 | ||||
| 90167-C0013 | ||||
| 90189-05003 | ||||
| 90189-06227 | ||||
| 90189-C0001 | ||||
| 90189-C0033 | ||||
| 90901-89021 | ||||
| 93567-55020 | ||||
| Linked diagrams | ||||
| 6706 | ||||
