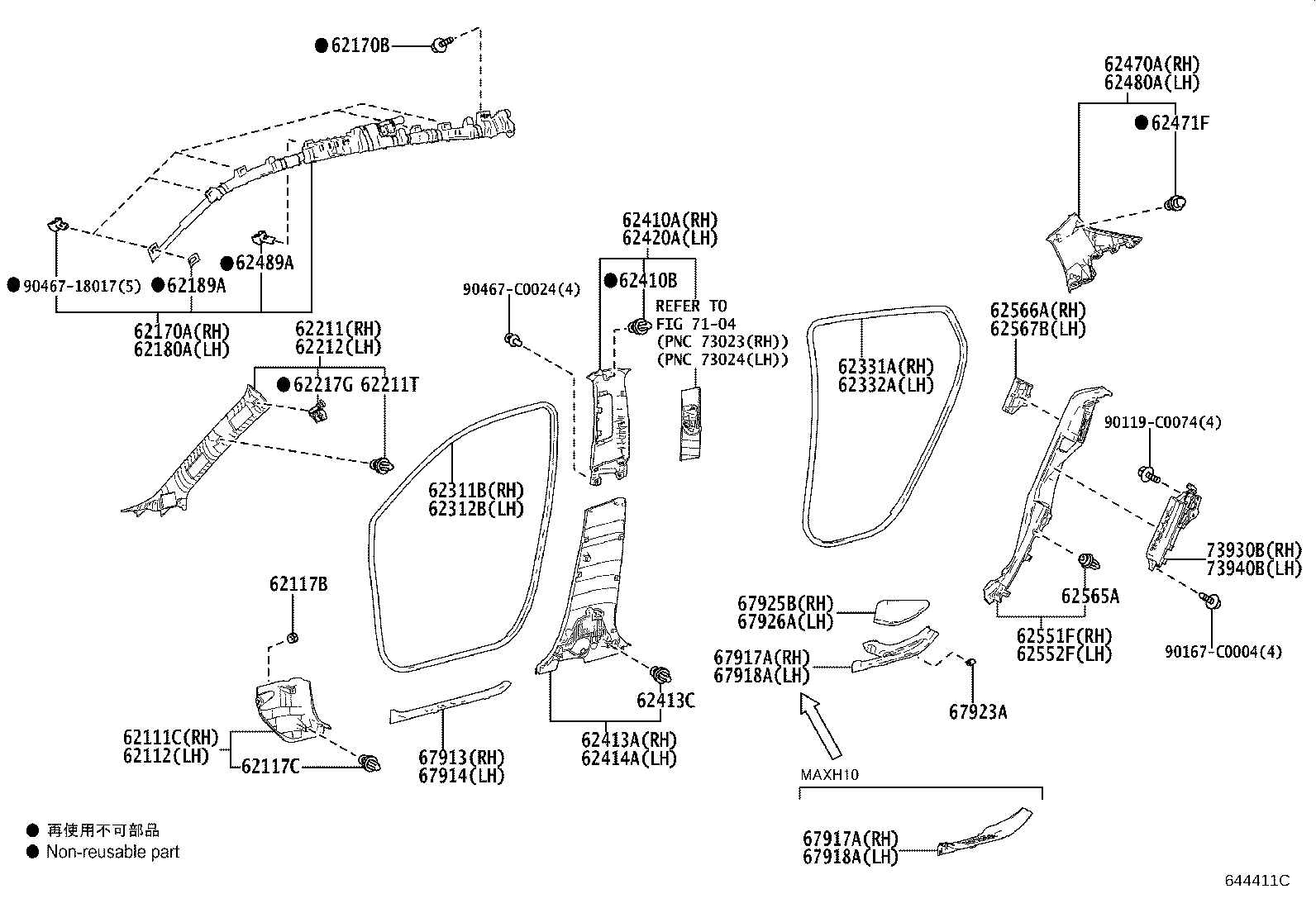

MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)
(1808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-F4051C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 62111-F4051C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-F4051C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 62112-F4051C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
MAXA10..E |
2 | ||
| 90467-06147 |
MAXA10..D,G,N |
2 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
MAXA10..E |
4 | ||
| 90467-10161 |
MAXA10..D,G,N |
4 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-F4051 |
MAXA10..D,G,N |
1 | ||
| 62170-F4051 |
MAXA10..E |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-C0107 |
MAXA10..D,G,N |
6 | ||
| 90119-C0107 |
MAXA10..E |
6 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-F4051 |
MAXA10..E |
1 | ||
| 62180-F4051 |
MAXA10..D,G,N |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-42010 |
MAXA10..D,G,N |
2 | ||
| 62189-42010 |
MAXA10..E |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-F4070C0 |
MAXA10..D,G,N BLACK,TRIM20 |
1 | ||
| 62210-F4070C0 |
MAXA10..E BLACK,TRIM20 |
1 | ||
| 62210-F4070A0 |
MAXA10..E FROMAGE,TRIM21 |
1 | ||
| 62210-F4070C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 62210-F4070A0 |
MAXA10..D,G,N FROMAGE,TRIM21 |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-10161 |
MAXA10..E |
2 | ||
| 90467-10161 |
MAXA10..D,G,N |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-F4070C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 62220-F4070A0 |
MAXA10..D,G,N FROMAGE,TRIM21 |
1 | ||
| 62220-F4070A0 |
MAXA10..E FROMAGE,TRIM21 |
1 | ||
| 62220-F4070C0 |
MAXA10..E BLACK,TRIM20 |
1 | ||
| 62220-F4070C0 |
MAXA10..D,G,N BLACK,TRIM20 |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-24020 |
MAXA10..D,G,N |
2 | ||
| 62217-24020 |
MAXA10..E |
2 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-F4040 |
MAXA10..D,G,N |
1 | ||
| 62311-F4040 |
MAXA10..E |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-F4040 |
MAXA10..D,G,N |
1 | ||
| 62312-F4040 |
MAXA10..E |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-F4040 |
MAXA10..E |
1 | ||
| 62331-F4040 |
MAXA10..D,G,N |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-F4040 |
MAXA10..D,G,N |
1 | ||
| 62332-F4040 |
MAXA10..E |
1 | ||
| 62410A - GARNISH ASSY, CENTER PILLAR, RH | ||||
| 62410-F4050C1 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 62410-F4050C1 |
MAXA10..D,G,N BLACK,TRIM20 |
1 | ||
| 62410-F4050A1 |
MAXA10..E FROMAGE,TRIM21 |
1 | ||
| 62410-F4050C1 |
MAXA10..E BLACK,TRIM20 |
1 | ||
| 62410-F4050A1 |
MAXA10..D,G,N FROMAGE,TRIM21 |
1 | ||
| 62410B - CLIP | ||||
| 90467-10167 |
MAXA10..E |
2 | ||
| 90467-10167 |
MAXA10..D,G,N |
2 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-F4051C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 62413-F4051C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
MAXA10..D,G,N |
6 | ||
| 90467-10161 |
MAXA10..E |
6 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-F4051C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 62414-F4051C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 62420A - GARNISH ASSY, CENTER PILLER, LH | ||||
| 62420-F4050A1 |
MAXA10..E FROMAGE,TRIM21 |
1 | ||
| 62420-F4050C1 |
MAXA10..E BLACK,TRIM20 |
1 | ||
| 62420-F4050C1 |
MAXA10..D,G,N BLACK,TRIM20 |
1 | ||
| 62420-F4050C1 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 62420-F4050A1 |
MAXA10..D,G,N FROMAGE,TRIM21 |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-F4070C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 62470-F4070C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-A0033 |
MAXA10..D,G,N |
10 | ||
| 90467-A0033 |
MAXA10..E |
10 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-F4070C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 62480-F4070C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 62489A - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-28010 |
MAXA10..E |
2 | ||
| 62489-28010 |
MAXA10..D,G,N |
2 | ||
| 62551F - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-F4111C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 62551-F4111C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 62552F - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-F4111C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 62552-F4111C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 62565A - CLIP (FOR REAR SEAT SIDE GARNISH) | ||||
| 62217-13010 |
MAXA10..E |
2 | ||
| 62217-13010 |
MAXA10..D,G,N |
2 | ||
| 62566A - COVER, REAR PILLAR, RH | ||||
| 62566-F4030C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 62566-F4030C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 62567B - COVER, REAR PILLAR, LH | ||||
| 62567-F4030C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 62567-F4030C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-F4030C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 67913-F4030C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-F4030C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 67914-F4030C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-F4051C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67917-F4051C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-F4051C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67917-F4051C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-F4051C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67918-F4051C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-F4051C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67918-F4051C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 67923A - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-30030 |
MAXA10..D,G,N |
2 | ||
| 67923-30030 |
MAXA10..E |
2 | ||
| 67925B - PANEL, REAR DOOR SCUFF, RH | ||||
| 67925-F4030C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67925-F4030C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 67926A - PANEL, REAR DOOR SCUFF, LH | ||||
| 67926-F4030C0 |
MAXA10..E BLACK,TRIM2# |
1 | ||
| 67926-F4030C0 |
MAXA10..D,G,N BLACK,TRIM2# |
1 | ||
| 73930B - AIR BAG, REAR SEAT, RH | ||||
| 73930-F4030 |
MAXA10..E |
1 | ||
| 73930-F4030 |
MAXA10..D,G,N |
1 | ||
| 73940B - AIR BAG, REAR SEAT, LH | ||||
| 73940-F4030 |
MAXA10..D,G,N |
1 | ||
| 73940-F4030 |
MAXA10..E |
1 | ||
| Common parts | ||||
| 90119-C0074 | ||||
| 90167-C0004 | ||||
| 90467-18017 | ||||
| 90467-C0024 | ||||
| Linked diagrams | ||||
| 7104 | ||||
