MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)
(1808- )

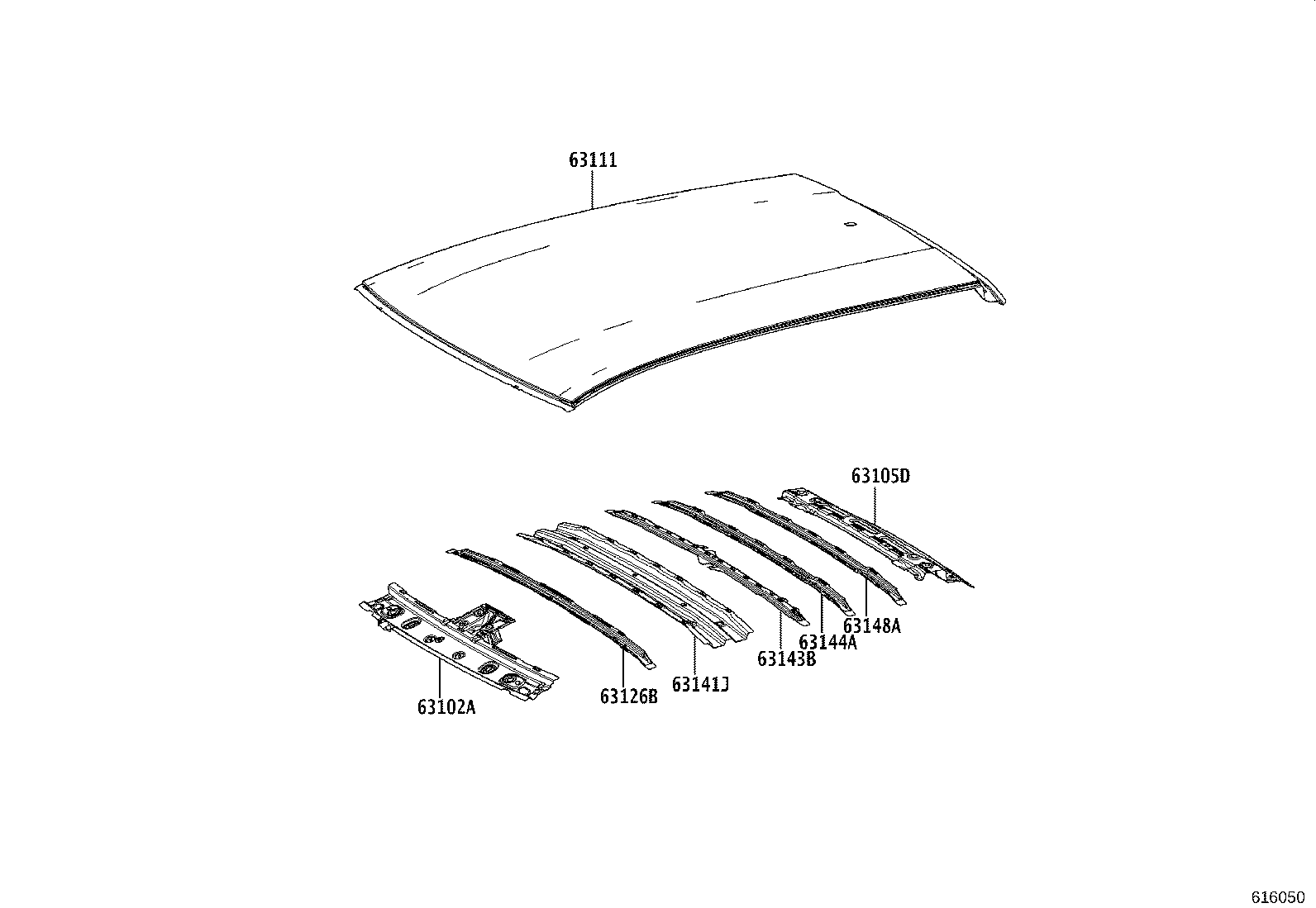

ROOF PANEL(NORMAL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-F4040 |
MAXA10..E,G MOON ROOF-WITHOUT |
1 | ||
| 63132-F4040 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63132-F4040 |
MAXA10..E |
1 | ||
| 63102-F4040 |
MAXA10..D |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-F4040 |
MAXA10..E,G,N MOON ROOF-WITHOUT |
1 | ||
| 63105-F4040 |
MAXA10..E |
1 | ||
| 63105-F4040 |
MAXA10..D |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-F4060 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63111-F4060 |
MAXA10..E |
1 | ||
| 63111-F4050 |
MAXA10..D |
1 | ||
| 63111-F4050 |
MAXA10..E,G MOON ROOF-WITHOUT |
1 | ||
| 63126B - REINFORCEMENT, ROOF PANEL, REAR NO.2 | ||||
| 63126-F4040 |
MAXA10..D |
1 | ||
| 63126-F4040 |
MAXA10..E,G MOON ROOF-WITHOUT |
1 | ||
| 63141J - REINFORCEMENT, ROOF PANEL | ||||
| 63141-F4040 |
MAXA10..E,G MOON ROOF-WITHOUT |
1 | ||
| 63141-F4040 |
MAXA10..D |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-F4040 |
MAXA10..D |
1 | ||
| 63143-F4040 |
MAXA10..E,G,N MOON ROOF-WITHOUT |
1 | ||
| 63143-F4040 |
MAXA10..E |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-F4040 |
MAXA10..E |
1 | ||
| 63144-F4040 |
MAXA10..E,G,N MOON ROOF-WITHOUT |
1 | ||
| 63144-F4040 |
MAXA10..D |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-F4040 |
MAXA10..D |
1 | ||
| 63148-F4040 |
MAXA10..E,G,N MOON ROOF-WITHOUT |
1 | ||
| 63148-F4040 |
MAXA10..E |
1 | ||
ILLUST NO. 1 OF 2(1812- )
ROOF PANEL(MOON)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61824A - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-52070 |
MAXA10..D PLUS PACKAGE |
2 | ||
| 61824-52070 |
MAXA10..E |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-F4040 |
MAXA10..E,G MOON ROOF-WITHOUT |
1 | ||
| 63132-F4040 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63132-F4040 |
MAXA10..E |
1 | ||
| 63102-F4040 |
MAXA10..D |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-F4040 |
MAXA10..E,G,N MOON ROOF-WITHOUT |
1 | ||
| 63105-F4040 |
MAXA10..E |
1 | ||
| 63105-F4040 |
MAXA10..D |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-F4060 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63111-F4060 |
MAXA10..E |
1 | ||
| 63111-F4050 |
MAXA10..D |
1 | ||
| 63111-F4050 |
MAXA10..E,G MOON ROOF-WITHOUT |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-F4020 |
MAXA10..E,G MOON ROOF-WITHOUT |
1 | ||
| 63118-F4020 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63118-F4020 |
MAXA10..E |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63119-F4020 |
MAXA10..E,G MOON ROOF-WITHOUT |
1 | ||
| 63119-F4020 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63119-F4020 |
MAXA10..E |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-F4020 |
MAXA10..E |
1 | ||
| 63142-F4020 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-F4040 |
MAXA10..D |
1 | ||
| 63143-F4040 |
MAXA10..E,G,N MOON ROOF-WITHOUT |
1 | ||
| 63143-F4040 |
MAXA10..E |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-F4040 |
MAXA10..E |
1 | ||
| 63144-F4040 |
MAXA10..E,G,N MOON ROOF-WITHOUT |
1 | ||
| 63144-F4040 |
MAXA10..D |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-F4040 |
MAXA10..D |
1 | ||
| 63148-F4040 |
MAXA10..E,G,N MOON ROOF-WITHOUT |
1 | ||
| 63148-F4040 |
MAXA10..E |
1 | ||
| Common parts | ||||
| 90105-C0375 | ||||
| 90178-C0069 | ||||
| 90179-06274 | ||||
| 91551-80616 | ||||
ILLUST NO. 2 OF 2(1812- )

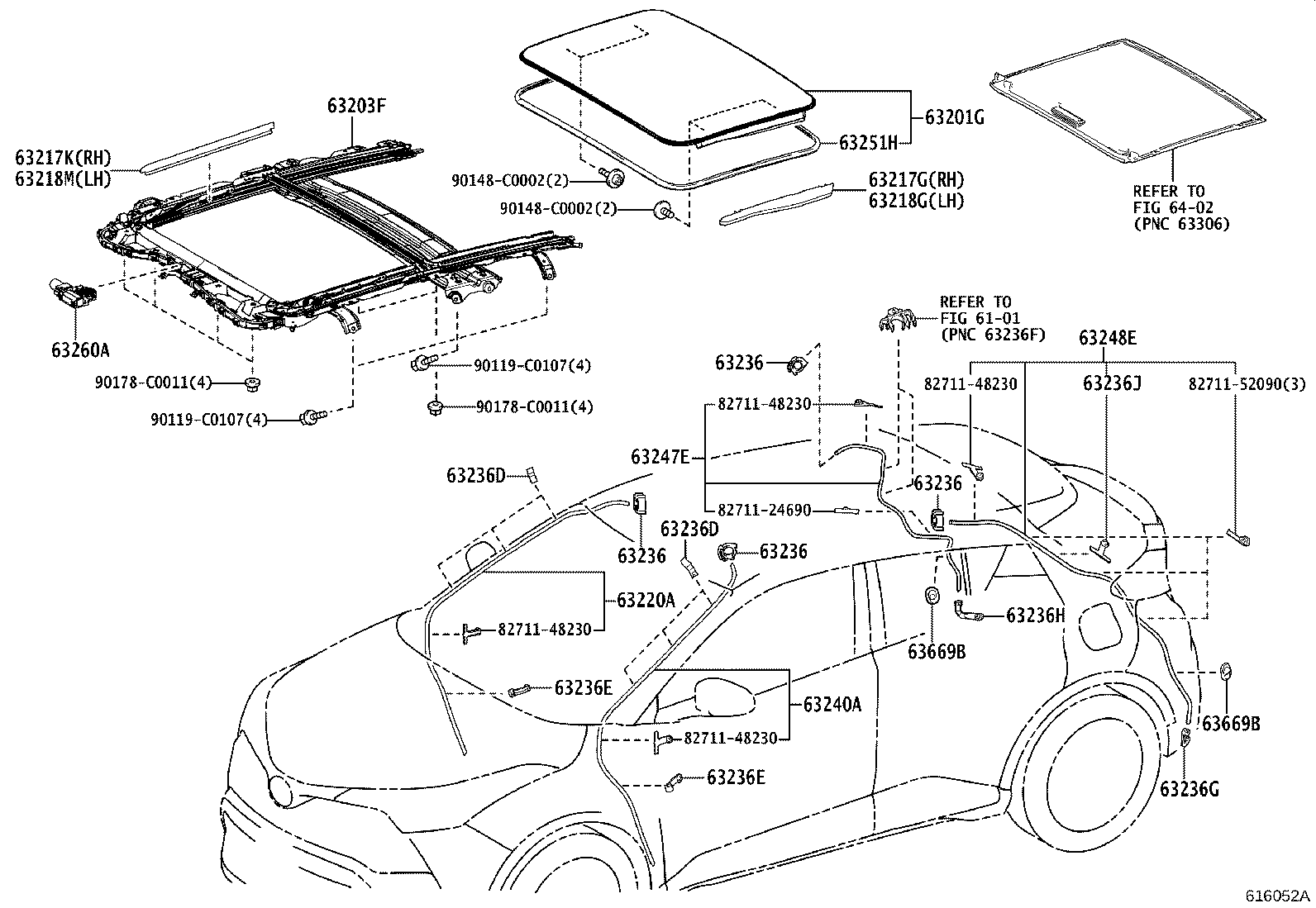

SLIDING ROOF(MOON)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-F4020 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63201-F4020 |
MAXA10..E,G MOON ROOF-WITHOUT |
1 | ||
| 63201-F4020 |
MAXA10..E,G,N |
1 | ||
| 63201-F4021 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63201-F4021 |
MAXA10..E |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-F4021 |
MAXA10..E |
1 | ||
| 63203-F4021 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63203-F4021 |
MAXA10..E,G MOON ROOF-WITHOUT |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-F4030 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63217-F4030 |
MAXA10..E,G MOON ROOF-WITHOUT |
1 | ||
| 63217-F4030 |
MAXA10..E |
1 | ||
| 63217K - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-F4040 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63217-F4040 |
MAXA10..E |
1 | ||
| 63217-F4040 |
MAXA10..E,G MOON ROOF-WITHOUT |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-F4030 |
MAXA10..E,G MOON ROOF-WITHOUT |
1 | ||
| 63218-F4030 |
MAXA10..E |
1 | ||
| 63218-F4030 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63218M - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-F4040 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63218-F4040 |
MAXA10..E,G MOON ROOF-WITHOUT |
1 | ||
| 63218-F4040 |
MAXA10..E |
1 | ||
| 63220A - HOSE ASSY, SLIDING ROOF DRAIN, RH | ||||
| 63220-F4010 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63220-F4010 |
MAXA10..E |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-02030 |
MAXA10..D PLUS PACKAGE |
4 | ||
| 63236-02030 |
MAXA10..E |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-02030 |
MAXA10..D PLUS PACKAGE |
4 | ||
| 63236-02030 |
MAXA10..E |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-02030 |
MAXA10..D PLUS PACKAGE |
4 | ||
| 63236-02030 |
MAXA10..E |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-02030 |
MAXA10..D PLUS PACKAGE |
4 | ||
| 63236-02030 |
MAXA10..E |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-02050 |
MAXA10..E |
6 | ||
| 63236-02050 |
MAXA10..D PLUS PACKAGE |
6 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-02050 |
MAXA10..E |
6 | ||
| 63236-02050 |
MAXA10..D PLUS PACKAGE |
6 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-F4120 |
MAXA10..D PLUS PACKAGE |
2 | ||
| 63236-F4120 |
MAXA10..E |
2 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-F4120 |
MAXA10..D PLUS PACKAGE |
2 | ||
| 63236-F4120 |
MAXA10..E |
2 | ||
| 63236G - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-F4110 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63236-F4110 |
MAXA10..E |
1 | ||
| 63236H - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-F4100 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63236-F4100 |
MAXA10..E |
1 | ||
| 63236J - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-F4070 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63236-F4070 |
MAXA10..E |
1 | ||
| 63240A - HOSE ASSY, SLIDING ROOF DRAIN, LH | ||||
| 63240-F4010 |
MAXA10..E |
1 | ||
| 63240-F4010 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63247-F4010 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63247-F4010 |
MAXA10..E |
1 | ||
| 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63248-F4010 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63248-F4010 |
MAXA10..E |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-F4020 |
MAXA10..E |
1 | ||
| 63251-F4020 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63251-F4020 |
MAXA10..E,G MOON ROOF-WITHOUT |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-F4010 |
MAXA10..E |
1 | ||
| 63260-F4010 |
MAXA10..D PLUS PACKAGE |
1 | ||
| 63260-F4010 |
MAXA10..E,G MOON ROOF-WITHOUT |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 90480-01695 |
MAXA10..D PLUS PACKAGE |
2 | ||
| 90480-01695 |
MAXA10..E |
2 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 90480-01695 |
MAXA10..D PLUS PACKAGE |
2 | ||
| 90480-01695 |
MAXA10..E |
2 | ||
| Common parts | ||||
| 82711-24690 | ||||
| 82711-48230 | ||||
| 82711-52090 | ||||
| 90119-C0107 | ||||
| 90148-C0002 | ||||
| 90178-C0011 | ||||
| Linked diagrams | ||||
| 6101 | ||||
| 6402 | ||||
