MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)
ILLUST NO. 1 OF 3(1808-2106)

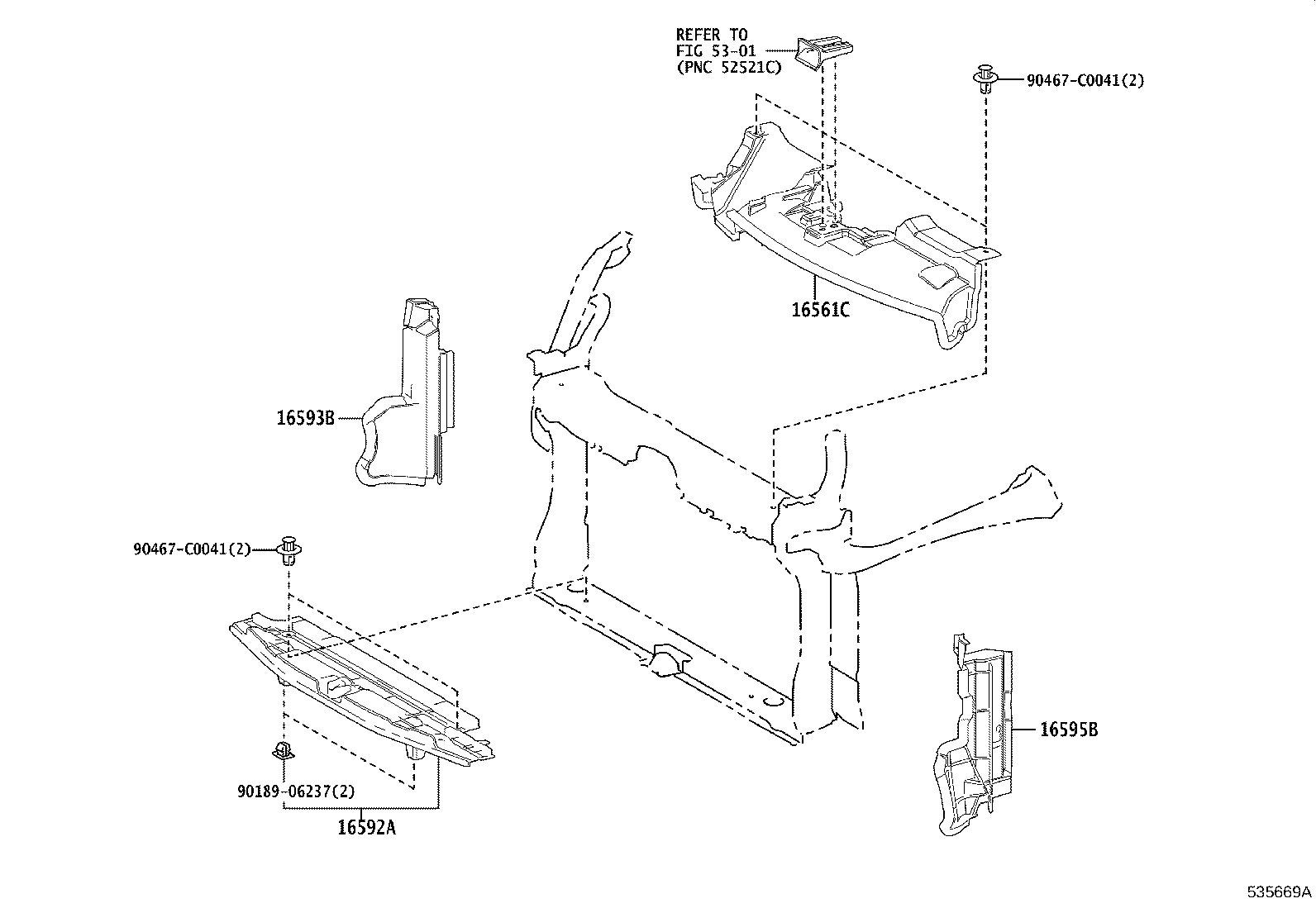

AIR GUIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16561C - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-F2020 |
M20..MAXA10..D,G,N |
1 | ||
| 16561-F2020 |
M20..MAXA10..E |
1 | ||
| 16592A - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-F2030 |
M20..MAXA10..E |
1 | ||
| 16592-F2030 |
M20..MAXA10..D,G,N |
1 | ||
| 16593B - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-F2070 |
M20..MAXA10..E |
1 | ||
| 16593-F2070 |
M20..MAXA10..D,G,N |
1 | ||
| 16595B - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-F2090 |
M20..MAXA10..E |
1 | ||
| 16595-F2090 |
M20..MAXA10..D,G,N |
1 | ||
| Common parts | ||||
| 90189-06237 | ||||
| 90467-C0041 | ||||
| Linked diagrams | ||||
| 5301 | ||||
ILLUST NO. 3 OF 3(1808- )

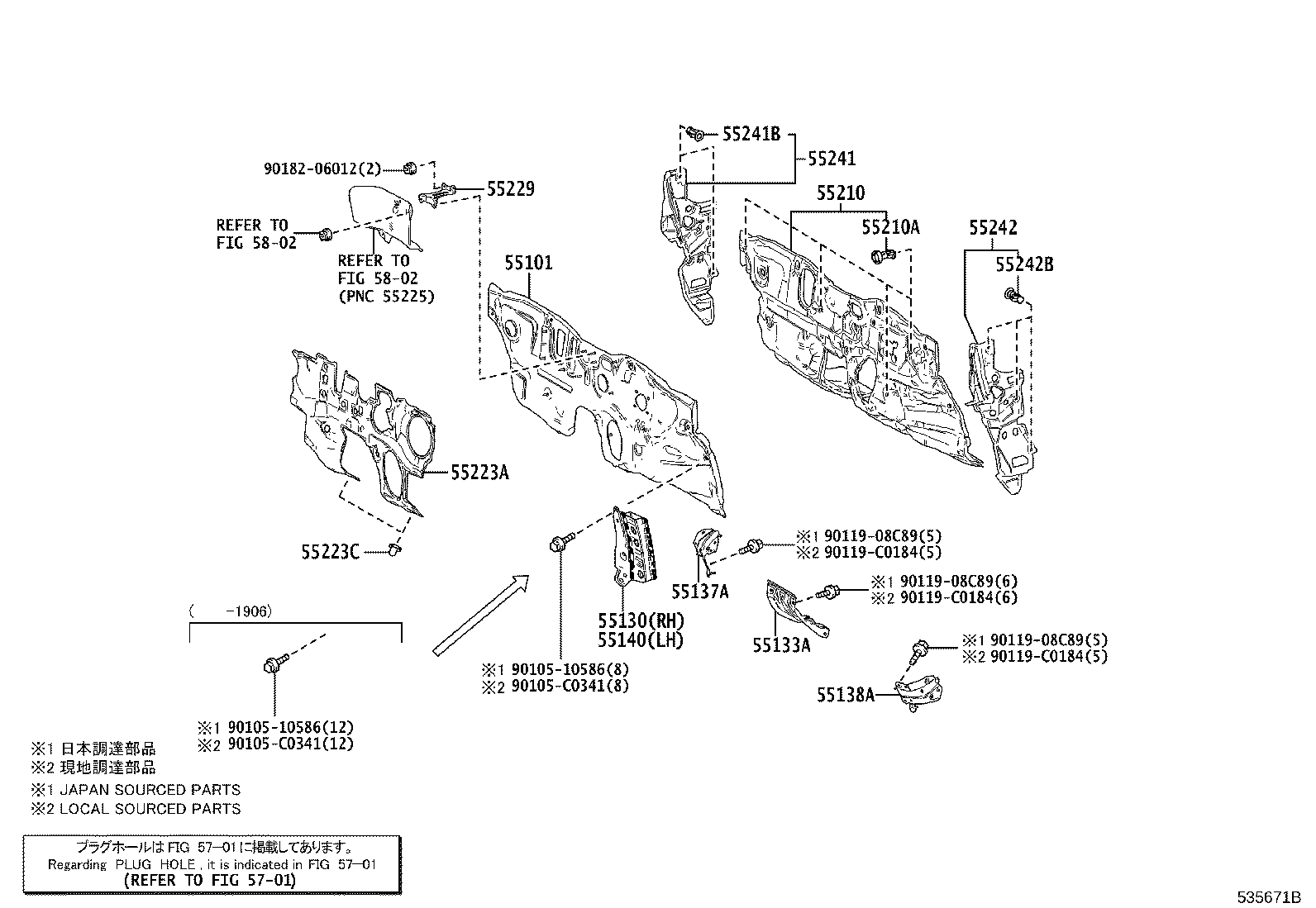

DASH PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-F4070 |
MAXA10..E |
1 | ||
| 55101-F4070 |
MAXA10..D,G,N |
1 | ||
| 55130 - PLATE ASSY, FENDER APRON SET, RH | ||||
| 55131-F4050 |
MAXA10..D,G,N |
1 | ||
| 55130-F4030 |
MAXA10 |
1 | ||
| 55131-F4050 |
MAXA10..E |
1 | ||
| 55133A - REINFORCEMENT, DASH TO FLOOR, RH | ||||
| 55133-F4040 |
MAXA10..E |
1 | ||
| 55133-F4040 |
MAXA10..D,G,N |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-F4040 |
MAXA10..E |
1 | ||
| 55137-F4040 |
MAXA10..D,G,N |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-F4040 |
MAXA10..D,G,N |
1 | ||
| 55138-F4040 |
MAXA10..E |
1 | ||
| 55140 - PLATE ASSY,FENDER APRON SET, LH | ||||
| 55140-F4030 |
MAXA10 |
1 | ||
| 55132-F4050 |
MAXA10..E |
1 | ||
| 55132-F4050 |
MAXA10..D,G,N |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-F4050 |
MAXA10..E |
1 | ||
| 55210-F4050 |
MAXA10..D,G,N |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
MAXA10..D,G,N |
4 | ||
| 90467-11122 |
MAXA10..E |
4 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-F4050 |
MAXA10..E |
1 | ||
| 55223-F4050 |
MAXA10..D,G,N |
1 | ||
| 55223C - CLIP | ||||
| 90467-06197 |
MAXA10..E |
2 | ||
| 90467-06197 |
MAXA10..D,G,N |
2 | ||
| 55229 - PLATE, DASH PANEL INSULATOR, NO.4 | ||||
| 55229-F4030 |
MAXA10..D,G,N |
1 | ||
| 55229-F4030 |
MAXA10..E |
1 | ||
| 55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH | ||||
| 55241-F4030 |
MAXA10..D,G,N |
1 | ||
| 55241-F4030 |
MAXA10..E |
1 | ||
| 55241B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-13079 |
MAXA10..E |
2 | ||
| 90467-13079 |
MAXA10..D,G,N |
2 | ||
| 55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH | ||||
| 55242-F4030 |
MAXA10..E |
1 | ||
| 55242-F4030 |
MAXA10..D,G,N |
1 | ||
| 55242B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-13079 |
MAXA10..E |
3 | ||
| 90467-13079 |
MAXA10..D,G,N |
3 | ||
| Common parts | ||||
| 90105-10586 | ||||
| 90105-C0341 | ||||
| 90119-08C89 | ||||
| 90119-C0184 | ||||
| 90182-06012 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 5802 | ||||
ILLUST NO. 2 OF 3(1808- )
FENDER APRON & RADIATOR SUPPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52029A - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-F4030 |
MAXA10..E |
1 | ||
| 52029-F4030 |
MAXA10..D,G,N |
1 | ||
| 52137C - BRACKET, FRONT BUMPER ARM MOUNTING, NO.3 | ||||
| 52137-F4040 |
MAXA10..D,G,N |
1 | ||
| 52137-F4040 |
MAXA10..E |
1 | ||
| 52138D - BRACKET, FRONT BUMPER ARM MOUNTING, NO.4 | ||||
| 52138-F4040 |
MAXA10..D,G,N |
1 | ||
| 52138-F4040 |
MAXA10..E |
1 | ||
| 52143F - BRACKET, FRONT BUMPER SIDE, RH | ||||
| 52143-F4040 |
MAXA10..D,G,N |
1 | ||
| 52143-F4040 |
MAXA10..E |
1 | ||
| 52144G - BRACKET, FRONT BUMPER SIDE, LH | ||||
| 52144-F4040 |
MAXA10..D,G,N |
1 | ||
| 52144-F4040 |
MAXA10..E |
1 | ||
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-F4040 |
MAXA10..D,G,N |
1 | ||
| 53028-F4040 |
MAXA10..E |
1 | ||
| 53115E - BRACKET, RADIATOR GRILLE | ||||
| 53115-F4050 |
MAXA10..D,G,N |
1 | ||
| 53115-F4050 |
MAXA10..E |
1 | ||
| 53119H - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-12150 |
MAXA10..E |
2 | ||
| 53119-12150 |
MAXA10..D,G,N |
2 | ||
| 53141F - COVER, RADIATOR | ||||
| 53141-F4121 |
MAXA10..D,G,N |
1 | ||
| 53141-F4120 |
MAXA10 |
1 | ||
| 53141-F4121 |
MAXA10..E |
1 | ||
| 53151 - BRACKET, RADIATOR COVER SUPPORT | ||||
| 53151-F4030 |
MAXA10..E |
2 | ||
| 53151-F4030 |
MAXA10..D,G,N |
2 | ||
| 53151 - BRACKET, RADIATOR COVER SUPPORT | ||||
| 53151-F4030 |
MAXA10..E |
2 | ||
| 53151-F4030 |
MAXA10..D,G,N |
2 | ||
| 53187A - STAY, RADIATOR SUPPORT, RH | ||||
| 53187-F4040 |
MAXA10..E |
1 | ||
| 53187-F4040 |
MAXA10..D,G,N |
1 | ||
| 53188B - STAY, RADIATOR SUPPORT, LH | ||||
| 53188-F4040 |
MAXA10..D,G,N |
1 | ||
| 53188-F4040 |
MAXA10..E |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-F4903 |
MAXA10..E |
1 | ||
| 53202-F4903 |
MAXA10..D,G,N |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-F4903 |
MAXA10..D,G,N |
1 | ||
| 53203-F4903 |
MAXA10..E |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-F4040 |
MAXA10..E |
1 | ||
| 53205-F4040 |
MAXA10..D,G,N |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-F4903 |
MAXA10..D,G,N |
1 | ||
| 53208-F4903 |
MAXA10..E |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-F4040 |
MAXA10..E |
1 | ||
| 53213-F4040 |
MAXA10..D,G,N |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-F4040 |
MAXA10..D,G,N |
1 | ||
| 53214-F4040 |
MAXA10..E |
1 | ||
| 53273F - BRACKET, FRONT BUMPER RETAINER MOUNTING, RH | ||||
| 53273-F4040 |
MAXA10..D,G,N |
1 | ||
| 53273-F4040 |
MAXA10..E |
1 | ||
| 53274F - BRACKET, FRONT BUMPER RETAINER MOUNTING, LH | ||||
| 53274-F4040 |
MAXA10..D,G,N |
1 | ||
| 53274-F4040 |
MAXA10..E |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-F4040 |
MAXA10..E |
1 | ||
| 53701-F4040 |
MAXA10..D,G,N |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-F4040 |
MAXA10..E |
1 | ||
| 53702-F4040 |
MAXA10..D,G,N |
1 | ||
| 53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH | ||||
| 53705-F4040 |
MAXA10..E |
1 | ||
| 53705-F4040 |
MAXA10..D,G,N |
1 | ||
| 53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH | ||||
| 53706-F4040 |
MAXA10..D,G,N |
1 | ||
| 53706-F4040 |
MAXA10..E |
1 | ||
| 53710J - APRON ASSY, FRONT FENDER, RH | ||||
| 53710-F4040 |
MAXA10..E |
1 | ||
| 53710-F4040 |
MAXA10..D,G,N |
1 | ||
| 53720B - APRON ASSY, FRONT FENDER, LH | ||||
| 53720-F4040 |
MAXA10..E |
1 | ||
| 53720-F4040 |
MAXA10..D,G,N |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-F4040 |
MAXA10..D,G,N |
1 | ||
| 53731-F4040 |
MAXA10..E |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-F4040 |
MAXA10..D,G,N |
1 | ||
| 53732-F4040 |
MAXA10..E |
1 | ||
| 53733J - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT RH | ||||
| 53733-F4040 |
MAXA10..E |
1 | ||
| 53733-F4040 |
MAXA10..D,G,N |
1 | ||
| 53734G - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT LH | ||||
| 53734-F4040 |
MAXA10..D,G,N |
1 | ||
| 53734-F4040 |
MAXA10..E |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-F4050 |
MAXA10..E |
1 | ||
| 53737-F4050 |
MAXA10..D,G,N |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-F4050 |
MAXA10..E |
1 | ||
| 53738-F4050 |
MAXA10..D,G,N |
1 | ||
| 53741 - PLATE, FRONT FENDER APRON WIND GUIDE, RH | ||||
| 53741-F4040 |
MAXA10..D,G,N |
1 | ||
| 53741-F4040 |
MAXA10..E |
1 | ||
| 53742 - PLATE, FRONT FENDER APRON WIND GUIDE, LH | ||||
| 53742-F4040 |
MAXA10..E |
1 | ||
| 53742-F4040 |
MAXA10..D,G,N |
1 | ||
| 53743D - REINFORCEMENT, FRONT FENDER APRON FRONT EXTENSION, RH | ||||
| 53743-F4040 |
MAXA10..D,G,N |
1 | ||
| 53743-F4040 |
MAXA10..E |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-F4040 |
MAXA10..E |
1 | ||
| 53813-F4040 |
MAXA10..D,G,N |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-F4040 |
MAXA10..E |
1 | ||
| 53814-F4040 |
MAXA10..D,G,N |
1 | ||
| 53835D - BRACKET, FRONT SIDE PANEL, RH | ||||
| 53835-F4070 |
MAXA10..D,G,N |
1 | ||
| 53835-F4070 |
MAXA10..E |
1 | ||
| 53836C - BRACKET, FRONT SIDE PANEL, LH | ||||
| 53836-F4070 |
MAXA10..E |
1 | ||
| 53836-F4070 |
MAXA10..D,G,N |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90109-06328 | ||||
| 90109-08307 | ||||
| 90109-C0021 | ||||
| 90109-C0025 | ||||
| 90109-C0061 | ||||
| 90119-06A15 | ||||
| 90119-C0509 | ||||
| 90467-07217 | ||||
| 90467-C0051 | ||||
| 90541-15040 | ||||
| 91635-A0616 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7403 | ||||
