MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)

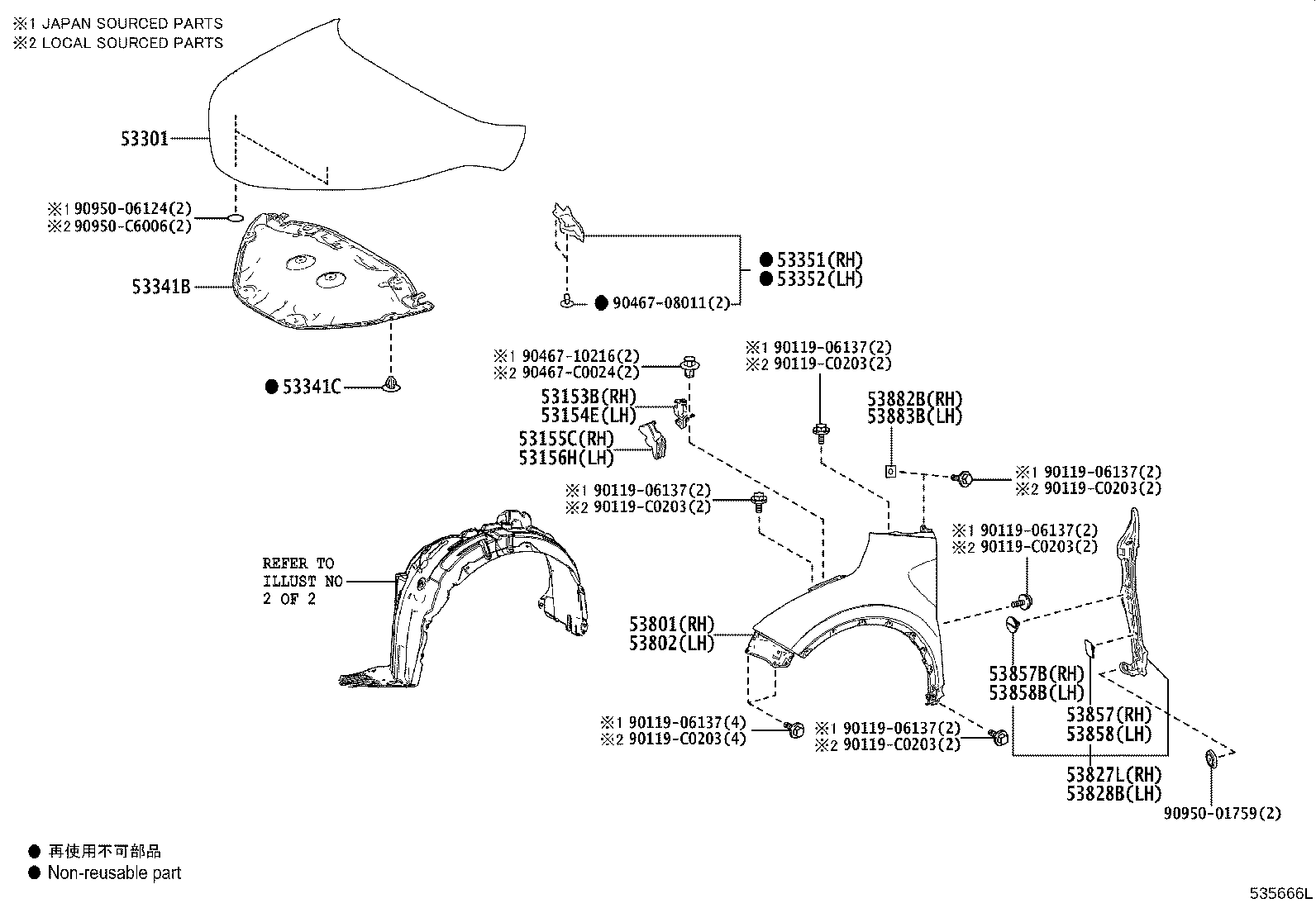

ILLUST NO. 1 OF 2(1808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153B - GUIDE, FRONT SIDE AIR | ||||
| 53153-F4040 |
MAXA10..E |
1 | ||
| 53153-F4040 |
MAXA10..D,G,N |
1 | ||
| 53154E - GUIDE, FRONT SIDE AIR, NO.2 | ||||
| 53154-F4040 |
MAXA10..E |
1 | ||
| 53154-F4040 |
MAXA10..D,G,N |
1 | ||
| 53155C - SEAL, RADIATOR GRILLE, NO.1 | ||||
| 53155-F4040 |
MAXA10..E |
1 | ||
| 53155-F4040 |
MAXA10..D,G,N |
1 | ||
| 53156H - SEAL, RADIATOR GRILLE, NO.2 | ||||
| 53156-F4040 |
MAXA10..E |
1 | ||
| 53156-F4040 |
MAXA10..D,G,N |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-F4050 |
MAXA10..E |
1 | ||
| 53301-F4050 |
MAXA10..D,G,N |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-F4040 |
MAXA10..E |
1 | ||
| 53341-F4040 |
MAXA10..D,G,N |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-C0006 |
MAXA10..D,G,N (L) |
8 | ||
| 90467-09050 |
MAXA10..E (J) |
8 | ||
| 90467-C0006 |
MAXA10..E (L) |
8 | ||
| 90467-09050 |
MAXA10..D,G,N (J) |
8 | ||
| 53351 - PANEL, HOOD SIDE, RH | ||||
| 53351-F4030 |
MAXA10..D,G,N |
1 | ||
| 53351-F4030 |
MAXA10..E |
1 | ||
| 53352 - PANEL, HOOD SIDE, LH | ||||
| 53352-F4030 |
MAXA10..D,G,N |
1 | ||
| 53352-F4030 |
MAXA10..E |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-F4050 |
MAXA10..E |
1 | ||
| 53801-F4050 |
MAXA10..D,G,N |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-F4050 |
MAXA10..D,G,N |
1 | ||
| 53802-F4050 |
MAXA10..E |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-F4030 |
MAXA10..D,G,N |
1 | ||
| 53827-F4030 |
MAXA10..E |
1 | ||
| 53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-F4030 |
MAXA10..D,G,N |
1 | ||
| 53828-F4030 |
MAXA10..E |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-12010 |
MAXA10..D,G,N |
1 | ||
| 53857-12010 |
MAXA10..E |
1 | ||
| 53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-06020 |
MAXA10..D,G,N (L) |
1 | ||
| 53857-47011 |
MAXA10..D,G,N (J) |
1 | ||
| 53857-47011 |
MAXA10..E (J) |
1 | ||
| 53857-47011 |
MAXA10 |
1 | ||
| 53857-06020 |
MAXA10..E (L) |
1 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-12010 |
MAXA10..D,G,N |
1 | ||
| 53857-12010 |
MAXA10..E |
1 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
MAXA10..D,G,N (J) |
1 | ||
| 53857-47011 |
MAXA10 |
1 | ||
| 53857-06020 |
MAXA10..E (L) |
1 | ||
| 53857-06020 |
MAXA10..D,G,N (L) |
1 | ||
| 53857-47011 |
MAXA10..E (J) |
1 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-33060 |
MAXA10..D,G,N (J) |
1 | ||
| 53882-0D030 |
MAXA10..E (L) |
1 | ||
| 53882-0D030 |
MAXA10..D,G,N (L) |
1 | ||
| 53882-33060 |
MAXA10..E (J) |
1 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53882-0D030 |
MAXA10..D,G,N (L) |
1 | ||
| 53882-0D030 |
MAXA10..E (L) |
1 | ||
| 53882-33060 |
MAXA10..D,G,N (J) |
1 | ||
| 53882-33060 |
MAXA10..E (J) |
1 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90119-C0203 | ||||
| 90467-08011 | ||||
| 90467-10216 | ||||
| 90467-C0024 | ||||
| 90950-01759 | ||||
| 90950-06124 | ||||
| 90950-C6006 | ||||

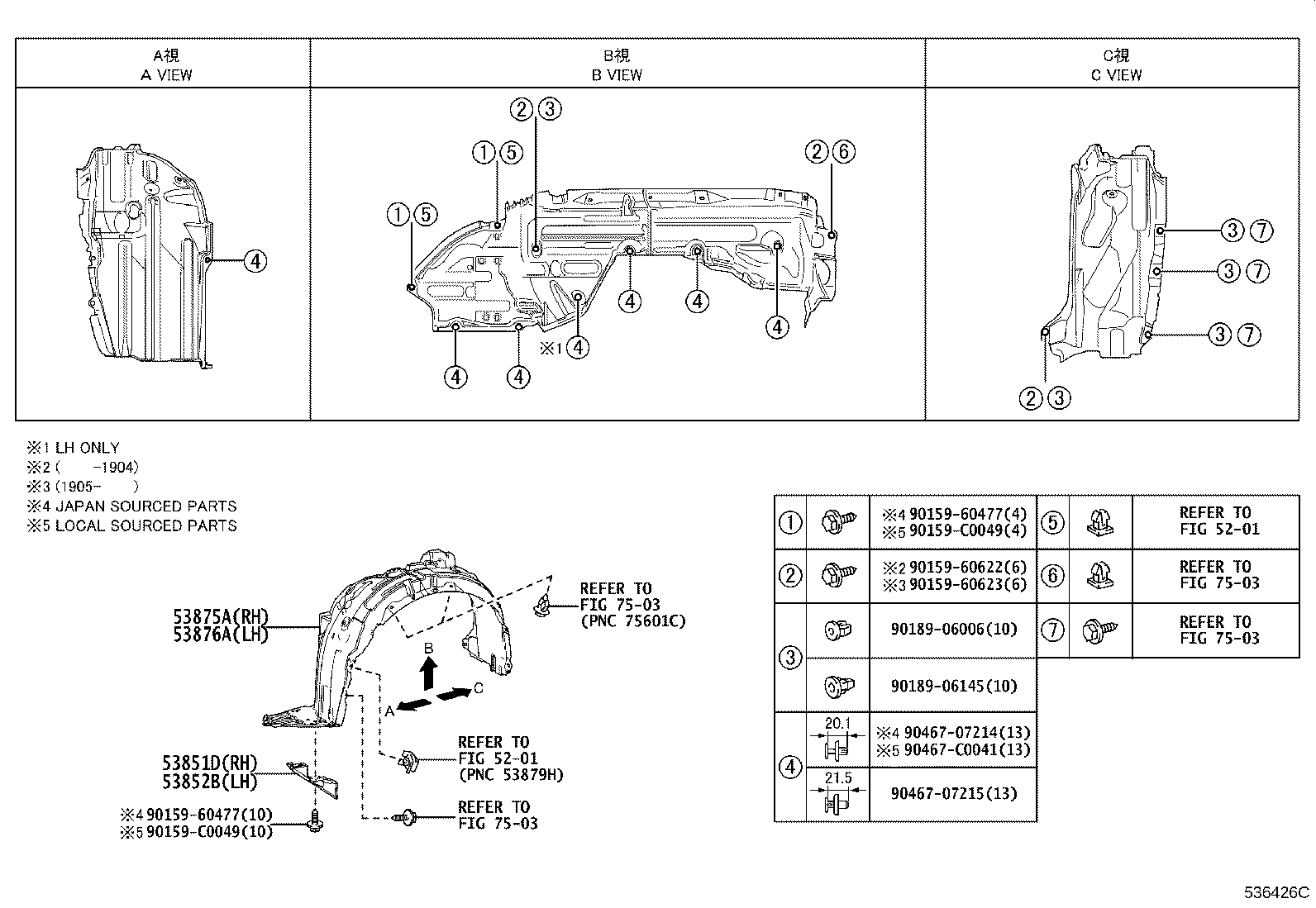

ILLUST NO. 2 OF 2(1808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-F4050 |
MAXA10..E |
1 | ||
| 53851-F4050 |
MAXA10..D,G,N |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-F4040 |
MAXA10..D,G,N |
1 | ||
| 53852-F4040 |
MAXA10..E |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-F4070 |
MAXA10..E |
1 | ||
| 53875-F4070 |
MAXA10..D,G,N |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-F4070 |
MAXA10..E |
1 | ||
| 53876-F4070 |
MAXA10..D,G,N |
1 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90159-60622 | ||||
| 90159-60623 | ||||
| 90159-C0049 | ||||
| 90189-06006 | ||||
| 90189-06145 | ||||
| 90467-07214 | ||||
| 90467-07215 | ||||
| 90467-C0041 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 7503 | ||||
