MAXA10L-EHXDHC (2018)

Toyota C-Hr(China)

Production Aug 2018 - Jun 2021
Engine M20
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1808-2106)

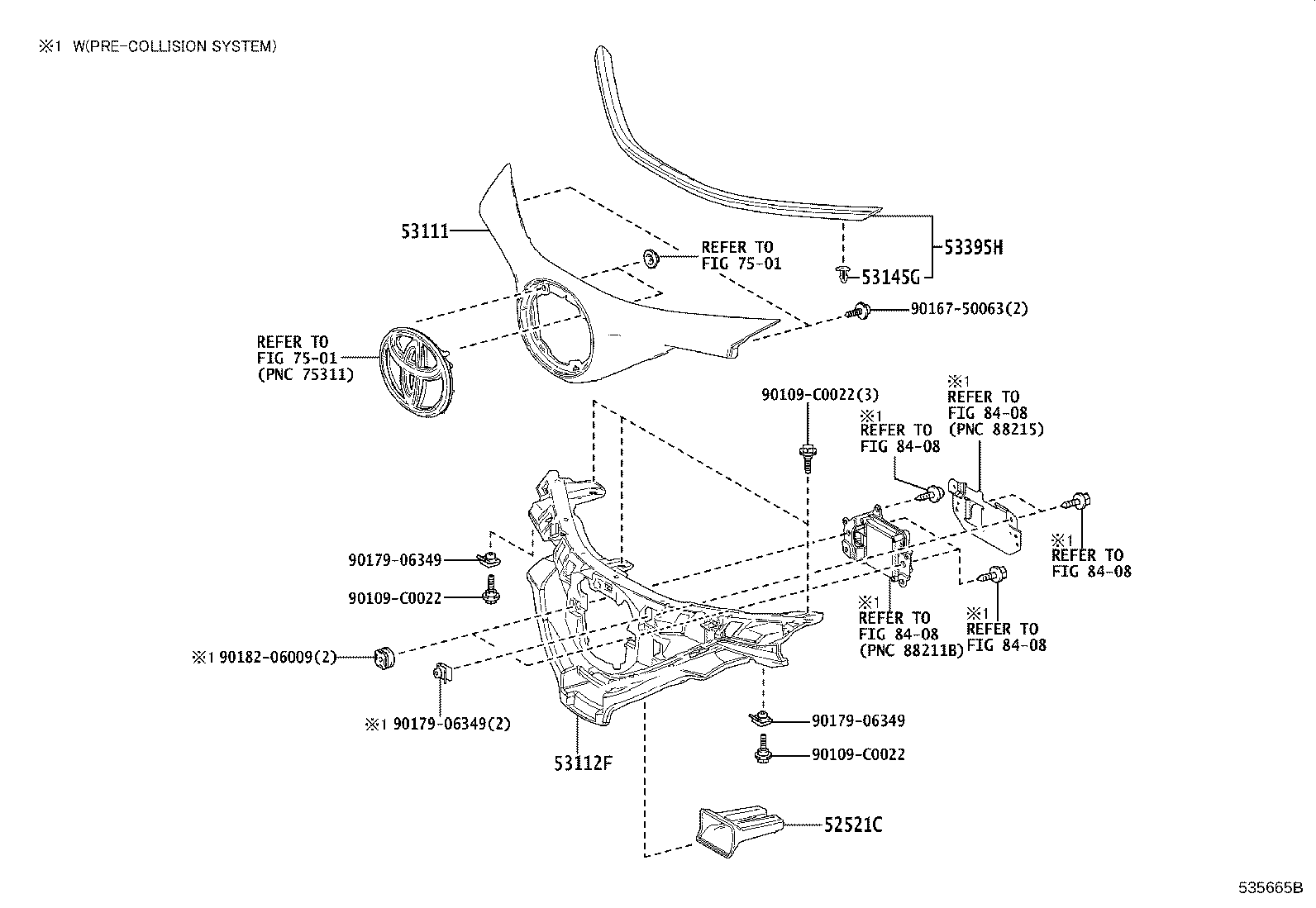

Click highlighted areas on diagram

diagram 52521C 53111 53112F 53145G 53395H 7501 7501 8408 8408 8408 8408 8408 90109C0022 90109C0022 90109C0022 9016750063 9017906349 9017906349 9017906349 9018206009
Part # Description Qty Price
52521C - RETAINER, FRONT BUMPER, UPPER
52521-F4060

MAXA10..D,G,N

 1
52521-F4060

MAXA10..E

 1
53111 - GRILLE, RADIATOR
53111-F4040

MAXA10..D,G,N

NO PAINT REQ.

 1
53111-F4040

MAXA10..E

NO PAINT REQ.

 1
53112F - GRILLE, RADIATOR, INSIDE
53112-F4040

MAXA10..E

 1
53112-F4040

MAXA10..D,G,N

 1
53145G - CLIP, RADIATOR GRILLE
53145-02040

MAXA10..E

 7
53145-02040

MAXA10..D,G,N

 7
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-F4040

MAXA10..D,G,N

 1
53395-F4040

MAXA10..E

 1
Common parts
90109-C0022
90167-50063
90179-06349
90182-06009
Linked diagrams
7501
8408
