MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)

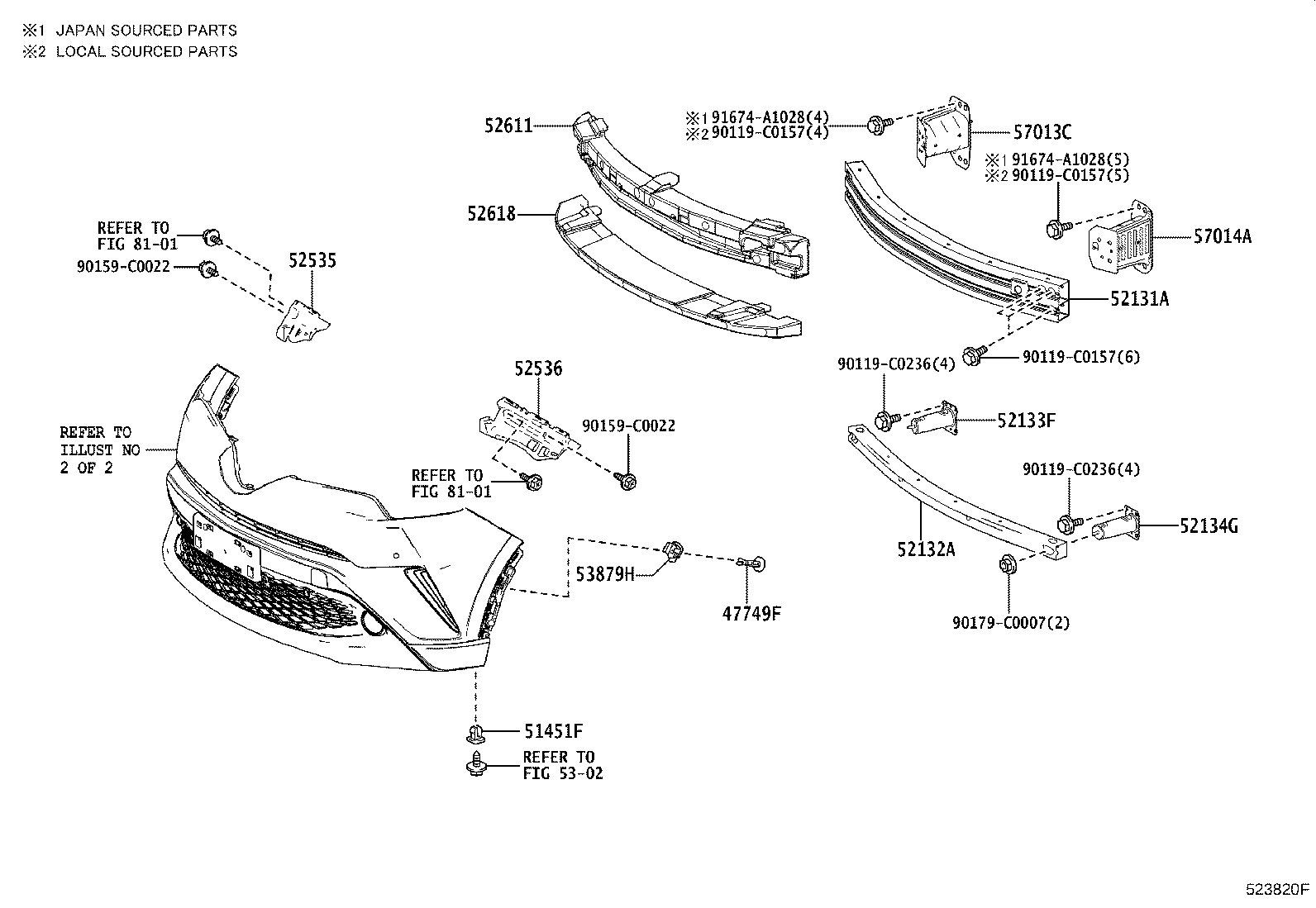

ILLUST NO. 1 OF 2(1808-2106)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749F - CLIP, PIN HOLD | ||||
| 47749-50090 |
MAXA10 (J) |
2 | ||
| 47749-0F010 |
MAXA10 (L) |
2 | ||
| 47749-50090 |
MAXA10 |
2 | ||
| 51451F - GROMMET, NO.1 | ||||
| 90189-06237 |
MAXA10 (J) |
8 | ||
| 90189-06237 |
MAXA10 |
8 | ||
| 90189-C0020 |
MAXA10 (L) |
8 | ||
| 90189-C0024 |
MAXA10 (L) |
8 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-F4060 |
MAXA10..D,G,N |
1 | ||
| 52131-F4060 |
MAXA10..E |
1 | ||
| 52132A - REINFORCEMENT, FRONT BUMPER, NO.2 | ||||
| 52132-F4040 |
MAXA10..E |
1 | ||
| 52132-F4040 |
MAXA10..D,G,N |
1 | ||
| 52133F - BRACKET, FRONT BUMPER, RH | ||||
| 52133-F4040 |
MAXA10..D,G,N |
1 | ||
| 52133-F4040 |
MAXA10..E |
1 | ||
| 52134G - BRACKET, FRONT BUMPER, LH | ||||
| 52133-F4040 |
MAXA10..D,G,N |
1 | ||
| 52133-F4040 |
MAXA10..E |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-F4040 |
MAXA10..E |
1 | ||
| 52535-F4040 |
MAXA10..D,G,N |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-F4040 |
MAXA10..E |
1 | ||
| 52536-F4040 |
MAXA10..D,G,N |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-F4040 |
MAXA10..E |
1 | ||
| 52611-F4040 |
MAXA10..D,G,N |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-F4041 |
MAXA10..D,G,N |
1 | ||
| 52618-F4041 |
MAXA10..E |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-30050 |
MAXA10..D,G,N |
2 | ||
| 53879-30050 |
MAXA10..E |
2 | ||
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-F4050 |
MAXA10..D,G,N |
1 | ||
| 57013-F4050 |
MAXA10..E |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-F4050 |
MAXA10..D,G,N |
1 | ||
| 57014-F4050 |
MAXA10..E |
1 | ||
| Common parts | ||||
| 90119-C0157 | ||||
| 90119-C0236 | ||||
| 90159-C0022 | ||||
| 90179-C0007 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 8101 | ||||

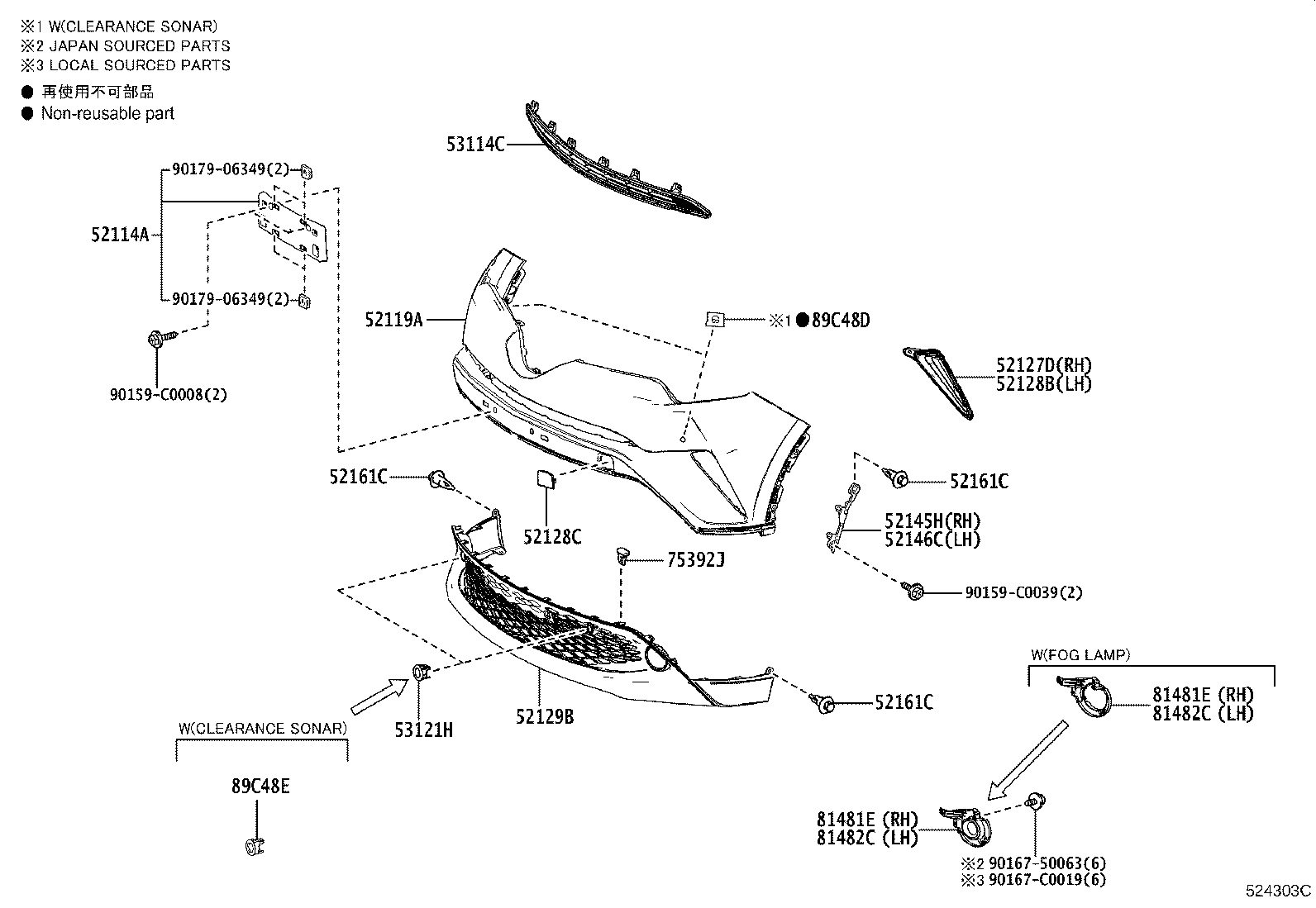

ILLUST NO. 2 OF 2(1808-2106)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-F4070 |
MAXA10..D,G,N |
1 | ||
| 52114-F4070 |
MAXA10..E |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-F4908 |
MAXA10..E PAINT REQ. |
1 | ||
| 52119-F4907 |
MAXA10..D,N PAINT REQ. |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-F4060 |
MAXA10..E NO PAINT REQ. |
1 | ||
| 52127-F4060 |
MAXA10..D,G,N NO PAINT REQ. |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-F4090 |
MAXA10..D,G,N |
1 | ||
| 52128-F4090 |
MAXA10..E |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-F4100 |
MAXA10..D,G,N NO PAINT REQ. |
1 | ||
| 52128-F4100 |
MAXA10..E NO PAINT REQ. |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-F4080 |
MAXA10..E |
1 | ||
| 52129-F4080 |
MAXA10..D,G,N |
1 | ||
| 52145H - STAY, FRONT BUMPER SIDE, RH | ||||
| 52145-F4080 |
MAXA10..D,G,N |
1 | ||
| 52145-F4080 |
MAXA10..E |
1 | ||
| 52146C - STAY, FRONT BUMPER SIDE, LH | ||||
| 52146-F4080 |
MAXA10..D,G,N |
1 | ||
| 52146-F4080 |
MAXA10..E |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02040 |
MAXA10..D,G,N (L) |
2 | ||
| 52161-02040 |
MAXA10..E (L) |
2 | ||
| 52161-16010 |
MAXA10..E (J) |
2 | ||
| 52161-16010 |
MAXA10..D,G,N (J) |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02040 |
MAXA10..D,G,N (L) |
2 | ||
| 52161-02040 |
MAXA10..E (L) |
2 | ||
| 52161-16010 |
MAXA10..E (J) |
2 | ||
| 52161-16010 |
MAXA10..D,G,N (J) |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02040 |
MAXA10..D,G,N (L) |
2 | ||
| 52161-02040 |
MAXA10..E (L) |
2 | ||
| 52161-16010 |
MAXA10..E (J) |
2 | ||
| 52161-16010 |
MAXA10..D,G,N (J) |
2 | ||
| 53114C - GRILLE, RADIATOR, INNER | ||||
| 53114-F4060 |
MAXA10..D,G,N |
1 | ||
| 53114-F4060 |
MAXA10..E |
1 | ||
| 53121H - MOULDING, RADIATOR GRILLE, NO.1 | ||||
| 53121-F4020 |
MAXA10..D,N |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-0R030 |
MAXA10..D,G,N (L) |
6 | ||
| 75392-35200 |
MAXA10..D,G,N (J) |
6 | ||
| 75392-35200 |
MAXA10..E (J) |
6 | ||
| 75392-0R030 |
MAXA10..E (L) |
6 | ||
| 75392-35200 |
MAXA10 |
6 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-F4080 |
MAXA10..E |
1 | ||
| 81481-F4070 |
MAXA10..D |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-F4080 |
MAXA10..E |
1 | ||
| 81481-F4070 |
MAXA10..D |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-F4060 |
MAXA10..D |
1 | ||
| 81482-F4070 |
MAXA10..E |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-F4060 |
MAXA10..D |
1 | ||
| 81482-F4070 |
MAXA10..E |
1 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-F4160 |
MAXA10..E |
2 | ||
| 89C48E - RETAINER, ULTRASONIC SENSOR, FRONT CENTER | ||||
| 89348-F4150C0 |
MAXA10..E BLACK |
2 | ||
| Common parts | ||||
| 90159-C0008 | ||||
| 90159-C0039 | ||||
| 90167-50063 | ||||
| 90167-C0019 | ||||
| 90179-06349 | ||||
