MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)
Production
Aug 2018
-
Jun 2021
Engine
M20
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1808- )

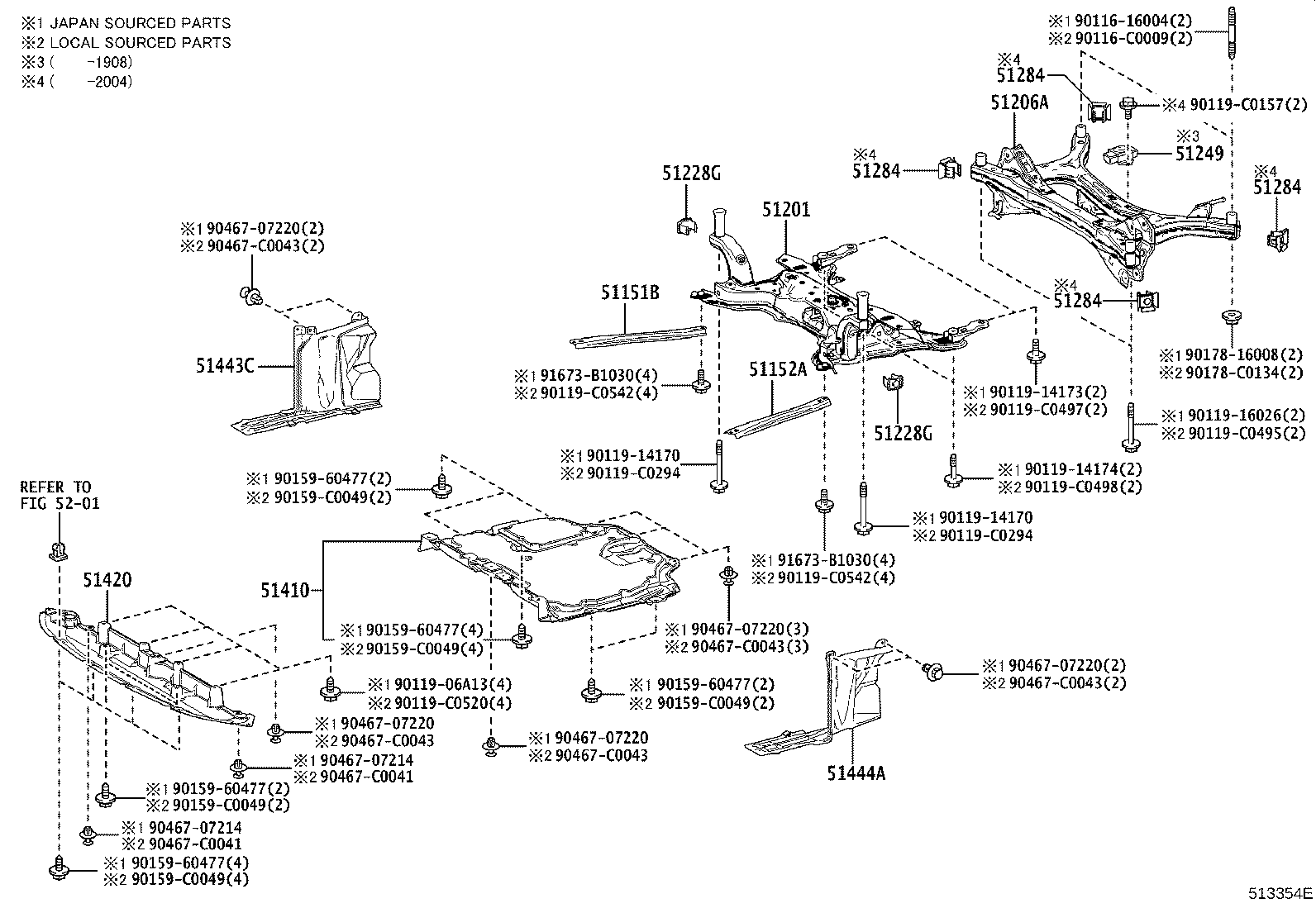

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51151B - REINFORCEMENT, SIDE RAIL, NO.1 RH | ||||
| 51151-F4030 |
MAXA10..E |
1 | ||
| 51151-F4030 |
MAXA10..D,G,N |
1 | ||
| 51152A - REINFORCEMENT, SIDE RAIL, NO.1 LH | ||||
| 51151-F4030 |
MAXA10..E |
1 | ||
| 51151-F4030 |
MAXA10..D,G,N |
1 | ||
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-F4040 |
MAXA10 |
1 | ||
| 51201-F4041 |
MAXA10..D,G,N |
1 | ||
| 51201-F4041 |
MAXA10..E |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-F4050 |
MAXA10..D,G,N |
1 | ||
| 51206-F4050 |
MAXA10..E |
1 | ||
| 51228G - PLATE, FRONT SUSPENSION MEMBER | ||||
| 51228-F4040 |
MAXA10..D,G,N |
2 | ||
| 51228-F4040 |
MAXA10..E |
2 | ||
| 51228G - PLATE, FRONT SUSPENSION MEMBER | ||||
| 51228-F4040 |
MAXA10..D,G,N |
2 | ||
| 51228-F4040 |
MAXA10..E |
2 | ||
| 51249 - DAMPER, REAR SUSPENSION MEMBER | ||||
| 51249-F4030 |
MAXA10 |
1 | ||
| 51284 - COVER, REAR SUSPENSION MEMBER HOLE | ||||
| 51284-F4040 |
MAXA10 |
4 | ||
| 51284 - COVER, REAR SUSPENSION MEMBER HOLE | ||||
| 51284-F4040 |
MAXA10 |
4 | ||
| 51284 - COVER, REAR SUSPENSION MEMBER HOLE | ||||
| 51284-F4040 |
MAXA10 |
4 | ||
| 51284 - COVER, REAR SUSPENSION MEMBER HOLE | ||||
| 51284-F4040 |
MAXA10 |
4 | ||
| 51410 - COVER ASSY, ENGINE UNDER, NO.1 | ||||
| 51410-F4070 |
MAXA10..D,G,N |
1 | ||
| 51410-F4070 |
MAXA10..E |
1 | ||
| 51420 - COVER ASSY, ENGINE UNDER, NO.2 | ||||
| 51420-F4050 |
MAXA10 |
1 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-F4040 |
MAXA10..D,G,N |
1 | ||
| 51443-F4040 |
MAXA10..E |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-F4040 |
MAXA10..D,G,N |
1 | ||
| 51444-F4040 |
MAXA10..E |
1 | ||
| Common parts | ||||
| 90116-16004 | ||||
| 90116-C0009 | ||||
| 90119-06A13 | ||||
| 90119-14170 | ||||
| 90119-14173 | ||||
| 90119-14174 | ||||
| 90119-16026 | ||||
| 90119-C0157 | ||||
| 90119-C0294 | ||||
| 90119-C0495 | ||||
| 90119-C0497 | ||||
| 90119-C0498 | ||||
| 90119-C0520 | ||||
| 90119-C0542 | ||||
| 90159-60477 | ||||
| 90159-C0049 | ||||
| 90178-16008 | ||||
| 90178-C0134 | ||||
| 90467-07214 | ||||
| 90467-07220 | ||||
| 90467-C0041 | ||||
| 90467-C0043 | ||||
| 91673-B1030 | ||||
| Linked diagrams | ||||
| 5201 | ||||
