MAXA10L-EHXDHC (2018)

Toyota C-Hr(China)

Production Aug 2018 - Jun 2021
Engine M20
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1808- )

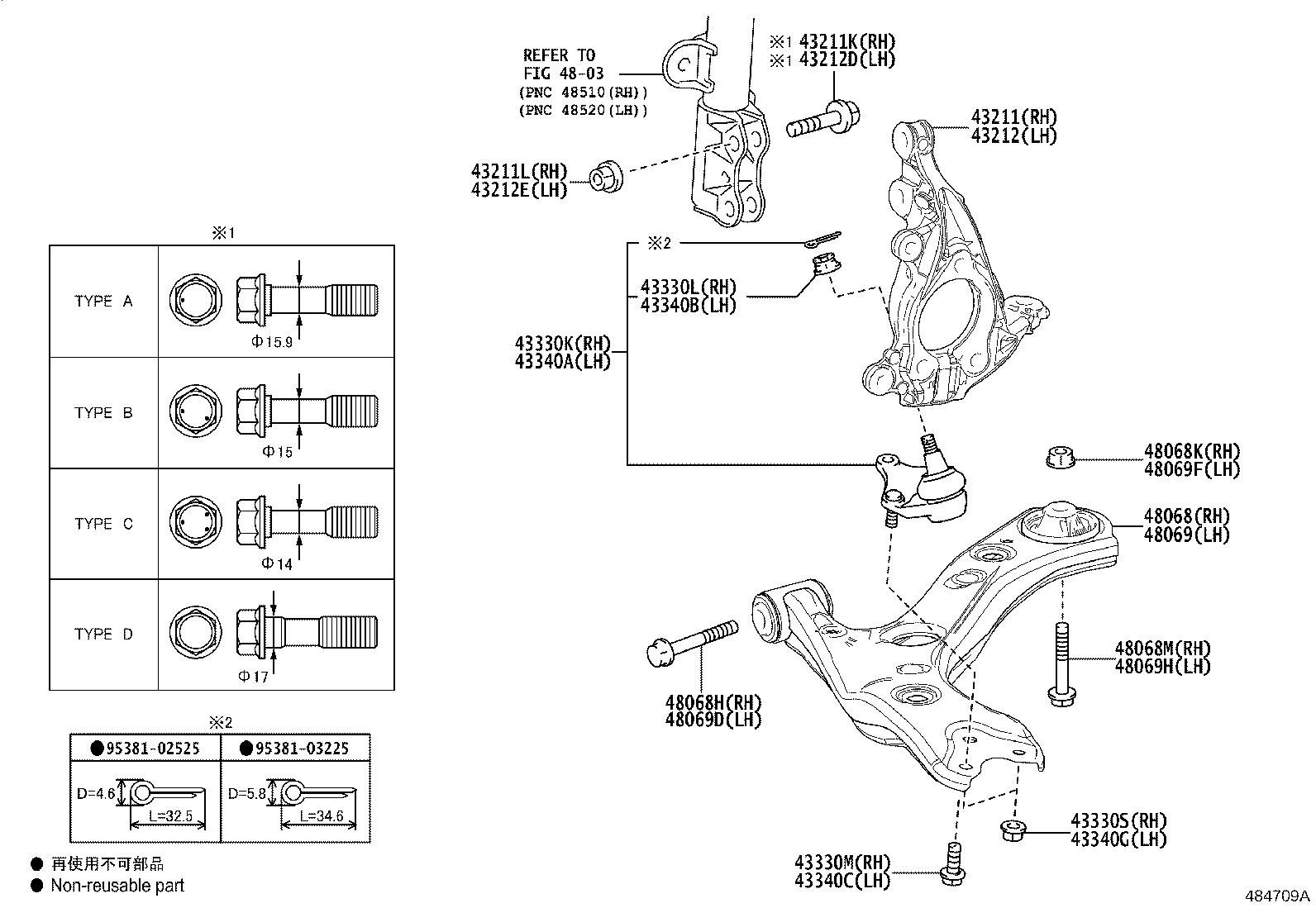

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 4803 48068 48068H 48068K 48068M 48069 48069D 48069F 48069H 9538102525 9538103225
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-F4040

MAXA10..E

 1
43211-F4040

MAXA10..D,G,N

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17009

MAXA10..E

OD=15.9,TYPE A:REFER ILLUST.

 2
90105-17011

MAXA10..D,G,N

OD=14,TYPE C:REFER ILLUST.

 2
90105-17011

MAXA10..E

OD=14,TYPE C:REFER ILLUST.

 2
90105-17009

MAXA10..D,G,N

OD=15.9,TYPE A:REFER ILLUST.

 2
90105-17021

MAXA10..D,G,N

OD=17,TYPE D:REFER ILLUST.

 2
90105-17020

MAXA10

OD=17,(J),TYPE D:REF ILL.

 2
90105-17021

MAXA10..E

OD=17,TYPE D:REFER ILLUST.

 2
90105-17010

MAXA10..E

OD=15,TYPE B:REFER ILLUST.

 2
90105-17010

MAXA10..D,G,N

OD=15,TYPE B:REFER ILLUST.

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17002

MAXA10..D,G,N

 2
90178-17002

MAXA10..E

 2
43212 - KNUCKLE, STEERING, LH
43212-F4040

MAXA10..D,G,N

 1
43212-F4040

MAXA10..E

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17021

MAXA10..D,G,N

OD=17,TYPE D:REFER ILLUST.

 2
90105-17020

MAXA10

OD=17,(J),TYPE D:REF ILL.

 2
90105-17021

MAXA10..E

OD=17,TYPE D:REFER ILLUST.

 2
90105-17009

MAXA10..E

OD=15.9,TYPE A:REFER ILLUST.

 2
90105-17011

MAXA10..E

OD=14,TYPE C:REFER ILLUST.

 2
90105-17009

MAXA10..D,G,N

OD=15.9,TYPE A:REFER ILLUST.

 2
90105-17010

MAXA10..E

OD=15,TYPE B:REFER ILLUST.

 2
90105-17010

MAXA10..D,G,N

OD=15,TYPE B:REFER ILLUST.

 2
90105-17011

MAXA10..D,G,N

OD=14,TYPE C:REFER ILLUST.

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17002

MAXA10..D,G,N

 2
90178-17002

MAXA10..E

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09A70

MAXA10..E

 1
43330-09A70

MAXA10..D,G,N

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

MAXA10..D,G,N

 1
90171-14003

MAXA10..E

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-C0067

MAXA10

(L)

 1
90105-C0329

MAXA10..E

 1
90105-C0329

MAXA10..D,G,N

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90178-C0062

MAXA10..E

 2
90178-C0062

MAXA10..D,G,N

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-09A70

MAXA10..D,G,N

 1
43330-09A70

MAXA10..E

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

MAXA10..E

 1
90171-14003

MAXA10..D,G,N

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-C0067

MAXA10

(L)

 1
90105-C0329

MAXA10..D,G,N

 1
90105-C0329

MAXA10..E

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90178-C0062

MAXA10..D,G,N

 2
90178-C0062

MAXA10..E

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-F4040

MAXA10..E

 1
48068-F4040

MAXA10..D,G,N

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-C0335

MAXA10..D,G,N

 1
90105-C0335

MAXA10..E

 1
48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90178-C0030

MAXA10..E

 1
90178-C0030

MAXA10..D,G,N

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-C0501

MAXA10..D,G,N

 1
90119-C0501

MAXA10..E

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-F4040

MAXA10..E

 1
48069-F4040

MAXA10..D,G,N

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90105-C0335

MAXA10..E

 1
90105-C0335

MAXA10..D,G,N

 1
48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90178-C0030

MAXA10..E

 1
90178-C0030

MAXA10..D,G,N

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-C0501

MAXA10..E

 1
90119-C0501

MAXA10..D,G,N

 1
Common parts
95381-02525
95381-03225
Linked diagrams
4803
