MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)
ILLUST NO. 1 OF 3(1808-2106)D,G,N ; (1808- )MAXA10..E

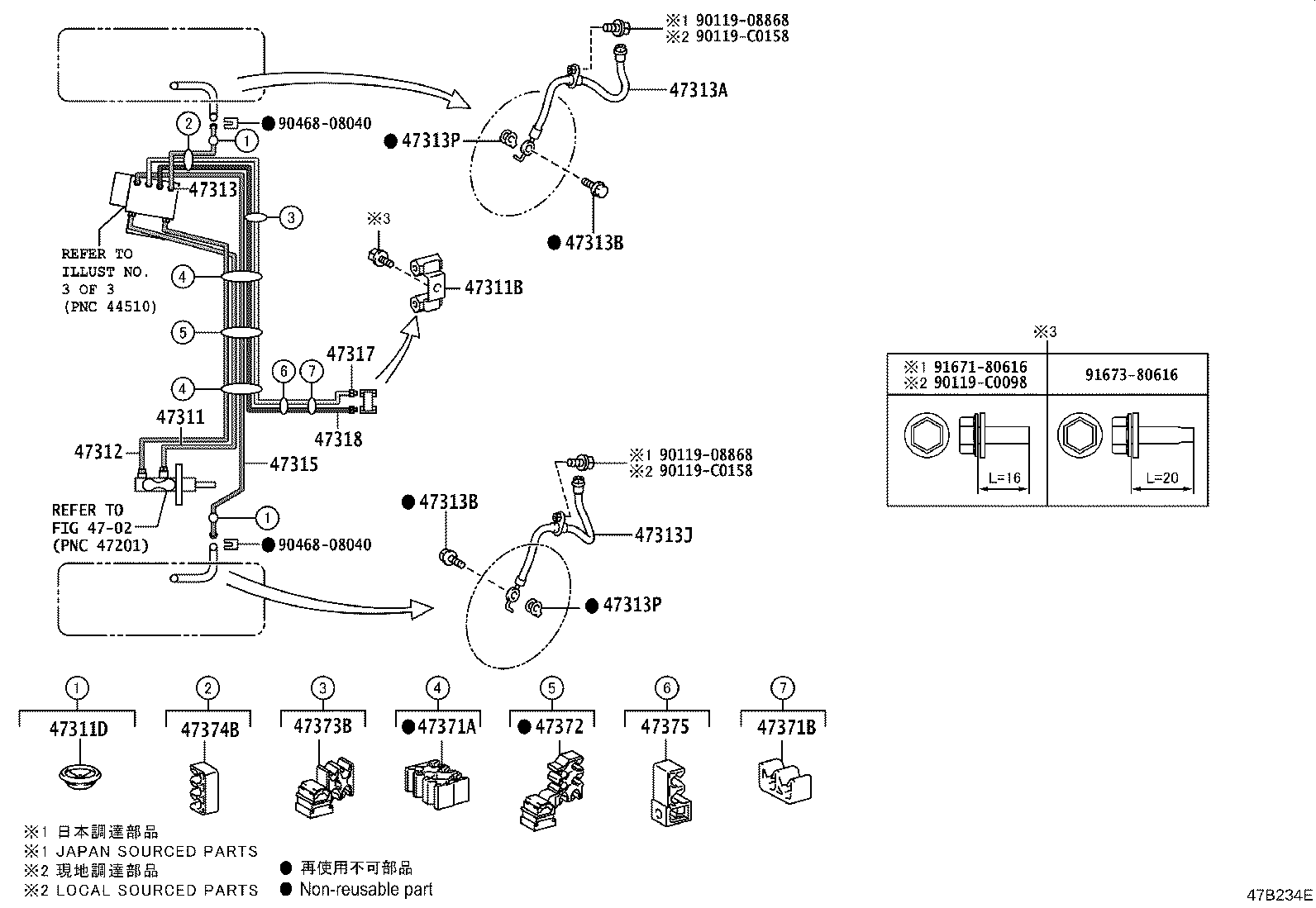

FRONT BRAKE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-F4080 |
MAXA10..D,G,N |
1 | ||
| 47311-F4080 |
MAXA10..E |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10285 |
MAXA10 |
1 | ||
| 90412-10285 |
MAXA10..D,G,N (J) |
1 | ||
| 90412-C0004 |
MAXA10..D,G,N (L) |
1 | ||
| 90412-10285 |
MAXA10..E (J) |
1 | ||
| 90412-C0004 |
MAXA10..E (L) |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-25037 |
MAXA10..E |
2 | ||
| 90480-25037 |
MAXA10..D,G,N |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-F4080 |
MAXA10..E |
1 | ||
| 47312-F4080 |
MAXA10..D,G,N |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-F4080 |
MAXA10..E |
1 | ||
| 47313-F4080 |
MAXA10..D,G,N |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-C2082 |
MAXA10..D,G,N |
1 | ||
| 90947-C2082 |
MAXA10..E |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
MAXA10..D,G,N |
2 | ||
| 90401-C0001 |
MAXA10..E |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
MAXA10..D,G,N |
2 | ||
| 90401-C0001 |
MAXA10..E |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-C2083 |
MAXA10..D,G,N |
1 | ||
| 90947-C2083 |
MAXA10..E |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
MAXA10..E |
2 | ||
| 47389-50021 |
MAXA10..D,G,N |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
MAXA10..E |
2 | ||
| 47389-50021 |
MAXA10..D,G,N |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-F4080 |
MAXA10 |
1 | ||
| 47315-02670 |
MAXA10..D,G,N |
1 | ||
| 47315-02670 |
MAXA10..E |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-F4080 |
MAXA10..D,G,N |
1 | ||
| 47317-F4080 |
MAXA10..E |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-F4080 |
MAXA10..E |
1 | ||
| 47318-F4080 |
MAXA10..D,G,N |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01E44 |
MAXA10..E |
2 | ||
| 90949-01E44 |
MAXA10..D,G,N |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01D91 |
MAXA10..E |
1 | ||
| 90949-01D91 |
MAXA10..D,G,N |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01E42 |
MAXA10..E |
1 | ||
| 90949-01E42 |
MAXA10..D,G,N |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01E51 |
MAXA10..E |
1 | ||
| 90949-01E51 |
MAXA10..D,G,N |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D92 |
MAXA10..E |
1 | ||
| 90949-01D92 |
MAXA10..D,G,N |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01E33 |
MAXA10..D,G,N |
1 | ||
| 90949-01E33 |
MAXA10..E |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-C0098 | ||||
| 90119-C0158 | ||||
| 90468-08040 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 3 OF 3(1808- )MAXA10

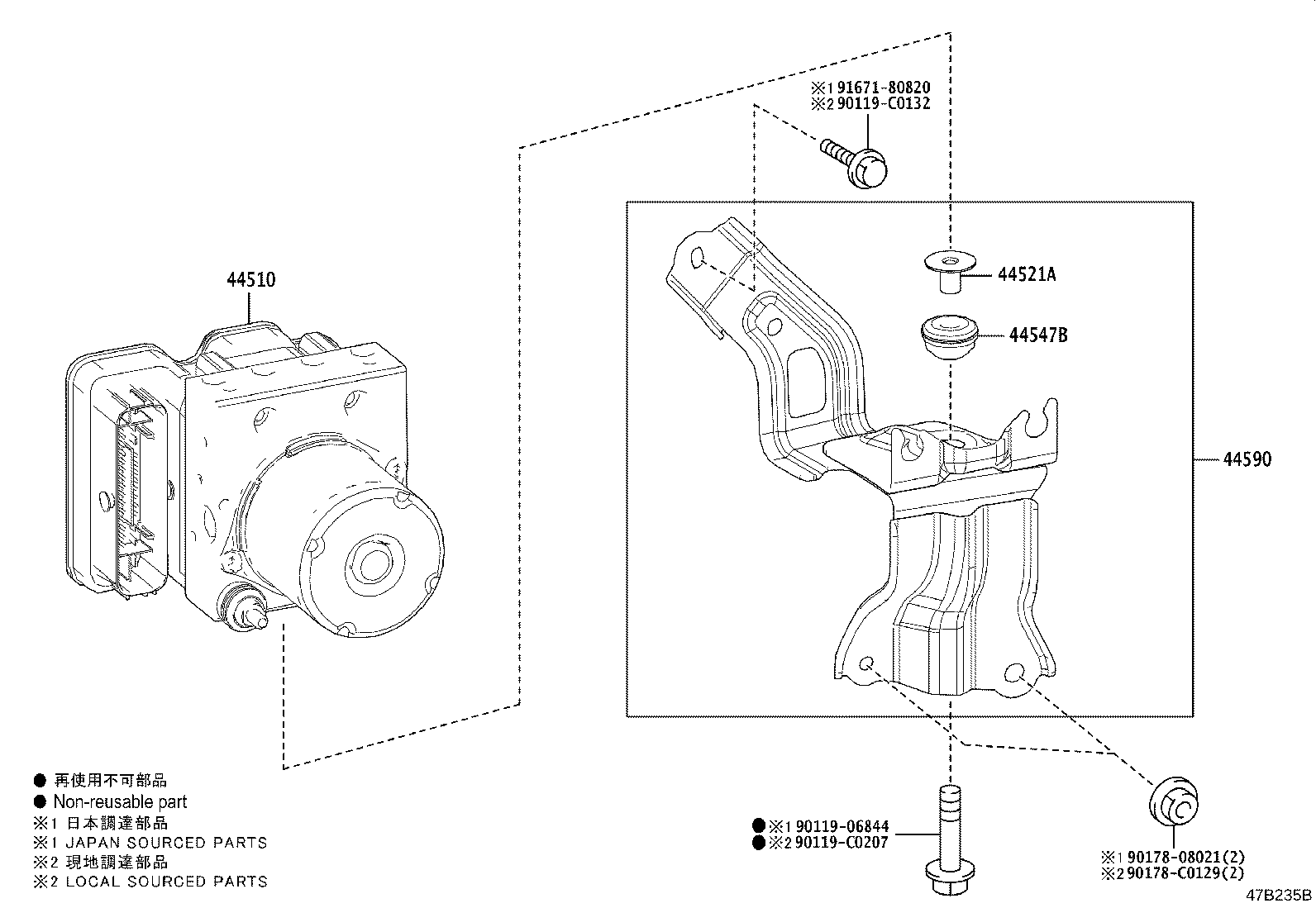

BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-F4120 |
MAXA10..D,G,N |
1 | ||
| 44050-F4120 |
MAXA10..E |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12060 |
MAXA10 (J) |
1 | ||
| 44521-02060 |
MAXA10 (L) |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-10080 |
MAXA10..E |
1 | ||
| 44547-10080 |
MAXA10..D,G,N |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-F4070 |
MAXA10..E |
1 | ||
| 44590-F4070 |
MAXA10..D,G,N |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90119-C0132 | ||||
| 90119-C0207 | ||||
| 90178-08021 | ||||
| 90178-C0129 | ||||
| 91671-80820 | ||||
ILLUST NO. 2 OF 3(1808- )MAXA10

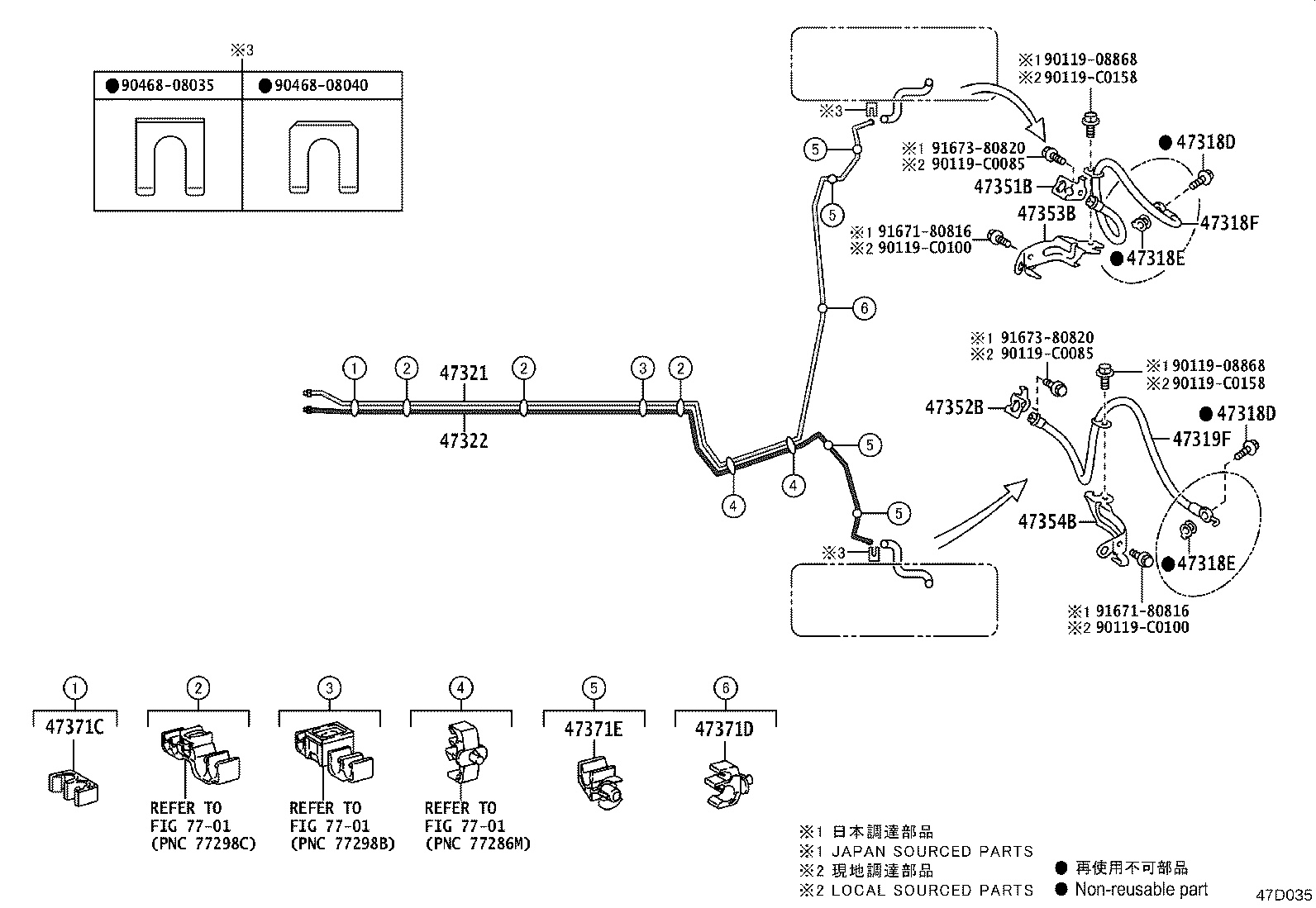

REAR BRAKE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
MAXA10..E (J) |
2 | ||
| 90401-C0001 |
MAXA10..D,G,N (L) |
2 | ||
| 90401-10058 |
MAXA10..D,G,N (J) |
2 | ||
| 90401-C0001 |
MAXA10..E (L) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
MAXA10..E (J) |
2 | ||
| 90401-C0001 |
MAXA10..D,G,N (L) |
2 | ||
| 90401-10058 |
MAXA10..D,G,N (J) |
2 | ||
| 90401-C0001 |
MAXA10..E (L) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
MAXA10..D,G,N |
2 | ||
| 47389-50021 |
MAXA10..E |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
MAXA10..D,G,N |
2 | ||
| 47389-50021 |
MAXA10..E |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-C2079 |
MAXA10..D,G,N |
1 | ||
| 90947-C2079 |
MAXA10..E |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-C2080 |
MAXA10..E |
1 | ||
| 90947-C2080 |
MAXA10..D,G,N |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-F4040 |
MAXA10..E |
1 | ||
| 47321-F4040 |
MAXA10..D,G,N |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-F4040 |
MAXA10..D,G,N |
1 | ||
| 47322-F4040 |
MAXA10..E |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-06070 |
MAXA10..D,G,N |
1 | ||
| 47351-06070 |
MAXA10..E |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-06070 |
MAXA10..D,G,N |
1 | ||
| 47352-06070 |
MAXA10..E |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-06060 |
MAXA10..E |
1 | ||
| 47351-06060 |
MAXA10..D,G,N |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-06060 |
MAXA10..D,G,N |
2 | ||
| 47352-06060 |
MAXA10 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90464-00904 |
MAXA10..D,G,N |
1 | ||
| 90464-00904 |
MAXA10..E |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 77285-47110 |
MAXA10..E |
1 | ||
| 77285-47110 |
MAXA10..D,G,N |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01E10 |
MAXA10..E |
4 | ||
| 90949-01E10 |
MAXA10..D,G,N |
4 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-C0085 | ||||
| 90119-C0100 | ||||
| 90119-C0158 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 91671-80816 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 7701 | ||||
