MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)
(1808- )

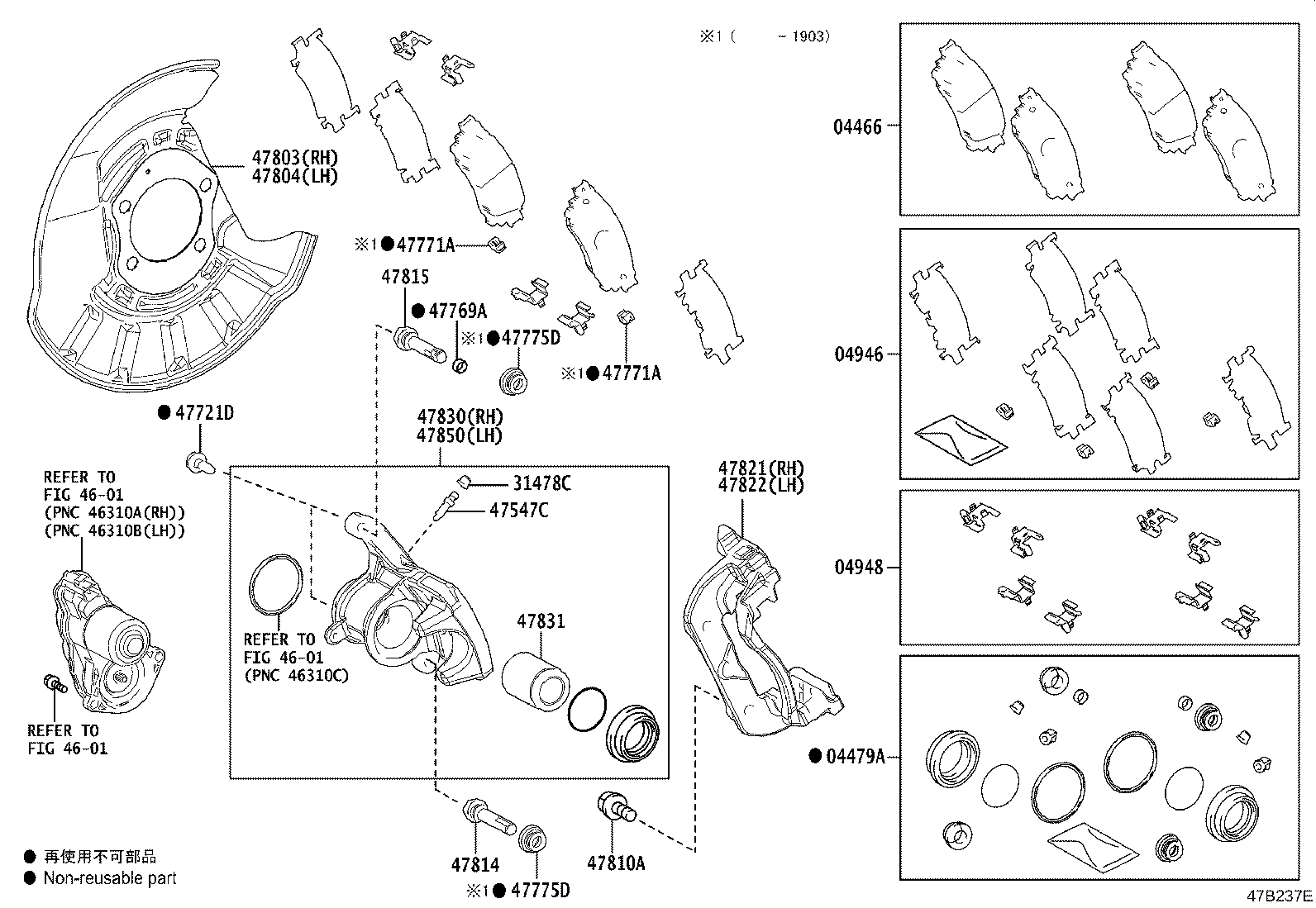

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-02370 |
MAXA10..D,G,N MARK AK NS554 |
1 | ||
| 04466-02370 |
MAXA10..E MARK AK NS554 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-06370 |
MAXA10..D,G,N |
1 | ||
| 04479-06370 |
MAXA10..E |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-06150 |
MAXA10..D,G,N |
1 | ||
| 04946-06150 |
MAXA10..E |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-06070 |
MAXA10 |
1 | ||
| 04948-02170 |
MAXA10..D,G,N |
1 | ||
| 04948-02170 |
MAXA10..E |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-0N010 |
MAXA10..E |
2 | ||
| 31478-0N010 |
MAXA10..D,G,N |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
MAXA10..E |
2 | ||
| 47547-20010 |
MAXA10..D,G,N |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90016-AA612 |
MAXA10..D,G,N |
4 | ||
| 90016-AA612 |
MAXA10..E |
4 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-0P010 |
MAXA10..E |
2 | ||
| 47769-0P010 |
MAXA10..D,G,N |
2 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47871-78010 |
MAXA10 |
4 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47871-78010 |
MAXA10 |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-06180 |
MAXA10 |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-06180 |
MAXA10 |
4 | ||
| 47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH | ||||
| 47803-06030 |
MAXA10..E |
1 | ||
| 47803-06030 |
MAXA10..D,G,N |
1 | ||
| 47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH | ||||
| 47804-06030 |
MAXA10..E |
1 | ||
| 47804-06030 |
MAXA10..D,G,N |
1 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-12174 |
MAXA10..D,G,N (J) |
4 | ||
| 90105-12174 |
MAXA10..E (J) |
4 | ||
| 90105-C0255 |
MAXA10..E (L) |
4 | ||
| 90105-C0255 |
MAXA10..D,G,N (L) |
4 | ||
| 47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-06180 |
MAXA10..E |
2 | ||
| 47814-06180 |
MAXA10..D,G,N |
2 | ||
| 47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47815-06180 |
MAXA10..D,G,N |
2 | ||
| 47815-06180 |
MAXA10..E |
2 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-06180 |
MAXA10..E |
1 | ||
| 47821-06180 |
MAXA10..D,G,N |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47822-06170 |
MAXA10..D,G,N |
1 | ||
| 47822-06170 |
MAXA10..E |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-06180 |
MAXA10..E |
1 | ||
| 47830-06180 |
MAXA10..D,G,N |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-78010 |
MAXA10..D,G,N (J) |
2 | ||
| 47831-06180 |
MAXA10 |
2 | ||
| 47831-06180 |
MAXA10..D,G,N (L) |
2 | ||
| 47831-78010 |
MAXA10..E (J) |
2 | ||
| 47831-06180 |
MAXA10..E (L) |
2 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-06170 |
MAXA10..D,G,N |
1 | ||
| 47850-06170 |
MAXA10..E |
1 | ||
| Linked diagrams | ||||
| 4601 | ||||
