MAXA10L-EHXDHC (2018)
Toyota C-Hr(China)
Production
Aug 2018
-
Jun 2021
Engine
M20
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1808- )MAXA10

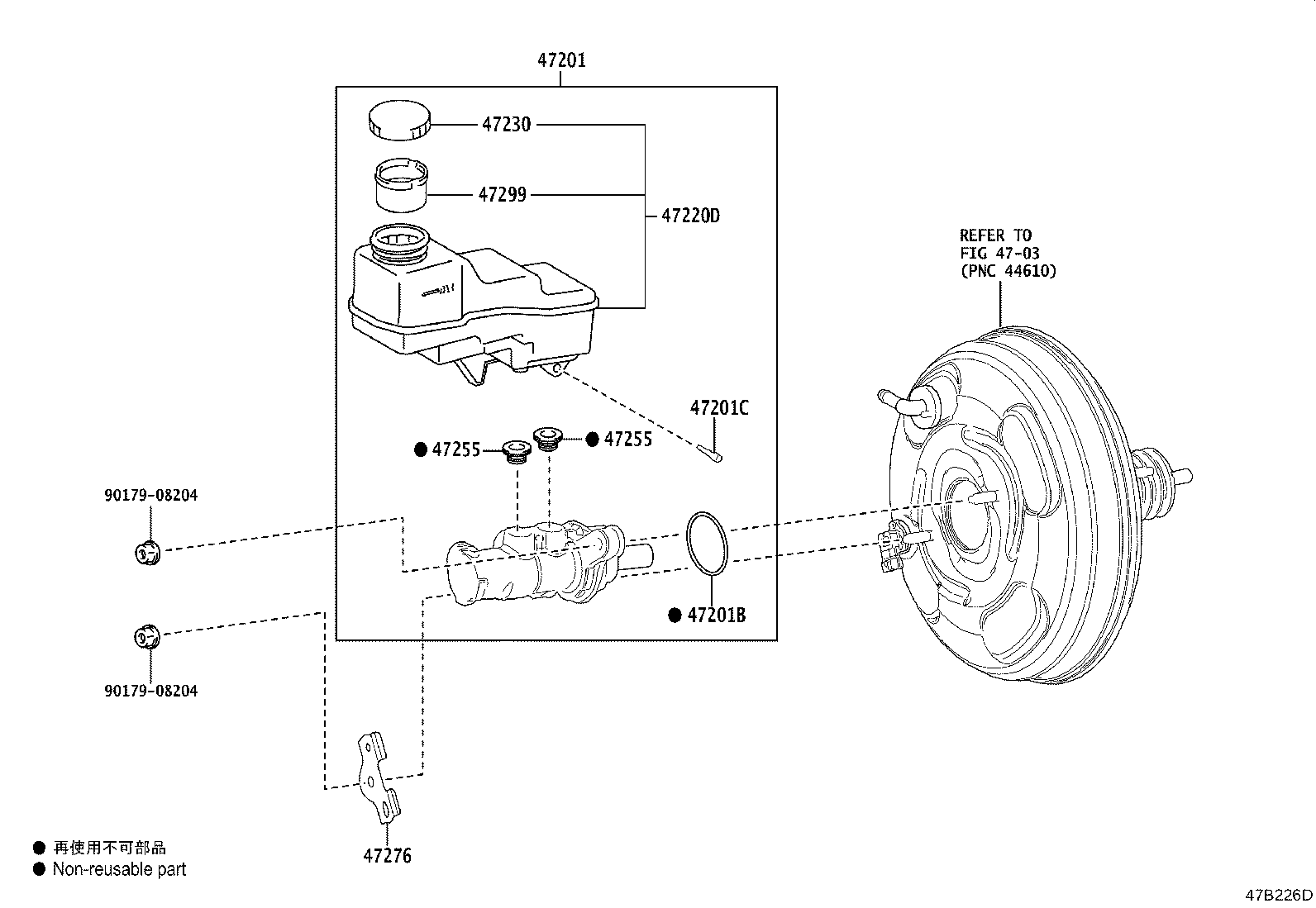

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-F4040 |
MAXA10..D,G,N |
1 | ||
| 47201-F4040 |
MAXA10..E |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90016-AH902 |
MAXA10..D,G,N |
1 | ||
| 90016-AH902 |
MAXA10..E |
1 | ||
| 47201C - RING PIN, BRAKE MASTER CYLINDER | ||||
| 90029-15803 |
MAXA10 |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-F4040 |
MAXA10..D,G,N |
1 | ||
| 47220-F4040 |
MAXA10..E |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
MAXA10..E |
1 | ||
| 47230-47090 |
MAXA10..D,G,N |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90016-AT002 |
MAXA10..D,G,N |
2 | ||
| 90016-AT002 |
MAXA10..E |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90016-AT002 |
MAXA10..D,G,N |
2 | ||
| 90016-AT002 |
MAXA10..E |
2 | ||
| 47276 - BRACKET, BRAKE MASTER CYLINDER | ||||
| 47276-F4020 |
MAXA10..E |
1 | ||
| 47276-F4020 |
MAXA10..D,G,N |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
MAXA10..D,G,N |
1 | ||
| 47299-20060 |
MAXA10..E |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||
