Toyota C-hr(china) MAXA10 EXHAUST GAS RECIRCULATION SYSTEM

Part #	Description	Period	Qty
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-24030	M20..MAXA10 *132	08/2018 - 08/2019	1
25601-F2030	M20..MAXA10..D,G,N *600	08/2019 - 06/2021	1
25601-24030	M20..MAXA10..D,G,N ENGINE-M20A-FKS,*132	08/2019 - 06/2021	1
25601-F2030	M20..MAXA10..D,G,N ENGINE-M20A-FKS,*600	08/2019 - 06/2021	1
25601-24030	M20..MAXA10..E ENGINE-M20A-FKS,*132	08/2019 - 12/2999	1
25601-F2030	M20..MAXA10..E *600	08/2019 - 12/2999	1
25601-F2030	M20..MAXA10..E ENGINE-M20A-FKS,*600	08/2019 - 12/2999	1
25620 - VALVE ASSY, EGR
25620-F2060	M20..MAXA10..D,G,N *600	10/2020 - 06/2021	1
25620-F2060	M20..MAXA10..E *600	10/2020 - 12/2999	1
25620-F2060	M20..MAXA10..E ENGINE-M20A-FKS,*600	10/2020 - 12/2999	1
25620-24060	M20..MAXA10..E ENGINE-M20A-FKS,*132	08/2019 - 12/2999	1
25620-F2030	M20..MAXA10 *600	08/2019 - 10/2020	1
25620-24060	M20..MAXA10..D,G,N ENGINE-M20A-FKS,*132	08/2019 - 06/2021	1
25620-24060	M20..MAXA10 *132	08/2018 - 08/2019	1
25620-F2030	M20..MAXA10 ENGINE-M20A-FKS,*600	08/2019 - 10/2020	1
25620-F2060	M20..MAXA10..D,G,N ENGINE-M20A-FKS,*600	10/2020 - 06/2021	1
25627 - GASKET, EGR VALVE
25627-24010	M20..MAXA10..E ENGINE-M20A-FKS,*132	08/2019 - 12/2999	1
25627-24010	M20..MAXA10..D,G,N ENGINE-M20A-FKS,*132	08/2019 - 06/2021	1
25627-24010	M20..MAXA10 *132	08/2018 - 08/2019	1
25627-F2020	M20..MAXA10..E ENGINE-M20A-FKS,*600	08/2019 - 12/2999	1
25627-F2020	M20..MAXA10..E *600	08/2019 - 12/2999	1
25627-F2020	M20..MAXA10..D,G,N ENGINE-M20A-FKS,*600	08/2019 - 06/2021	1
25627-F2020	M20..MAXA10..D,G,N *600	08/2019 - 06/2021	1
25628 - GASKET, EGR INLET
25628-25010	M20..MAXA10 *132	08/2018 - 08/2019	1
25628-25010	M20..MAXA10..E *600	08/2019 - 12/2999	1
25628-25010	M20..MAXA10..E ENGINE-M20A-FKS,*132	08/2019 - 12/2999	1
25628-25010	M20..MAXA10..D,G,N ENGINE-M20A-FKS,*132	08/2019 - 06/2021	1
25628-25010	M20..MAXA10..D,G,N *600	08/2019 - 06/2021	1
25629 - GASKET, EGR VALVE ADAPTER
25629-25010	M20..MAXA10..D,G,N ENGINE-M20A-FKS,*132	08/2019 - 06/2021	1
25629-25010	M20..MAXA10 *132	08/2018 - 08/2019	1
25629-25010	M20..MAXA10..E *600	08/2019 - 12/2999	1
25629-25010	M20..MAXA10..D,G,N *600	08/2019 - 06/2021	1
25629-25010	M20..MAXA10..E ENGINE-M20A-FKS,*132	08/2019 - 12/2999	1
25680 - COOLER ASSY, EGR
25680-24020	M20..MAXA10..D,G,N ENGINE-M20A-FKS,*132	08/2019 - 06/2021	1
25680-24020	M20..MAXA10 *132	08/2018 - 08/2019	1
25680-F2020	M20..MAXA10..E *600	08/2019 - 12/2999	1
25680-24020	M20..MAXA10..E ENGINE-M20A-FKS,*132	08/2019 - 12/2999	1
25680-F2020	M20..MAXA10..E ENGINE-M20A-FKS,*600	08/2019 - 12/2999	1
25680-F2020	M20..MAXA10..D,G,N *600	08/2019 - 06/2021	1
25680-F2020	M20..MAXA10..D,G,N ENGINE-M20A-FKS,*600	08/2019 - 06/2021	1
25685 - GASKET, EGR COOLER, NO.1
25685-25011	M20..MAXA10..D,G,N ENGINE-M20A-FKS,*132	08/2019 - 06/2021	1
25685-25011	M20..MAXA10 *132	08/2018 - 08/2019	1
25685-25011	M20..MAXA10..E ENGINE-M20A-FKS,*132	08/2019 - 12/2999	1
25685-F2010	M20..MAXA10..D,G,N ENGINE-M20A-FKS,*600	08/2019 - 06/2021	1
25685-F2010	M20..MAXA10..D,G,N *600	08/2019 - 06/2021	1
25685-F2010	M20..MAXA10..E *600	08/2019 - 12/2999	1
25685-F2010	M20..MAXA10..E ENGINE-M20A-FKS,*600	08/2019 - 12/2999	1
Common parts
90105-06353
90119-06A29
90126-08050
90126-C0009
90178-C0091
90253-09003
91551-G0820
92122-80816
94151-20841

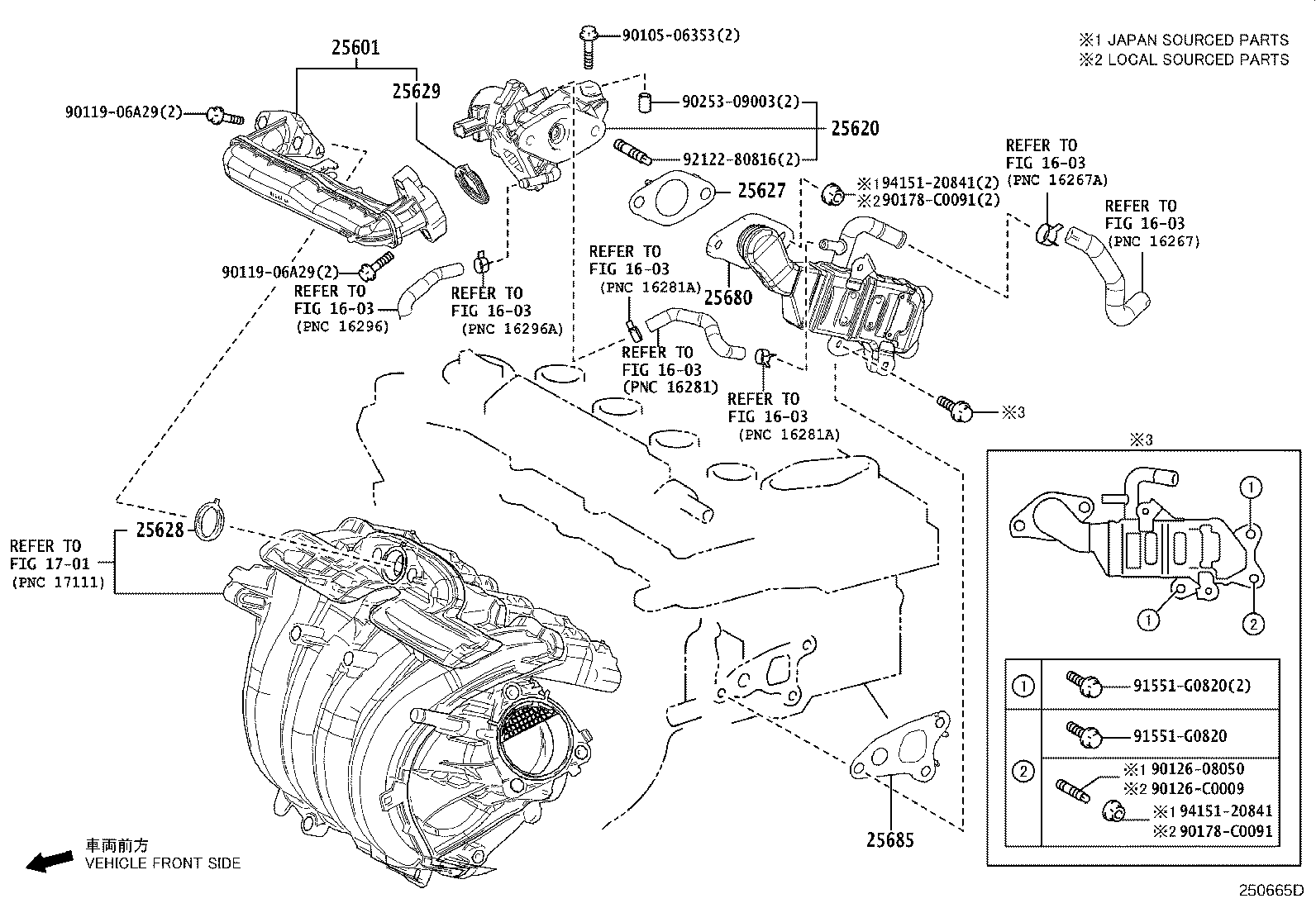

Linked diagrams
1603
1701

MAXA10L-EHXDHC (2018)

(1808- )M20..MAXA10
