KPX10L-EHDNSC (2020)

Toyota C-Hr(China)

Production May 2020 - Sep 9999
Engine 4KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(2005- )

Click highlighted areas on diagram

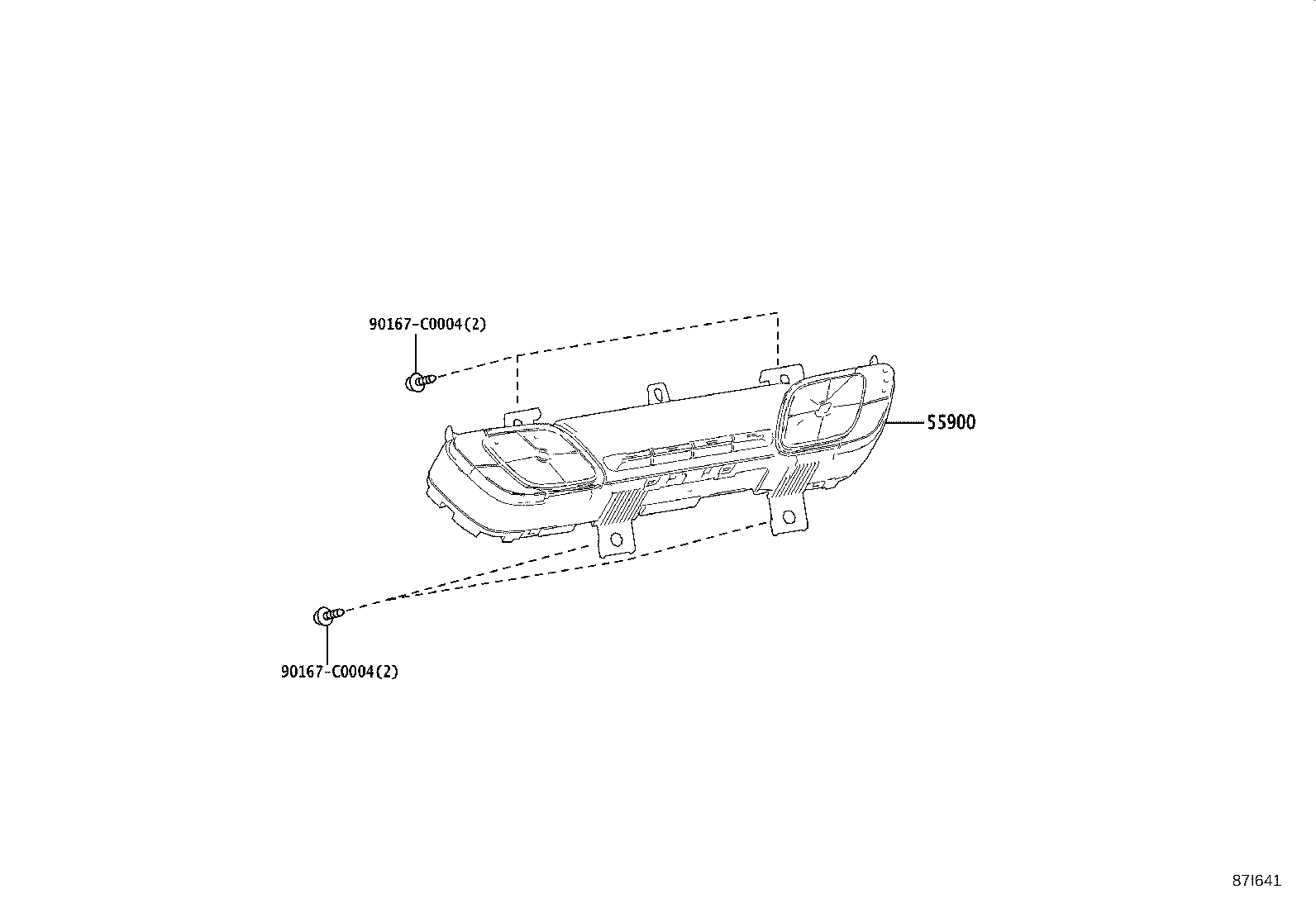

HEATER CONTROL PANEL

diagram 55900 90167C0004 90167C0004
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-F4270

KPX10

 1
Common parts
90167-C0004

ILLUST NO. 2 OF 3(2005- )

Click highlighted areas on diagram

AIR DUCT

diagram 55084E 55085 55086 55086 55950G 55990B 87211 87211A 87212 87212F 87212G 87212H 87220 8724 90119C0074 90159C0008 90167C0004 90167C0004 90167C0004 90178C0011 90182C0015
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-F4080

KPX10

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-F4060

KPX10

 1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-F4100

KPX10..D,N

 1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-F4100

KPX10..D,N

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-F4060

KPX10

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-F4050

KPX10

 1
87211 - DUCT, AIR, NO.1
87211-F4130

KPX10

 1
87211A - DUCT, AIR, NO.2
87211-F4140

KPX10

 1
87212 - DUCT, AIR, REAR NO.1
87215-F4040

KPX10

 1
87212F - DUCT, AIR, REAR NO.2
87213-F4050

KPX10

 1
87212G - DUCT, AIR, REAR NO.3
87212-F4050

KPX10

 1
87212H - DUCT, AIR, REAR NO.4
87413-F4040

KPX10

 1
87220 - DUCT ASSY, AIR
87220-F4050

KPX10

 1
Common parts
90119-C0074
90159-C0008
90167-C0004
90178-C0011
90182-C0015
Linked diagrams
8724

ILLUST NO. 3 OF 3(2005- )

Click highlighted areas on diagram

SENSOR

diagram 8401 88625Q 88790B 88897P
Part # Description Qty Price
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

KPX10

 1
88790B - THERMISTOR ASSY
88790-28100

KPX10

 1
88897P - ASPIRATOR
88505-F4060

KPX10

 1
Linked diagrams
8401
