KPX10L-EHDNSC (2020)
Toyota C-Hr(China)

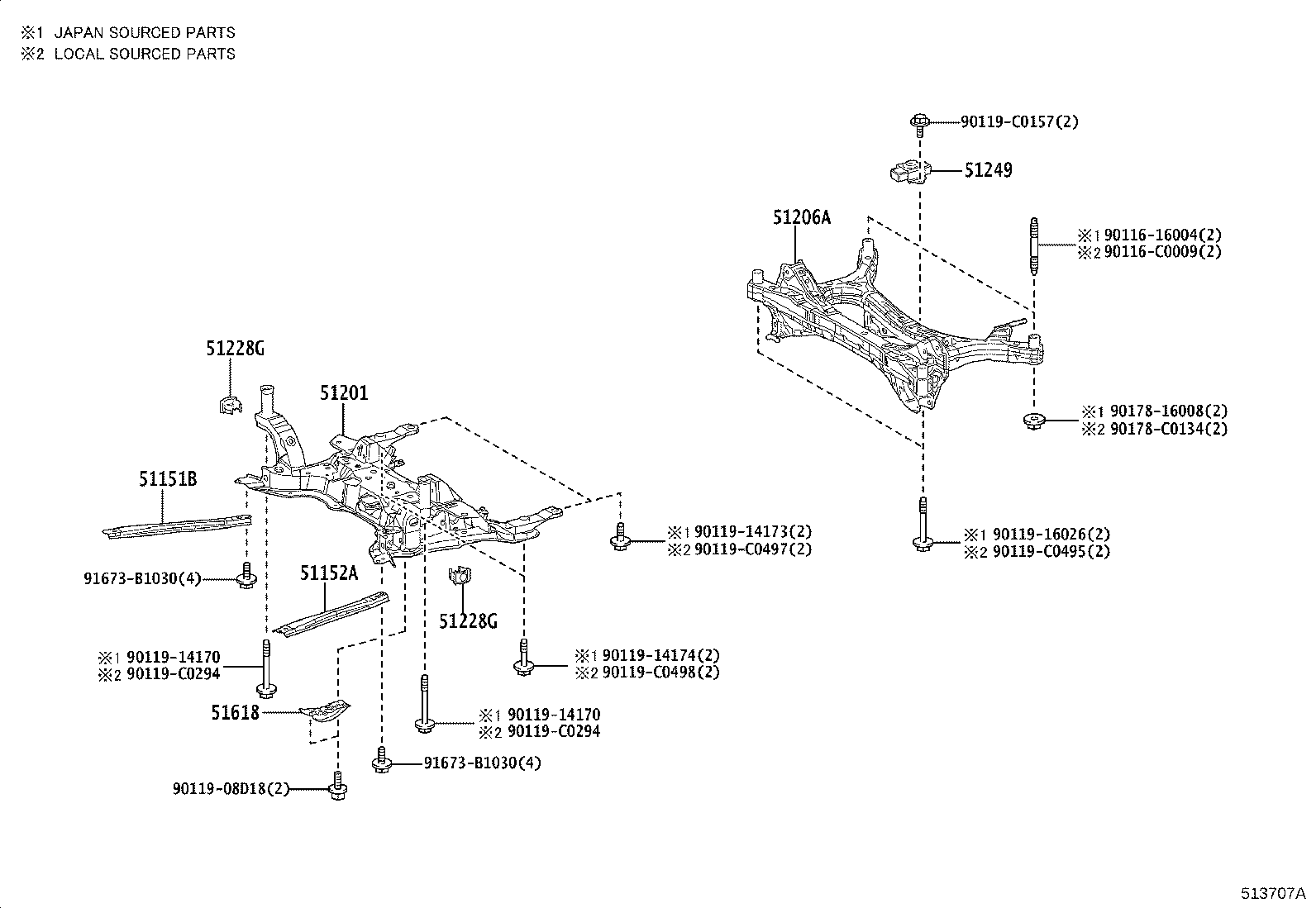

ILLUST NO. 1 OF 2(2005- )
SUSPENSION CROSSMEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51151B - REINFORCEMENT, SIDE RAIL, NO.1 RH | ||||
| 51151-F4030 |
KPX10 |
1 | ||
| 51152A - REINFORCEMENT, SIDE RAIL, NO.1 LH | ||||
| 51151-F4030 |
KPX10 |
1 | ||
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-F4061 |
KPX10 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-F4070 |
KPX10 |
1 | ||
| 51228G - PLATE, FRONT SUSPENSION MEMBER | ||||
| 51228-F4040 |
KPX10 |
2 | ||
| 51228G - PLATE, FRONT SUSPENSION MEMBER | ||||
| 51228-F4040 |
KPX10 |
2 | ||
| 51249 - DAMPER, REAR SUSPENSION MEMBER | ||||
| 51249-F4030 |
KPX10 |
1 | ||
| 51618 - GUARD, FRONT DIFFERENTIAL SUPPORT, LH | ||||
| 51618-F4020 |
KPX10 |
1 | ||
| Common parts | ||||
| 90116-16004 | ||||
| 90116-C0009 | ||||
| 90119-08D18 | ||||
| 90119-14170 | ||||
| 90119-14173 | ||||
| 90119-14174 | ||||
| 90119-16026 | ||||
| 90119-C0157 | ||||
| 90119-C0294 | ||||
| 90119-C0495 | ||||
| 90119-C0497 | ||||
| 90119-C0498 | ||||
| 90178-16008 | ||||
| 90178-C0134 | ||||
| 91673-B1030 | ||||

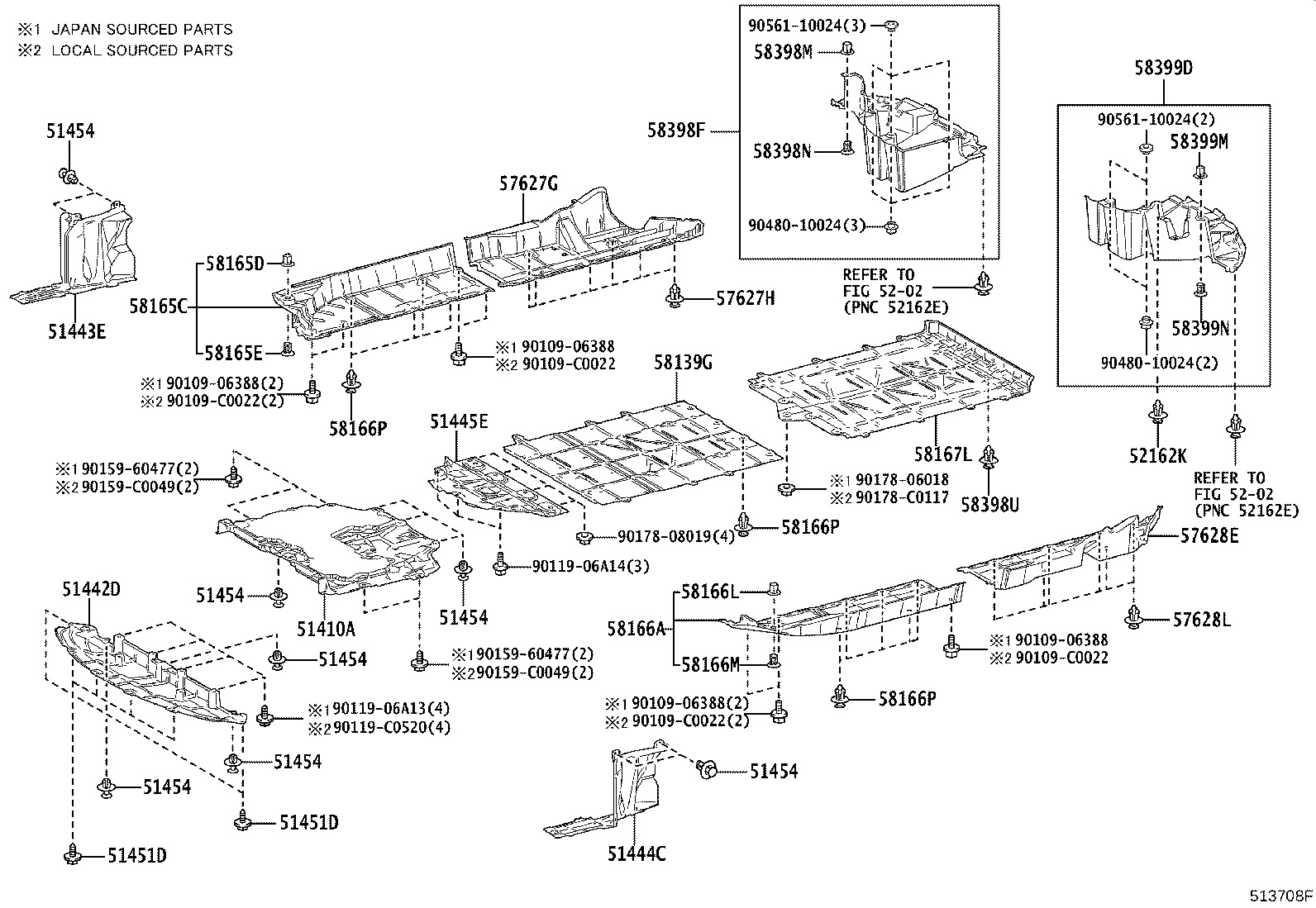

ILLUST NO. 2 OF 2(2005- )
UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51410A - COVER ASSY, MOTOR UNDER, NO.1 | ||||
| 51410-F4090 |
KPX10 |
1 | ||
| 51442D - COVER, MOTOR UNDER, NO.2 | ||||
| 51420-F4050 |
KPX10 |
1 | ||
| 51443E - COVER, MOTOR UNDER, REAR RH | ||||
| 51443-F4040 |
KPX10 |
1 | ||
| 51444C - COVER, MOTOR UNDER, REAR LH | ||||
| 51444-F4040 |
KPX10 |
1 | ||
| 51445E - BRACKET, MOTOR UNDER COVER | ||||
| 51445-F4020 |
KPX10 |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60477 |
KPX10 (J) |
6 | ||
| 90159-C0049 |
KPX10 (L) |
6 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60477 |
KPX10 (J) |
6 | ||
| 90159-C0049 |
KPX10 (L) |
6 | ||
| 51454 - CLIP | ||||
| 90467-07214 |
KPX10 NO.2:REFER ILLUST. |
2 | ||
| 90467-07220 |
KPX10 (J),NO.1:REFER ILL. |
4 | ||
| 90467-C0043 |
KPX10 (L),NO.1:REFER ILL. |
4 | ||
| 51454 - CLIP | ||||
| 90467-07214 |
KPX10 NO.2:REFER ILLUST. |
2 | ||
| 90467-07220 |
KPX10 (J),NO.1:REFER ILL. |
4 | ||
| 90467-C0043 |
KPX10 (L),NO.1:REFER ILL. |
4 | ||
| 51454 - CLIP | ||||
| 90467-07214 |
KPX10 NO.2:REFER ILLUST. |
2 | ||
| 90467-07220 |
KPX10 (J),NO.1:REFER ILL. |
4 | ||
| 90467-C0043 |
KPX10 (L),NO.1:REFER ILL. |
4 | ||
| 51454 - CLIP | ||||
| 90467-07214 |
KPX10 NO.2:REFER ILLUST. |
2 | ||
| 90467-07220 |
KPX10 (J),NO.1:REFER ILL. |
4 | ||
| 90467-C0043 |
KPX10 (L),NO.1:REFER ILL. |
4 | ||
| 51454 - CLIP | ||||
| 90467-07214 |
KPX10 NO.2:REFER ILLUST. |
2 | ||
| 90467-07220 |
KPX10 (J),NO.1:REFER ILL. |
4 | ||
| 90467-C0043 |
KPX10 (L),NO.1:REFER ILL. |
4 | ||
| 51454 - CLIP | ||||
| 90467-07214 |
KPX10 NO.2:REFER ILLUST. |
2 | ||
| 90467-07220 |
KPX10 (J),NO.1:REFER ILL. |
4 | ||
| 90467-C0043 |
KPX10 (L),NO.1:REFER ILL. |
4 | ||
| 51454 - CLIP | ||||
| 90467-07214 |
KPX10 NO.2:REFER ILLUST. |
2 | ||
| 90467-07220 |
KPX10 (J),NO.1:REFER ILL. |
4 | ||
| 90467-C0043 |
KPX10 (L),NO.1:REFER ILL. |
4 | ||
| 52162K - PIECE, REAR BUMPER | ||||
| 52161-02040 |
KPX10 (L) |
1 | ||
| 52161-16010 |
KPX10 (J) |
1 | ||
| 57627G - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-76040 |
KPX10 (J) |
1 | ||
| 57627-F4070 |
KPX10 (L) |
1 | ||
| 57627-F4070 |
KPX10 |
1 | ||
| 57627H - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1 | ||||
| 90467-C0043 |
KPX10 (L) |
6 | ||
| 90467-07220 |
KPX10 (J) |
6 | ||
| 57628E - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-F4070 |
KPX10 (L) |
1 | ||
| 57628-76060 |
KPX10 (J) |
1 | ||
| 57628-F4070 |
KPX10 |
1 | ||
| 57628L - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1 | ||||
| 90467-07220 |
KPX10 (J) |
6 | ||
| 90467-C0043 |
KPX10 (L) |
6 | ||
| 58139G - COVER, FRONT FLOOR | ||||
| 58139-F4020 |
KPX10 (L) |
1 | ||
| 58139-76010 |
KPX10 (J) |
1 | ||
| 58139-F4020 |
KPX10 |
1 | ||
| 58165C - COVER, FRONT FLOOR, RH | ||||
| 58165-F4090 |
KPX10 (L) |
1 | ||
| 58165-76040 |
KPX10 (J) |
1 | ||
| 58165-F4090 |
KPX10 |
1 | ||
| 58165D - CLIP, FLOOR COVER | ||||
| 90467-17026A0 |
KPX10 SUPER WHITE 2 |
1 | ||
| 58165E - CLIP, FLOOR COVER | ||||
| 90467-17027C0 |
KPX10 BLACK |
1 | ||
| 58166A - COVER, FRONT FLOOR, LH | ||||
| 58166-F4080 |
KPX10 |
1 | ||
| 58166-76030 |
KPX10 (J) |
1 | ||
| 58166-F4080 |
KPX10 (L) |
1 | ||
| 58166L - CLIP, FRONT FLOOR COVER, NO.1 | ||||
| 90467-17026A0 |
KPX10 SUPER WHITE 2 |
1 | ||
| 58166M - CLIP, FRONT FLOOR COVER, NO.2 | ||||
| 90467-17027C0 |
KPX10 BLACK |
1 | ||
| 58166P - CLIP, FRONT FLOOR COVER | ||||
| 90467-07220 |
KPX10 (J) |
5 | ||
| 90467-C0043 |
KPX10 (L) |
5 | ||
| 58166P - CLIP, FRONT FLOOR COVER | ||||
| 90467-07220 |
KPX10 (J) |
5 | ||
| 90467-C0043 |
KPX10 (L) |
5 | ||
| 58166P - CLIP, FRONT FLOOR COVER | ||||
| 90467-07220 |
KPX10 (J) |
5 | ||
| 90467-C0043 |
KPX10 (L) |
5 | ||
| 58167L - COVER, FLOOR UNDER, NO.3 | ||||
| 58167-76030 |
KPX10 TYPE A:REFER ILLUST. |
1 | ||
| 58167-F4020 |
KPX10 TYPE B:REFER ILLUST. |
1 | ||
| 58398F - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-F4060 |
KPX10 |
1 | ||
| 58398M - CLIP, FLOOR UNDER COVER, NO.1 | ||||
| 90467-17026A0 |
KPX10 SUPER WHITE 2 |
1 | ||
| 58398N - CLIP, FLOOR UNDER COVER, NO.2 | ||||
| 90467-17027C0 |
KPX10 BLACK |
1 | ||
| 58398U - CLIP, FLOOR UNDER COVER, NO.3 | ||||
| 90467-07220 |
KPX10 (J) |
10 | ||
| 90467-C0043 |
KPX10 (L) |
10 | ||
| 58399D - COVER, FLOOR UNDER, NO.2 | ||||
| 58399-F4060 |
KPX10 |
1 | ||
| 58399M - CLIP, FLOOR UNDER COVER, NO.1 | ||||
| 90467-17026A0 |
KPX10 SUPER WHITE 2 |
1 | ||
| 58399N - CLIP, FLOOR UNDER COVER, NO.2 | ||||
| 90467-17027C0 |
KPX10 BLACK |
1 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90109-C0022 | ||||
| 90119-06A13 | ||||
| 90119-06A14 | ||||
| 90119-C0520 | ||||
| 90159-60477 | ||||
| 90159-C0049 | ||||
| 90178-06018 | ||||
| 90178-08019 | ||||
| 90178-C0117 | ||||
| 90480-10024 | ||||
| 90561-10024 | ||||
| Linked diagrams | ||||
| 5202 | ||||
