KPX10L-EHDDSC (2020)

Toyota C-Hr(China)

Production May 2020 - Sep 9999
Engine 4KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2005- )

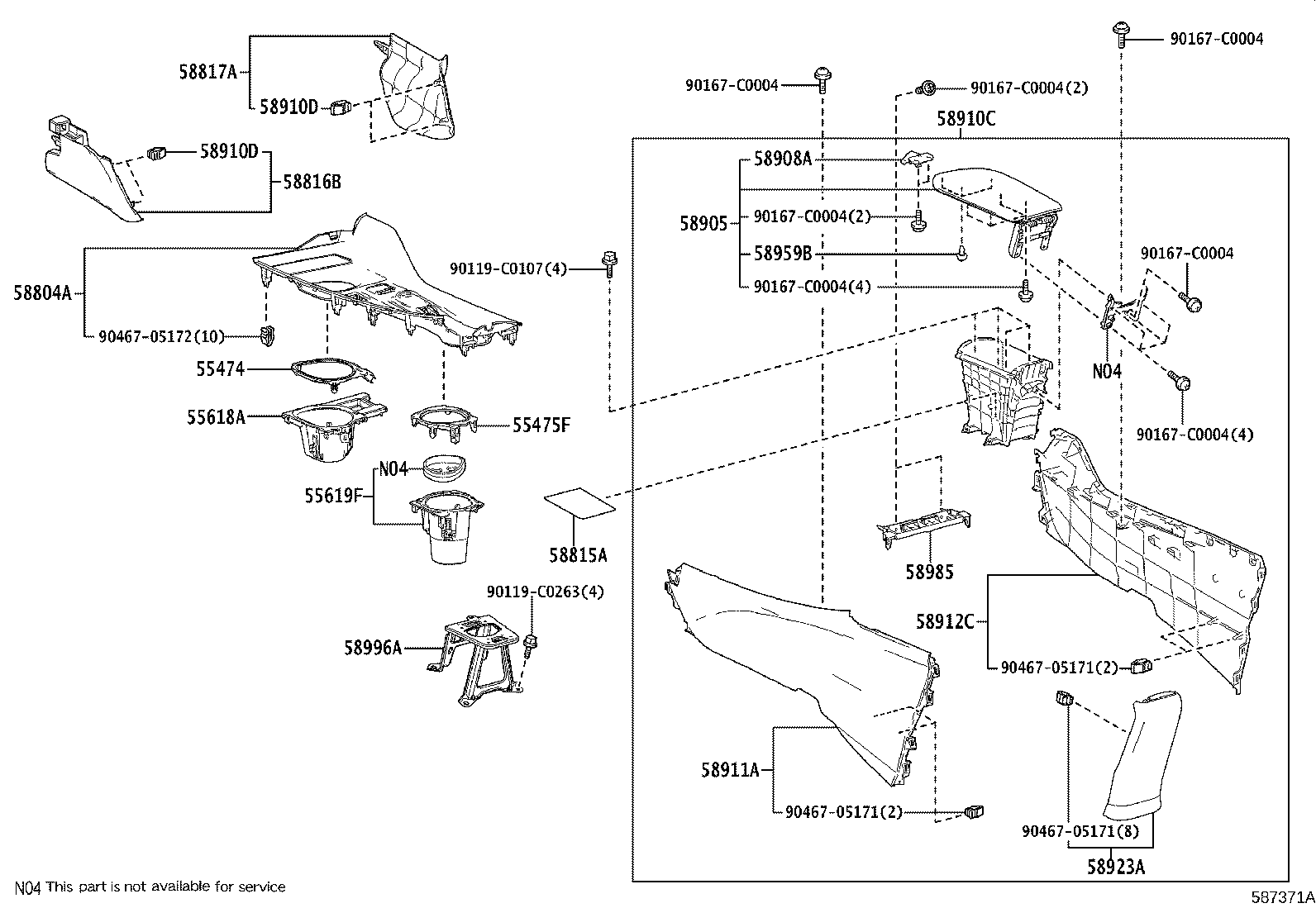

Click highlighted areas on diagram

diagram 55474 55475F 55618A 55619F 58804A 58815A 58816B 58817A 58905 58908A 58910C 58910D 58910D 58911A 58912C 58923A 58959B 58985 58996A 90119C0107 90119C0263 90167C0004 90167C0004 90167C0004 90167C0004 90167C0004 90167C0004 90167C0004 9046705171 9046705171 9046705171 9046705172
Part # Description Qty Price
55474 - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER
55474-F4080

KPX10..D

 1
55475F - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER NO.2
55475-F4080

KPX10..D

 1
55618A - HOLDER, CONSOLE BOX CUP
55618-F4060

KPX10

 1
55619F - HOLDER, CONSOLE BOX CUP, NO.2
55619-F4080

KPX10

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-F4210

KPX10..D

 1
58815A - CARPET, CONSOLE BOX
58815-F4030

KPX10

 1
58816B - INSERT, CONSOLE BOX
58816-F4040C0

KPX10..D,N

BLACK,TRIM2#

 1
58817A - INSERT, CONSOLE BOX, FRONT NO.2
58817-F4040C0

KPX10..D,N

BLACK,TRIM2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-F4050C0

KPX10..D

BLACK,TRIM2#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-F4040

KPX10

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-F4030C2

KPX10..D

BLACK,TRIM2#

 1
58910D - CLIP(FOR CONSOLE BOX)
90467-05172

KPX10

 4
58910D - CLIP(FOR CONSOLE BOX)
90467-05172

KPX10

 4
58911A - PANEL, BOX SIDE, NO.1
58911-F4070C0

KPX10..D,N

BLACK,TRIM2#

 1
58912C - PANEL, BOX SIDE, NO.2
58912-F4070C0

KPX10..D,N

BLACK,TRIM2#

 1
58923A - PANEL, CONSOLE REAR END
58923-F4050C0

KPX10..D,N

BLACK,TRIM2#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-35010

KPX10

 3
58985 - RETAINER, CONSOLE BOX
58985-F4040

KPX10

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-F4060

KPX10

 1
Common parts
90119-C0107
90119-C0263
90167-C0004
90467-05171
90467-05172
