KPX10L-EHDDSC (2020)

Toyota C-Hr(China)

Production May 2020 - Sep 9999
Engine 4KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

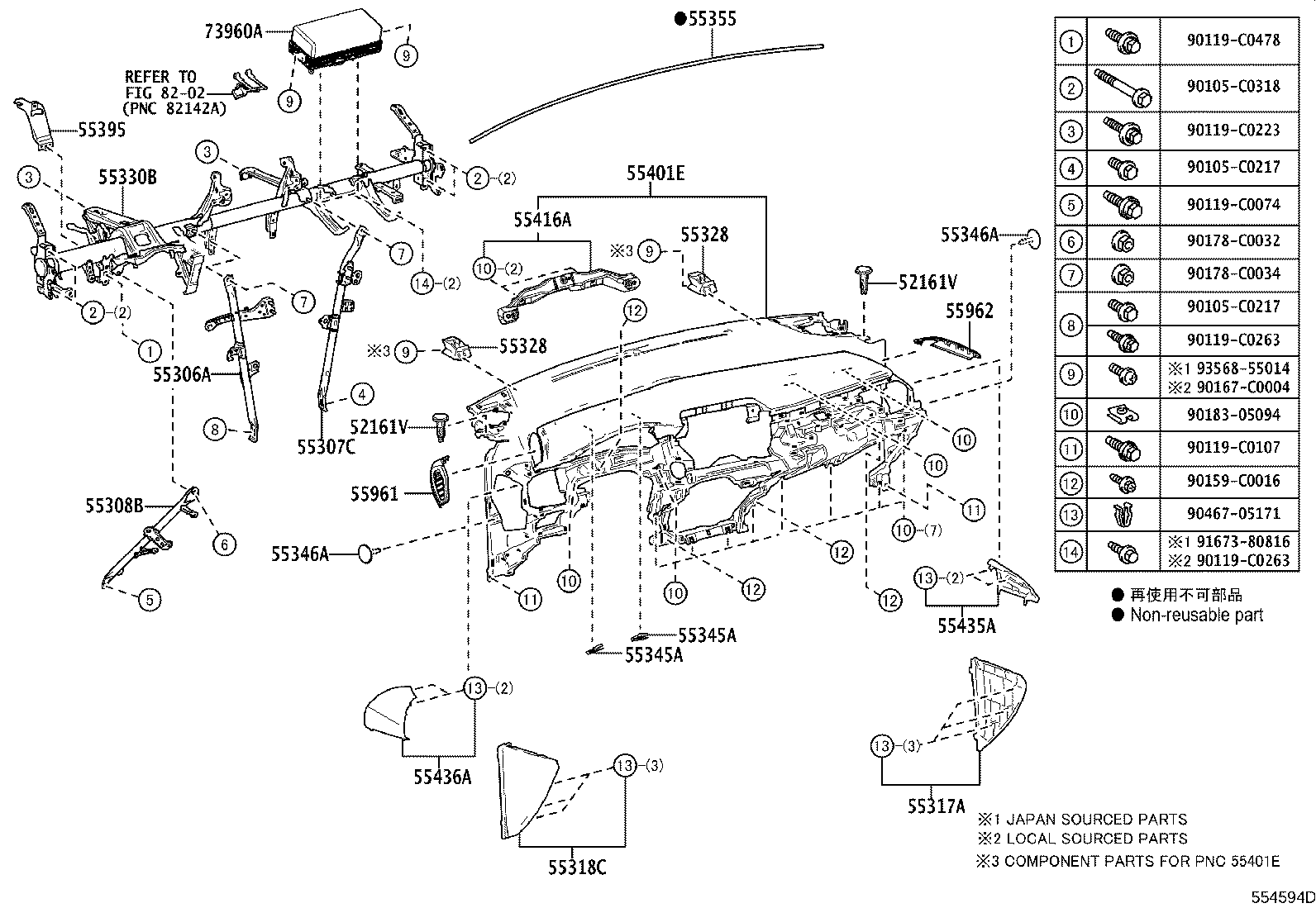

ILLUST NO. 1 OF 2(2005- )

Click highlighted areas on diagram

diagram 52161V 52161V 55306A 55307C 55308B 55317A 55318C 55328 55328 55330B 55345A 55345A 55346A 55346A 55355 55395 55401E 55416A 55435A 55436A 55961 55962 73960A 8202 90105C0217 90105C0217 90105C0318 90119C0074 90119C0107 90119C0223 90119C0263 90119C0263 90119C0478 90159C0016 90167C0004 90178C0032 90178C0034 9018305094 9046705171 9167380816 9356855014
Part # Description Qty Price
52161V - PIECE, INSTRUMENT PANEL
52161-02040

KPX10

 2
52161V - PIECE, INSTRUMENT PANEL
52161-02040

KPX10

 2
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-F4120

KPX10

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-F4060

KPX10

 1
55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55308-F4090

KPX10

 1
55317A - PANEL, INSTRUMENT SIDE, RH
55317-F4040C0

KPX10..D,N

BLACK,TRIM2#

 1
55318C - PANEL, INSTRUMENT SIDE, LH
55318-F4040C0

KPX10..D,N

BLACK,TRIM2#

 1
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-F4080

KPX10

 2
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-F4080

KPX10

 2
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-F4100

KPX10

 1
55345A - CLIP, INSTRUMENT PANEL, NO.1
55345-12060

KPX10

 2
55345A - CLIP, INSTRUMENT PANEL, NO.1
55345-12060

KPX10

 2
55346A - CLIP, INSTRUMENT PANEL, NO.2
90467-C0077C0

KPX10

BLACK,(L)

 2
90467-05161C9

KPX10

BLACK

 2
90467-05161C9

KPX10

BLACK,(J)

 2
55346A - CLIP, INSTRUMENT PANEL, NO.2
90467-C0077C0

KPX10

BLACK,(L)

 2
90467-05161C9

KPX10

BLACK

 2
90467-05161C9

KPX10

BLACK,(J)

 2
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-F4030

KPX10

 1
55395 - BRACKET, INSTRUMENT PANEL TO PEDAL
55395-F4060

KPX10

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-F4130C0

KPX10..D

AUDIO-RADIO LESS & WITH(COVER),BLACK,TRIM2#

 1
55401-F4140C2

KPX10..D

BLACK,TRIM2#

 1
55416A - RETAINER, METER HOOD, NO.1
55416-F4060

KPX10

 1
55435A - PANEL, INSTRUMENT PANEL FINISH, END RH
55435-F4030C0

KPX10..D,N

BLACK,TRIM2#

 1
55436A - PANEL, INSTRUMENT PANEL FINISH, END LH
55436-F4030C0

KPX10..D,N

BLACK,TRIM2#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-F4040C0

KPX10..D,N

BLACK,TRIM2#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-F4040C0

KPX10..D,N

BLACK,TRIM2#

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-F4060

KPX10

 1
Common parts
90105-C0217
90105-C0318
90119-C0074
90119-C0107
90119-C0223
90119-C0263
90119-C0478
90159-C0016
90167-C0004
90178-C0032
90178-C0034
90183-05094
90467-05171
91673-80816
93568-55014
Linked diagrams
8202

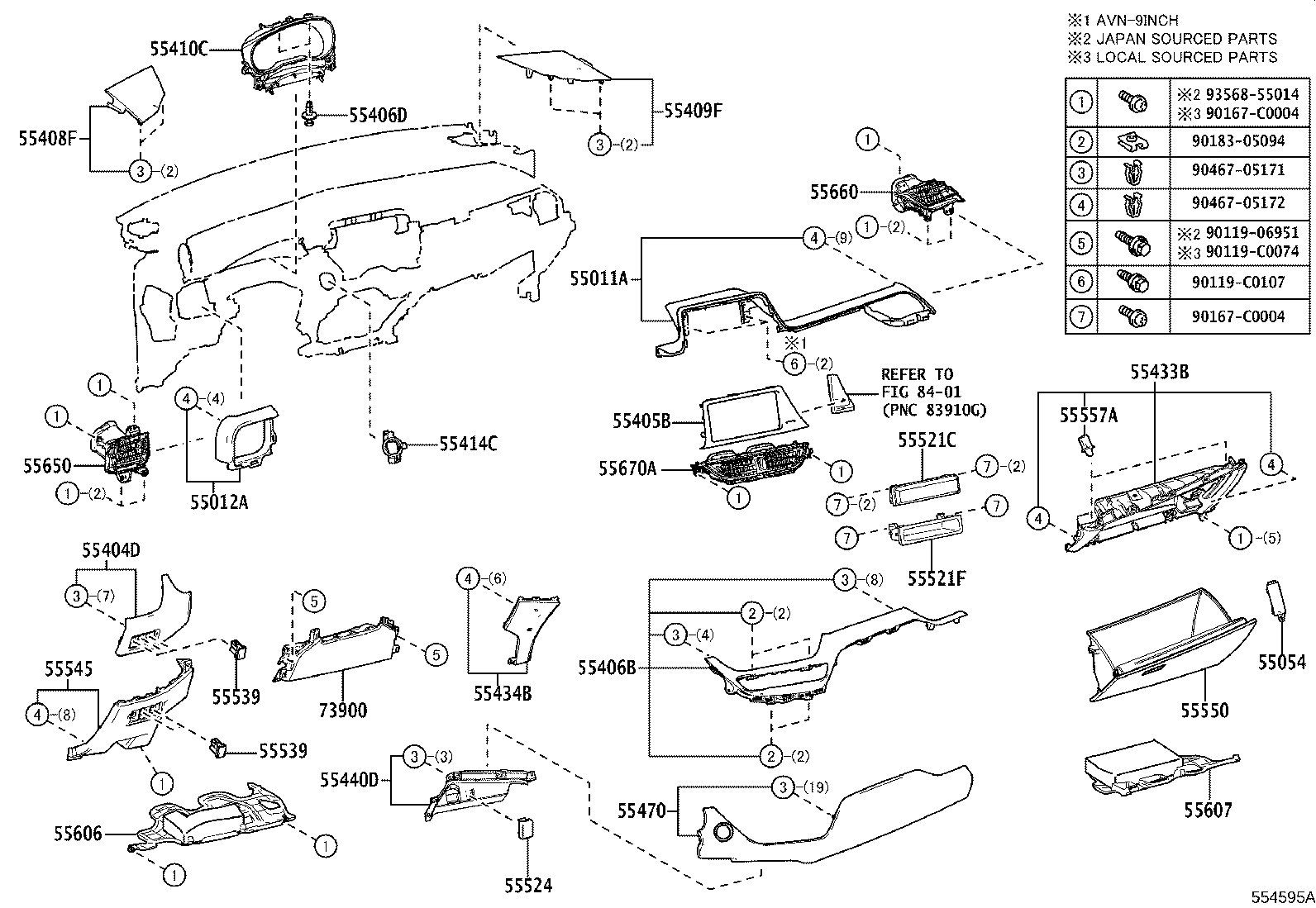

ILLUST NO. 2 OF 2(2005- )

Click highlighted areas on diagram

diagram 55011A 55012A 55054 55404D 55405B 55406B 55406D 55408F 55409F 55410C 55414C 55433B 55434B 55440D 55470 55521C 55521F 55524 55539 55539 55545 55550 55557A 55606 55607 55650 55660 55670A 73900 8401 9011906951 90119C0074 90119C0107 90167C0004 90167C0004 9018305094 9046705171 9046705172 9356855014
Part # Description Qty Price
55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1
55011-F4070B1

KPX10..D

GUN METAL,TRIM2#

 1
55011-F4080B0

KPX10..D

AUDIO-RADIO LESS & WITH(COVER),GUN METAL,TRIM2#

 1
55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2
55012-F4050B0

KPX10..D

GUN METAL,TRIM2#

 1
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-47010

KPX10

 1
55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55404-F4070C0

KPX10..D,N

BLACK,TRIM2#

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-F4170

KPX10..D

AUDIO-RADIO LESS & WITH(COVER)

 1
55405-F4180

KPX10

 1
55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
55406-F4050

KPX10

 1
55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH)
90467-06165C3

KPX10

BLACK,(J)

 2
90467-06165C3

KPX10

BLACK

 2
90467-C0014C1

KPX10

BLACK,(L)

 2
55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55408-F4040C0

KPX10..D,N

BLACK,TRIM2#

 1
55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55409-F4050C0

KPX10..D,N

BLACK,TRIM2#

 1
55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH
55410-F4070

KPX10

 1
55414C - BEZEL, STARTER SWITCH
55414-F4080

KPX10

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-F4050C0

KPX10..D,N

BLACK,TRIM2#

 1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-F4070C0

KPX10..D,N

BLACK,TRIM2#

 1
55440D - BOX ASSY, INSTRUMENT PANEL
55440-F4060

KPX10

 1
55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL
55470-F4080C0

KPX10..D,N

BLACK,TRIM2#

 1
55521C - COVER, STEREO OPENING
55521-12190

KPX10..D

AUDIO-RADIO LESS & WITH(COVER)

 1
55521F - COVER, STEREO OPENING, NO.2
55521-52020

KPX10..D

AUDIO-RADIO LESS & WITH(COVER)

 1
55524 - COVER, SWITCH BACE HOLE
55524-12010C0

KPX10..D

AUDIO-RADIO LESS & WITH(COVER),BLACK,TRIM2#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-0E060

KPX10

 1
55539 - COVER, SPARE SWITCH HOLE
55539-0E060

KPX10

 1
55545 - COVER, FUSE BOX OPENING
55545-F4060C0

KPX10..D,N

BLACK,TRIM2#

 1
55550 - DOOR ASSY, GLOVE COMPARTMENT
55550-F4060C0

KPX10..D,N

BLACK,TRIM2#

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-10040

KPX10

 2
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55606-F4080

KPX10

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-F4080

KPX10

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-F4060

KPX10

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-F4050

KPX10

 1
55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER
55670-F4050

KPX10

 1
73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73900-F4040C0

KPX10..D,N

BLACK,TRIM2#

 1
Common parts
90119-06951
90119-C0074
90119-C0107
90167-C0004
90183-05094
90467-05171
90467-05172
93568-55014
Linked diagrams
8401
