LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

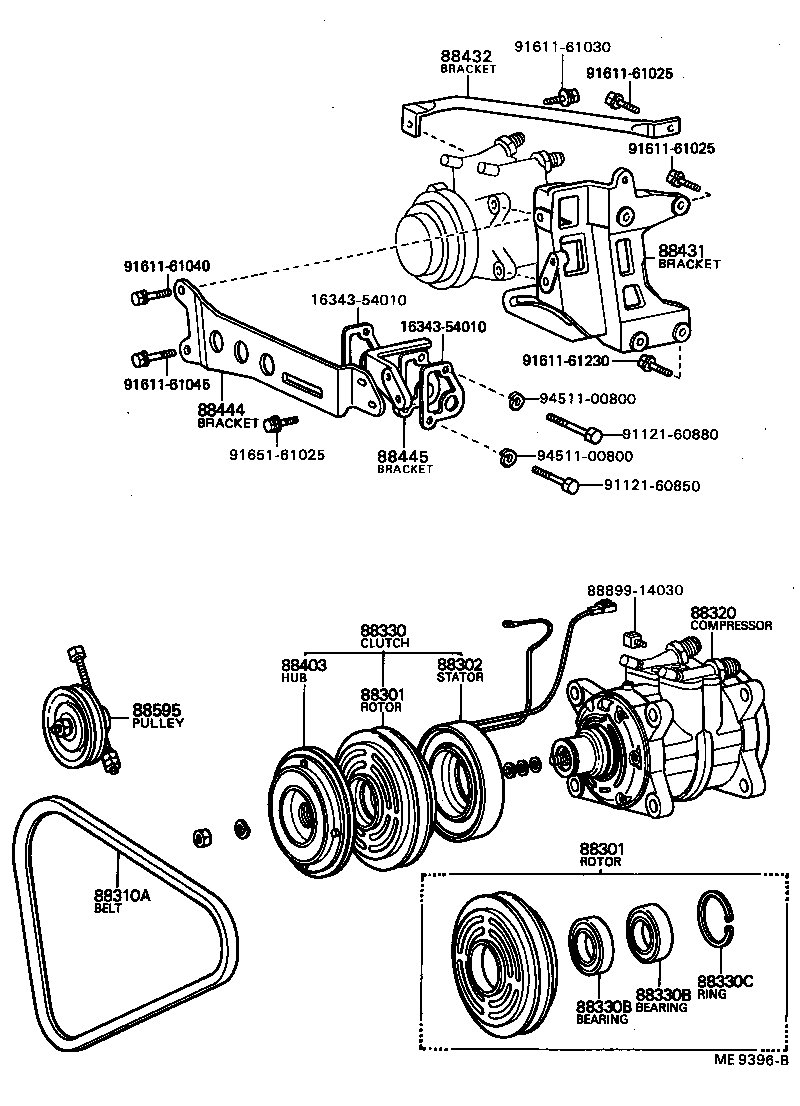

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-14010 |
LD10 |
1 | ||
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-14010 |
LD10 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
LD10 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-01360 |
LD10 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-87602 |
LD10 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-14090 |
LD10 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
LD10 |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
LD10 |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07114 |
LD10 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14030 |
LD10 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-25020 |
LD10 |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88433-25020 |
LD10 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-26040 |
LD10 |
1 | ||
| 88445 - BRACKET, IDLE PULLEY | ||||
| 88444-26050 |
LD10 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-26030 |
LD10 |
1 | ||
| Common parts | ||||
| 16343-54010 | ||||
| 88899-14030 | ||||
| 91121-60850 | ||||
| 91121-60880 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91611-61040 | ||||
| 91611-61045 | ||||
| 91611-61230 | ||||
| 91651-61025 | ||||
| 94511-00800 | ||||
(8201- )

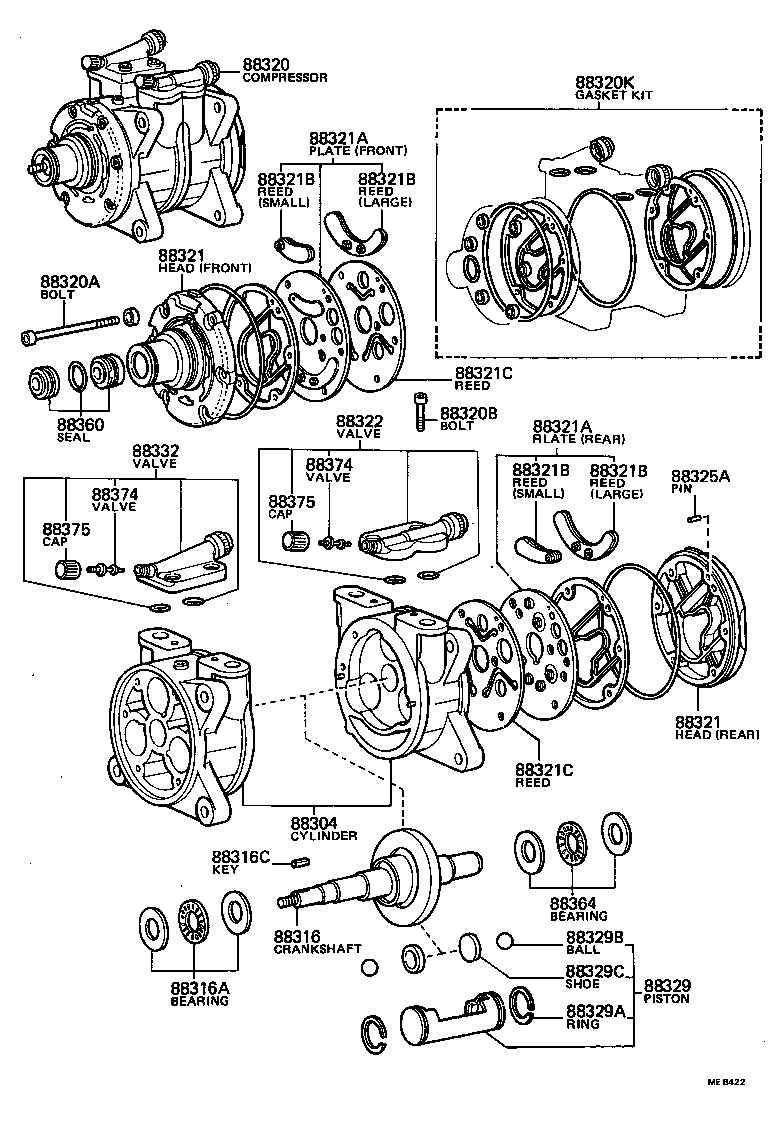

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-12020 |
LD10 |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-12061 |
LD10 |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 90099-10123 |
LD10 |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13019 |
LD10 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-87602 |
LD10 |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04970 |
LD10 |
6 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04924 |
LD10 |
4 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-12020 |
LD10 |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-12031 |
LD10 FR |
1 | ||
| 88322-12010 |
LD10 RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-12031 |
LD10 FR |
1 | ||
| 88322-12010 |
LD10 RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-12040 |
LD10 FR |
1 | ||
| 88306-12010 |
LD10 RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-12040 |
LD10 FR |
1 | ||
| 88306-12010 |
LD10 RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12030 |
LD10 LARGE |
2 | ||
| 88307-12040 |
LD10 SMALL |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12030 |
LD10 LARGE |
2 | ||
| 88307-12040 |
LD10 SMALL |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12030 |
LD10 LARGE |
2 | ||
| 88307-12040 |
LD10 SMALL |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12030 |
LD10 LARGE |
2 | ||
| 88307-12040 |
LD10 SMALL |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-12010 |
LD10 |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-12010 |
LD10 |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-12150 |
LD10 |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
LD10 |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-12040 |
LD10 |
3 | ||
| 88329A - RING, COMPRESSOR PISTON SNAP | ||||
| 88317-12010 |
LD10 |
6 | ||
| 88329B - BALL, PISTON | ||||
| 90099-12010 |
LD10 |
6 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-12060 |
LD10 |
6 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-87610 |
LD10 |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-12071 |
LD10 |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 90099-10123 |
LD10 |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
LD10 |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
LD10 |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
LD10 |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
LD10 |
2 | ||
