LD10RV-KCQ (1982)
Toyota Blizzard
Production
Jan 1982
-
Apr 1984
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

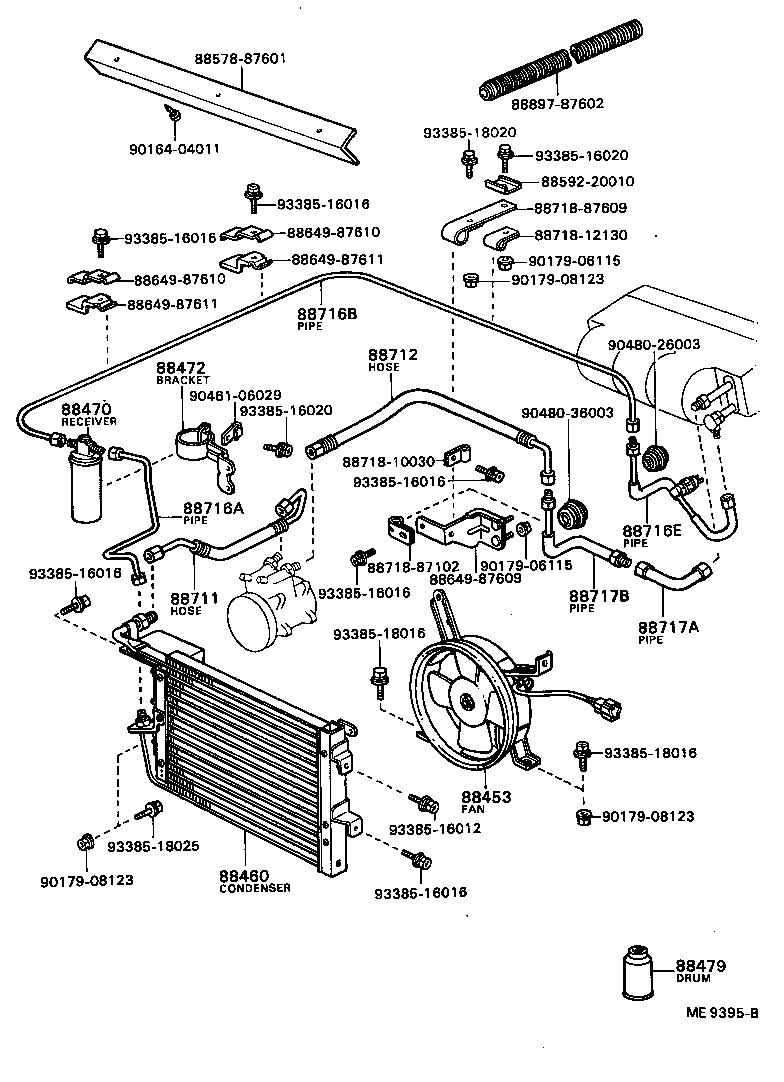

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88454-87607 |
LD10 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-87603 |
LD10 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20070 |
LD10 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-87602 |
LD10 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
LD10 400G |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-87603 |
LD10 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-87604 |
LD10 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-87615 |
LD10 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-87616 |
LD10 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-87617 |
LD10 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-87601 |
LD10 |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-87607 |
LD10 |
1 | ||
| Common parts | ||||
| 88578-87601 | ||||
| 88592-20010 | ||||
| 88649-87609 | ||||
| 88649-87610 | ||||
| 88649-87611 | ||||
| 88718-10030 | ||||
| 88718-12130 | ||||
| 88718-87102 | ||||
| 88718-87609 | ||||
| 88897-87602 | ||||
| 90164-04011 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 90461-06029 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 93385-16012 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
| 93385-18025 | ||||
